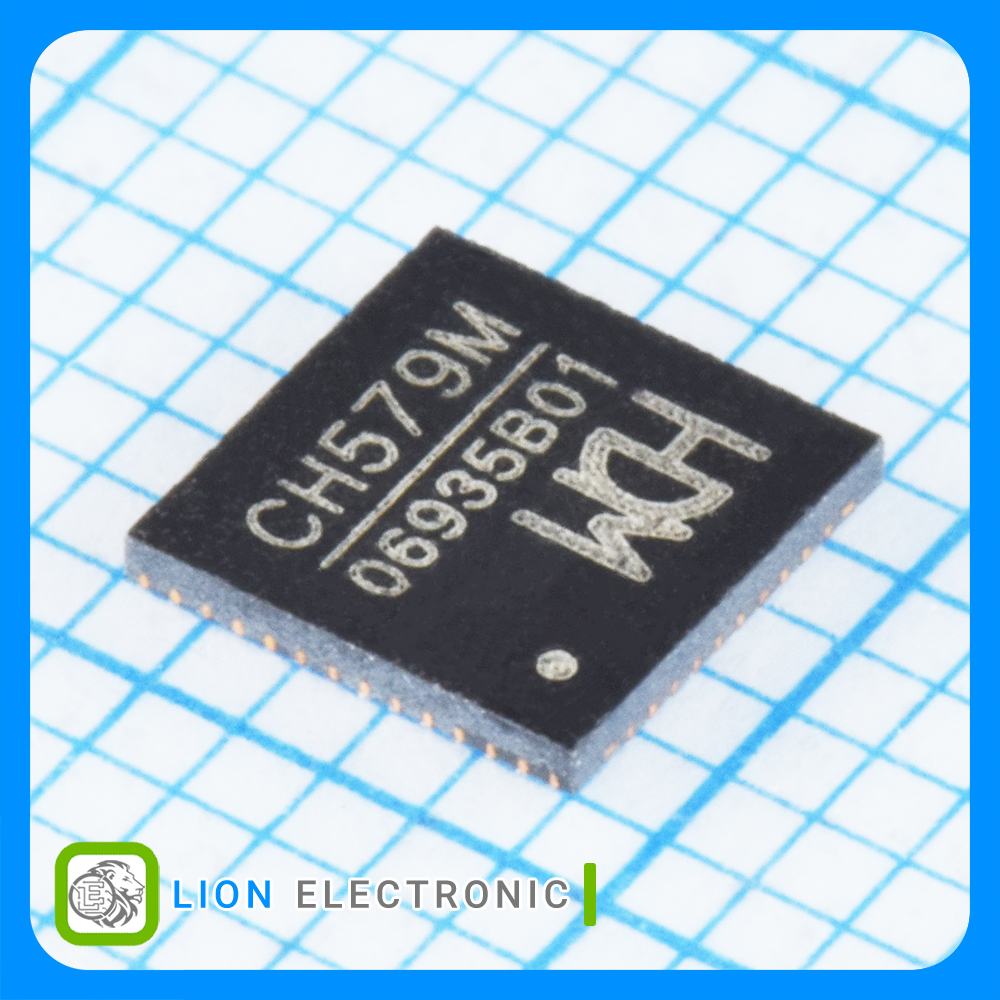

CH579M
CH579M
Part Number
5434
Lion Part
Datasheet
WCH Manufacture
میکروکنترلر ARM 32 بیتی با هسته ARM Cortex M0 40 مگاهرتز 250 کیلوبایت فلش 32 کیلوبایت رم با پکیج QFN-48
ARM 32bit Microcontroller ARM Cortex M0 Core, 40MHz, 250kB Flash, 32kB RAM that integrates BLE wireless communication with QFN-48 Package
معرفی
CH579 is an ARM 32-bit microcontroller that integrates BLE wireless communication. The chip has integrated rich peripheral resources such as Bluetooth Low Energy (BLE) communication module, Ethernet controller and transceiver, full-speed USB host/device controller and transceiver, segment LCD driver module, ADC, TouchKey detection module and RTC, etc.
مشخصات CH579M
CH579M
Part Number
12bit
ADC Resolution
32bit
Data Bus Width
-40C
Minimum Operating Temperature
CH57X
Series
Tray
Packaging
SMD/SMT
Mounting Style
ARM Cortex M0
Core
+85C
Maximum Operating Temperature
40MHz
Maximum Clock Frequency
250kB
Program Memory Size
32
Number of I-Os
32kB
Data RAM Size
2.2 - 3.6V
Operating Supply Voltage
USB, PCM, SPI, UART
Interface Type

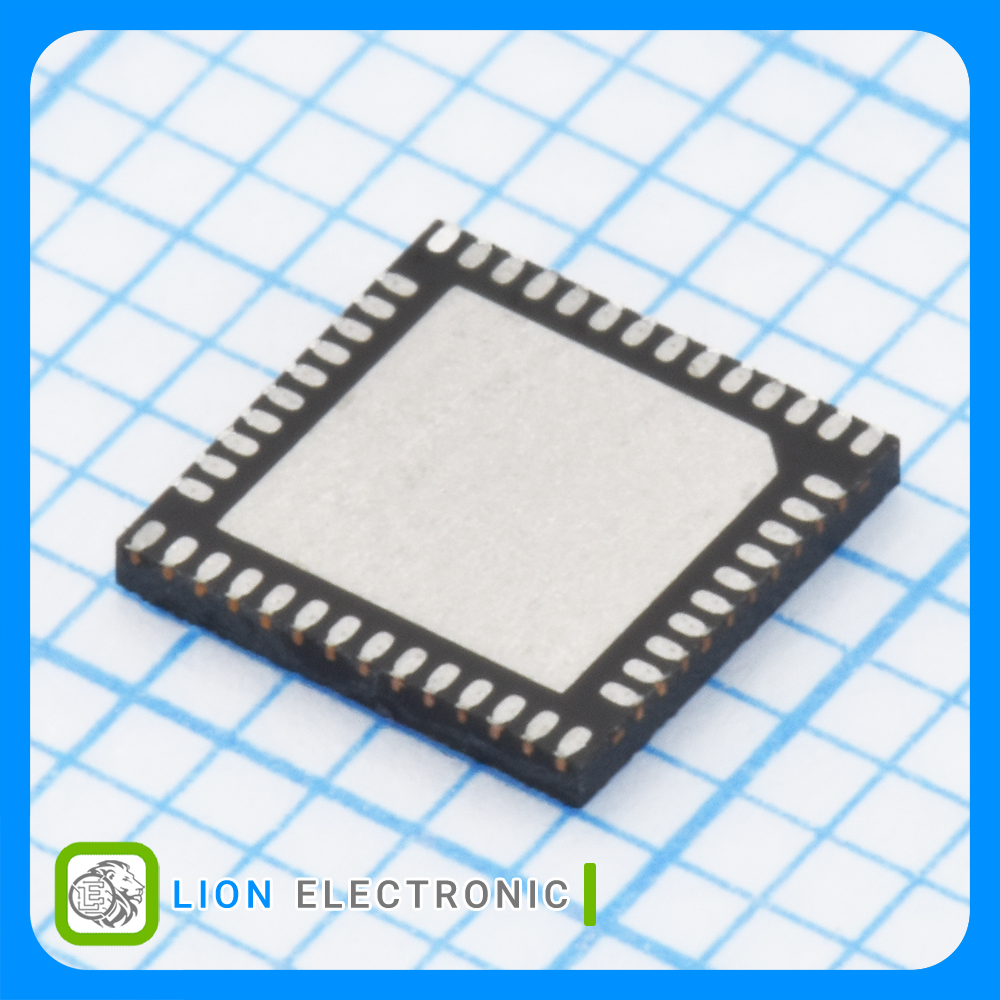

QFN-48
Package-Case
