مقاومت شنت 200 میلیاهم 2 وات تلرانس 1% ضریب دما 50ppm/C سایز 2512

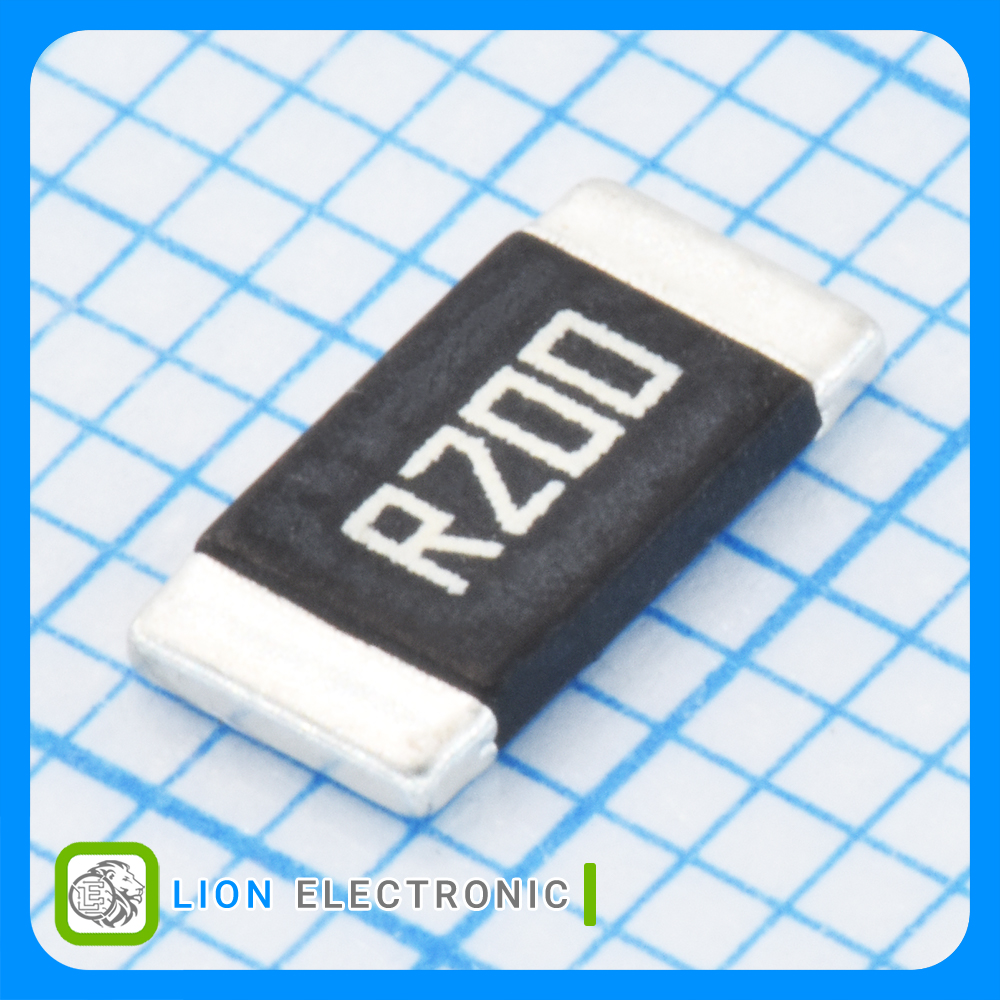

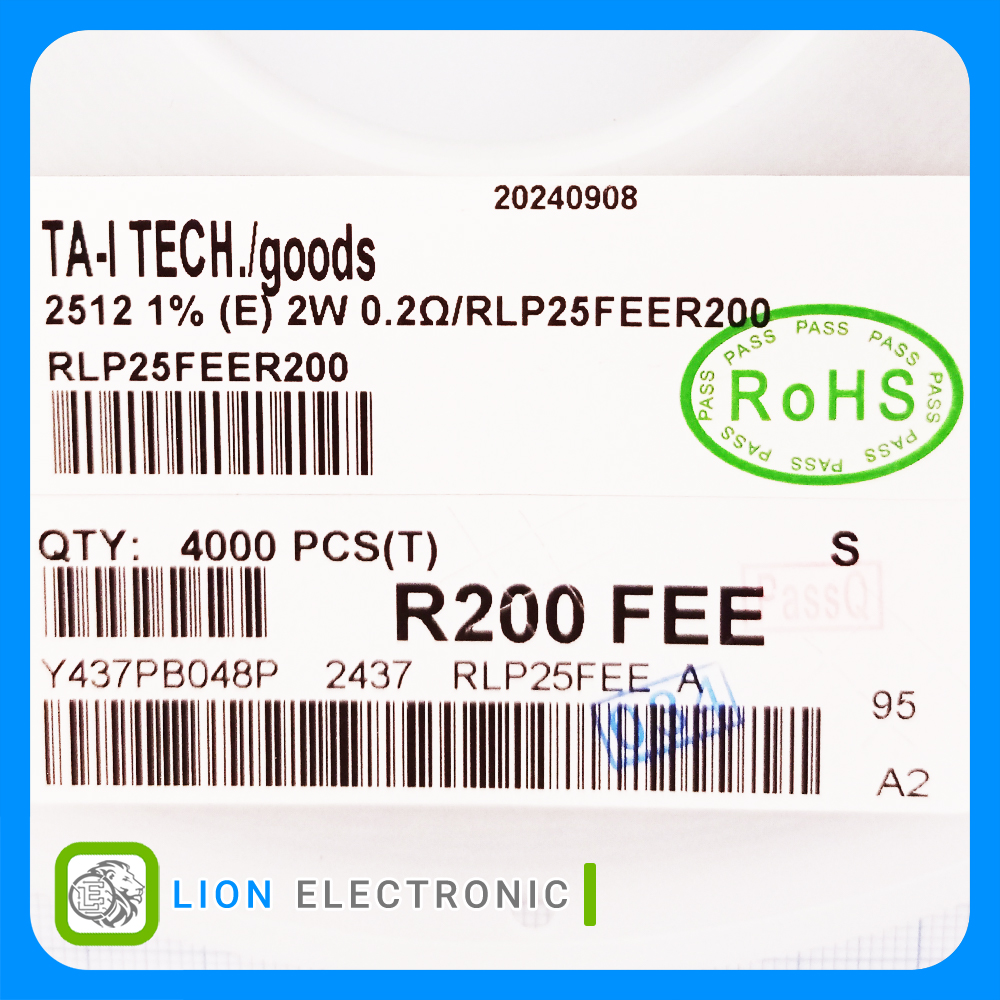

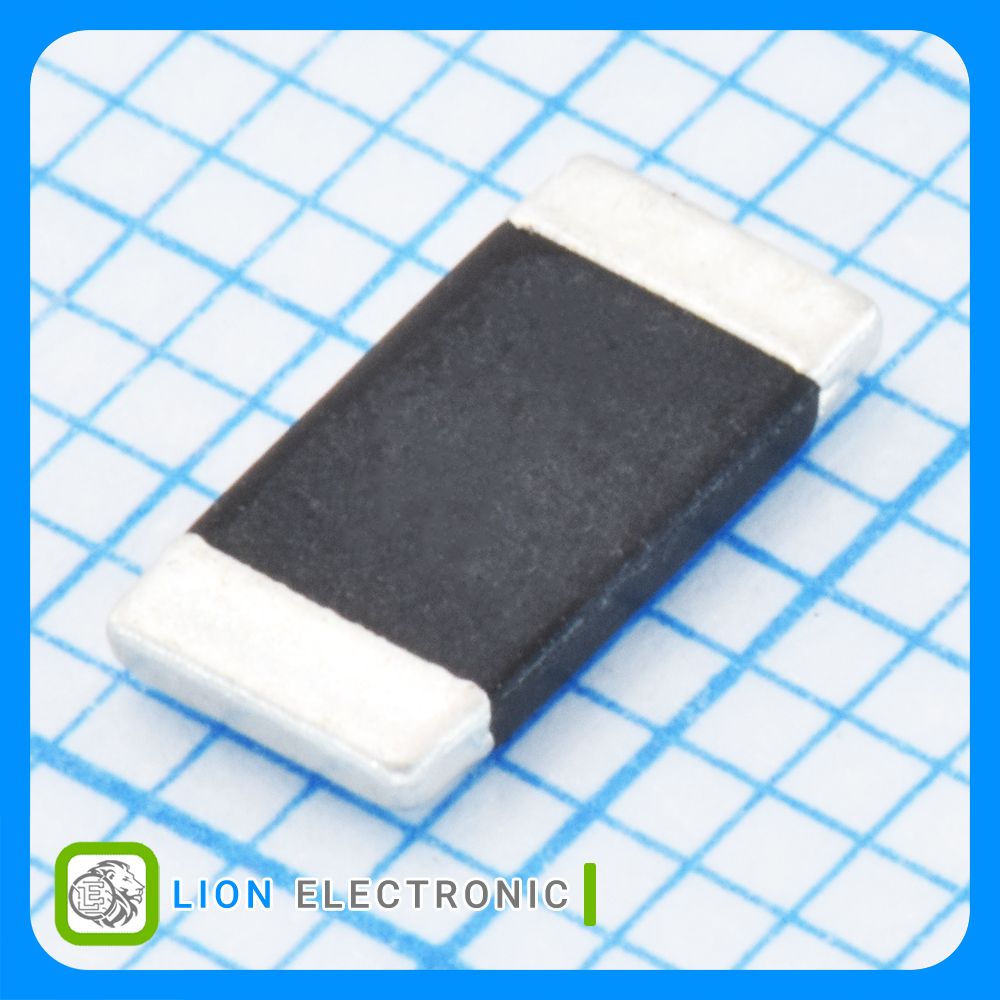

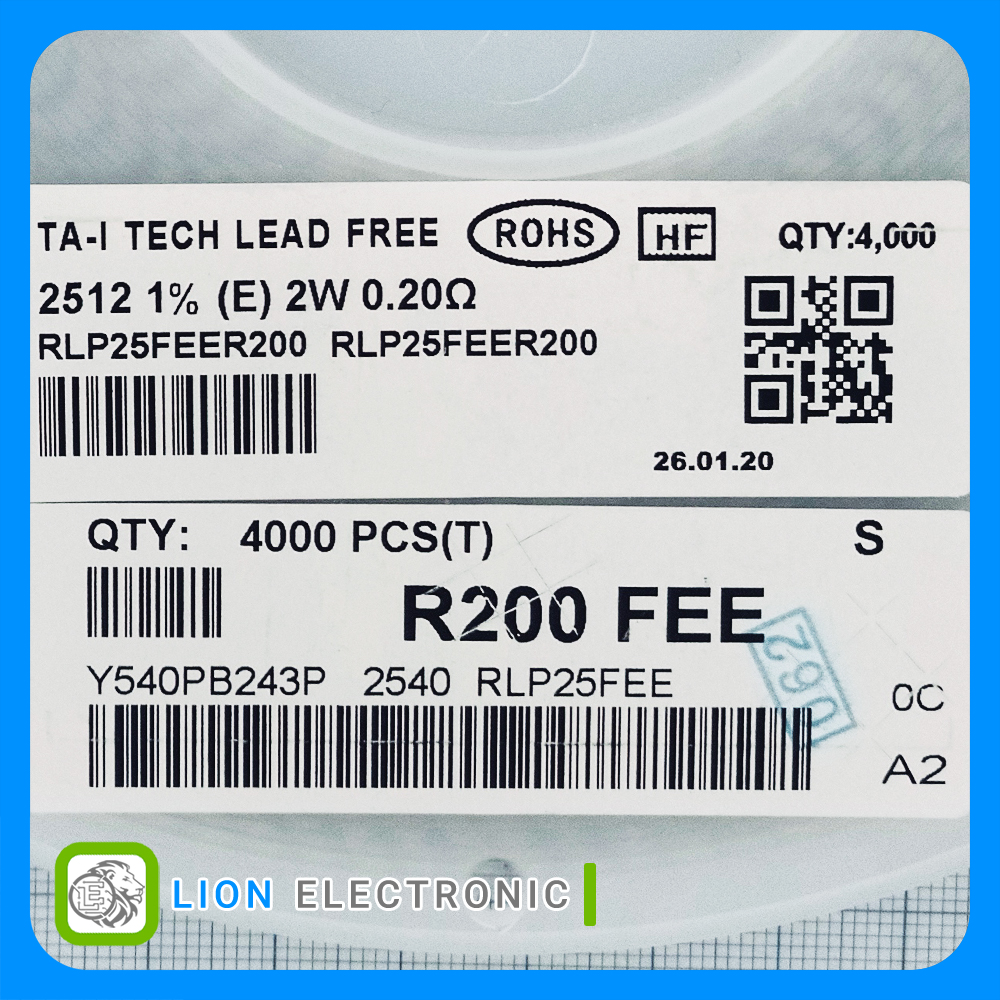

Current Sense Shunt Resistor 200mΩ, 2W, ±50ppm/℃ ±1% with 2512 Size
Specifications
- Case Code - in: 2512
- Resistance: 200mΩ
- Power Rating: 2W
- Tolerance: 1%
- Temperature Coefficient: 50PPM/C
- Termination style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +170C
- Packaging: Reel
مشخصات RLP25FEER200
RLP25FEER200
Part Number
-55C
Minimum Operating Temperature
SMD/SMT
Termination style
Reel
Packaging
1%
Tolerance
50PPM/C
Temperature Coefficient
2512
Case Code - in
2W
Power Rating
+170C
Maximum Operating Temperature
200mΩ
Resistance
