RB520S30T1G
RB520S30T1G
Part Number
5554
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
دیود شاتکی 30 ولت 200 میلیآمپر با پکیج SOD-523-2

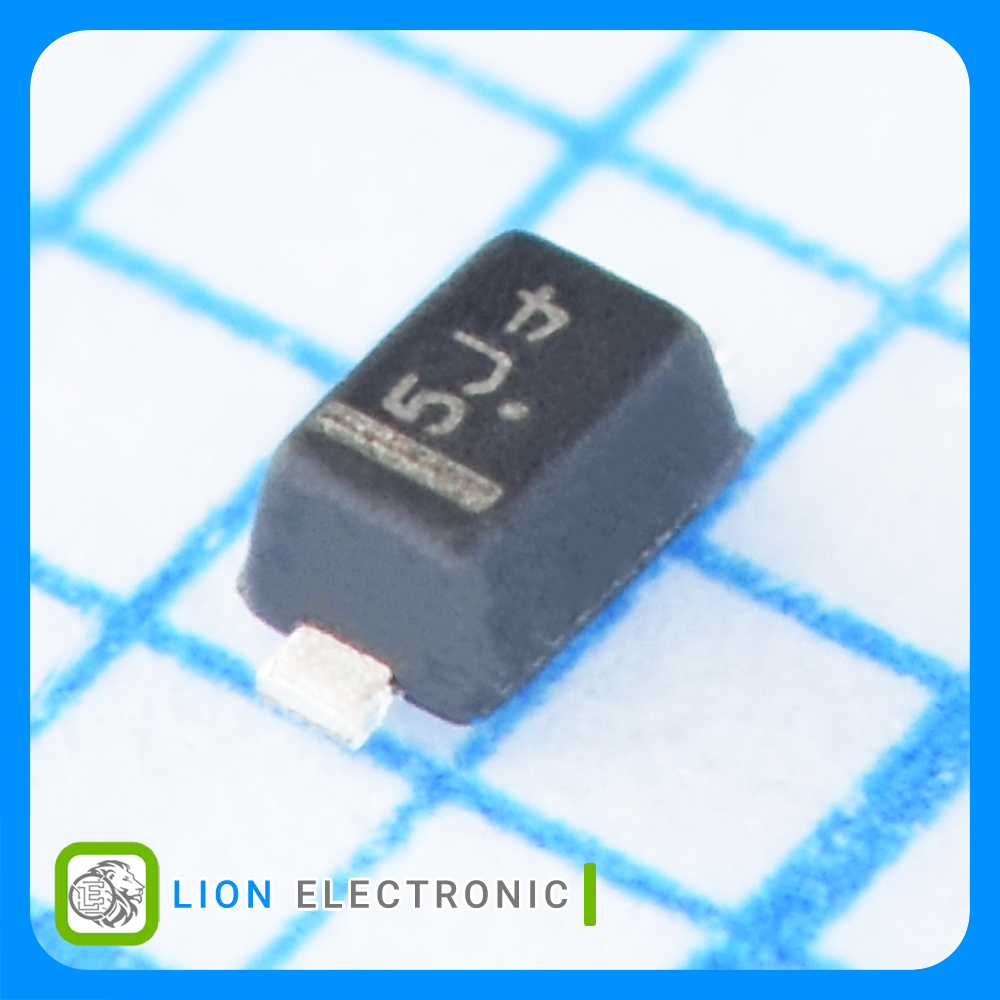

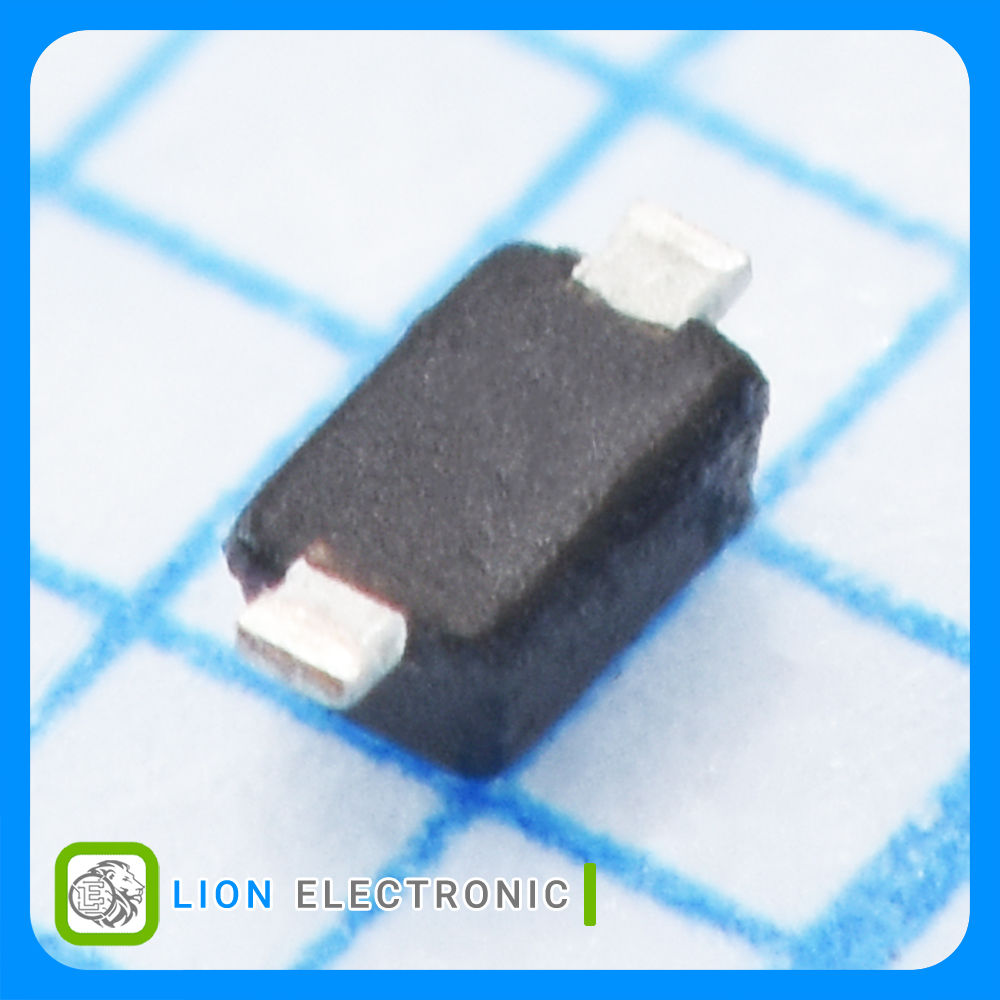

Schottky Diode 30V, 200mA with SOD-523-2 Package
معرفی
دیود شاتکی 30 ولت 200 میلیآمپر با پکیج SOD-523-2
Schottky Diode 30V, 200mA with SOD-523-2 Package
Specifications
- Configuration: Single
- Vrrm - Repetitive Reverse Voltage: 30V
- If - Forward Current: 200mA
- Ifsm - Forward Surge Current: 600mA
- Vf - Forward Voltage: 600mV
- Ir - Reverse Current: 1uA
- Mounting Style: SMD/SMT
- Package/Case: SOD-523
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود شاتکی RB520S30T1G
دیود شاتکی RB520S30T1G
Part Number
30V
Vrrm - Repetitive Reverse Voltage
600mA
Ifsm - Forward Surge Current
-55C
Minimum Operating Temperature
Reel
Packaging
1uA
Ir - Reverse Current
SMD/SMT
Mounting Style
600mV
Vf - Forward Voltage
200mA
If - Forward Current
+150C
Maximum Operating Temperature
Single
Configuration
SOD-523
Package-Case
