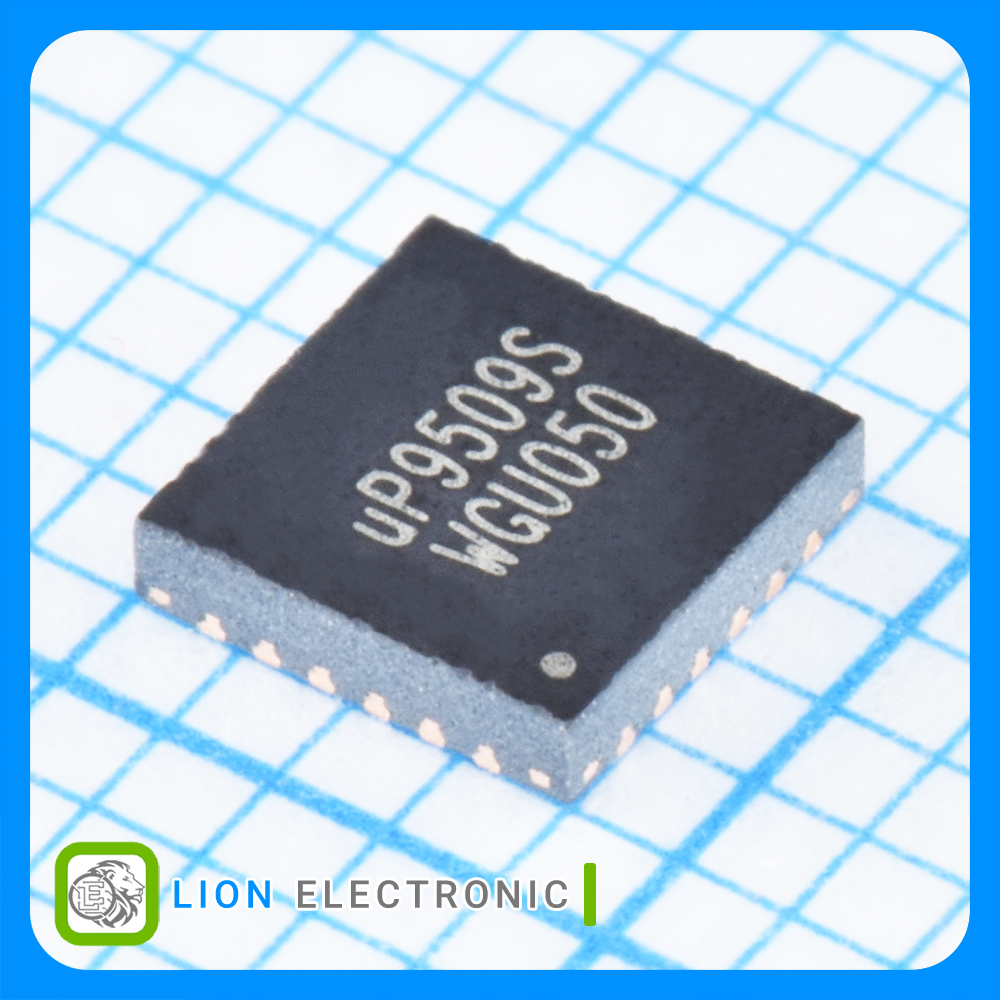

UP9509SQAG
UP9509SQAG
Part Number
5577
Lion Part
Datasheet
uPI Semiconductor Manufacture
کنترلر باک سنکرون 1، 2 یا 3 فاز، برای تأمین توان GPU موبایل با ورودی 3 تا 26 ولت
3/2/1-Phase Synchronous-Rectified Buck Controller for Mobile GPU Power specifically designed to work with 3V ~ 26V input voltage and deliver high quality output voltage for highperformance graphic processor power
مشخصات UP9509SQAG
UP9509SQAG
Part Number
Yes
Synchronous Rectification
3
Number of Drivers
3
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Buck
Topology
+85C
Maximum Operating Temperature
3-Phase
Configuration
3V - 26V
Input Voltage
99%
Duty Cycle - Max
5.5V
Supply Voltage - Max
200KHz - 600KHz
Switching Frequency
4.5V
Supply Voltage - Min
1.8V
Output Voltage
VQFN-24
Package-Case
