Bourns
معرفی

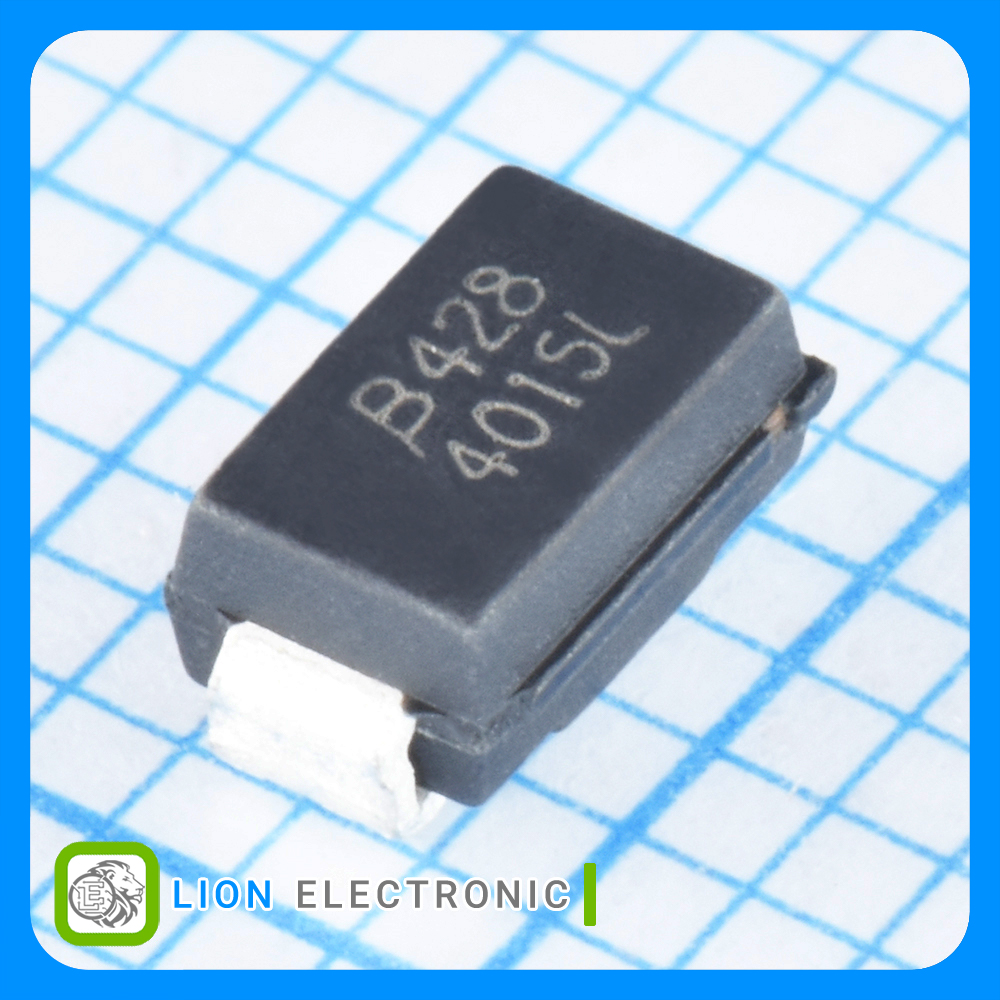

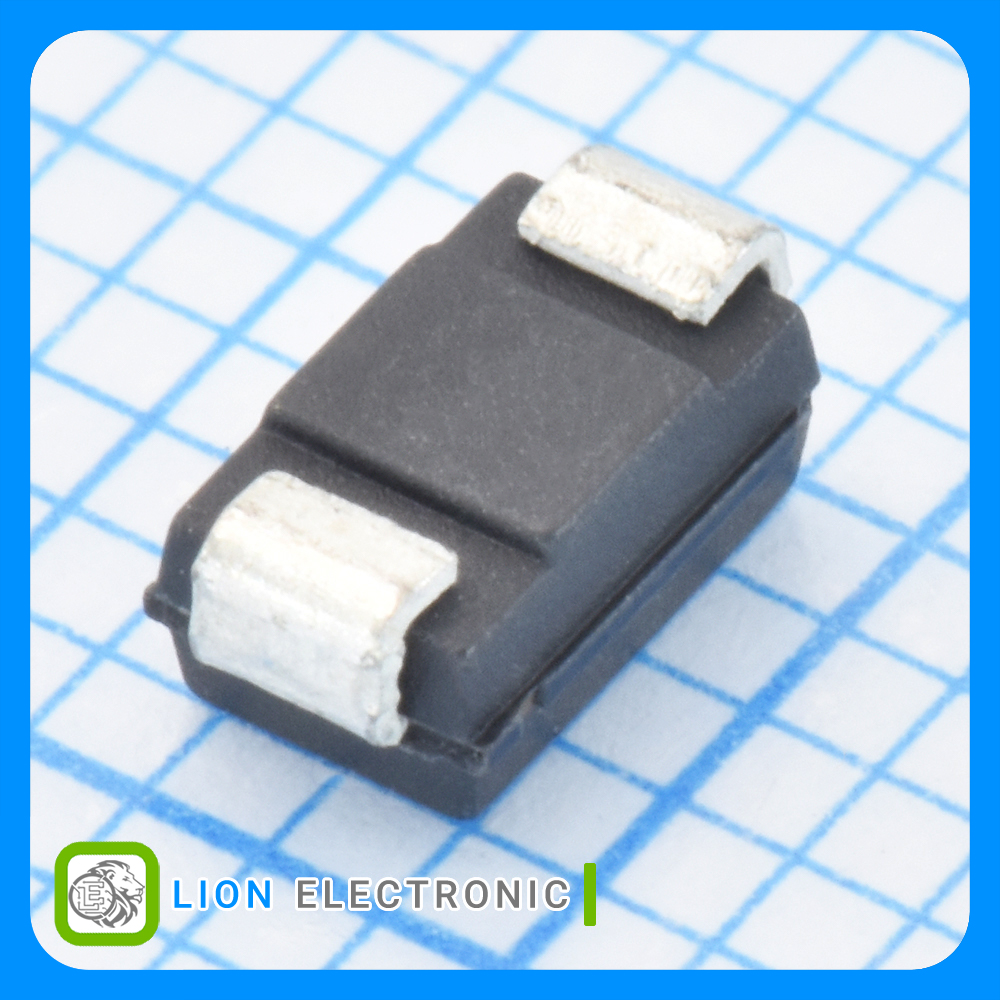

محافظ اضافه ولتاژ تریستور دو جهته 15 ولت با پکیج DO-214AC (SMA)
Bidirectional Thyristor Overvoltage Protector 15V with DO-214AC (SMA) Package
Specifications
- Breakover Voltage VBO: ±15V
- Breakover Current IBO Max: ±800mA
- On-State Voltage: 1V
- Rated Repetitive Off-State Voltage VDRM: ±8V
- Off-State Leakage Current @ VDRM IDRM: ±5µA
- Non Repetitive On-State Current: 22A
- Off-State Capacitance CO: 28pF
- Holding Current Ih Max: ±50mA
- Mounting Style: SMD/SMT
- Package/Case: DO-214AC (SMA)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات TISP4015L1AJR-S
TISP4015L1AJR-S
Part Number
28pF
Off-State Capacitance CO
1V
On-State Voltage
±15V
Breakover Voltage VBO
22A
Non Repetitive On-State Current
-65C
Minimum Operating Temperature
±5µA
Off-State Leakage Current @ VDRM IDRM
±8V
Rated Repetitive Off-State Voltage VDRM
±800mA
Breakover Current IBO Max
Reel
Packaging
SMD/SMT
Mounting Style
±50mA
Holding Current Ih Max
+150C
Maximum Operating Temperature
DO-214AC (SMA)
Package-Case
