MB220_R1_00001
MB220_R1_00001
Part Number
5608
Lion Part
Datasheet
PANJIT International Manufacture
دیود شاتکی 200 ولت 2 آمپر با پکیج DO-214AA (SMB)

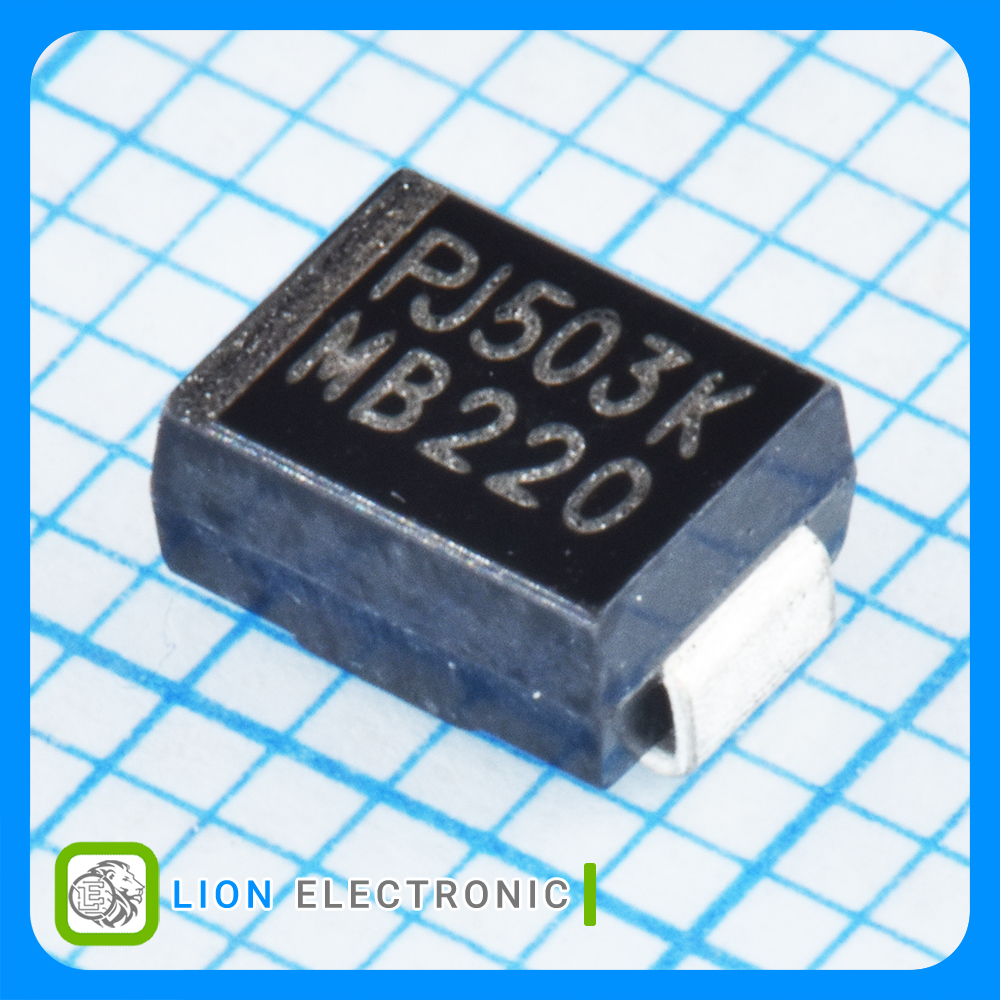

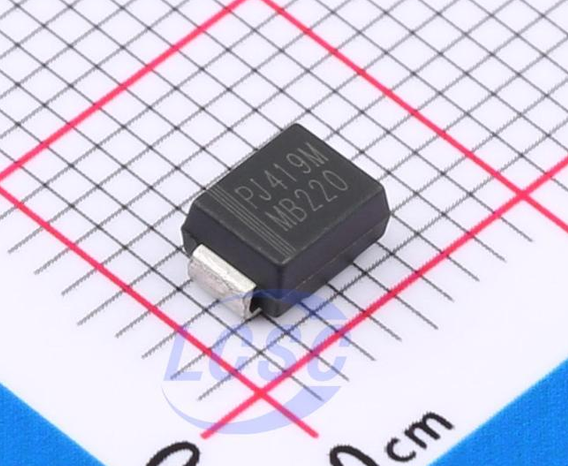

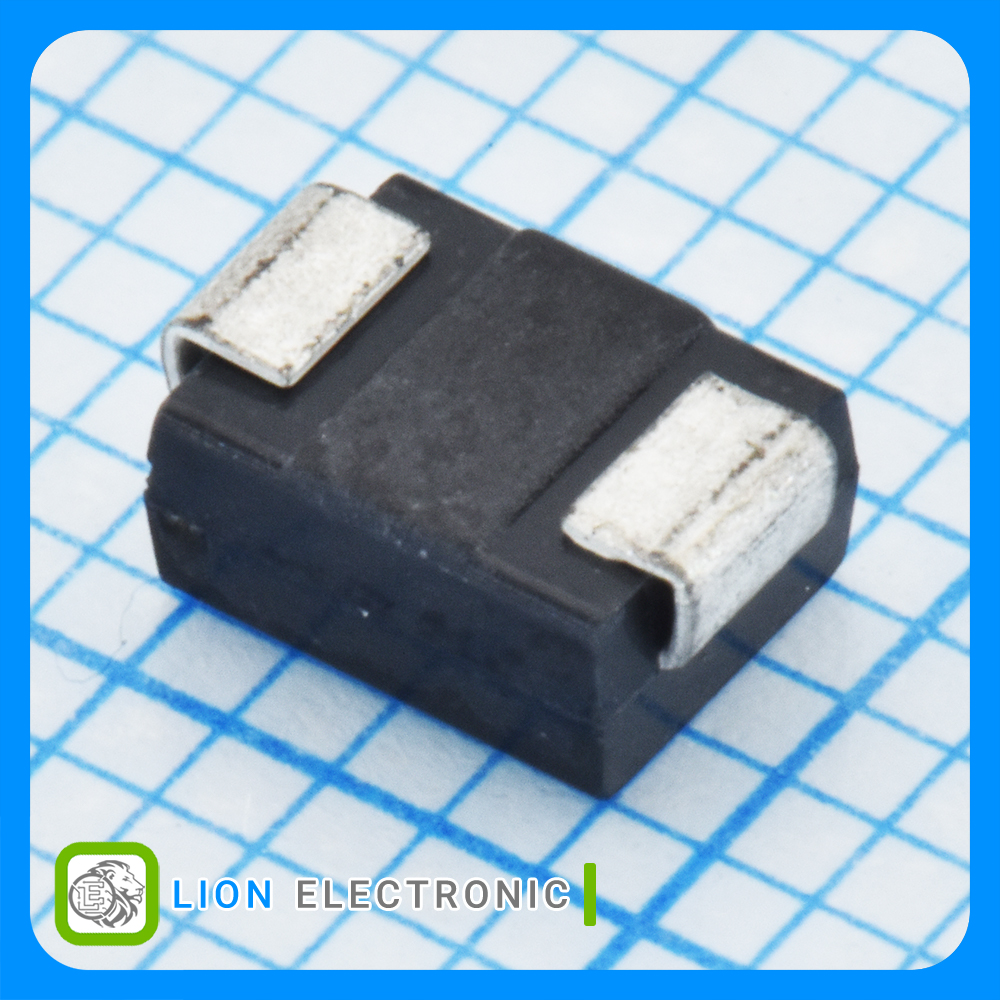

Schottky Diode 200V, 2A with DO-214AA (SMB) Package
معرفی
دیود شاتکی 200 ولت 2 آمپر با پکیج DO-214AA (SMB)
Schottky Diode 200V, 2A with DO-214AA (SMB) Package
Specifications
- Configuration: Single
- Vrrm - Repetitive Reverse Voltage: 200V
- If - Forward Current: 2A
- Ifsm - Forward Surge Current: 50A
- Vf - Forward Voltage: 900mV
- Ir - Reverse Current: 50uA
- Mounting Style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات MB220_R1_00001
MB220_R1_00001
Part Number
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
200V
Vrrm - Repetitive Reverse Voltage
50A
Ifsm - Forward Surge Current
50uA
Ir - Reverse Current
+175C
Maximum Operating Temperature
Single
Configuration
900mV
Vf - Forward Voltage
2A
If - Forward Current
DO-214AA (SMB)
Package-Case
