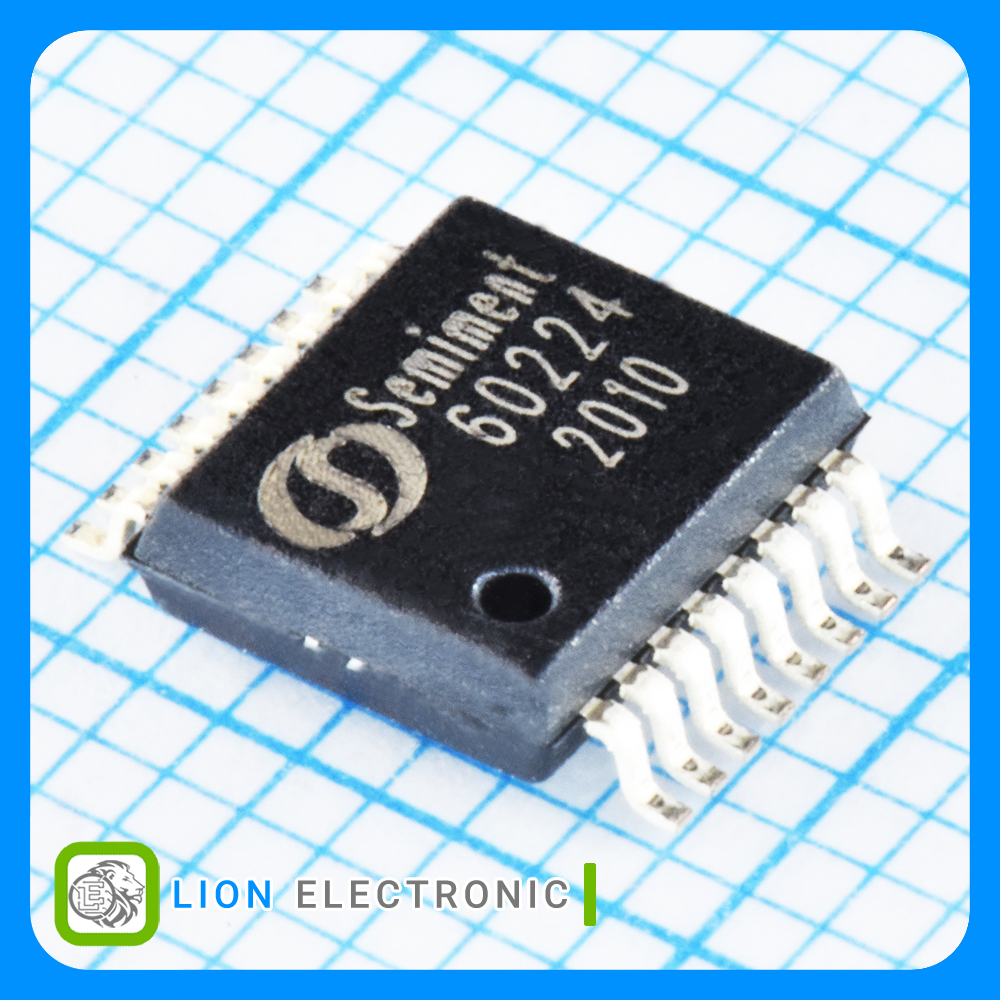

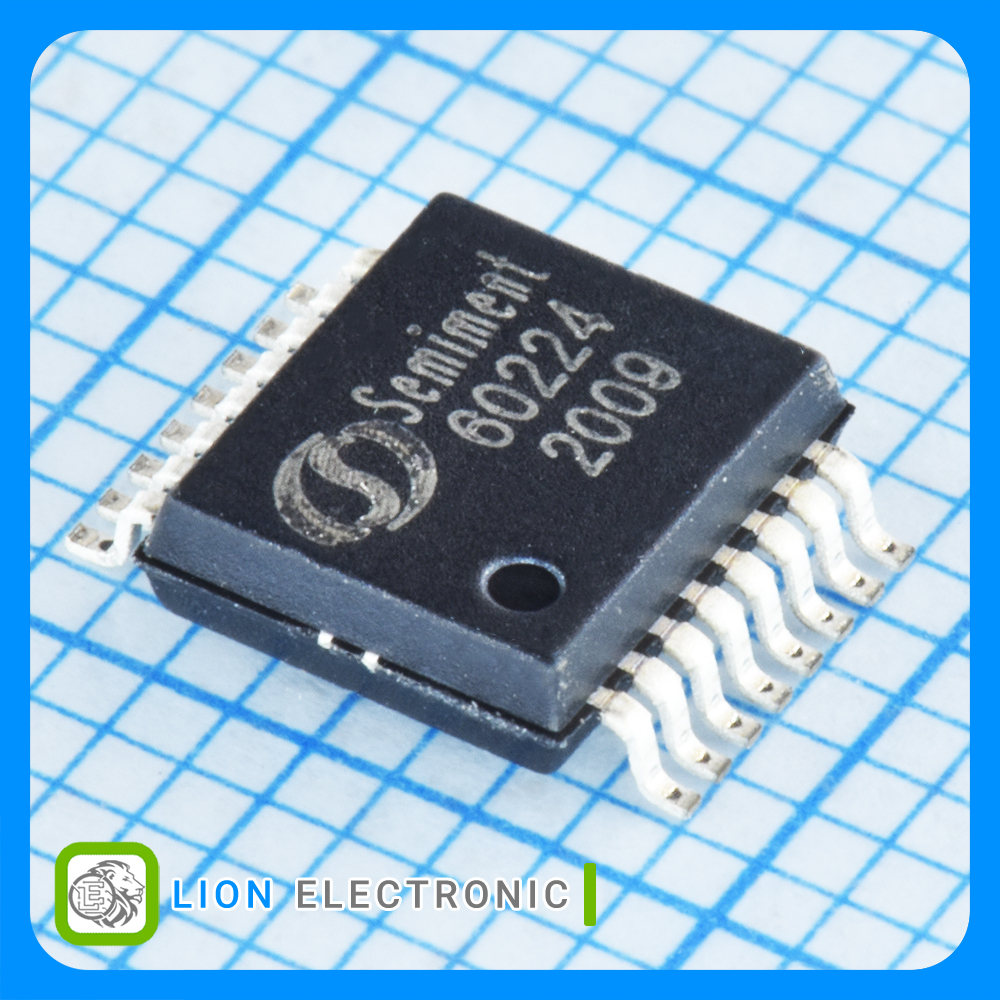

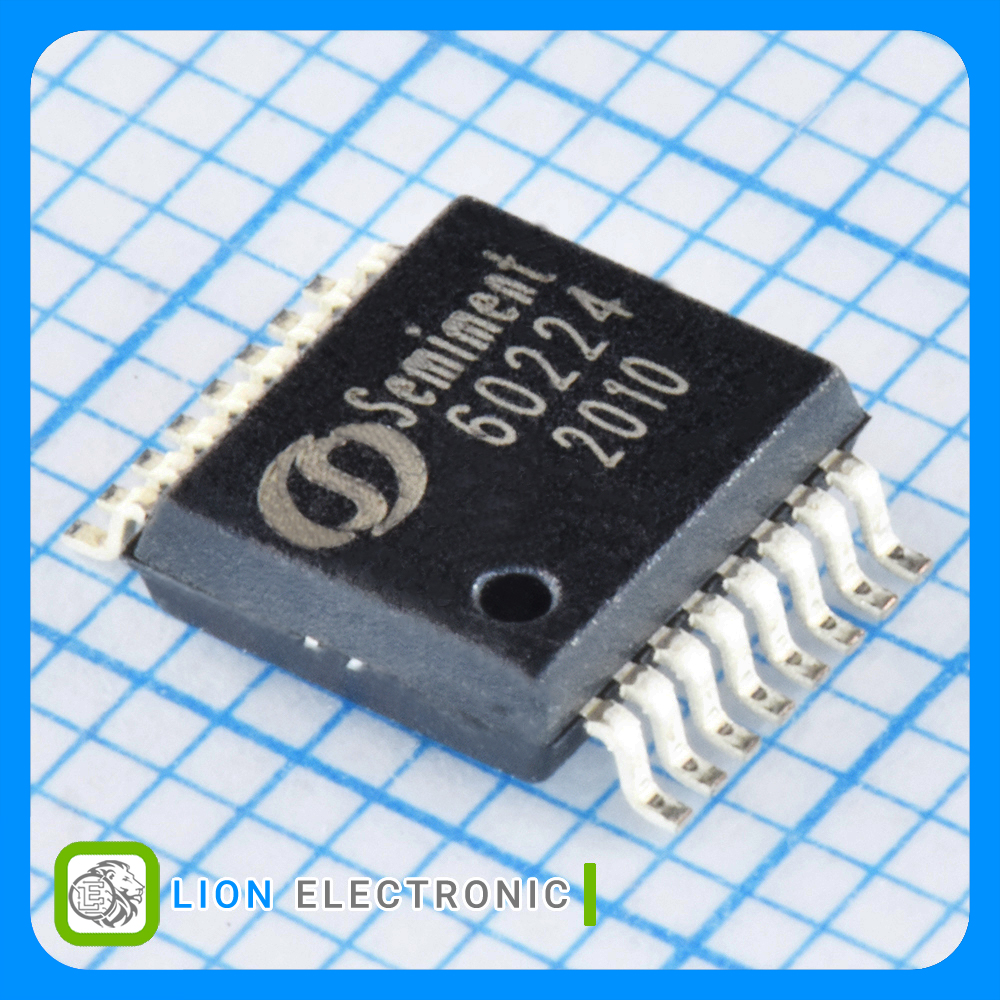

SC60224-U
SC60224-U
Part Number
5617
Lion Part
Datasheet
Semiment Manufacture
سنسور مغناطیسی تغذیه 3 تا 5.5 ولت با پکیج SSOP-16، انکودر چرخشی مغناطیسی بدون تماس 12 بیتی
Magnetic Sensor Magnetic, 3 - 5.5V with SSOP-16 Package, Contactless 12-bit High-Speed, High-Precision Magnetic Rotary Encoder Chip
معرفی
سنسور مغناطیسی تغذیه 3 تا 5.5 ولت با پکیج SSOP-16، انکودر چرخشی مغناطیسی بدون تماس 12 بیتی
Magnetic Sensor Magnetic, 3 - 5.5V with SSOP-16 Package, Contactless 12-bit High-Speed, High-Precision Magnetic Rotary Encoder Chip
Specifications
- Type: Magnetic
- Operating Point Min/Max: +/-25mT to +/-100mT
- Operating Supply Voltage: 3 - 5.5V
- Operating Supply Current: 10mA to 22mA
- Maximum Output Current: 20mA
- Mounting Style: SMD/SMT
- Package/Case: SSOP-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات SC60224-U
SC60224-U
Part Number
+/-25mT to +/-100mT
Operating Point Min-Max
-40C
Minimum Operating Temperature
20mA
Maximum Output Current
Tube
Packaging
SMD/SMT
Mounting Style
N/A
Release Point Min-Max (Brp)
+125C
Maximum Operating Temperature
Magnetic
Type
3 - 5.5V
Operating Supply Voltage
10mA to 22mA
Operating Supply Current
SSOP-16
Package-Case
