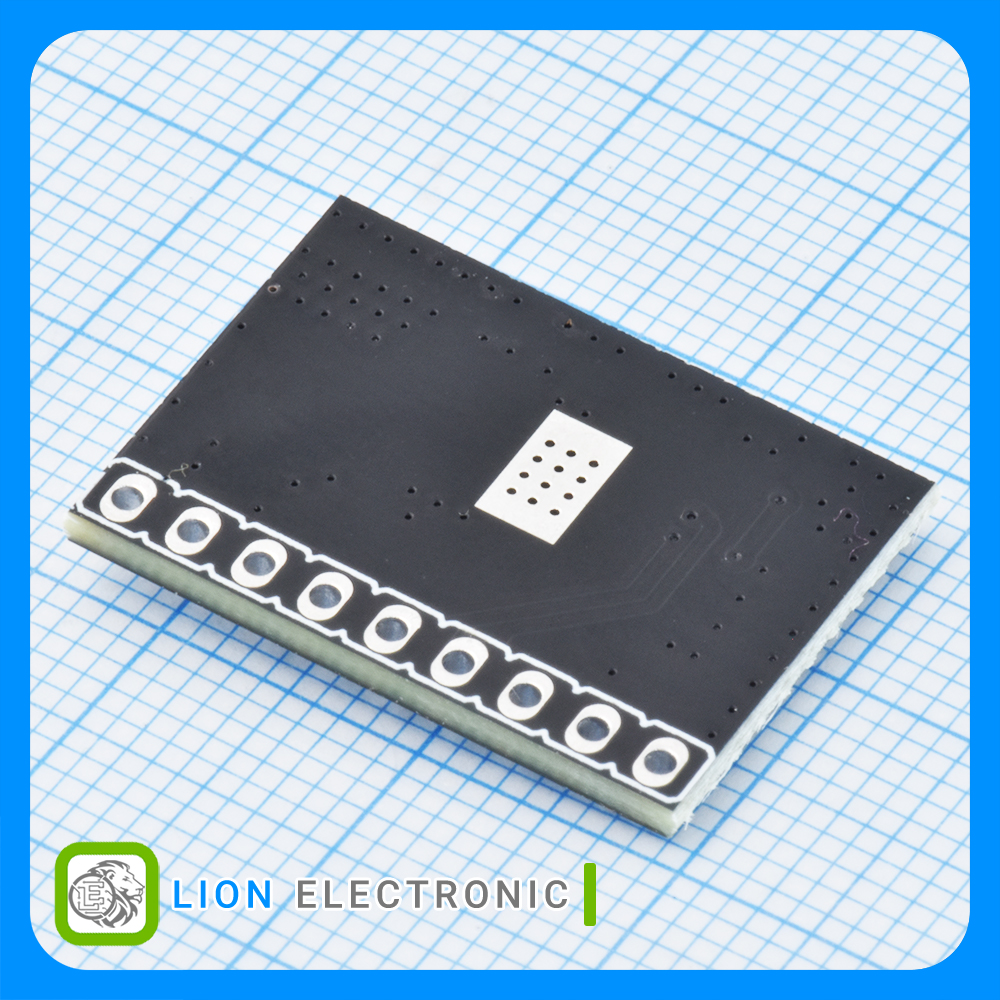

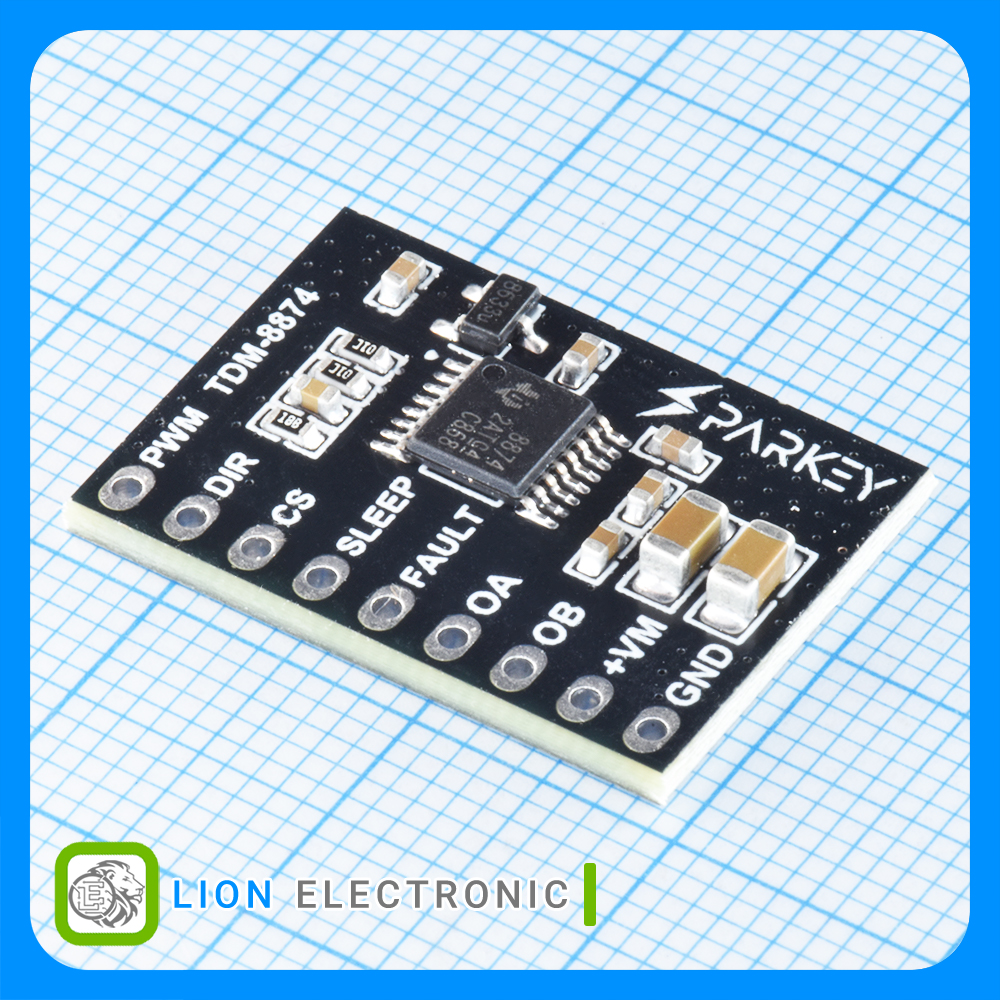

ماژول درایور موتور TDM-8874

Features

- Drives one brushed DC motor or other resistive and inductive loads

- VM operating supply voltage range : 4.5V to 37V

- Logic Input Voltage: 0V to 5.5V

- RDS(on) 200-mΩ (High-Side + Low-Side)

- output current capability 6A Peak (with heatsink)

- PWM Frequency: 0~100KHz

- Integrated current sensing and regulation, and the possibility of measuring the

output current from the CS Pin.

- VM Active mode current: Max 7mA

- Ultra low-power sleep mode: <1-µA @ VM = 24V, TJ = 25°C

- Integrated protection features: Undervoltage lockout, Charge pump undervoltage, Overcurrent protection, Thermal shutdown, and show on FAULT Pin.

- Compact size, 23.5 x 17 x 3.5 mm

- Module weight: 1.6 g
