NX8048P070-011C
NX8048P070-011C
Part Number
5690
Lion Part
Datasheet
NEXTION Manufacture
نمایشگر HMI با اندازه 7 اینچ رزولوشن 800x480 حافظه 120 مگابایت با تاچ اسکرین خازنی با RTC بدون قاب

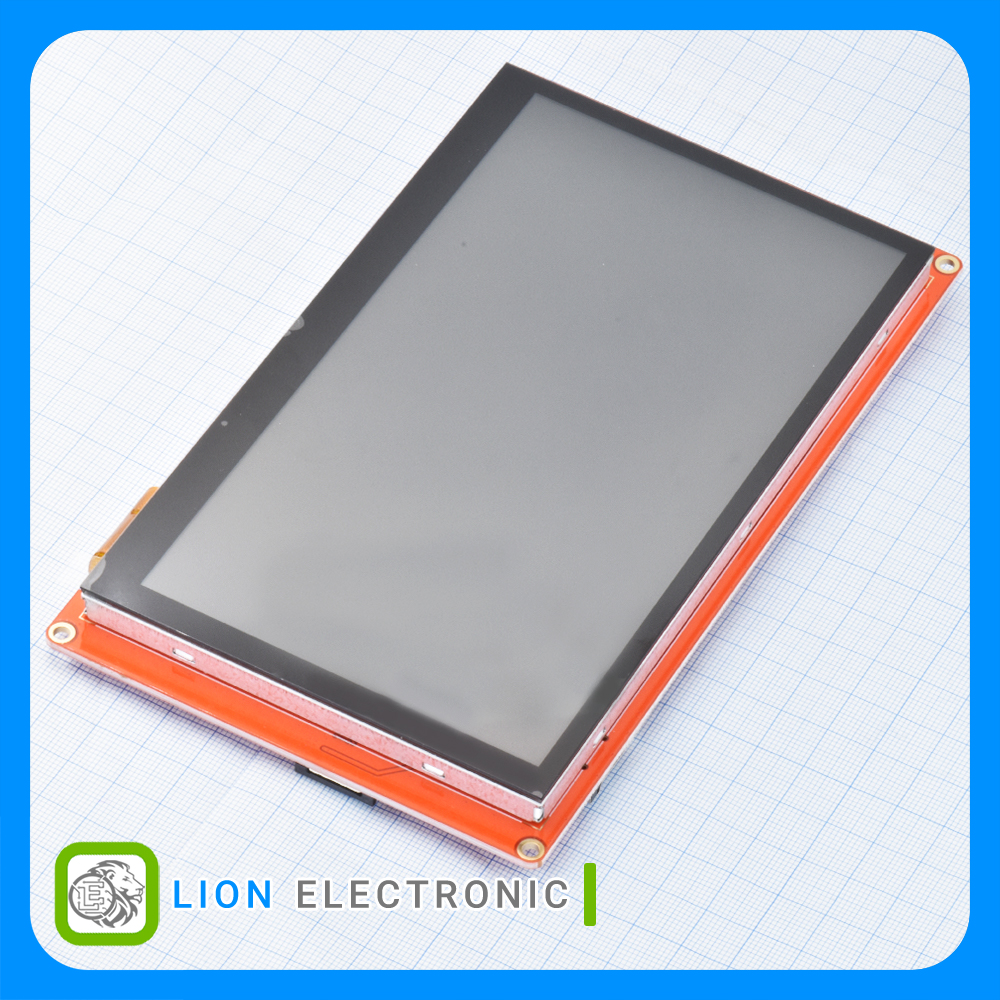

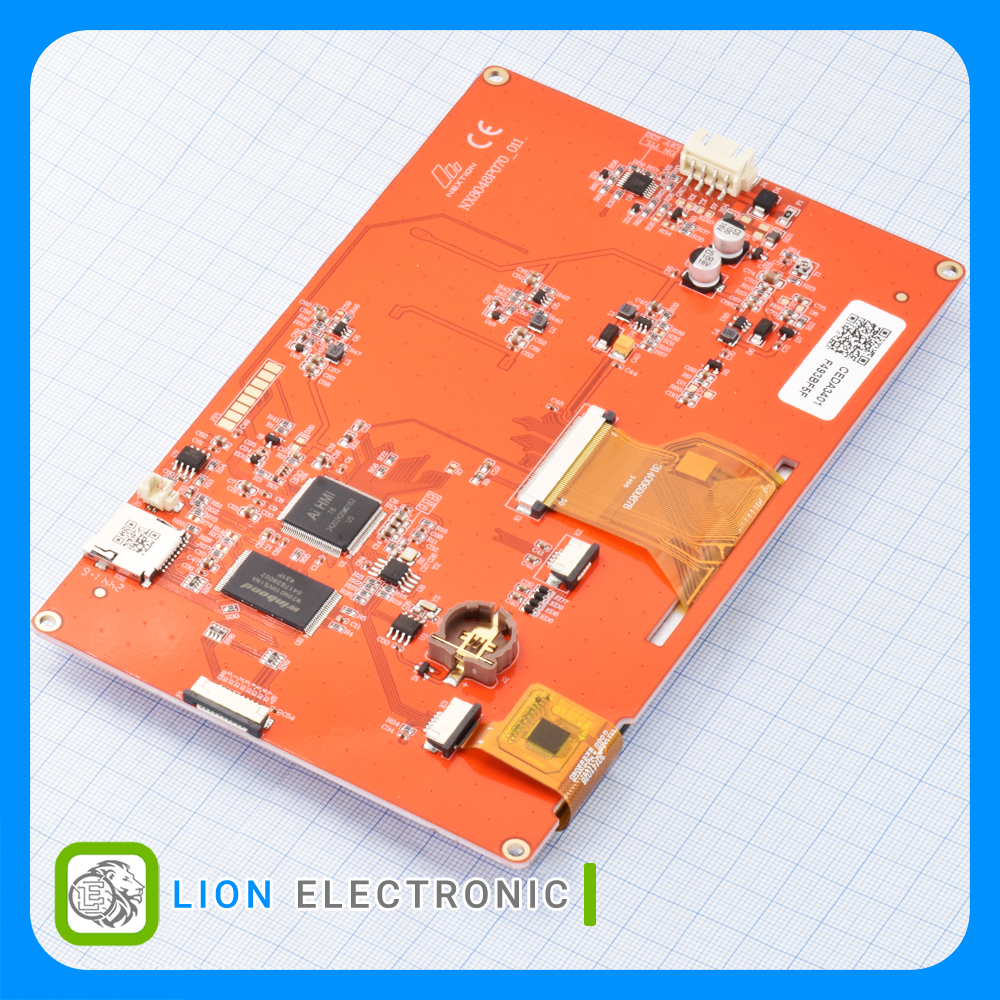

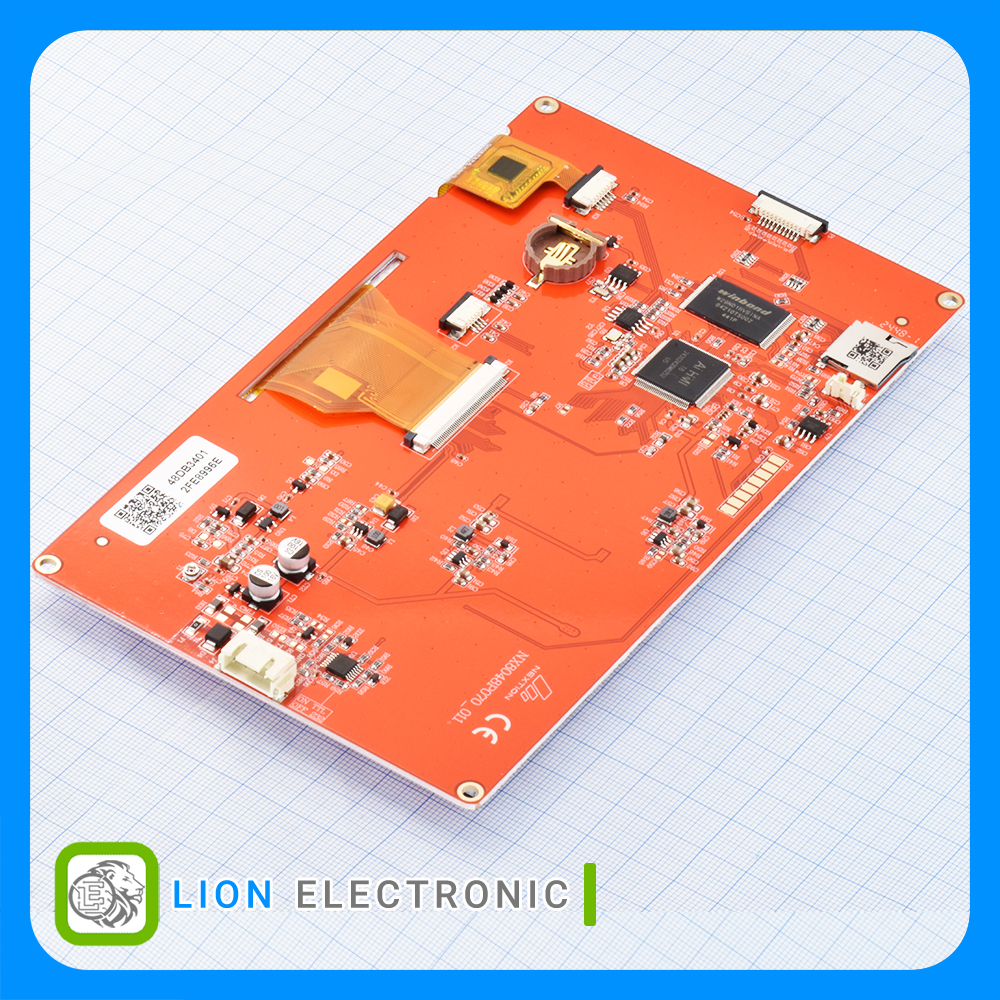

Intelligent Series HMI Display 7 inch, 800x480 with 120MB Memory with Capacitive Touch Panel with RTC without Enclosure
معرفی
نمایشگر HMI با اندازه 7 اینچ رزولوشن 800x480 حافظه 120 مگابایت با تاچ اسکرین خازنی با RTC بدون قاب
Intelligent Series HMI Display 7 inch, 800x480 with 120MB Memory with Capacitive Touch Panel with RTC without Enclosure
Specifications
- Touch Panel: Yes
- RTC: Yes
- Enclosure: No
- Number of I/Os: 8
- Display Resolution - Pixels: 800x480
- Program Memory Size: 120MB
- Data RAM Size: 512kB
- EEPROM Memory Size: 1024Byte
- Maximum Operating Frequency: 200MHz
- Color: 65536
- Display Size - inch: 7.0
مشخصات NX8048P070-011C
NX8048P070-011C
Part Number
No
Enclosure
Yes
RTC
1024Byte
EEPROM Memory Size
65536
Color
Yes
Touch Panel
8
Number of I-Os
200MHz
Maximum Operating Frequency
800x480
Display Resolution - Pixels
7.0
Display Size - inch
120MB
Program Memory Size
512kB
Data RAM Size
