RK11K1140A23
RK11K1140A23
Part Number
5695
Lion Part
Datasheet
ALPSALPINE Manufacture
پتانسیومتر 10 کیلو اهم 50 میلیوات تلرانس 20% با شفت D تختخورده و دسته پلاستیکی، ساخت ژاپن

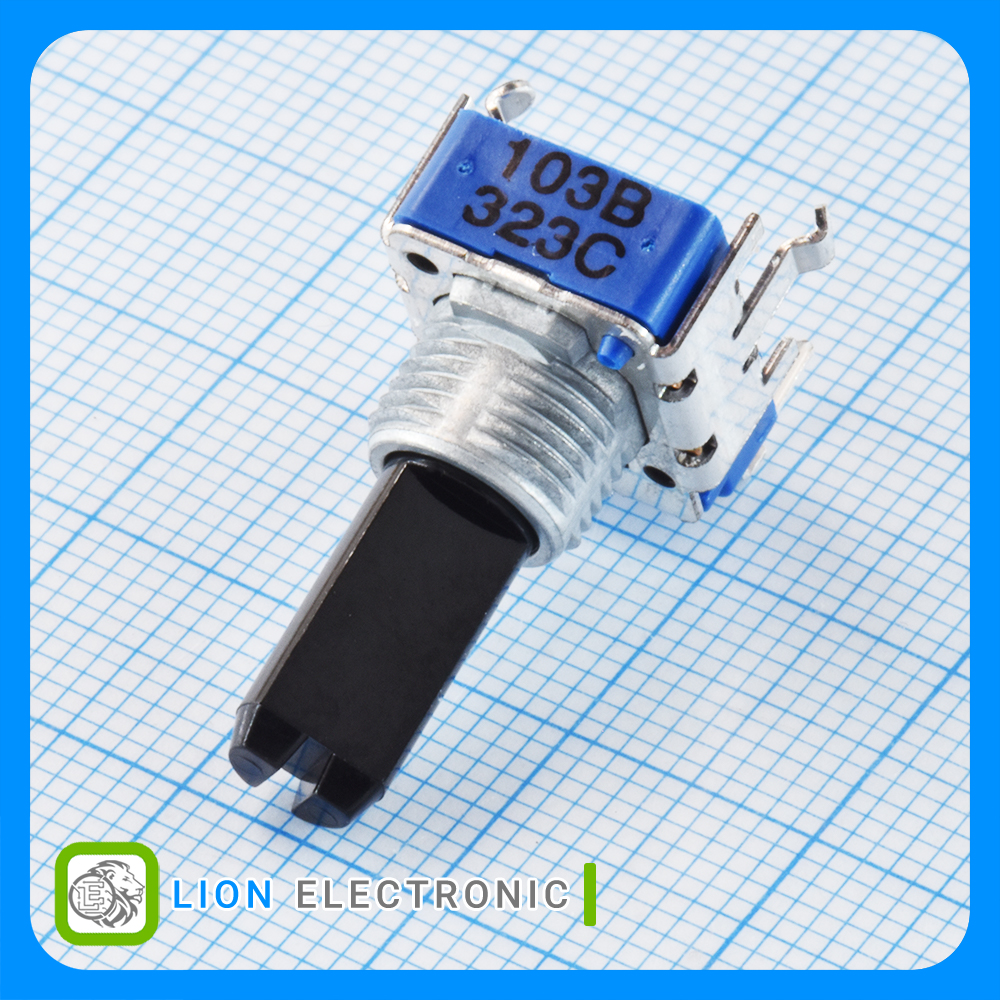

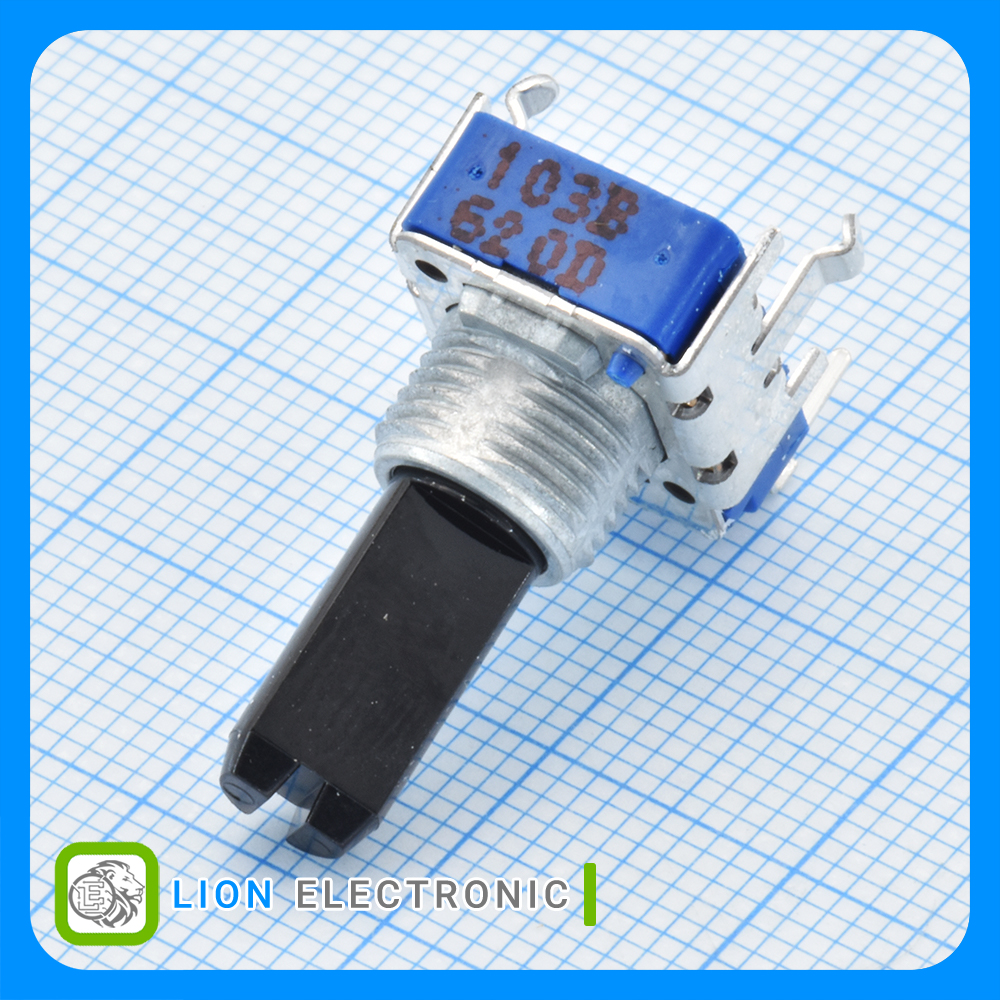

Potentiometer 10KΩ, 50mW with 20% Tolerance, D/Flatted Shaft, 11mm, plastic shaft, made in Japan
معرفی
پتانسیومتر 10 کیلو اهم 50 میلیوات تلرانس 20% با شفت D تختخورده و دسته پلاستیکی، ساخت ژاپن
Potentiometer 10KΩ, 50mW with 20% Tolerance, D/Flatted Shaft, 11mm, plastic shaft, made in Japan
Specifications
- Orientation: Vertical Adjustment
- Shaft Type: D/Flatted
- Number of Turns: 1
- Resistance: 10KΩ
- Power Rating: 50mW
- Tolerance: 20%
- Shaft Diameter: 6mm
- Termination style: Through Hole
- Mounting Style: Through Hole
- Minimum Operating Temperature: -10C
- Maximum Operating Temperature: +70C
- Packaging: Tray
مشخصات RK11K1140A23
RK11K1140A23
Part Number
D/Flatted
Shaft Type
6mm
Shaft Diameter
1
Number of Turns
50mW
Power Rating
Vertical Adjustment
Orientation
+70C
Maximum Operating Temperature
Tray
Packaging
Through Hole
Termination style
Through Hole
Mounting Style
-10C
Minimum Operating Temperature
20%
Tolerance
10KΩ
Resistance
