Winsen
معرفی
سنسور فشار گیج سرامیکی 5 بار خروجی آنالوگ mV با ابعاد 18 x 6.35mm

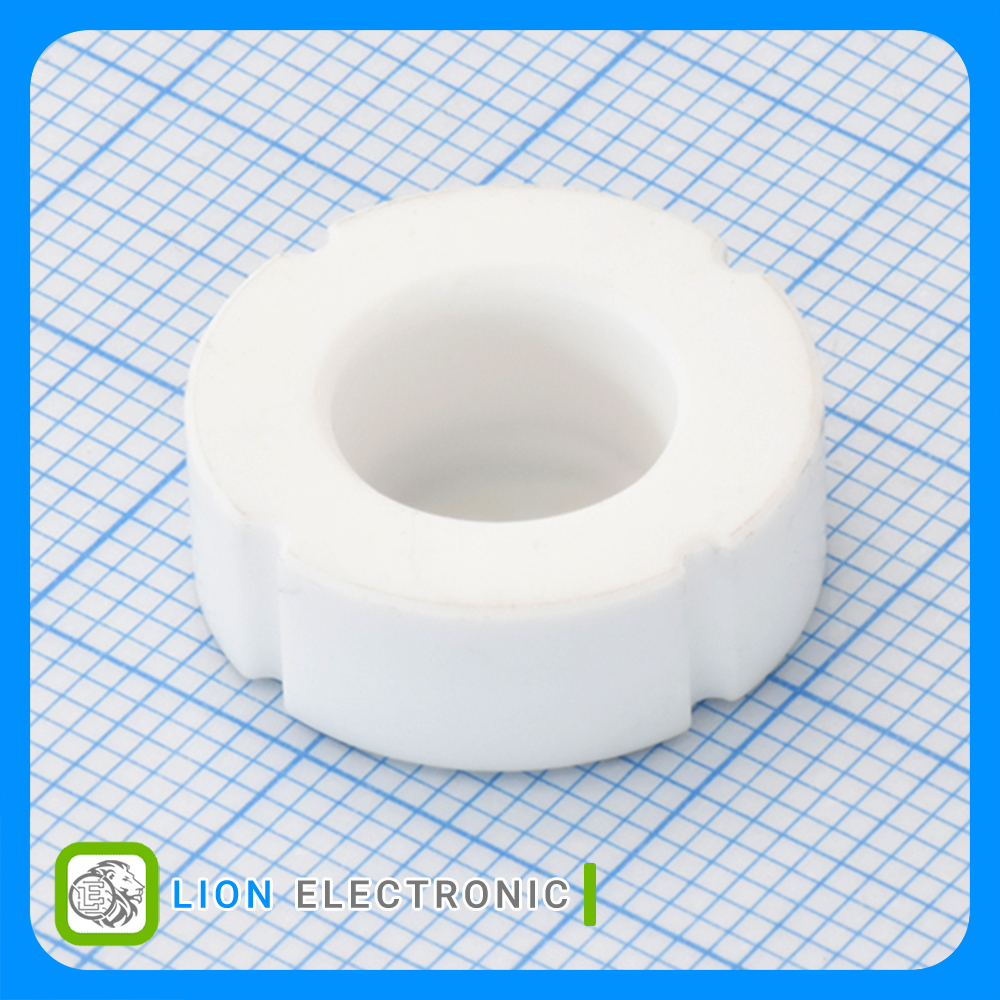

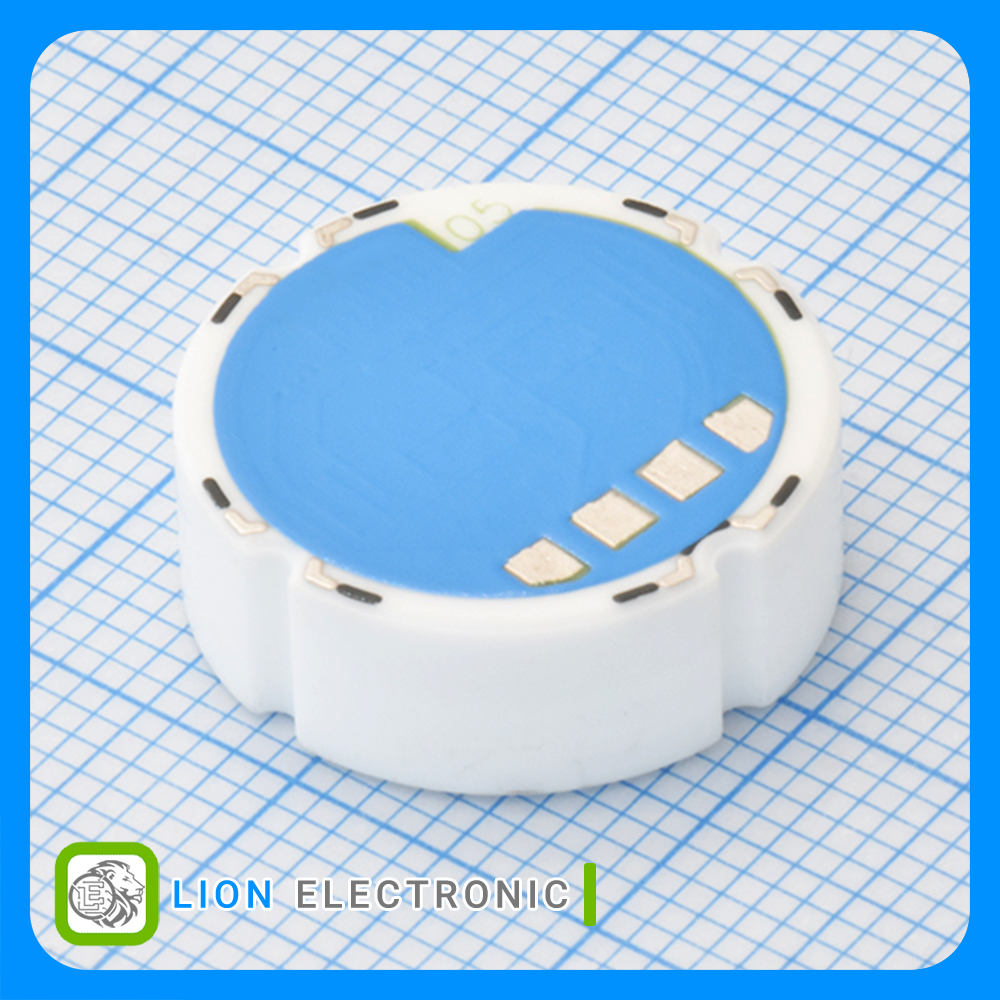

Pressure Sensor Gauge 5bar, Ceramic Piezoresistance Thick-Film, Analog mV Output with 18 x 6.35mm Size
Specifications
- Pressure Type: Gauge
- Operating Pressure: 5bar
- Port Type: No Port
- Output Type: Analog mV
- Mounting Style: Connector
- Package/Case: 18 x 6.35mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Bulk
مشخصات سنسور فشار WPAH01-5BAR
سنسور فشار WPAH01-5BAR
Part Number
Gauge
Pressure Type
Bulk
Packaging
Connector
Mounting Style
-40C
Minimum Operating Temperature
Analog mV
Output Type
No Port
Port Type
5bar
Operating Pressure
+125C
Maximum Operating Temperature
N/A
Resolution
18 x 6.35mm
Package-Case
N/A
Accuracy
N/A
Operating Supply Current
