YXC
معرفی
اسیلاتور 6 مگاهرتز پایداری 20PPM با ولتاژ 1.8 تا 3.3 ولت با پکیج SMD3225-4P

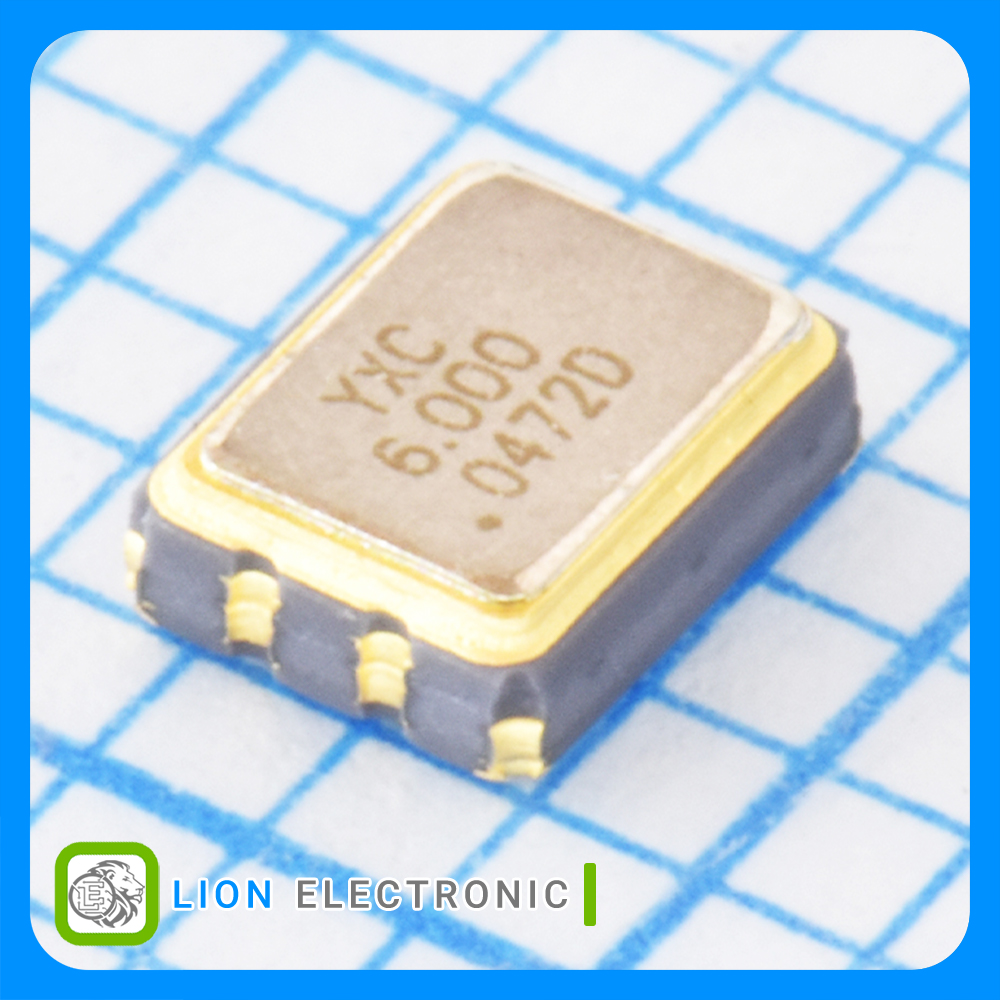

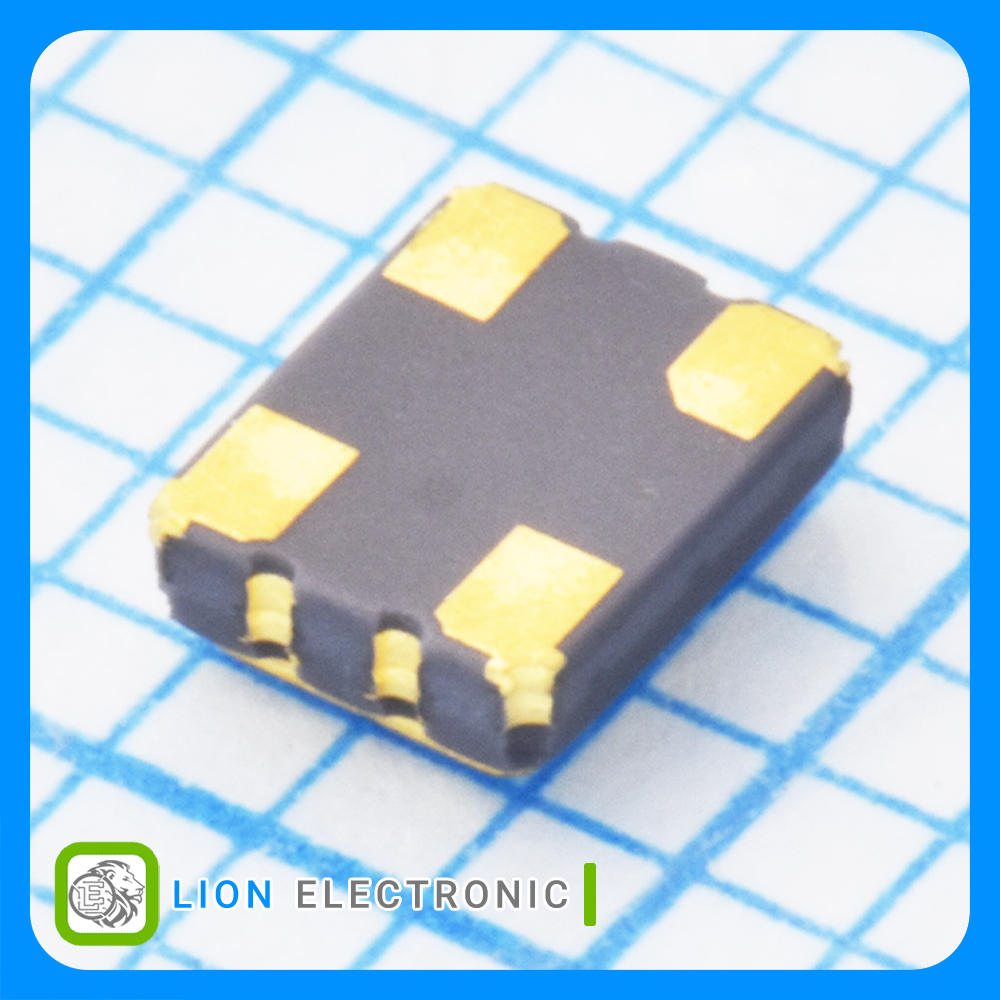

Oscillator 6MHz, 20PPM with 1.8V to 3.3V and SMD3225-4P Package
Specifications
- Output Format: CMOS
- Frequency: 6MHz
- Frequency Stability: 20PPM
- Load Capacitance: 15pF
- Supply Voltage - Min: 1.8V
- Supply Voltage - Max: 3.3V
- Package/Case: SMD3225-4P
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات اسیلاتور OT2EL89CJI-111YLC-6M
اسیلاتور OT2EL89CJI-111YLC-6M
Part Number
CMOS
Output Format
20PPM
Frequency Stability
Reel
Packaging
-40C
Minimum Operating Temperature
3.3V
Supply Voltage - Max
15pF
Load Capacitance
6MHz
Frequency
+85C
Maximum Operating Temperature
1.8V
Supply Voltage - Min
SMD3225-4P
Package-Case
