SBR3U60P1-7
SBR3U60P1-7
Part Number
5901
Lion Part
Datasheet
Diodes Incorporated Manufacture
دیود سوپر بریر 60 ولت 3 آمپر با پکیج PowerDI-123-2

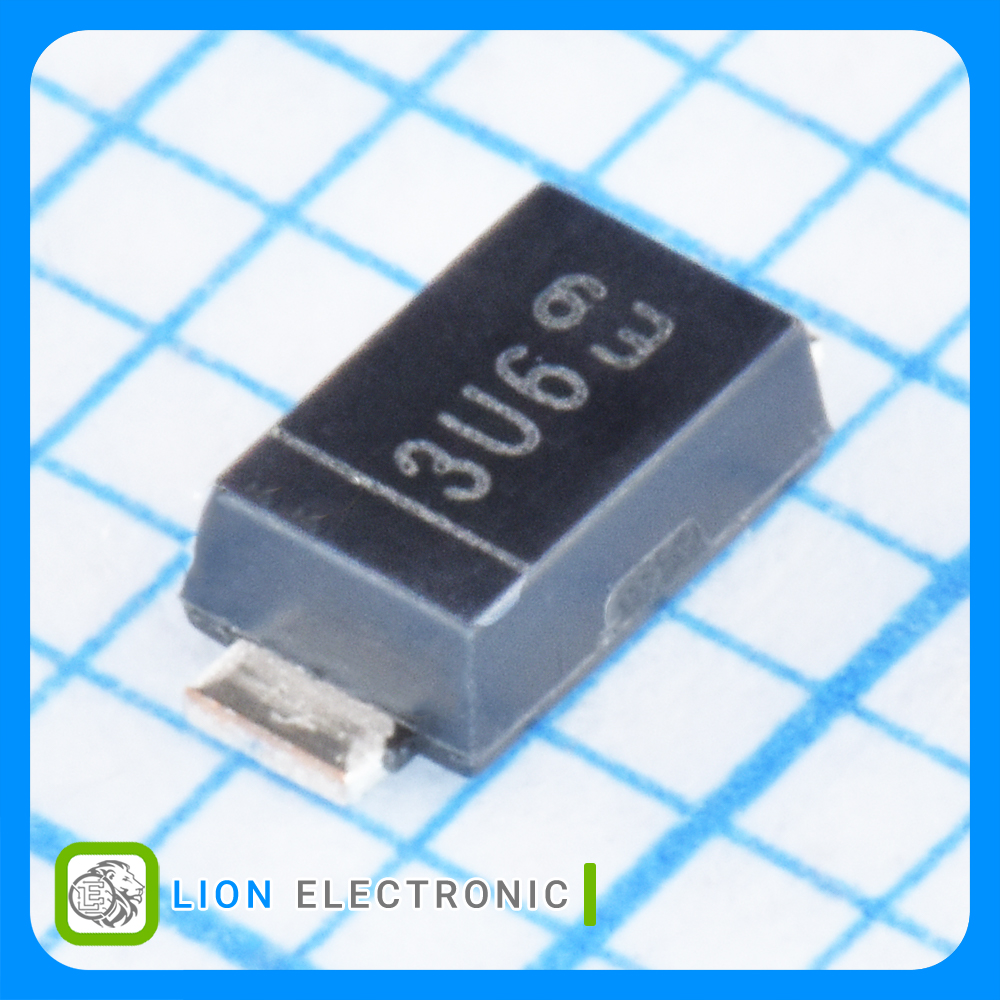

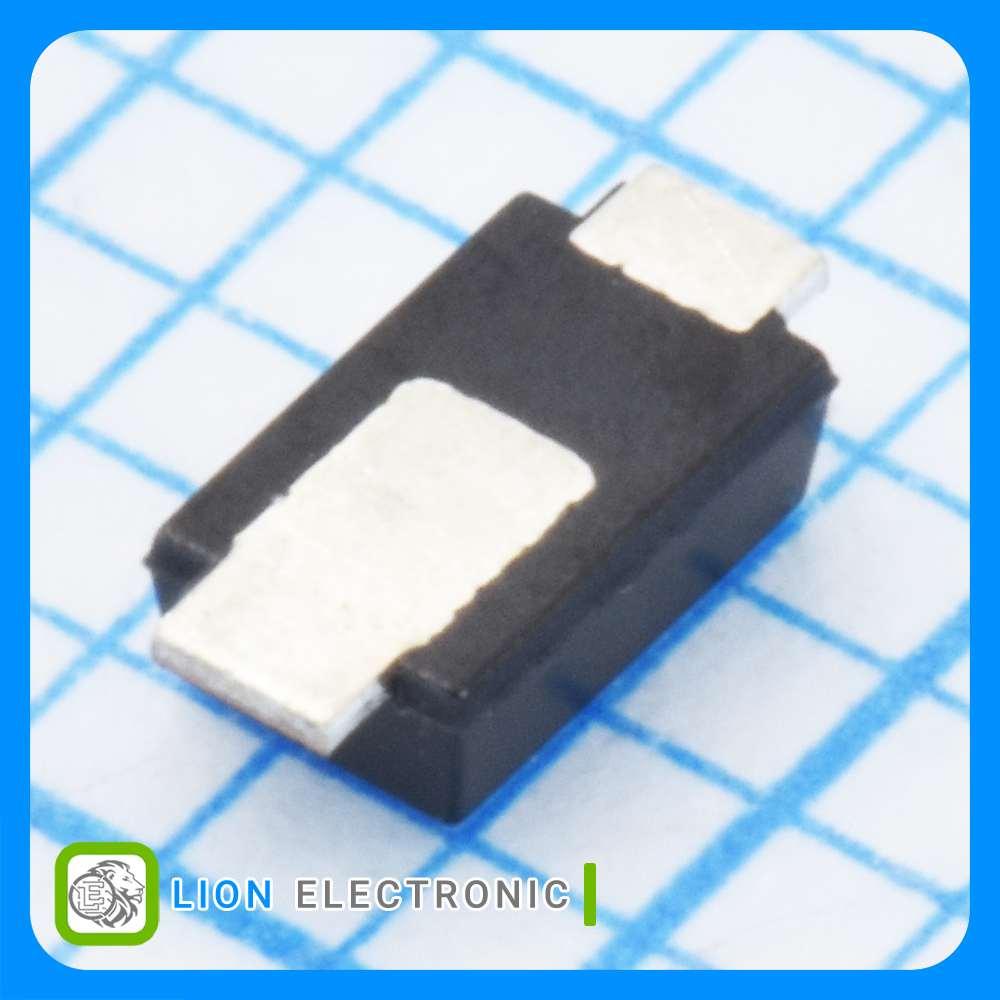

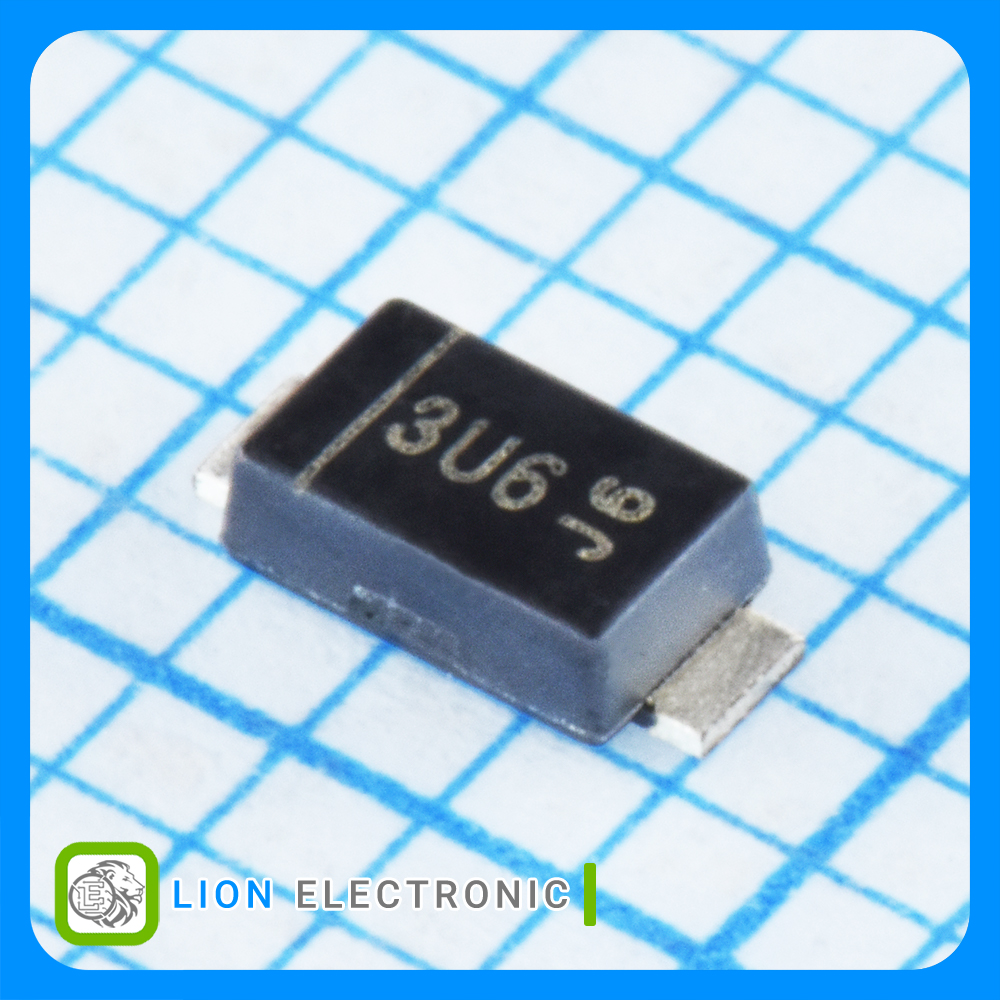

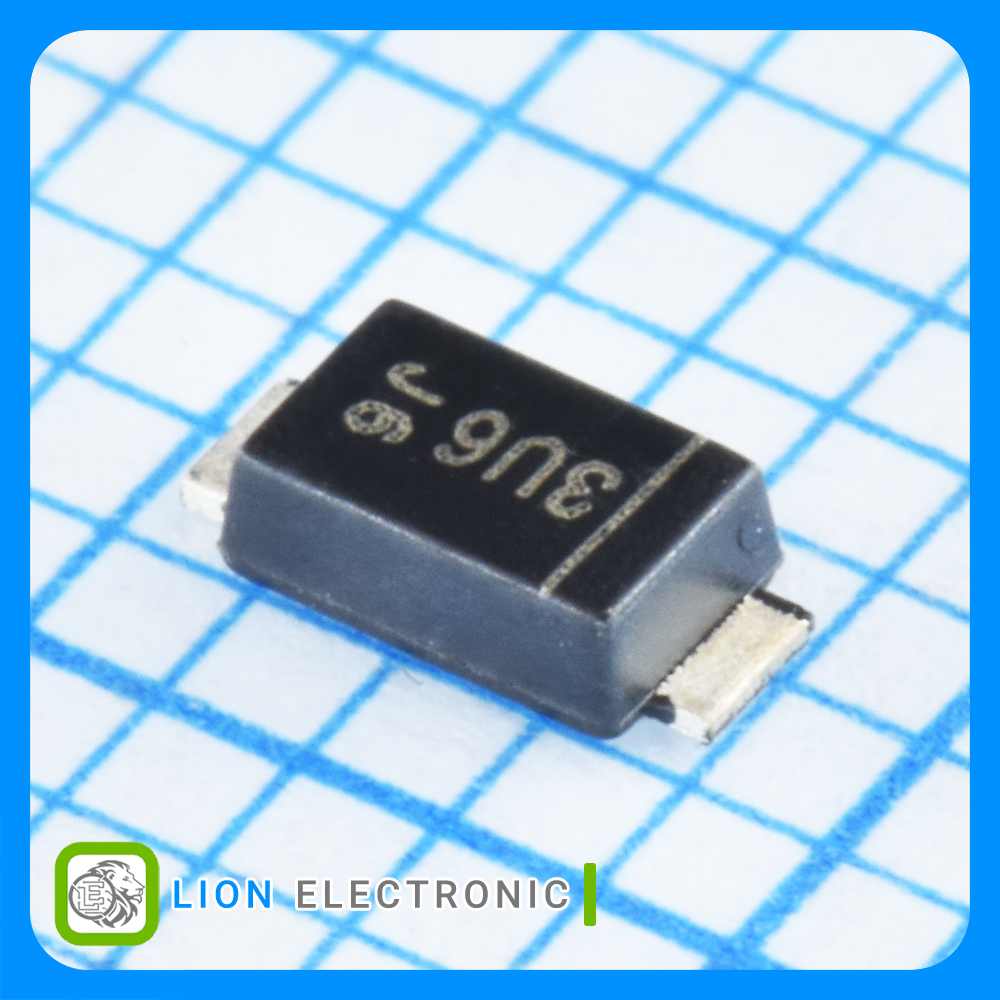

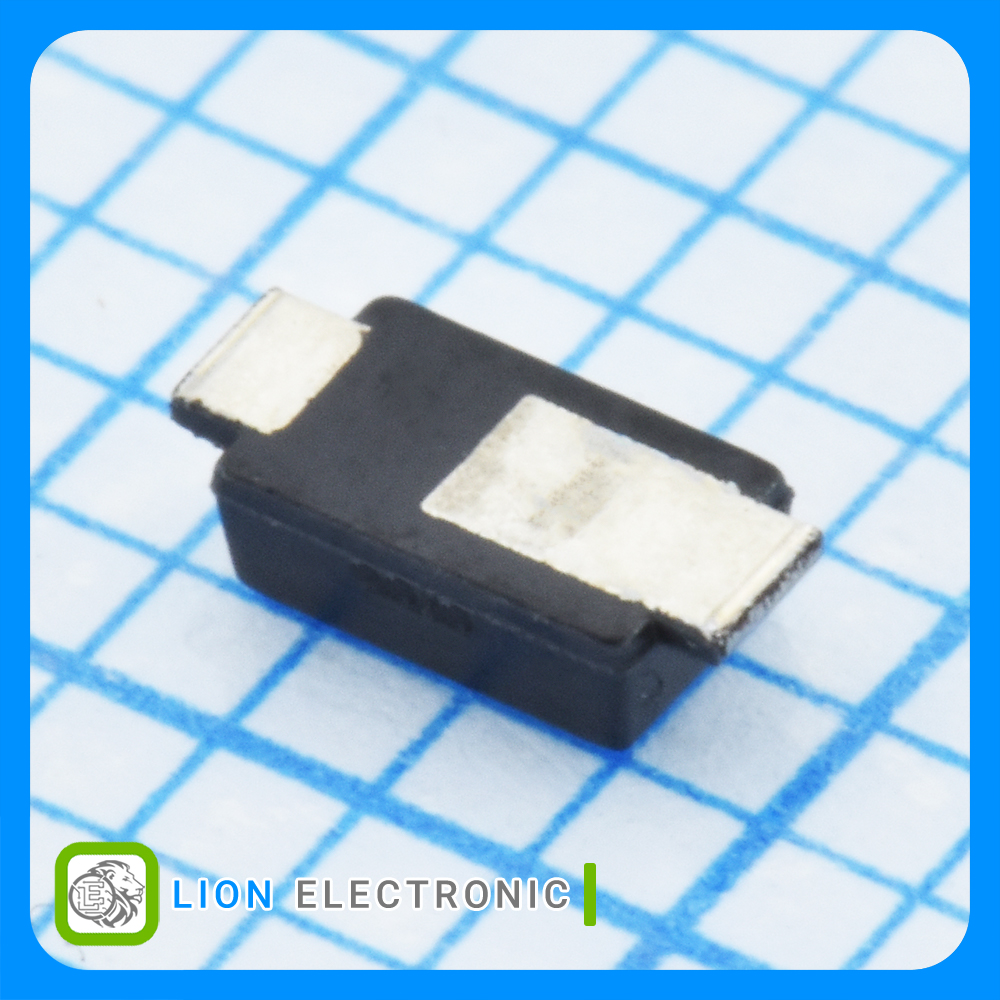

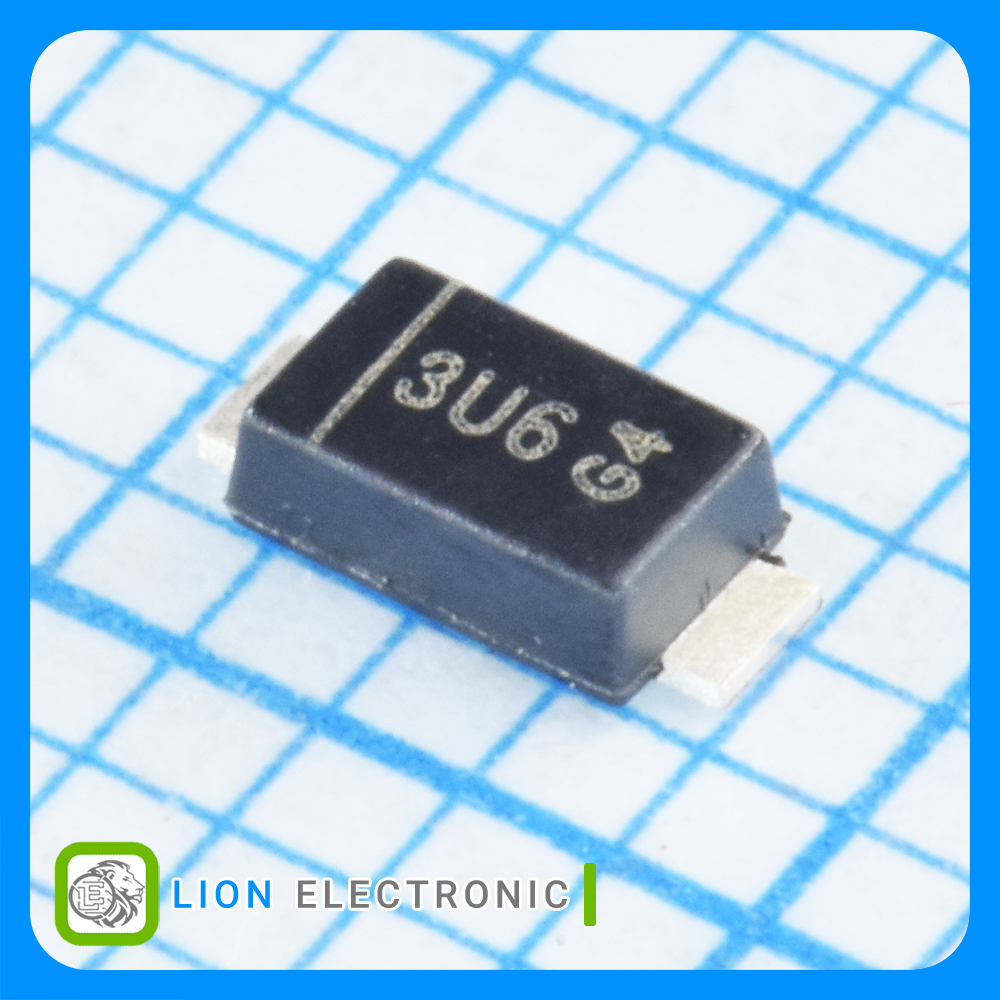

Super Barrier Rectifier 60V, 3A with PowerDI-123-2 Package
معرفی
دیود سوپر بریر 60 ولت 3 آمپر با پکیج PowerDI-123-2
Super Barrier Rectifier 60V, 3A with PowerDI-123-2 Package
Specifications
- Configuration: Single
- Vrrm - Repetitive Reverse Voltage: 60V
- If - Forward Current: 3A
- Ifsm - Forward Surge Current: 80A
- Vf - Forward Voltage: 650mV
- Ir - Reverse Current: 100uA
- Mounting Style: SMD/SMT
- Package/Case: PowerDI-123-2
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود شاتکی SBR3U60P1-7
دیود شاتکی SBR3U60P1-7
Part Number
-65C
Minimum Operating Temperature
Reel
Packaging
60V
Vrrm - Repetitive Reverse Voltage
SMD/SMT
Mounting Style
80A
Ifsm - Forward Surge Current
100uA
Ir - Reverse Current
650mV
Vf - Forward Voltage
+150C
Maximum Operating Temperature
Single
Configuration
3A
If - Forward Current
PowerDI-123-2
Package-Case
