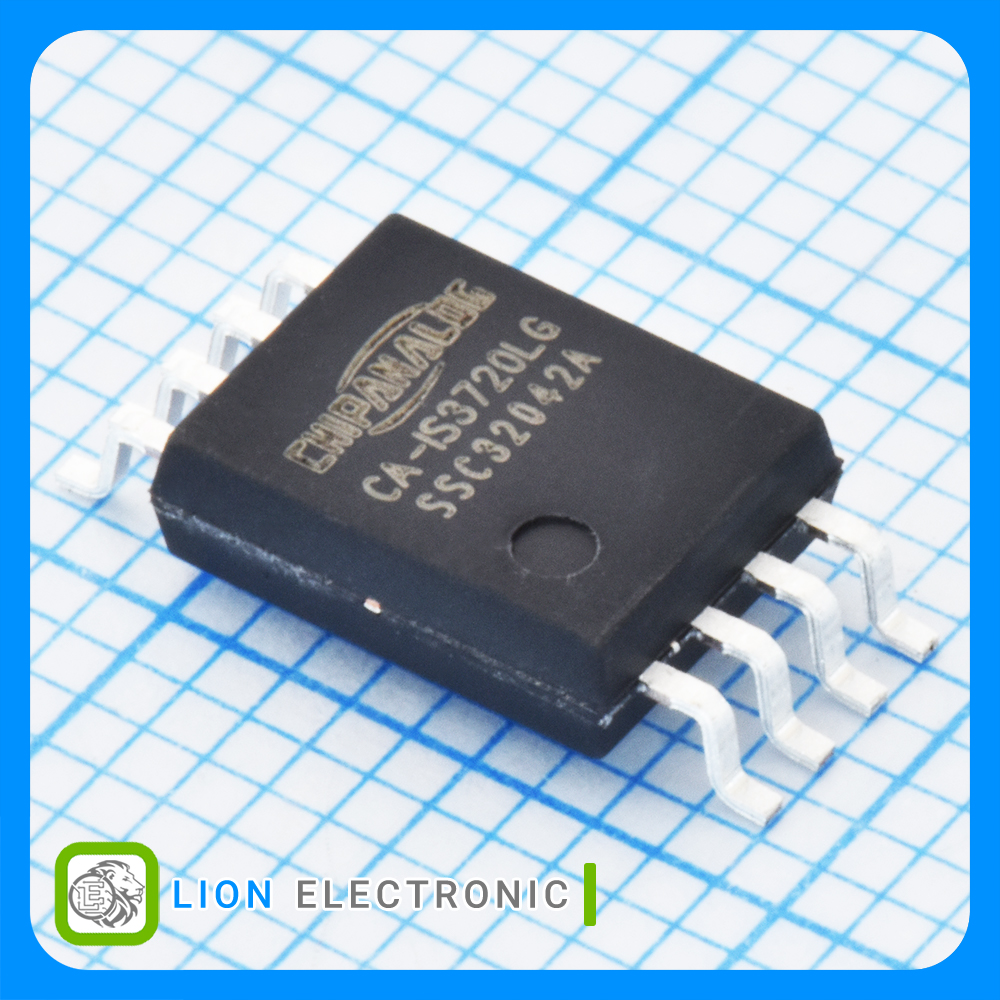

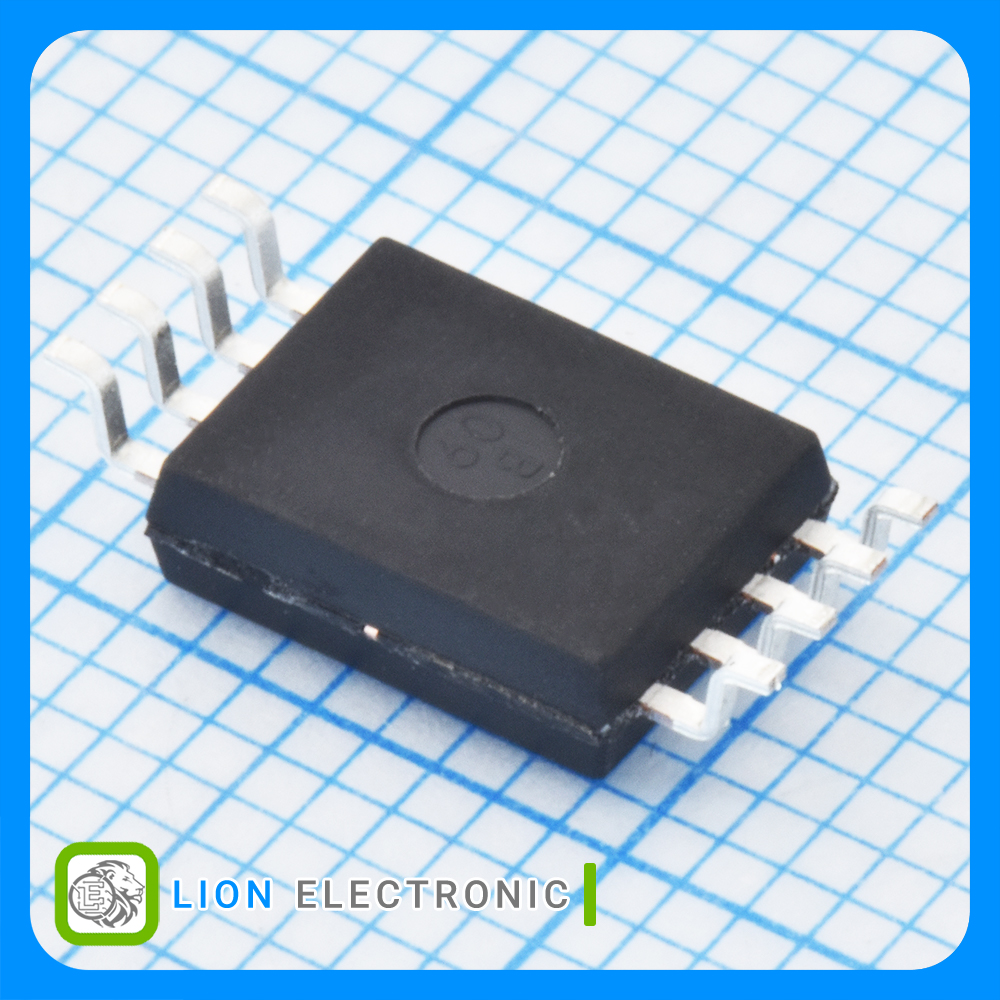

CA-IS3720LG
CA-IS3720LG
Part Number
5944
Lion Part
Datasheet
Chipanalog Manufacture
ایزولاتور دیجیتال دوکاناله پرسرعت، یکطرفه منفی، ایزولاسیون 5 کیلوولت RMS، نرخ 150 مگابیت بر ثانیه، پکیج SOIC-8 WIDE
High-Speed Dual-Channel Digital Isolator 2-Channel Negative, 5kVrms, 150Mbps with SOIC-8 WIDE Package (SOIC8-WB)
معرفی
ایزولاتور دیجیتال دوکاناله پرسرعت، یکطرفه منفی، ایزولاسیون 5 کیلوولت RMS، نرخ 150 مگابیت بر ثانیه، پکیج SOIC-8 WIDE
High-Speed Dual-Channel Digital Isolator 2-Channel Negative, 5kVrms, 150Mbps with SOIC-8 WIDE Package (SOIC8-WB)
Specifications
- Number of Channels: 2
- Polarity: Negative
- Isolation Voltage: 5kVrms
- Data Rate: 150Mbps
- Propagation Delay Time: 10ns
- Isolation Type: Capacitive Coupling
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 2.5V
- Operating Supply Current: 0.8 – 1.3mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8 WIDE
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات CA-IS3720LG
CA-IS3720LG
Part Number
Capacitive Coupling
Isolation Type
2
Number of Channels
Negative
Polarity
10ns
Propagation Delay Time
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
5kVrms
Isolation Voltage
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
2.5V
Supply Voltage - Min
150Mbps
Data Rate
0.8 – 1.3mA
Operating Supply Current
SOIC-8W
Package-Case
