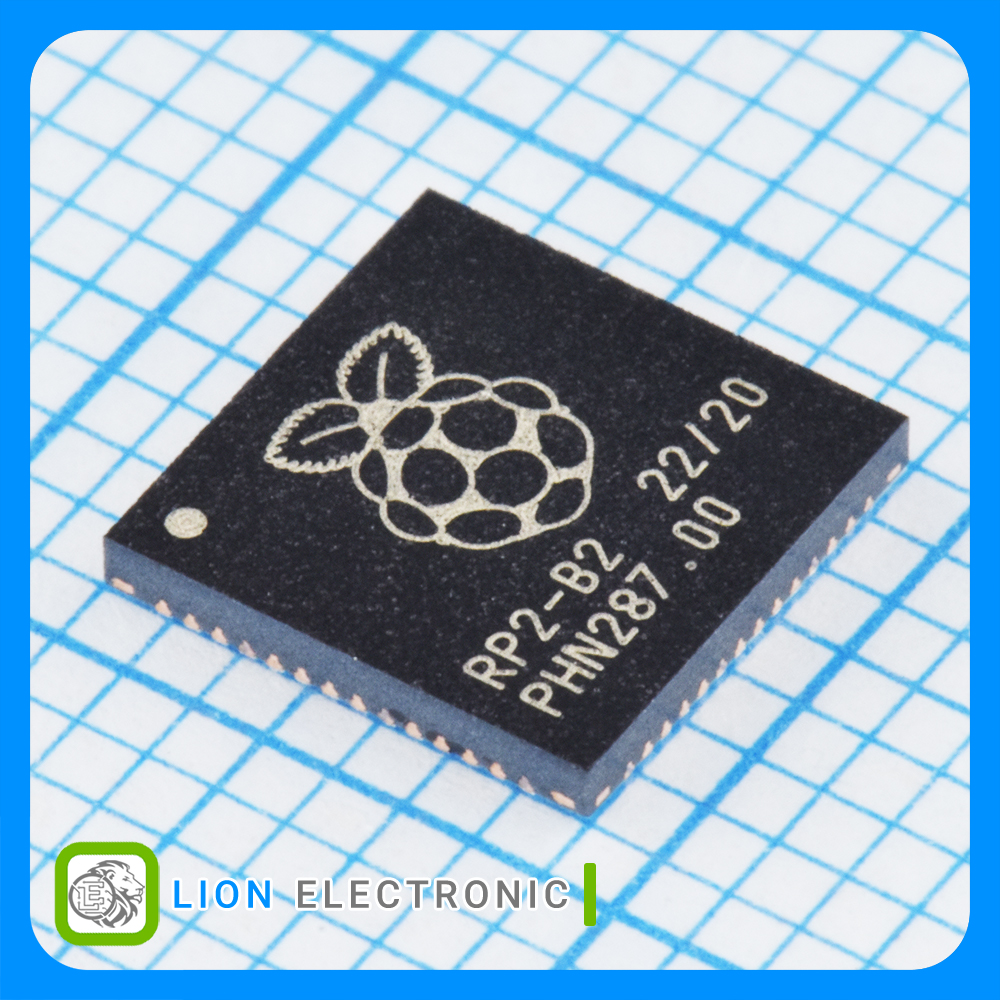

میکروکنترلر RP2040
RP2040
Part Number
5960
Lion Part
Datasheet
Raspberry Pi Manufacture
میکروکنترلر Dual ARM Cortex-M0 فرکانس 133MHz، حافظه SRAM داخلی 264kB، پشتیبانی تا 16MB فلش خارجی QSPI، پکیج QFN-56
Dual ARM Cortex-M0 133MHz 264kB on-chip SRAM in six independent banks Support up to 16MB of off-chip Flash memory via dedicated QSPI bus QFN-56
مشخصات میکروکنترلر RP2040
میکروکنترلر RP2040
Part Number
RP2XXX
Series
12bit
ADC Resolution
32bit
Data Bus Width
Reel
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
ARM Cortex M0
Core
-20C
Minimum Operating Temperature
30
Number of I-Os
133MHz
Maximum Clock Frequency
ADC, I2C, PWM, SPI, UART, USB
Interface Type
N/A
Program Memory Size
264kB
Data RAM Size
QFN-56
Package-Case
N/A
Operating Supply Voltage
