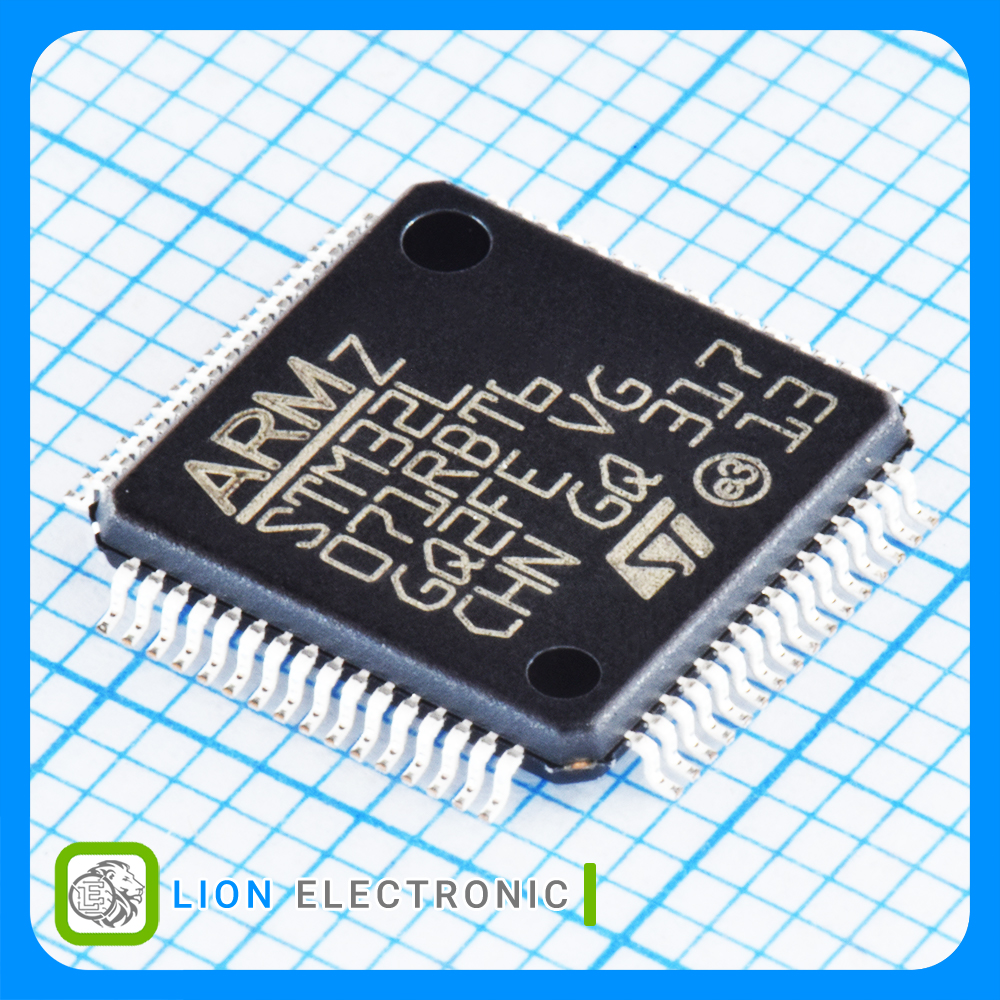

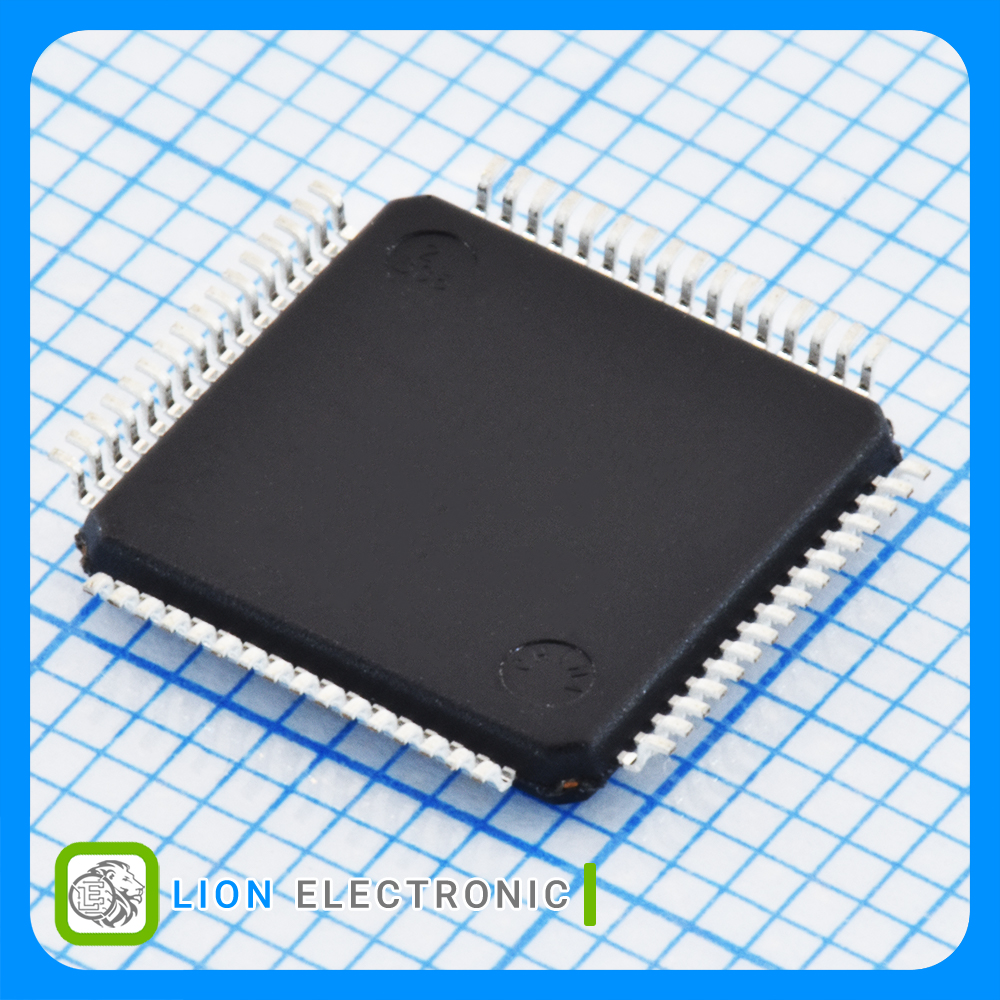

STM32L071RBT6
STM32L071RBT6
Part Number
6200
Lion Part
Datasheet
STMicroelectronics Manufacture
میکروکنترلر ARM Cortex M0+ با معماری 32 بیتی 32 مگاهرتز 128 کیلوبایت فلش 20 کیلوبایت رم با پکیج LQFP-64
ARM Cortex M0+ Microcontroller 32bit, 32MHz, 128kB Flash, 20kB RAM with LQFP-64 Package
معرفی
میکروکنترلر ARM Cortex M0+ با معماری 32 بیتی 32 مگاهرتز 128 کیلوبایت فلش 20 کیلوبایت رم با پکیج LQFP-64
ARM Cortex M0+ Microcontroller 32bit, 32MHz, 128kB Flash, 20kB RAM with LQFP-64 Package
Specifications
- Series: STM32L0
- Core: ARM Cortex M0+
- Interface Type: I2C, LPUART, SPI/I2S, USART
- Number of I/Os: 51
- ADC Resolution: 12bit
- Program Memory Size: 128kB
- Data RAM Size: 20kB
- Data Bus Width: 32bit
- Maximum Clock Frequency: 32MHz
- Operating Supply Voltage: 1.8 - 3.6V
- Mounting Style: SMD/SMT
- Package/Case: LQFP-64
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tray
مشخصات STM32L071RBT6
STM32L071RBT6
Part Number
12bit
ADC Resolution
32bit
Data Bus Width
-40C
Minimum Operating Temperature
Tray
Packaging
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
ARM Cortex M0+
Core
32MHz
Maximum Clock Frequency
128kB
Program Memory Size
STM32L0
Series
20kB
Data RAM Size
51
Number of I-Os
1.8 - 3.6V
Operating Supply Voltage
I2C, LPUART, SPI/I2S, USART
Interface Type
LQFP-64
Package-Case
