Lite-On
معرفی
دیود شاتکی 45 ولت 10 آمپر با پکیج TO-252 (DPAK)

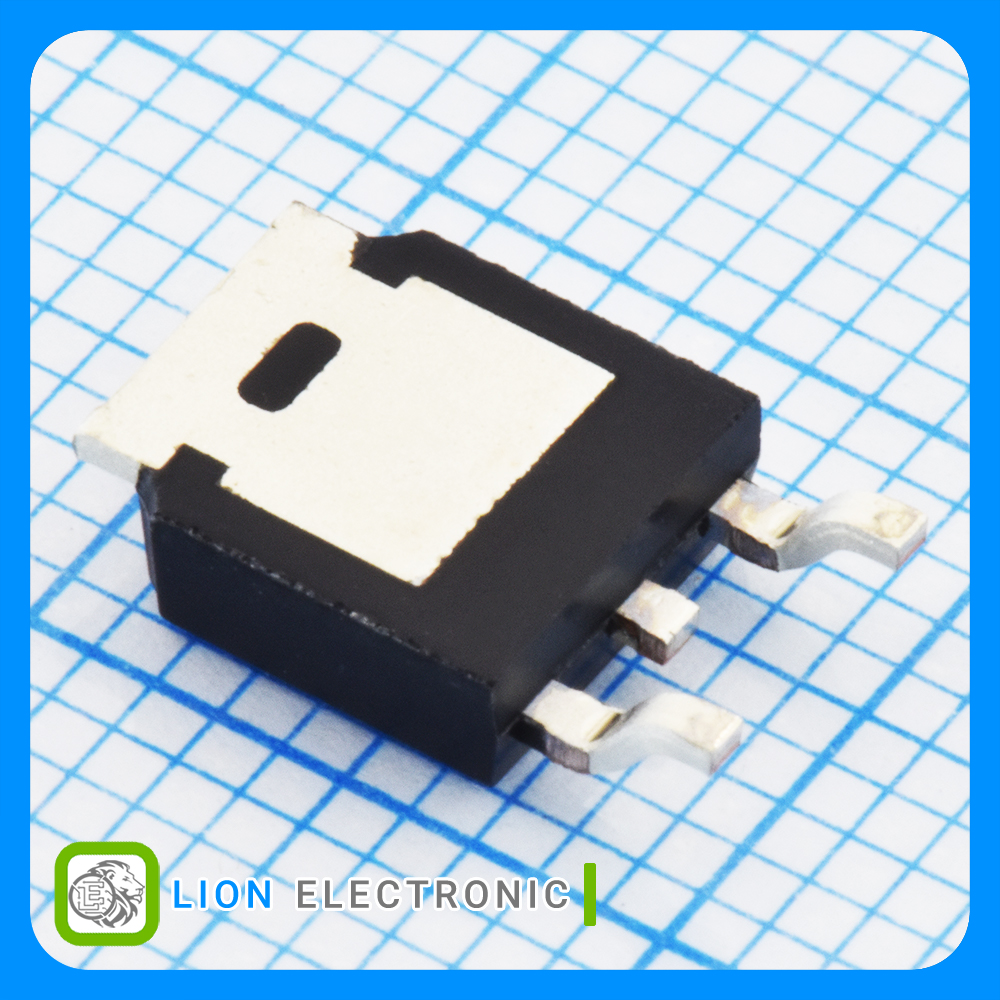

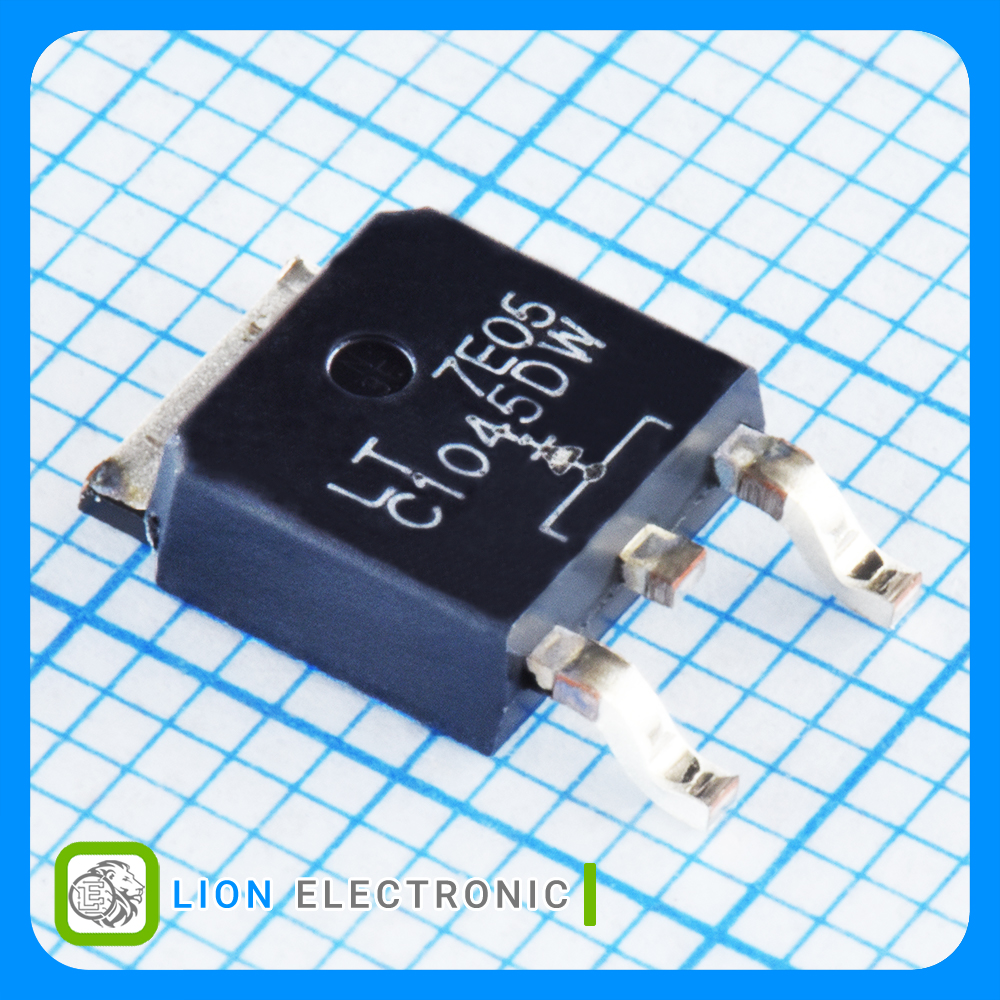

Schottky Diode 45V, 10A with TO-252 (DPAK) Package
Specifications
- Configuration: Single Dual Anode
- Vrrm - Repetitive Reverse Voltage: 45V
- If - Forward Current: 10A
- Ifsm - Forward Surge Current: 120A
- Vf - Forward Voltage: 540mV
- Ir - Reverse Current: 300uA
- Mounting Style: SMD/SMT
- Package/Case: DPAK
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات C1045DW
C1045DW
Part Number
-55C
Minimum Operating Temperature
45V
Vrrm - Repetitive Reverse Voltage
Reel
Packaging
SMD/SMT
Mounting Style
540mV
Vf - Forward Voltage
120A
Ifsm - Forward Surge Current
300uA
Ir - Reverse Current
+150C
Maximum Operating Temperature
Single
Configuration
10A
If - Forward Current
DPAK
Package-Case
