SKHHLNA010
SKHHLNA010
Part Number
6251
Lion Part
Datasheet
ALPSALPINE Manufacture
سوئیچ لمسی 7.5 میلیمتر×7.85 میلیمتر×7.1 میلیمتر 12 ولت 50 میلیآمپر با نیروی 1.57N

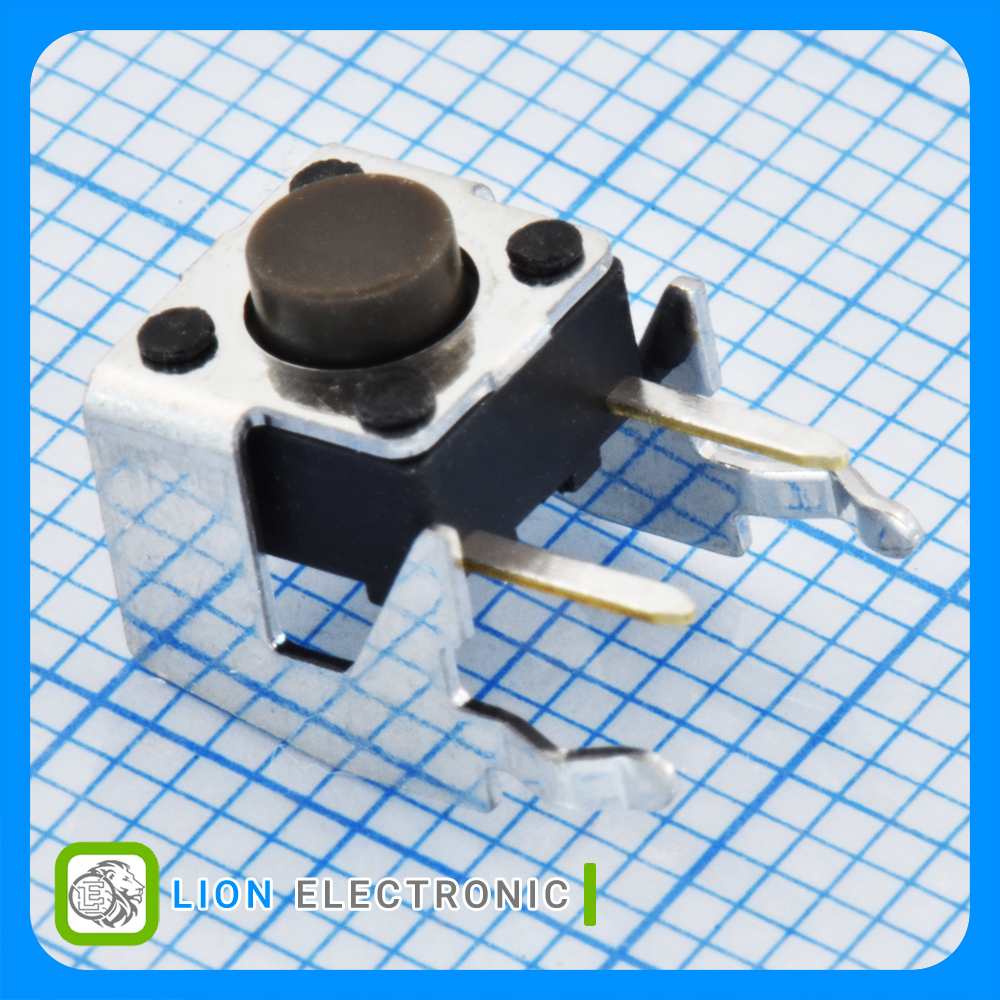

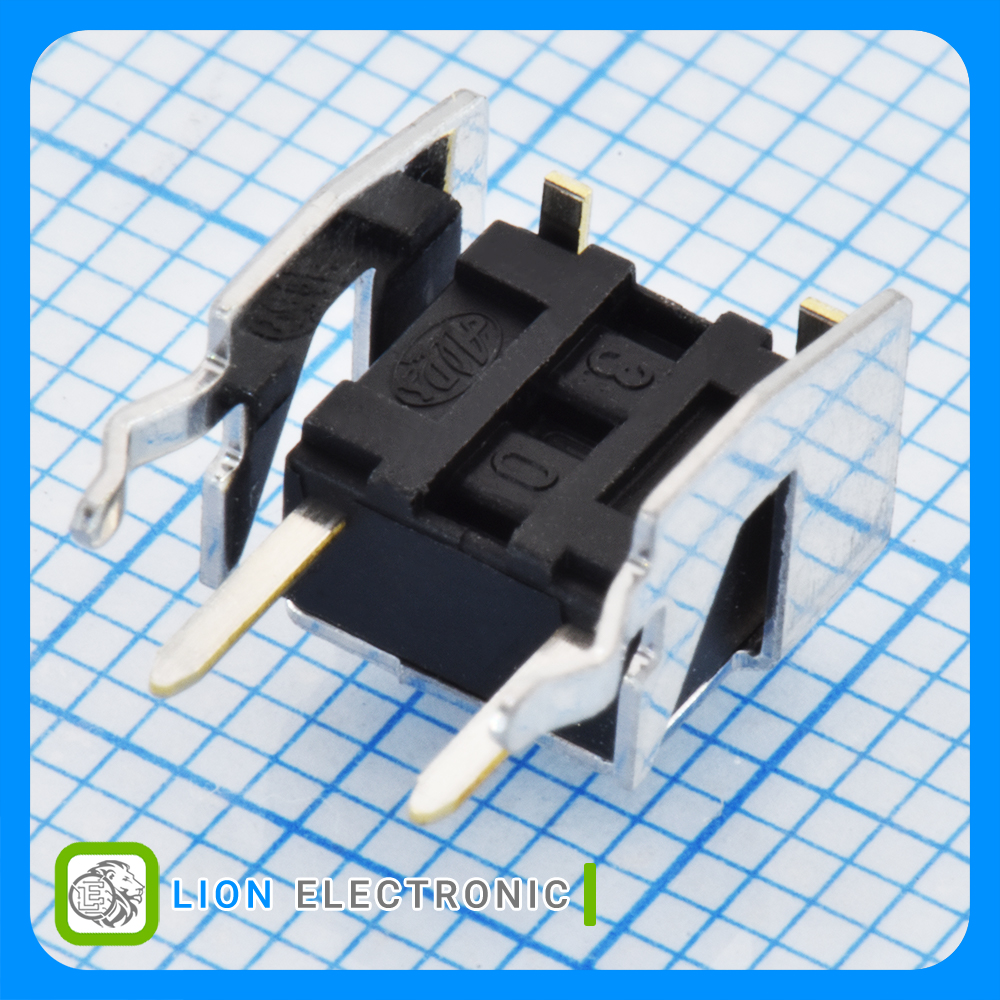

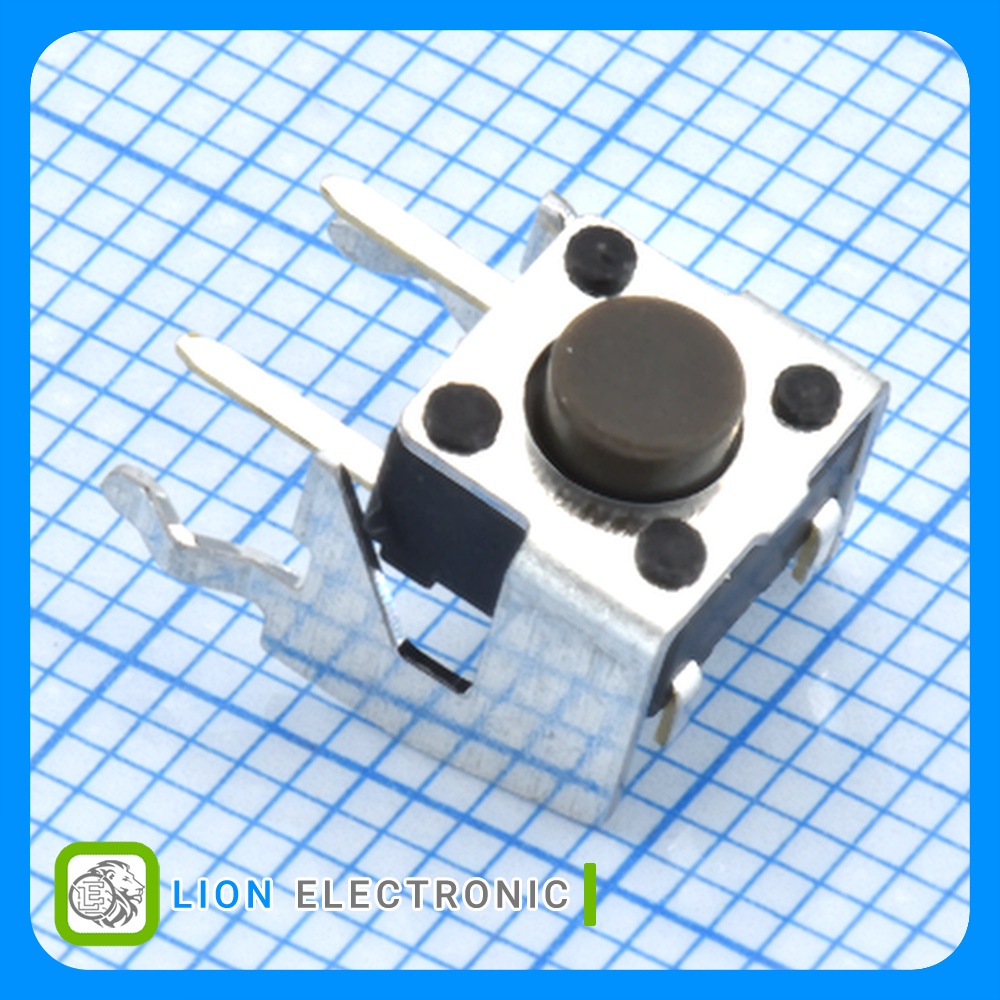

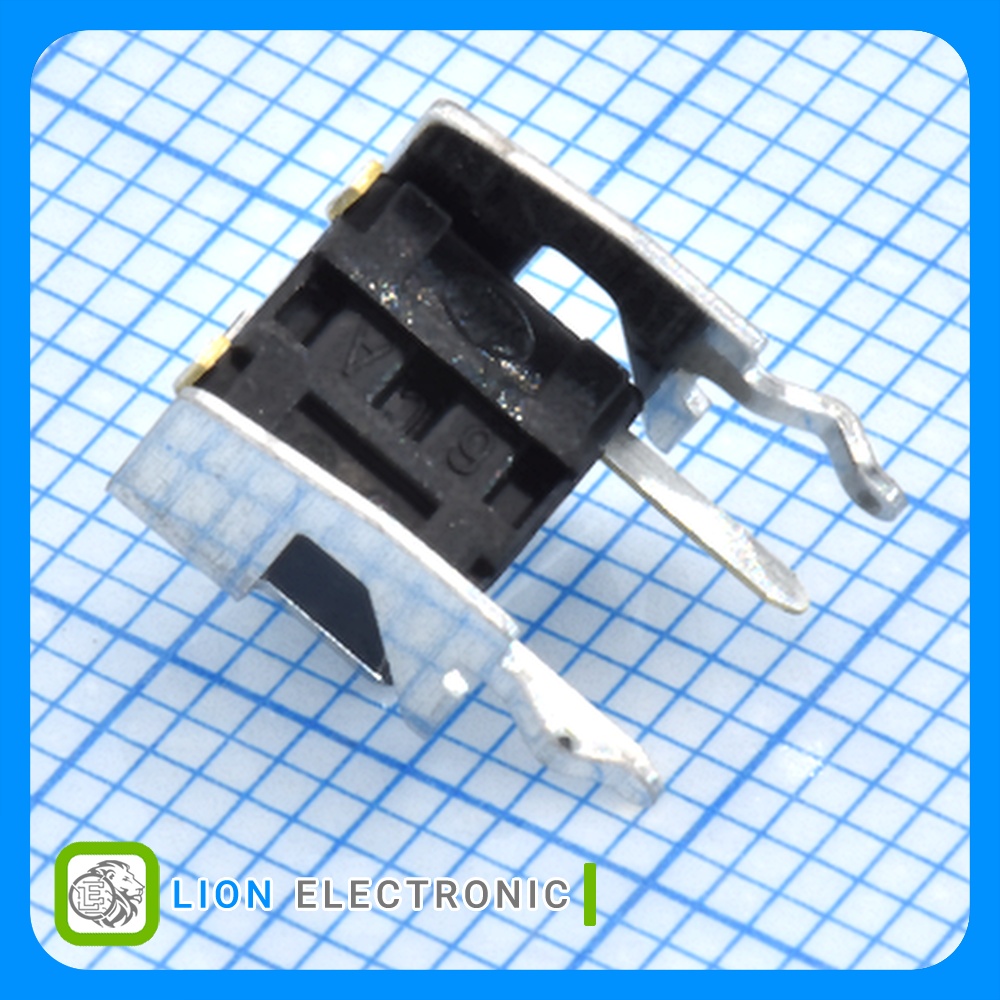

Tactile Switch 7.5mmx7.85mmx7.1mm, 12V 50mA with 1.57N Operating Force
معرفی
سوئیچ لمسی 7.5 میلیمتر×7.85 میلیمتر×7.1 میلیمتر 12 ولت 50 میلیآمپر با نیروی 1.57N
Tactile Switch 7.5mmx7.85mmx7.1mm, 12V 50mA with 1.57N Operating Force
Specifications
- Operating Force: 1.57N
- Life: 500000 Cycle
- Color: Gray
- Voltage Rating DC: 12VDC
- Current Rating: 50mA
- Length: 7.5mm
- Width: 7.85mm
- Height: 7.1mm
- Mounting Direction: Right Angle
- Termination style: Solder Tab
- Mounting Style: Through Hole
- Packaging: Bag
مشخصات SKHHLNA010
SKHHLNA010
Part Number
Right Angle
Mounting Direction
Bag
Packaging
1.57N
Operating Force
Gray
Color
50mA
Current Rating
12VDC
Voltage Rating DC
Solder Tab
Termination style
Through Hole
Mounting Style
500000 Cycle
Life
7.5mm
Length
7.85mm
Width
7.1mm
Height
