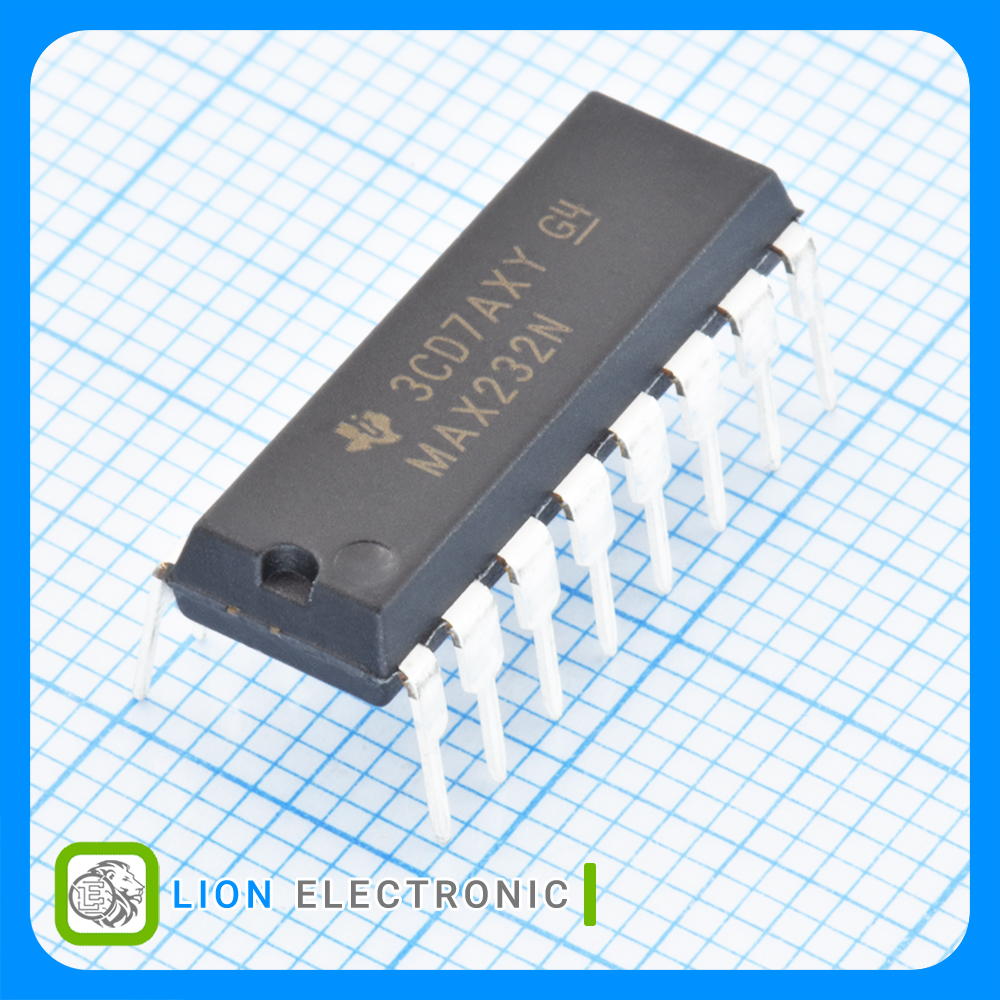

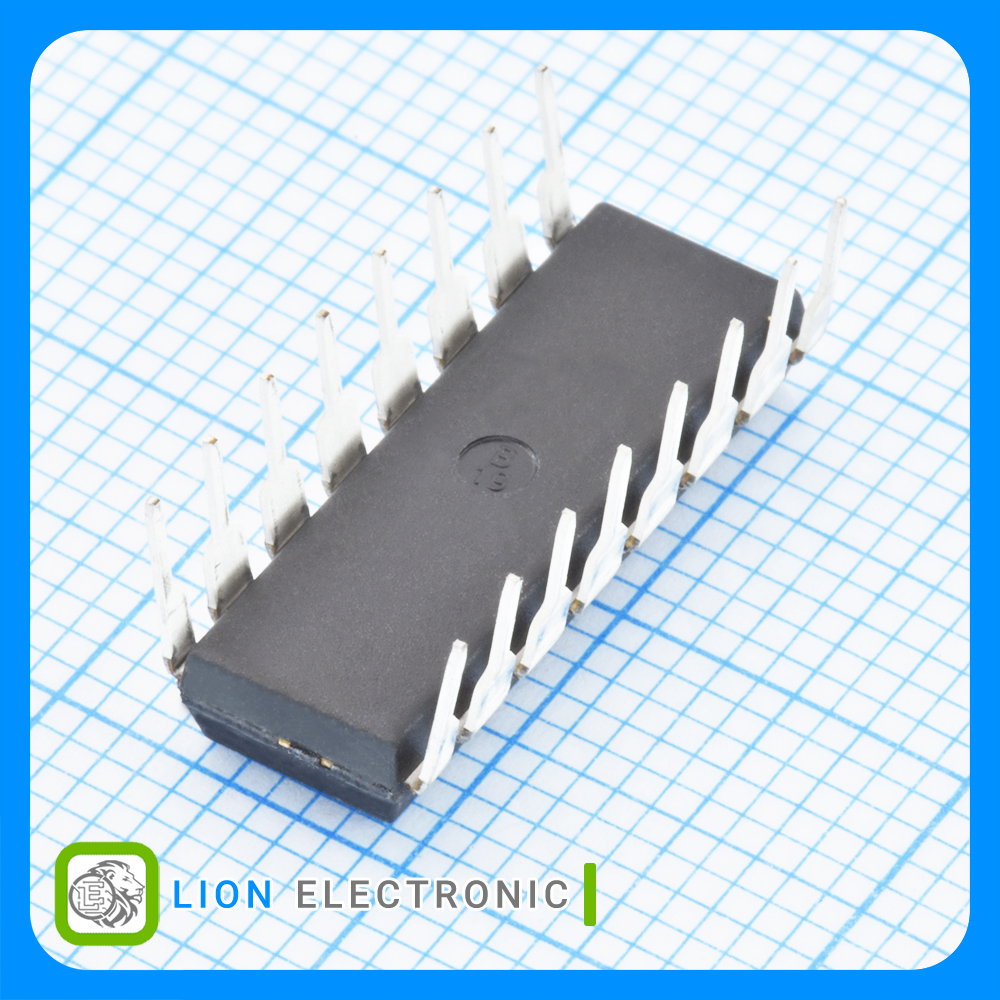

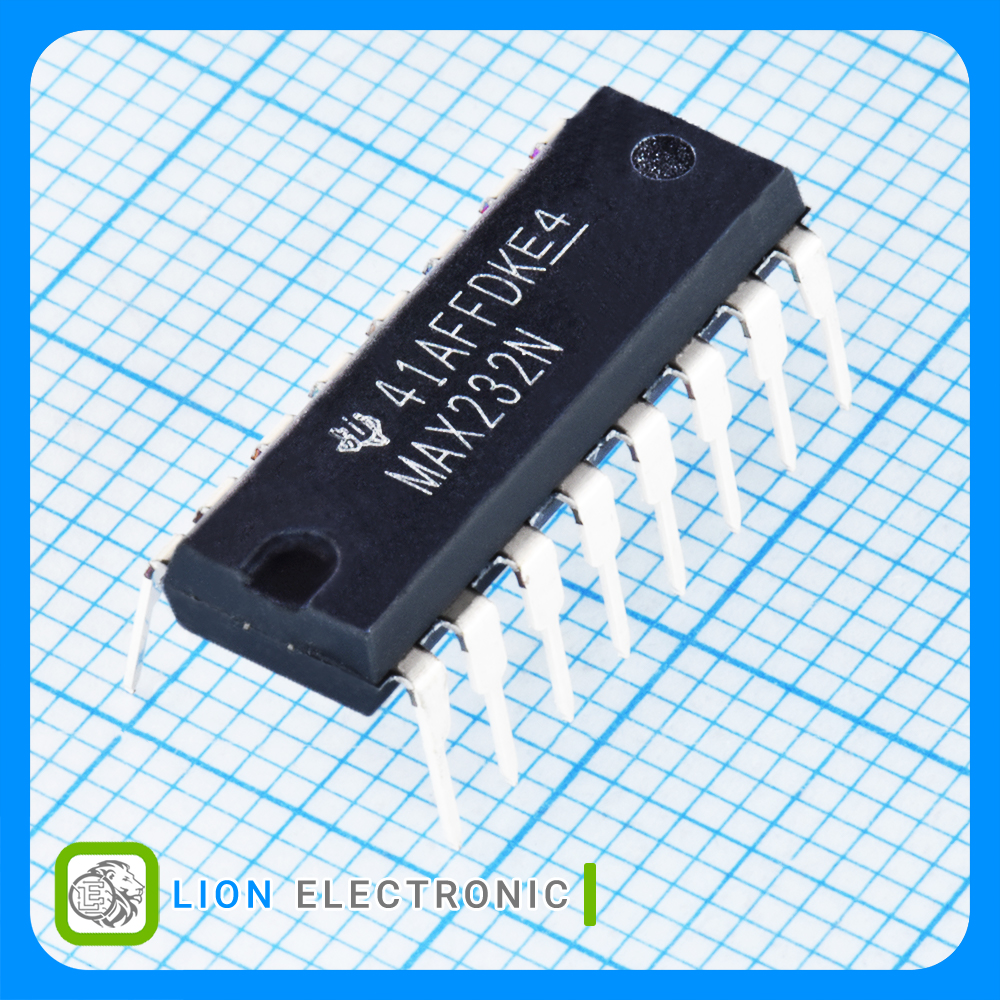

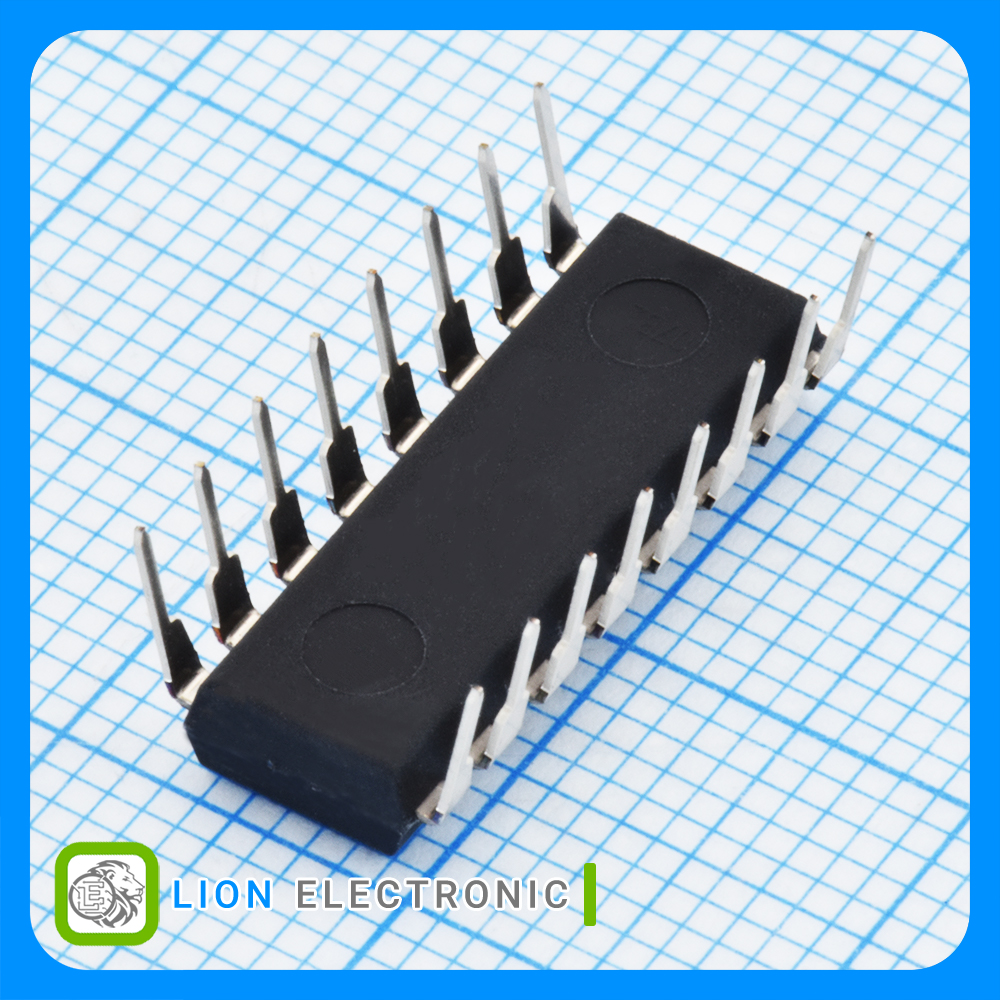

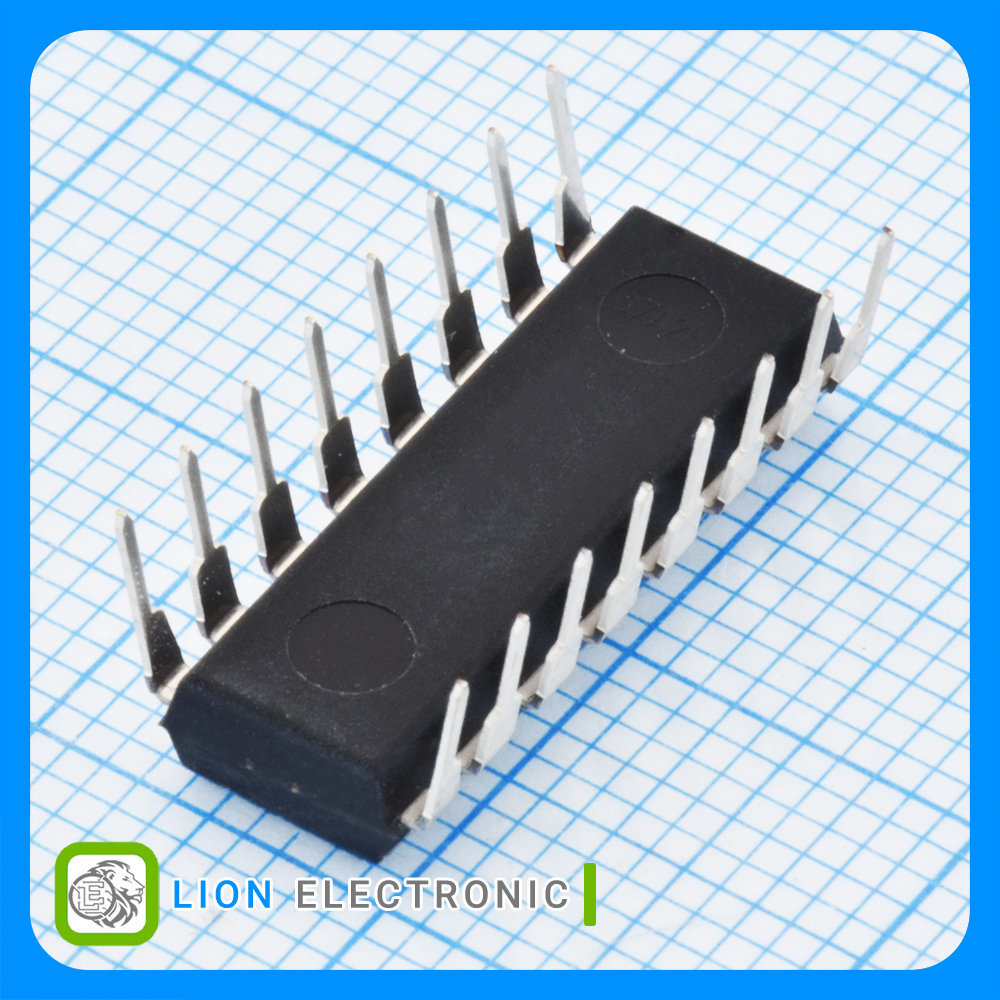

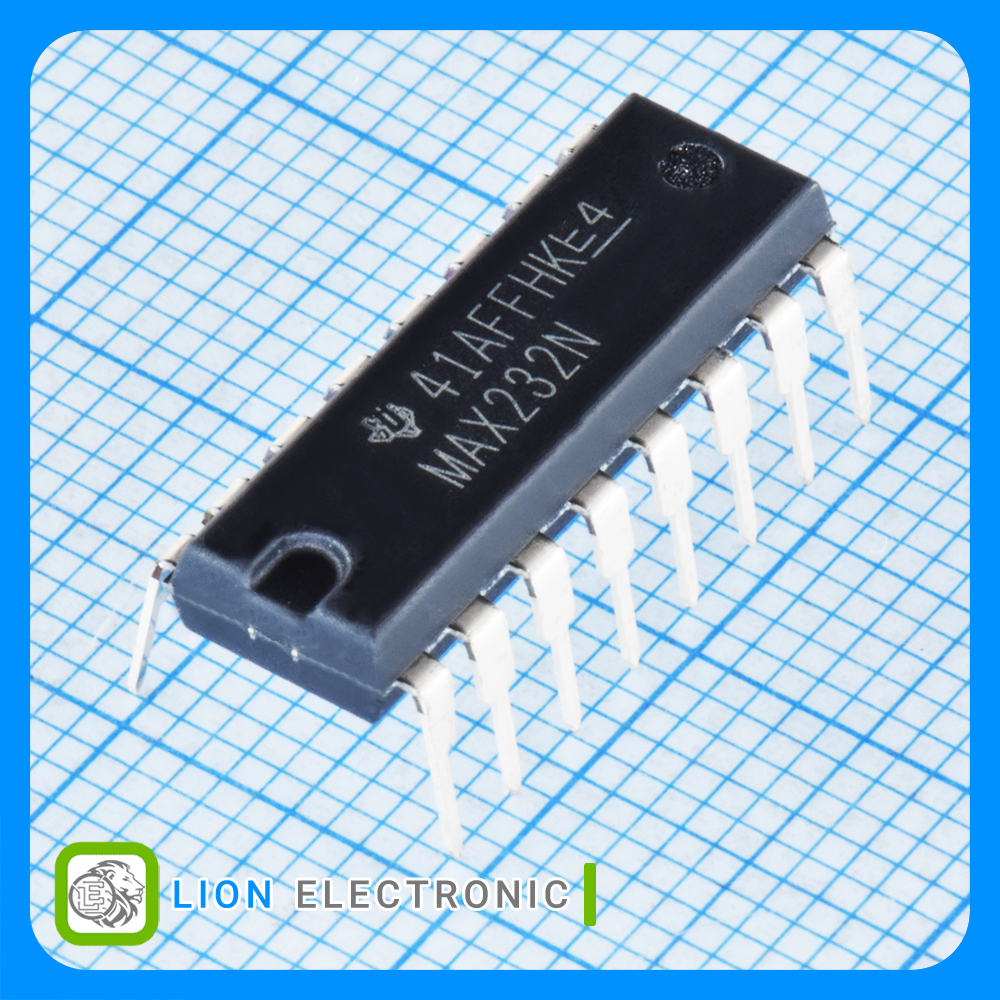

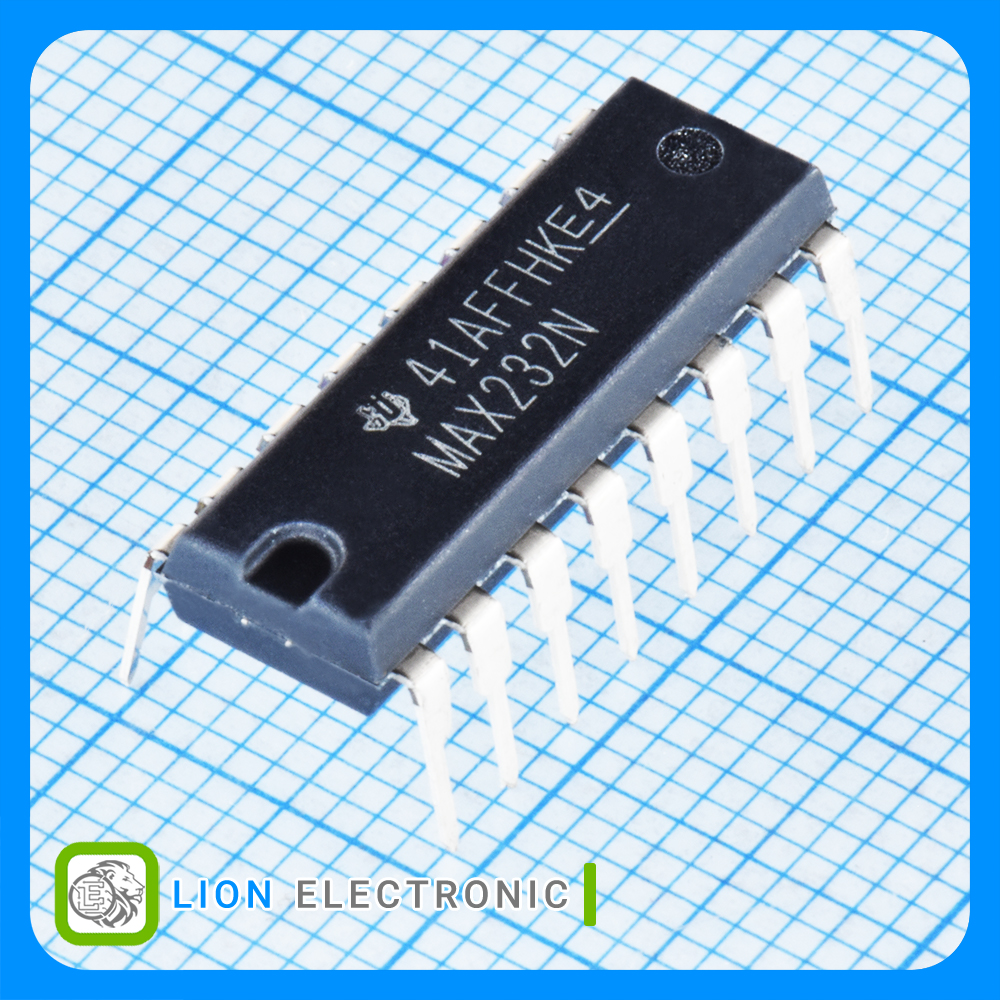

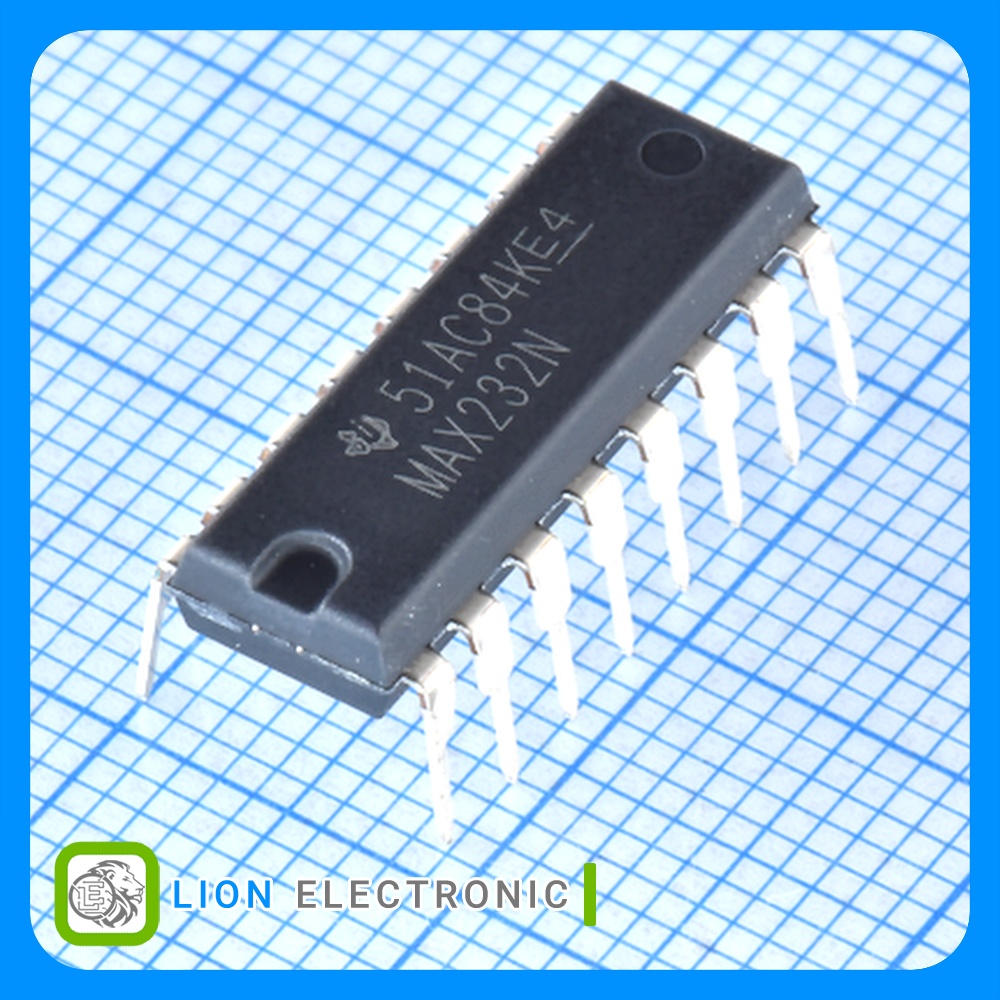

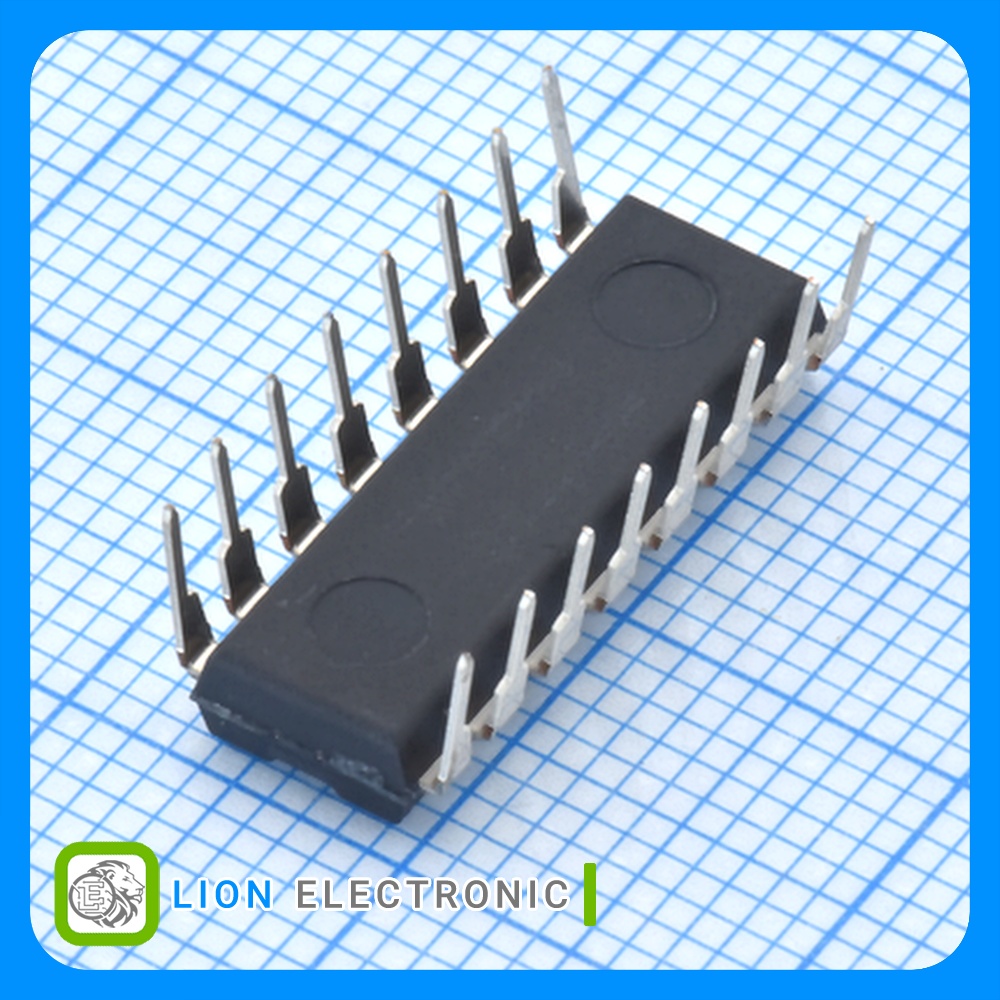

MAX232N
MAX232N
Part Number
652
Lion Part
Datasheet
Texas Instruments Manufacture
ترنسیور RS-232 دوگانه 2 درایور و 2 گیرنده با نرخ 120kb/s و تغذیه 4.5 تا 5.5 ولت، تمامدوطرفه، مطابق یا فراتر از TIA/EIA-232-F و توصیه ITU V.28، با پکیج DIP-16
Dual EIA-232 Drivers/Receivers Transceiver, 2 Driver 2 Receiver, 120kb/s, Full Duplex, 4.5V - 5.5V, which Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28, with DIP-16 Package
معرفی
ترنسیور RS-232 دوگانه 2 درایور و 2 گیرنده با نرخ 120kb/s و تغذیه 4.5 تا 5.5 ولت، تمامدوطرفه، مطابق یا فراتر از TIA/EIA-232-F و توصیه ITU V.28، با پکیج DIP-16
Dual EIA-232 Drivers/Receivers Transceiver, 2 Driver 2 Receiver, 120kb/s, Full Duplex, 4.5V - 5.5V, which Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28, with DIP-16 Package
Specifications
- Product Type: RS-232 Interface IC
- Number of Drivers: 2
- Number of Receivers: 2
- Data Rate: 120kb/s
- Duplex: Full Duplex
- Function: Transceiver
- Supply Voltage - Min: 4.5V
- Supply Voltage - Max: 5.5V
- Operating Supply Current: 10mA
- Mounting Style: Through Hole
- Package/Case: DIP-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات MAX232N
MAX232N
Part Number
--- 10mA
Operating Supply Current
--- Full Duplex
Duplex
--- RS-232 Interface IC
Product Type
--- Transceiver
Function
--- DIP-16
Package-Case
--- 2
Number of Receivers
--- Tube
Packaging
--- 2
Number of Drivers
--- +85C
Maximum Operating Temperature
--- 120kb/s
Data Rate
--- -40C
Minimum Operating Temperature
--- Through Hole
Mounting Style
--- 5.5V
Supply Voltage - Max
--- 4.5V
Supply Voltage - Min
