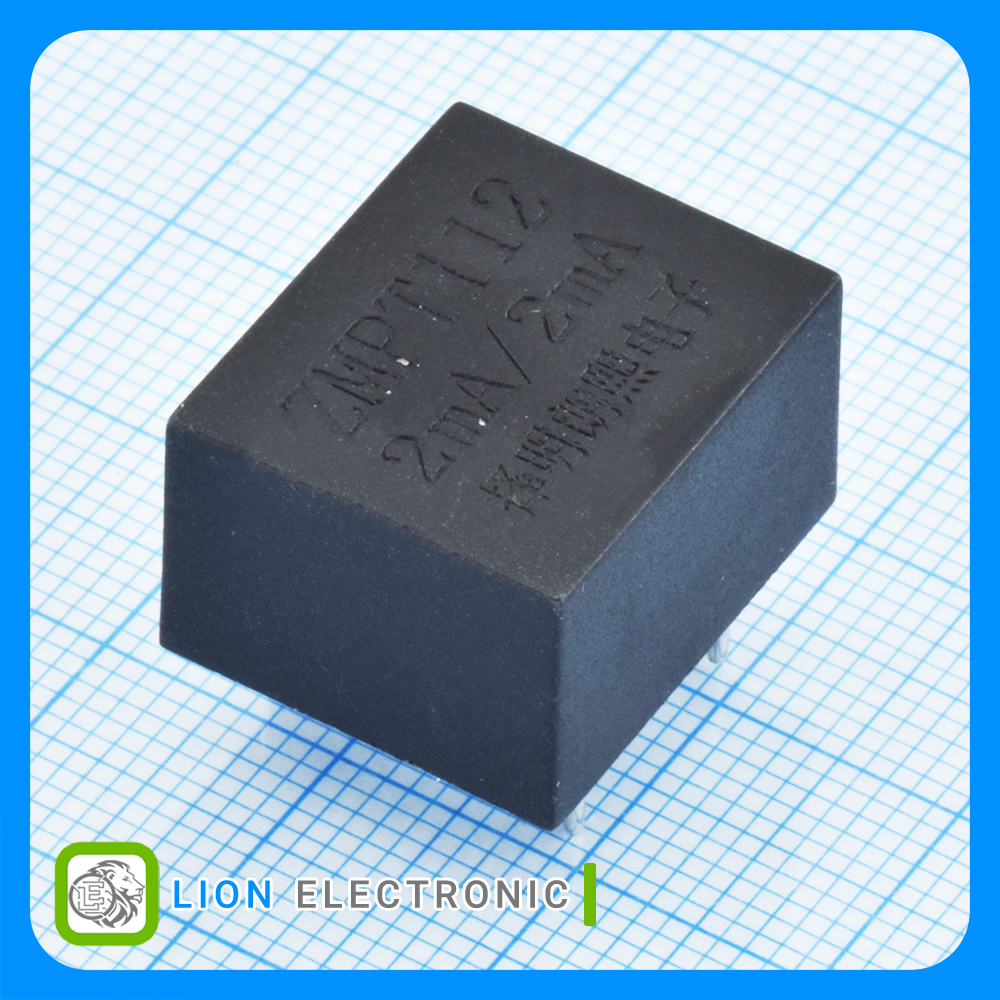

ZMPT112
ZMPT112
Part Number
6548
Lion Part
Datasheet
ZHE MING LANG XI Manufacture
ترانسفورماتور ولتاژ جریانی 2 میلی‌آمپر نسبت 1000:1000 دقت 0.2% فرکانس 50 تا 60 هرتز، سایز کوچک با سازگاری خوب، مناسب اندازه‌گیری ولتاژ و توان
Current-Type Voltage Transformer 2mA, Turns Ratio 1000:1000, Accuracy 0.2%, 50-60Hz, Small Size with Good Consistency, for Voltage and Power Measurement
معرفی
ترانسفورماتور ولتاژ جریانی 2 میلی‌آمپر نسبت 1000:1000 دقت 0.2% فرکانس 50 تا 60 هرتز، سایز کوچک با سازگاری خوب، مناسب اندازه‌گیری ولتاژ و توان
Current-Type Voltage Transformer 2mA, Turns Ratio 1000:1000, Accuracy 0.2%, 50-60Hz, Small Size with Good Consistency, for Voltage and Power Measurement
Specifications
- Frequency Range: 50 - 60Hz
- Current Rating: 2mA
- Turns Ratio: 1000:1000
- Accuracy: 0.2%
- Linearity: ≤0.2%
- Length: 19.5mm
- Width: 16.5mm
- Height: 11.6mm
- Mounting Style: Through Hole
- Packaging: Bag
مشخصات ZMPT112
ZMPT112
Part Number
--- 16.5mm
Width
--- 19.5mm
Length
--- 1000:1000
Turns Ratio
--- Bag
Packaging
--- ≤0.2%
Linearity
--- Through Hole
Mounting Style
--- 50 - 60Hz
Frequency Range
--- 0.2%
Accuracy
--- 2mA
Current Rating
--- 11.6mm
Height
Voltage Transformer
Product Type
