معرفی

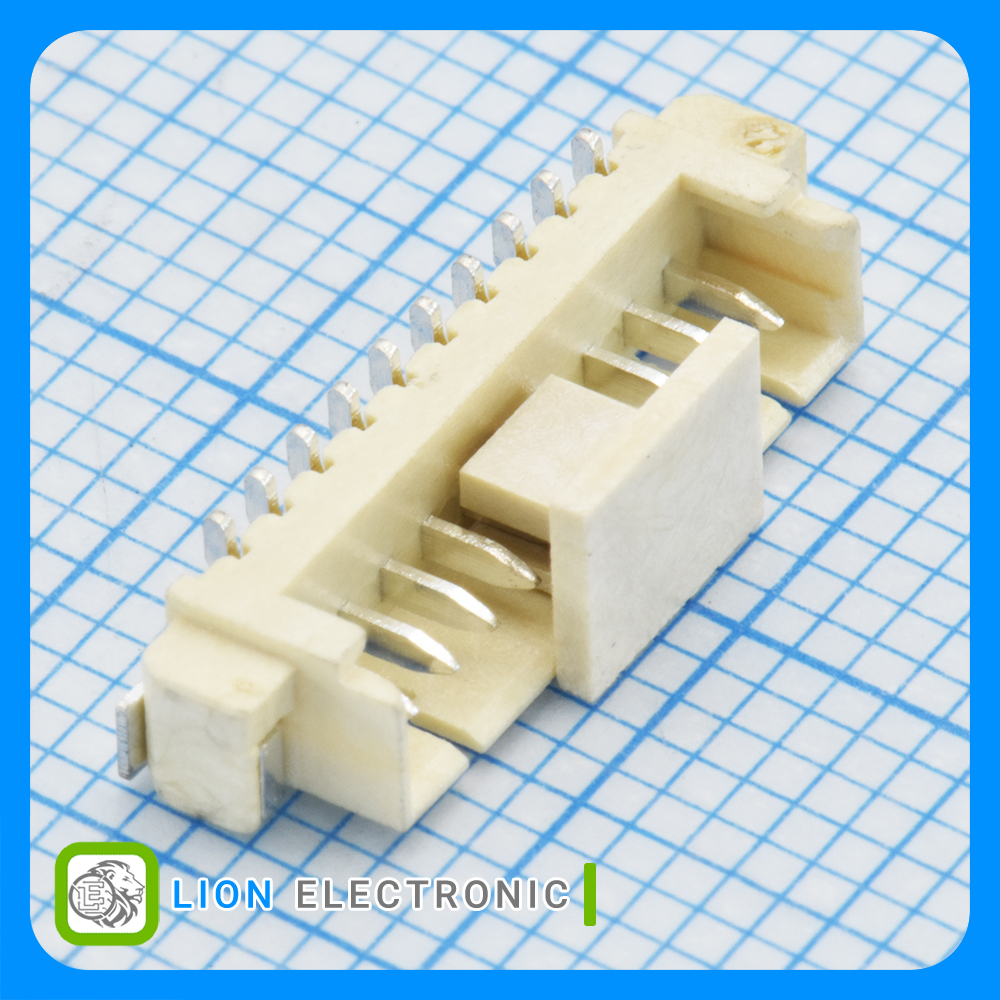

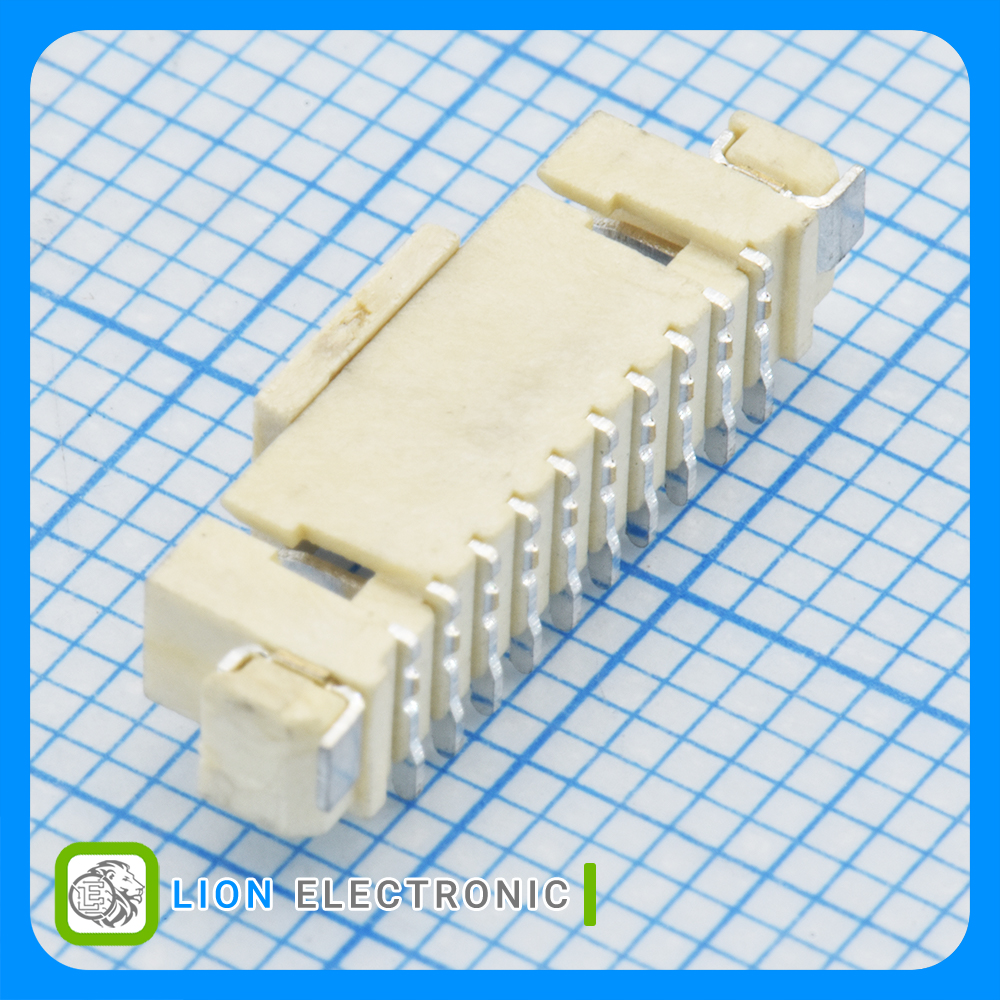

کانکتور PicoBlade 1.25 میلیمتر 10 پین زاویه صاف، سیم به برد
1x10P PicoBlade Connector 1.25mm, 10 Position with Straight, Wire To Board Connector
Specifications
- Number of Positions: 10 Position
- Pitch: 1.25mm
- Voltage Rating: 125V
- Current Rating: 1A
- Termination style: SMD/SMT
- Mounting Angle: Straight
- Minimum Operating Temperature: -25C
- Maximum Operating Temperature: +85C
- Packaging: Tape&Reel
مشخصات 1.25-10P LT
1.25-10P LT
Part Number
Straight
Mounting Angle
SMD/SMT
Termination style
1.25mm
Pitch
125V
Voltage Rating
+85C
Maximum Operating Temperature
Tape&Reel
Packaging
10 Position
Number of Positions
-25C
Minimum Operating Temperature
1A
Current Rating
