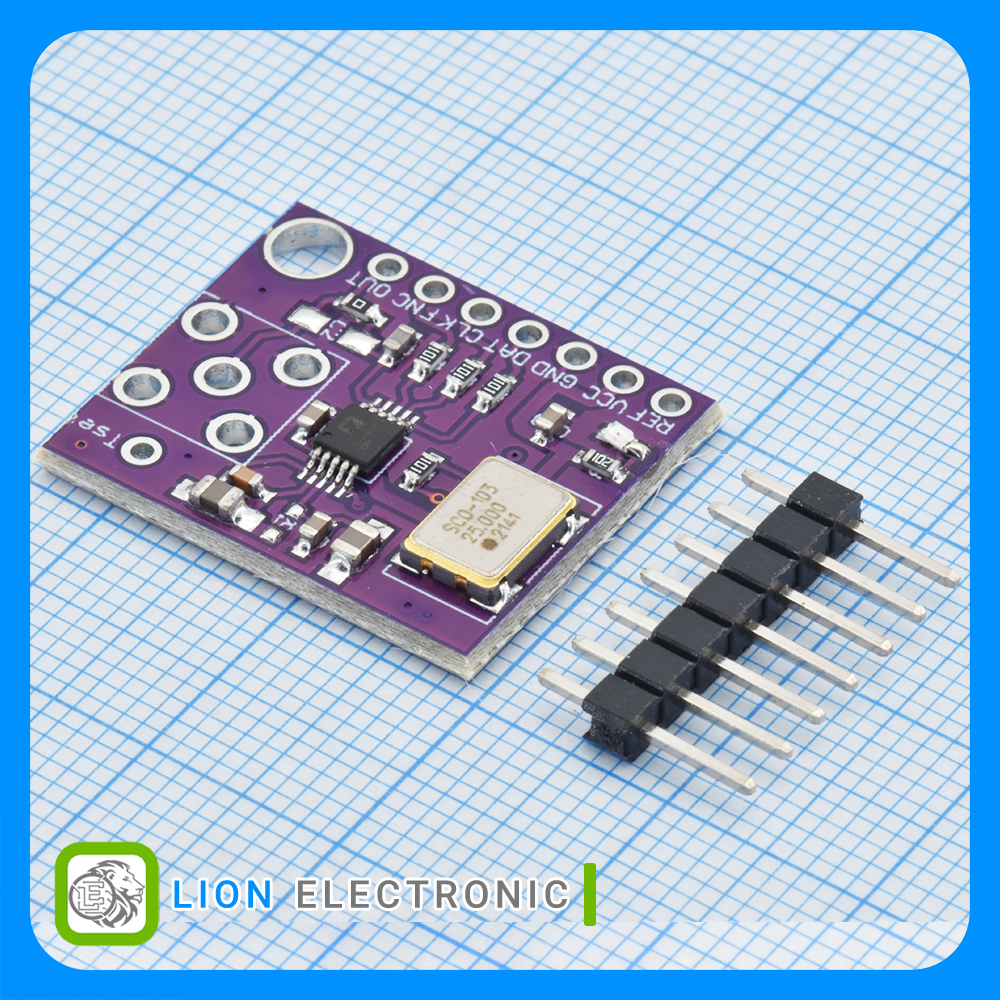

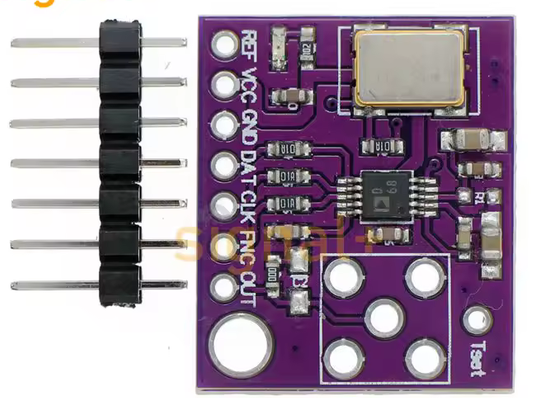

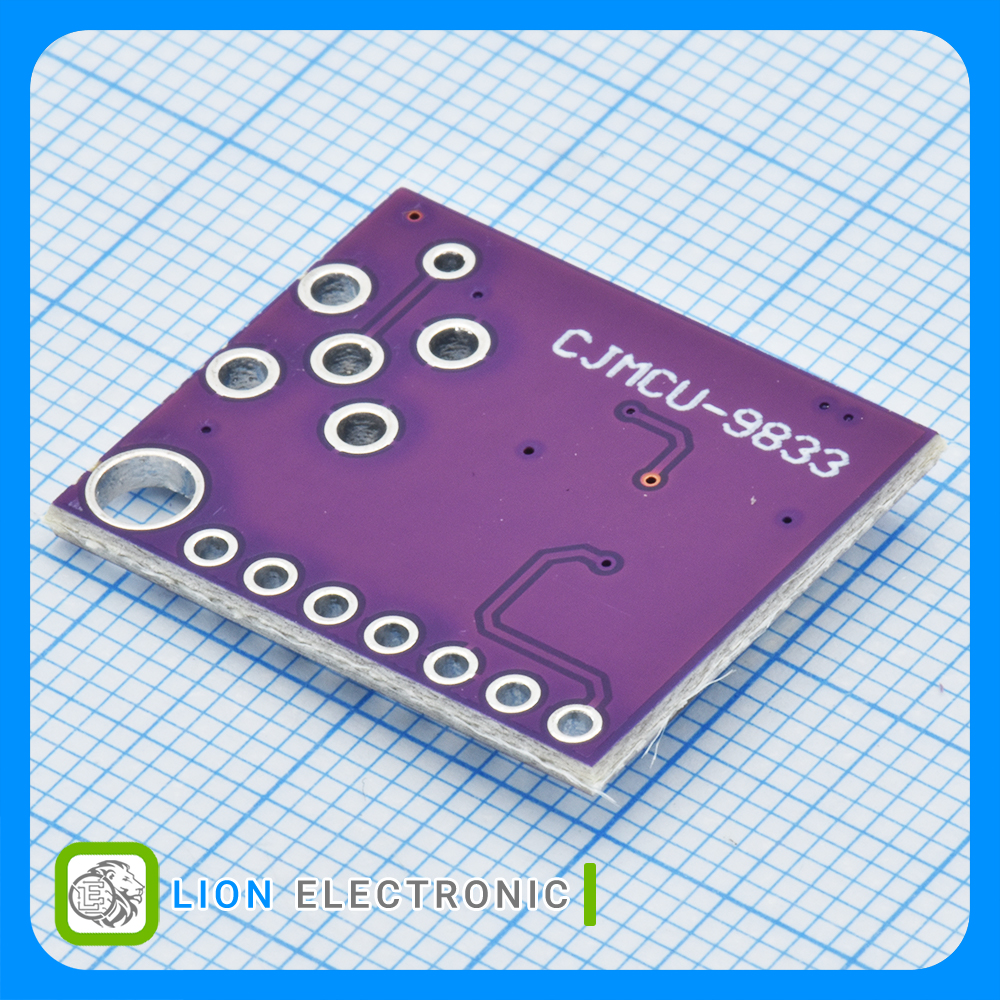

CJMCU-9833
Buy From Alibaba ماژول ساخت انواع موج های مثلثی ، مربعی و سینوسی قابل برنامه ریزی تا 12.5MHZ
Programmable Sine Triangular Square Waveform Generator Module capable of generating a frequency 0-12.5MHZ sine, triangle, square wave signal. Easy to adjust
Specifications:
-
Working voltage: 2.3V-5.5V.
-
Working temperature range: -40 ~ + 105
-
Onboard 25MHZ (accuracy of 50ppm) active crystal, stepping accuracy 0.1HZ.
-
On-board high-speed amplifiers 300M and also has low-pass filtering.
-
The two-channel output signal, an original signal output, an amplified output signal 5 times, 50Ohm output impedance.
-
Support universal plate (tunnel plate), multiple-board pins are 2.54mm, can be easily welded universal board.
-
Distribution STM32, STM8, STC, and other common microcontroller debugged a program and relevant information.
