معرفی
کانکتور FFC/FPC 18 پین با گام 0.5mm، اتصال یکطرفه/عمودی SMD با قفل کشویی

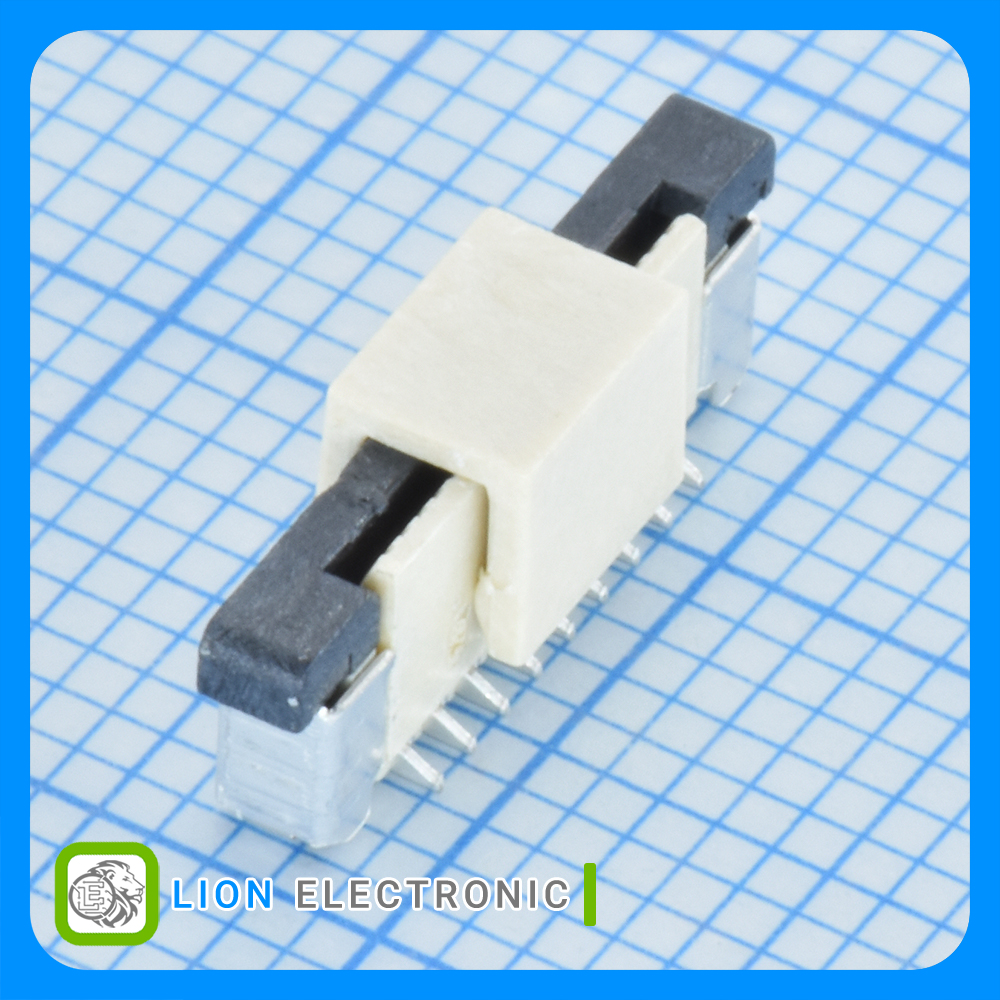

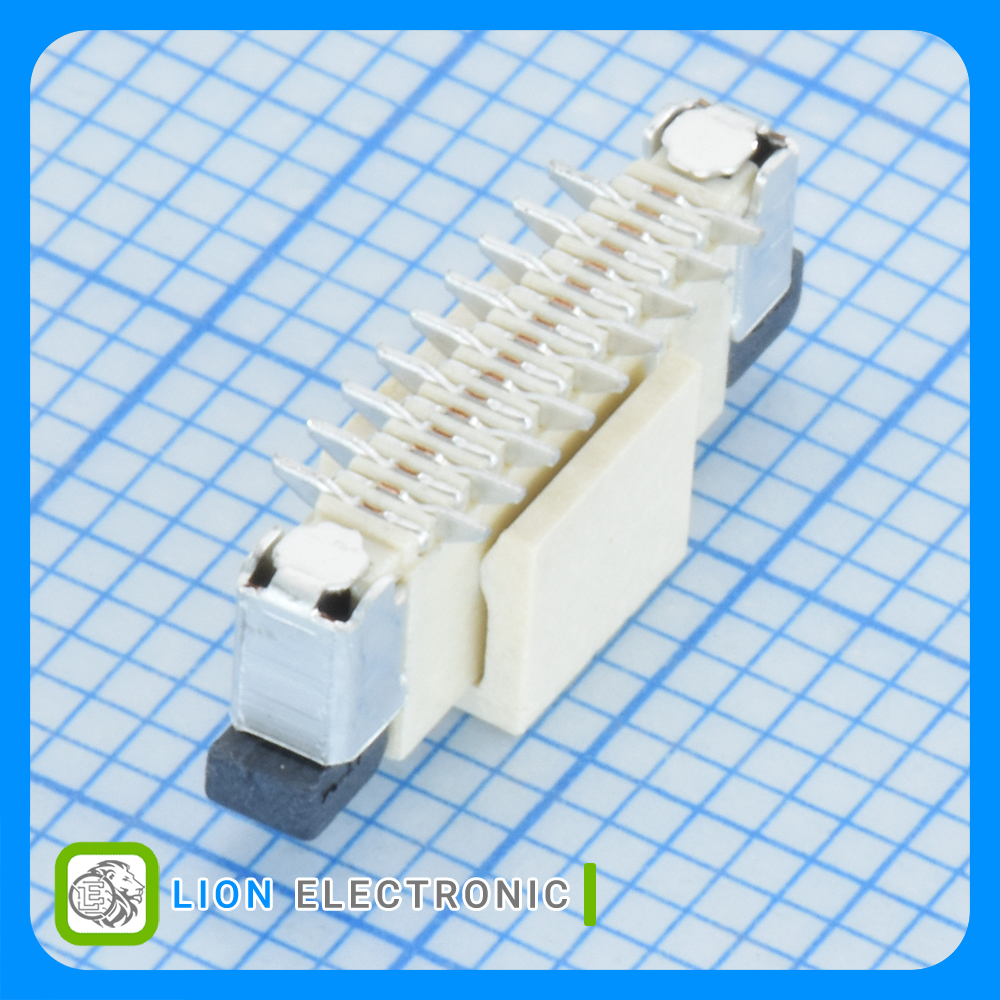

FFC/FPC Connector 18P, 0.5mm Pitch, Single-side Contact/Vertical SMD, with Slide Lock
Specifications
- Number of Positions: 18 Position
- Pitch: 0.5mm
- Mounting Angle: Straight
- Termination style: SMD/SMT
- Minimum Operating Temperature: -20C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات 0.5K-A-18PB-RXW
0.5K-A-18PB-RXW
Part Number
---
Locking Type
---
Contact Location
Straight
Mounting Angle
0.5mm
Pitch
SMD/SMT
Termination style
Reel
Packaging
+85C
Maximum Operating Temperature
-20C
Minimum Operating Temperature
18 Position
Number of Positions
