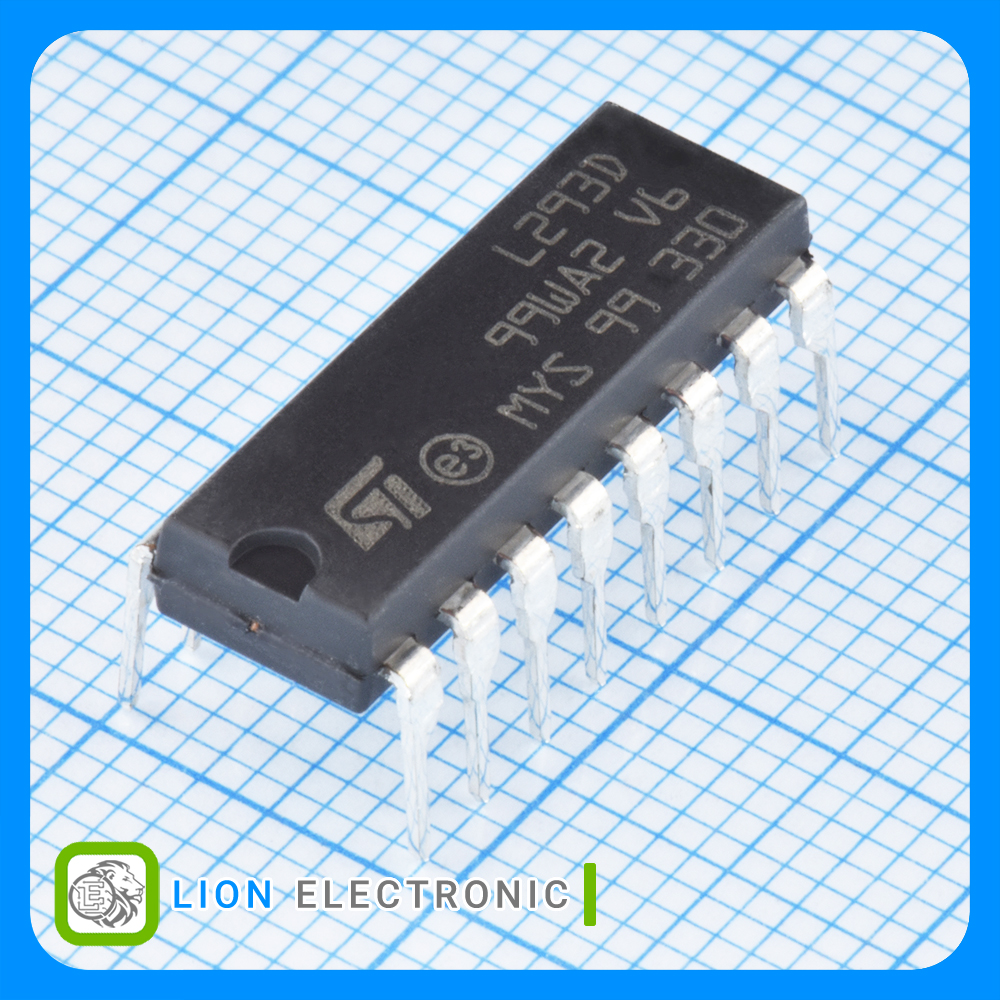

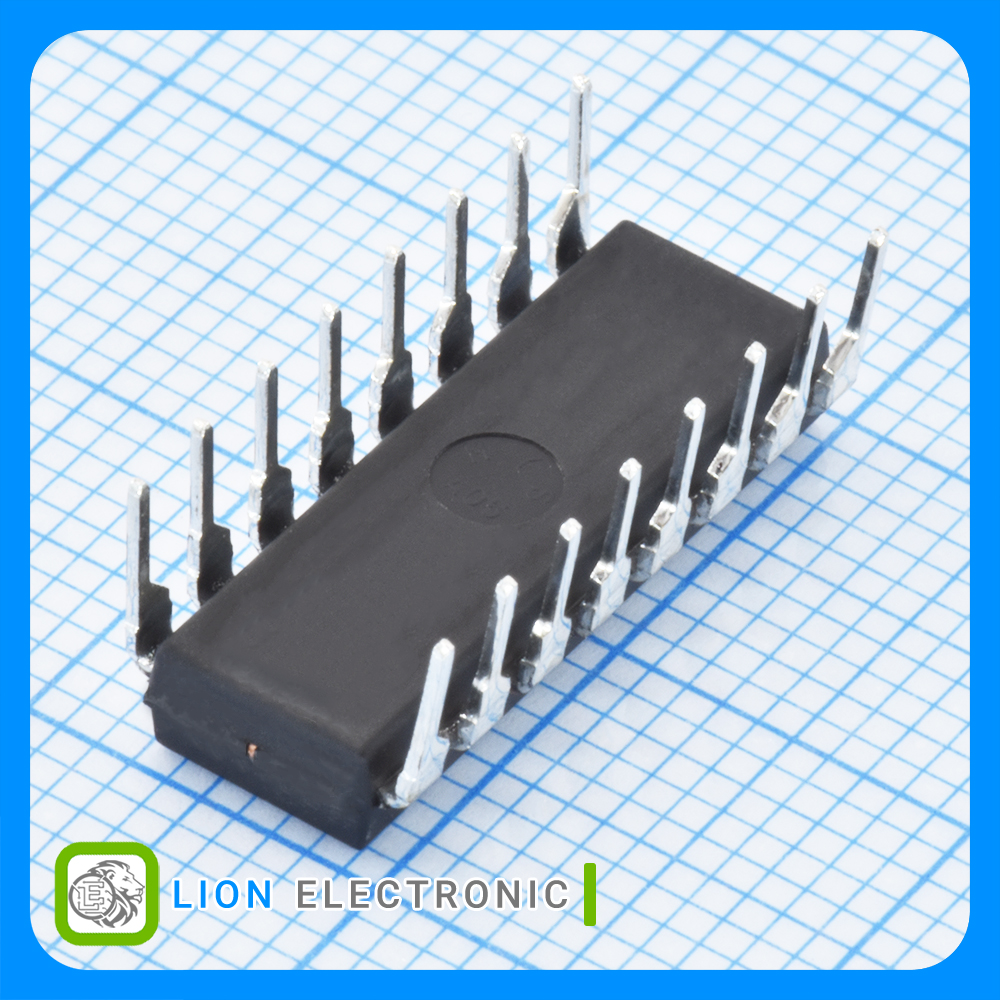

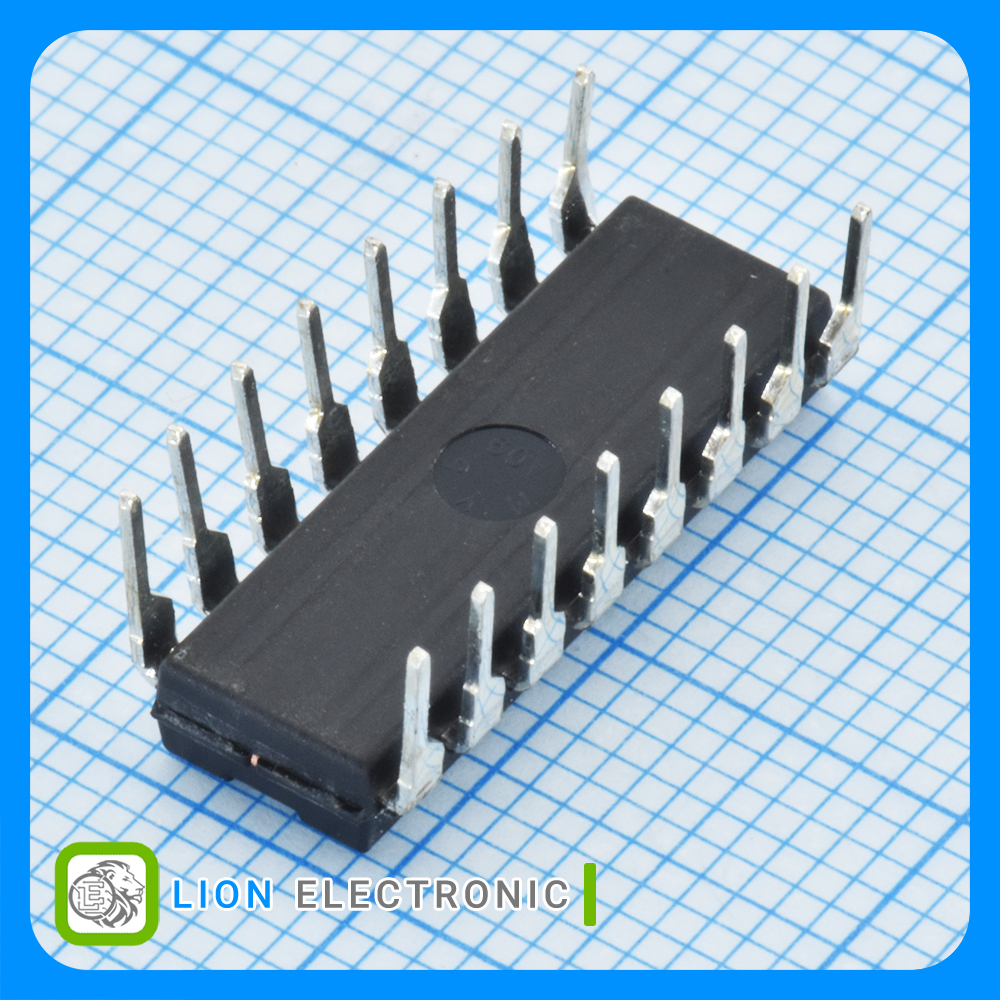

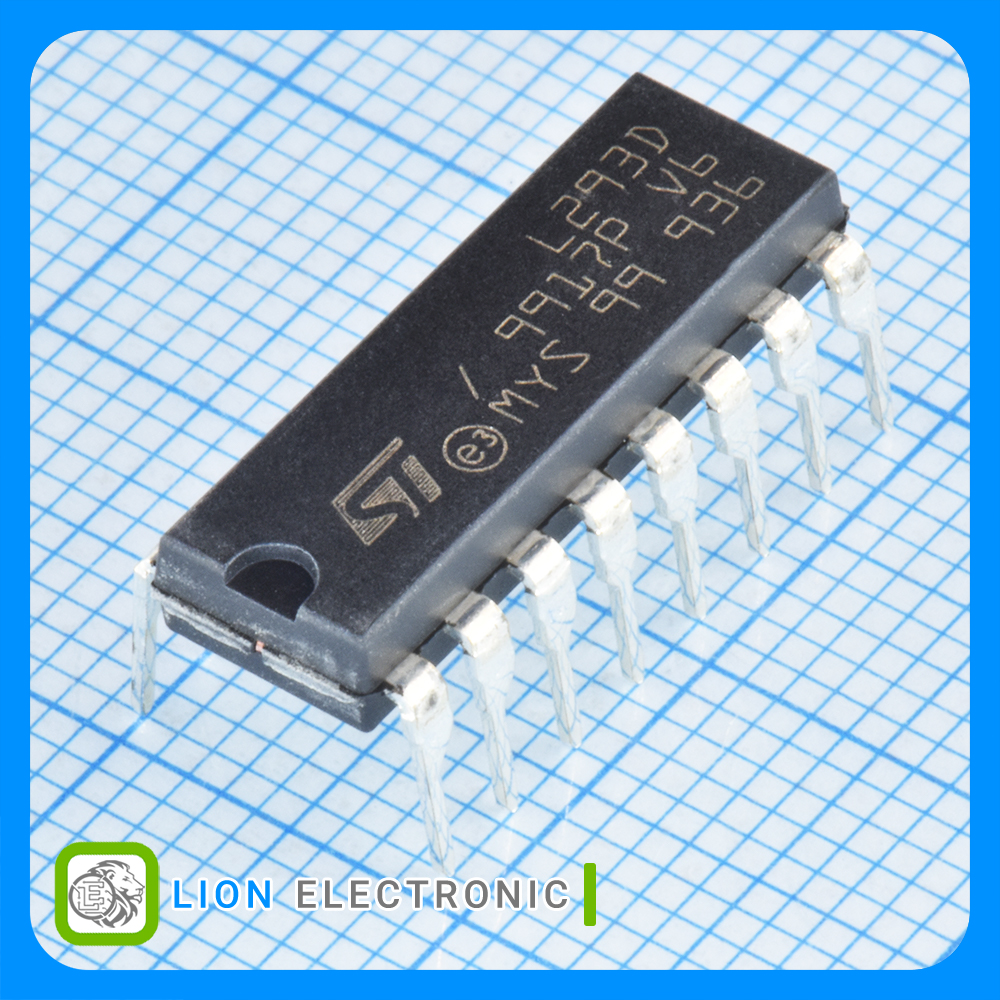

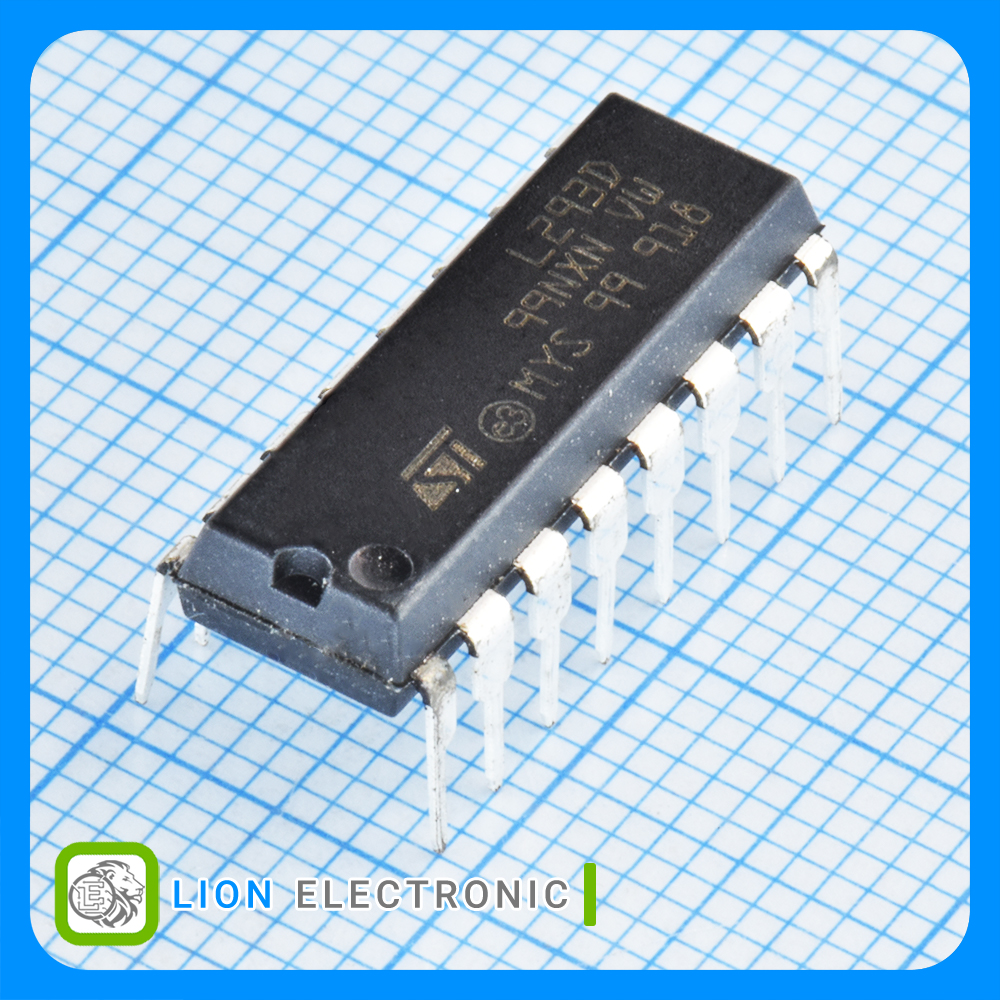

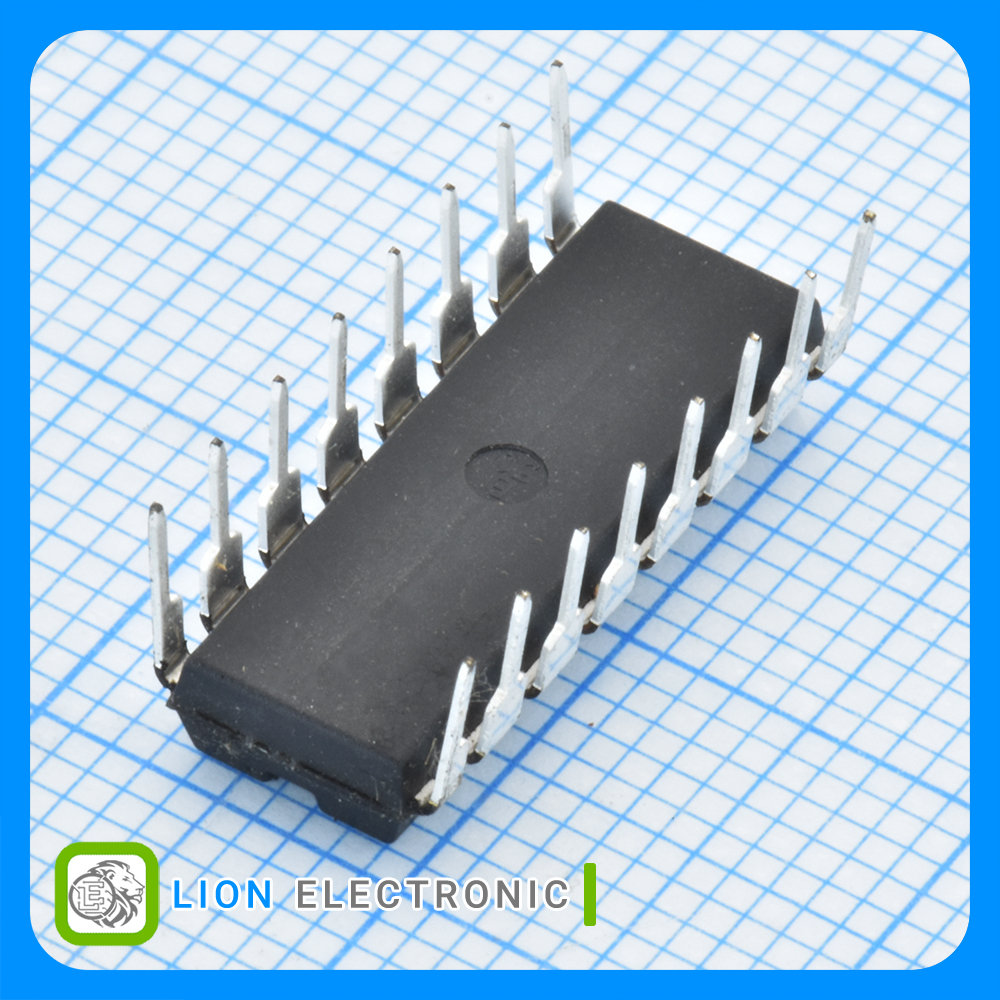

L293D
L293D
Part Number
892
Lion Part
Datasheet
STMicroelectronics Manufacture
درایور موتور نیمپل 4 کانال پوش-پول 600 میلیآمپر با ولتاژ 4.5 تا 36 ولت با دیود کلمپ داخلی و محافظت حرارتی با پکیج DIP-16
Half-Bridge Push-Pull Four Channel Motor Driver 600mA, 4.5 - 36V, with Internal Clamp Diodes and OverTemperature Protection, DIP-16 Package
معرفی
درایور موتور نیمپل 4 کانال پوش-پول 600 میلیآمپر با ولتاژ 4.5 تا 36 ولت با دیود کلمپ داخلی و محافظت حرارتی با پکیج DIP-16
Half-Bridge Push-Pull Four Channel Motor Driver 600mA, 4.5 - 36V, with Internal Clamp Diodes and OverTemperature Protection, DIP-16 Package
Specifications
- Product: Stepper Motor Controllers / Drivers
- Type: Half-Bridge
- Output Current: 600mA
- Operating Supply Voltage: 4.5 - 36V
- Operating Supply Current: 2mA
- Mounting Style: Through Hole
- Package/Case: DIP-16
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات L293D
L293D
Part Number
2
Number of Outputs
-40C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
+150C
Maximum Operating Temperature
Half-Bridge
Type
600mA
Output Current
DIP-16
Package-Case
Stepper Motor Controllers / Drivers
Product
2mA
Operating Supply Current
4.5 - 36V
Operating Supply Voltage
