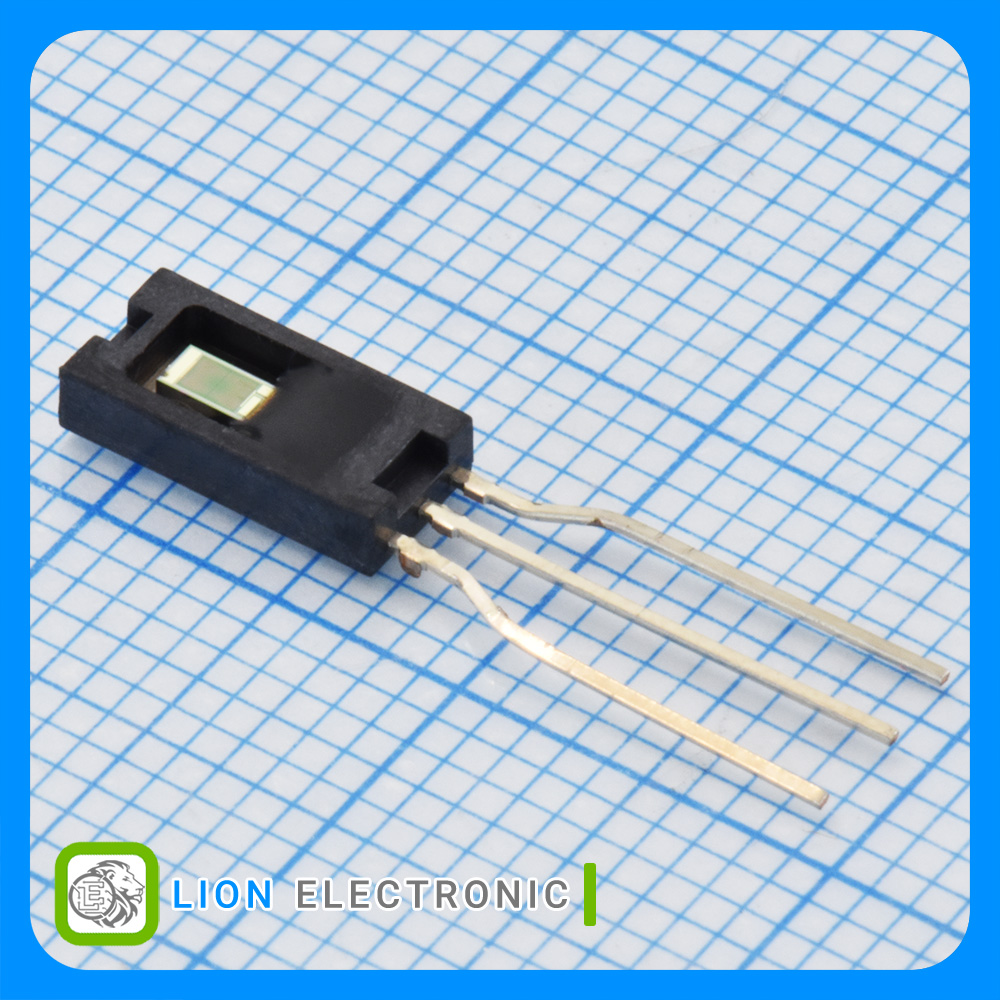

HIH-4000-003
HIH-4000-003
Part Number
1017
Lion Part
Datasheet
Honeywell Manufacture
سنسور رطوبت آنالوگ HIH-4000 Honeywell، طراحیشده مخصوص کاربران OEM با حجم بالا، مصرف کم و دقت بالا، تغذیه 4 تا 5.8 ولت، پکیج SIP-3، فاقد برگه کالیبراسیون
HIH-4000 Series Analog Humidity Sensor, Designed Specifically for High Volume OEM (Original Equipment Manufacturer) Users, Supply 4V to 5.8V, with SIP-3 Package, No Calibration Sheet
معرفی
سنسور رطوبت آنالوگ HIH-4000 Honeywell، طراحیشده مخصوص کاربران OEM با حجم بالا، مصرف کم و دقت بالا، تغذیه 4 تا 5.8 ولت، پکیج SIP-3، فاقد برگه کالیبراسیون
HIH-4000 Series Analog Humidity Sensor, Designed Specifically for High Volume OEM (Original Equipment Manufacturer) Users, Supply 4V to 5.8V, with SIP-3 Package, No Calibration Sheet
Specifications
- Interface Type: Analog
- Output Type: Analog
- Supply Voltage - Min: 4V
- Supply Voltage - Max: 5.8V
- Mounting Style: Through Hole
- Package/Case: SIP-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Tube
مشخصات HIH-4000-003
HIH-4000-003
Part Number
---
Accuracy
0% to 100%
RH Range
Analog
Output Type
±3.5%
RH Accuracy
-40C
Minimum Operating Temperature
N/A
Full Temp Accuracy
Tube
Packaging
+85C
Maximum Operating Temperature
Through Hole
Mounting Style
Board Mount
Product
5.8V
Supply Voltage - Max
Analog
Interface Type
N/A
Resolution
4V
Supply Voltage - Min
200uA
Operating Supply Current
SIP-3
Package-Case
