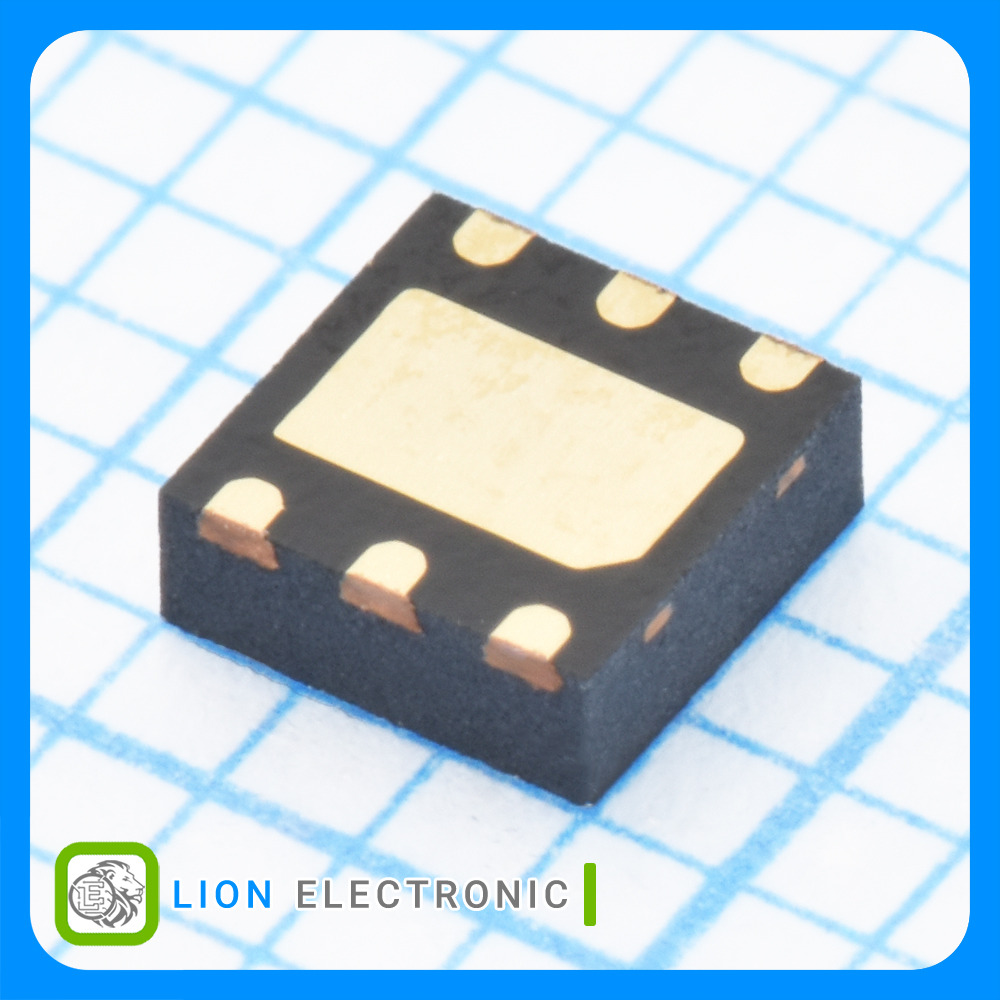

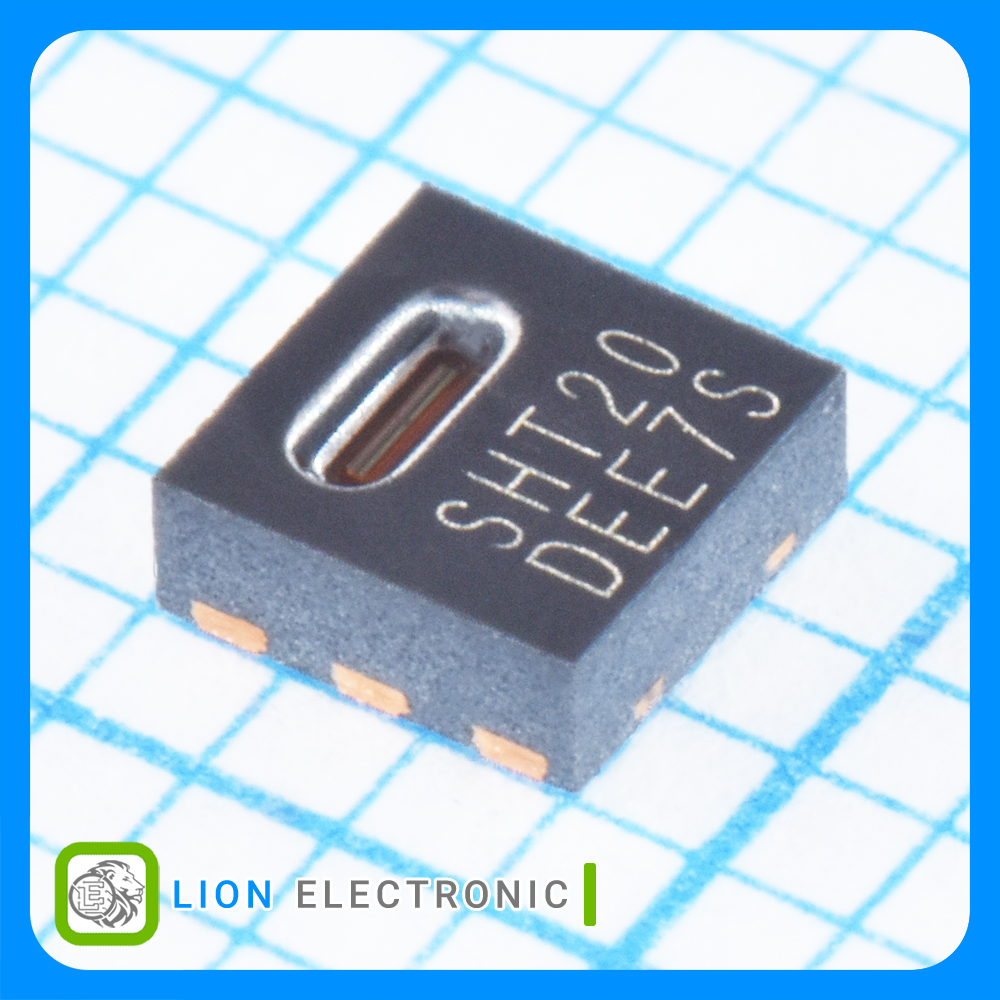

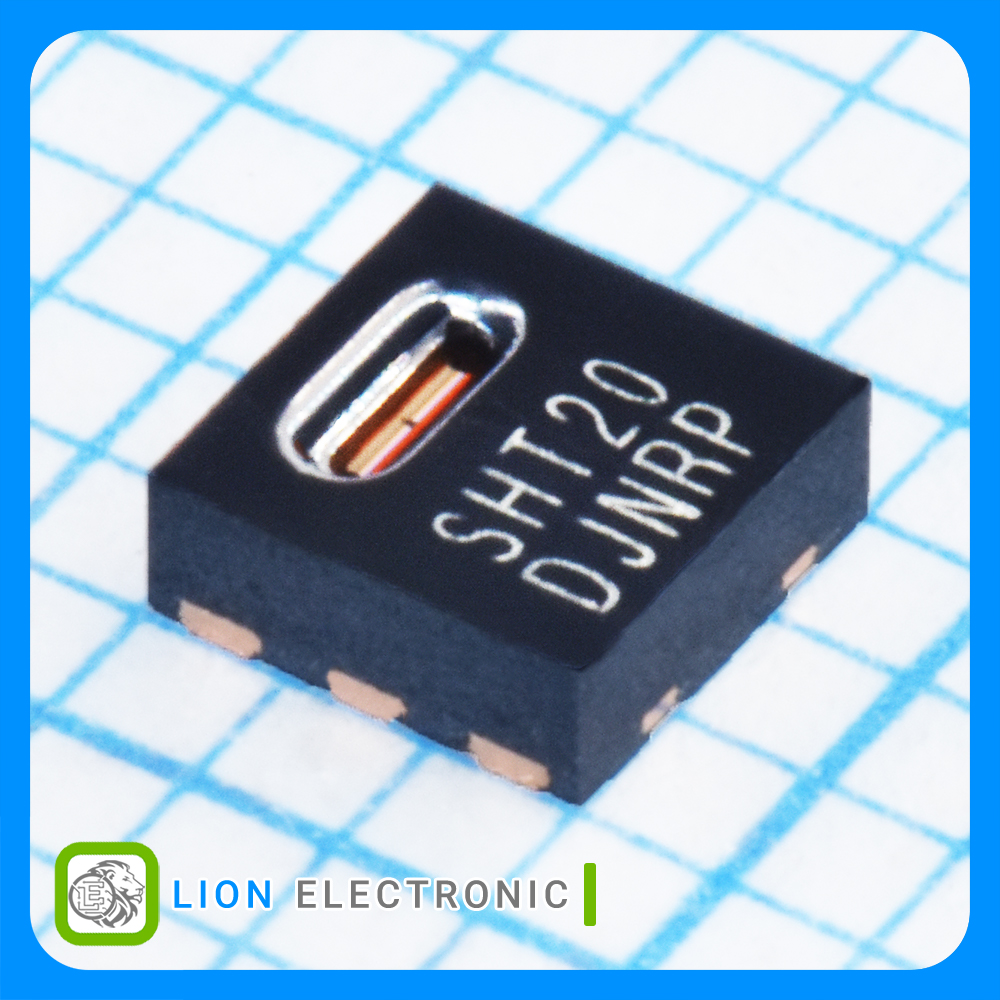

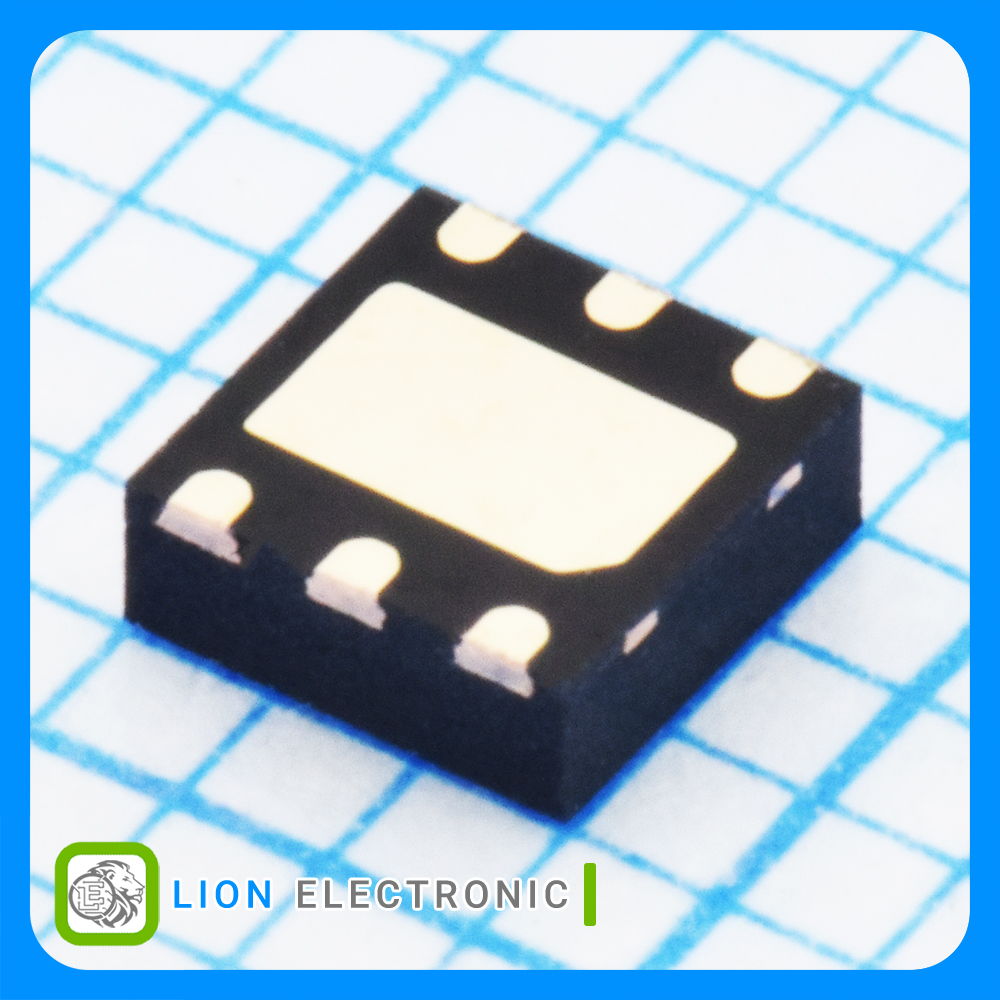

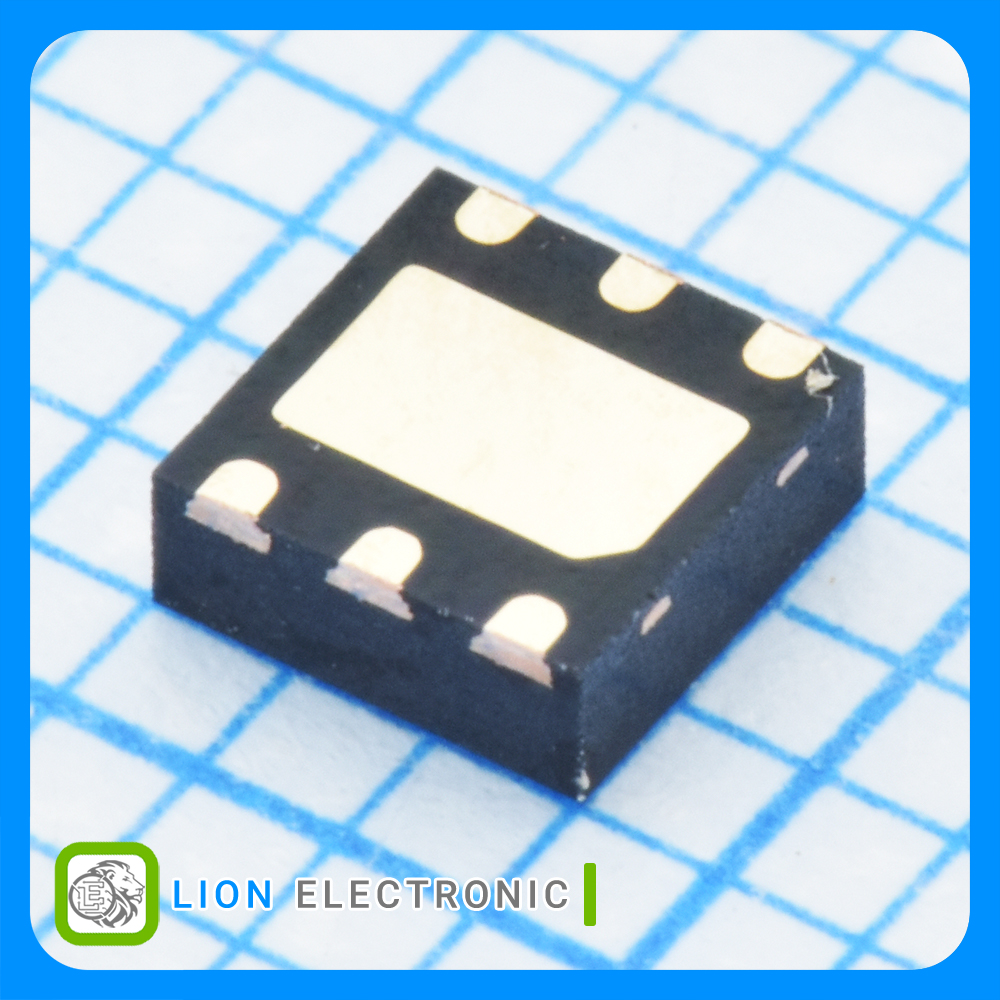

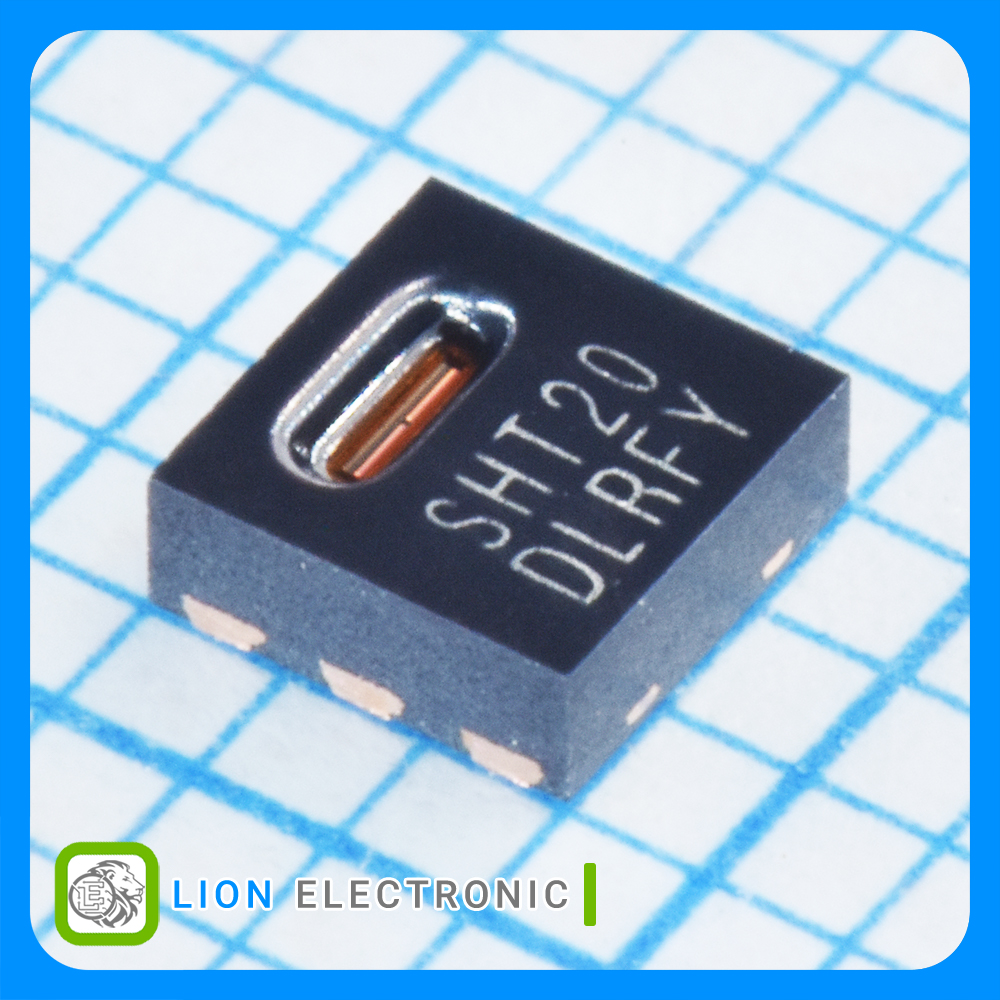

SHT20
SHT20
Part Number
1020
Lion Part
Datasheet
Sensirion Manufacture
سنسور رطوبت و دما با رابط I2C، دقت ±3%RH & ±0.3C، رزولوشن 12 و 14 بیت، تغذیه 2.1 تا 3.6 ولت، پکیج DFN-6
Humidity and Temperature Sensor, I2C Interface, Accuracy ±3%RH & ±0.3C, Resolution 12bit/14bit, Supply 2.1V to 3.6V, with DFN-6 Package
معرفی
سنسور رطوبت و دما با رابط I2C، دقت ±3%RH & ±0.3C، رزولوشن 12 و 14 بیت، تغذیه 2.1 تا 3.6 ولت، پکیج DFN-6
Humidity and Temperature Sensor, I2C Interface, Accuracy ±3%RH & ±0.3C, Resolution 12bit/14bit, Supply 2.1V to 3.6V, with DFN-6 Package
Specifications
- Interface Type: I2C
- Resolution: 12bit/14bit
- Output Type: Digital
- Accuracy: ±3%RH & ±0.3C
- Supply Voltage - Min: 2.1V
- Supply Voltage - Max: 3.6V
- Mounting Style: SMD/SMT
- Package/Case: DFN-6
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات SHT20
SHT20
Part Number
0% to 100%
RH Range
150nA
Operating Supply Current
±0.3%
Full Temp Accuracy
±3%
RH Accuracy
12bit/14bit
Resolution
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
3.6V
Supply Voltage - Max
Digital
Output Type
Board Mount
Product
+125C
Maximum Operating Temperature
2.1V
Supply Voltage - Min
±3%RH & ±0.3C
Accuracy
DFN-6
Package-Case
I2C
Interface Type
