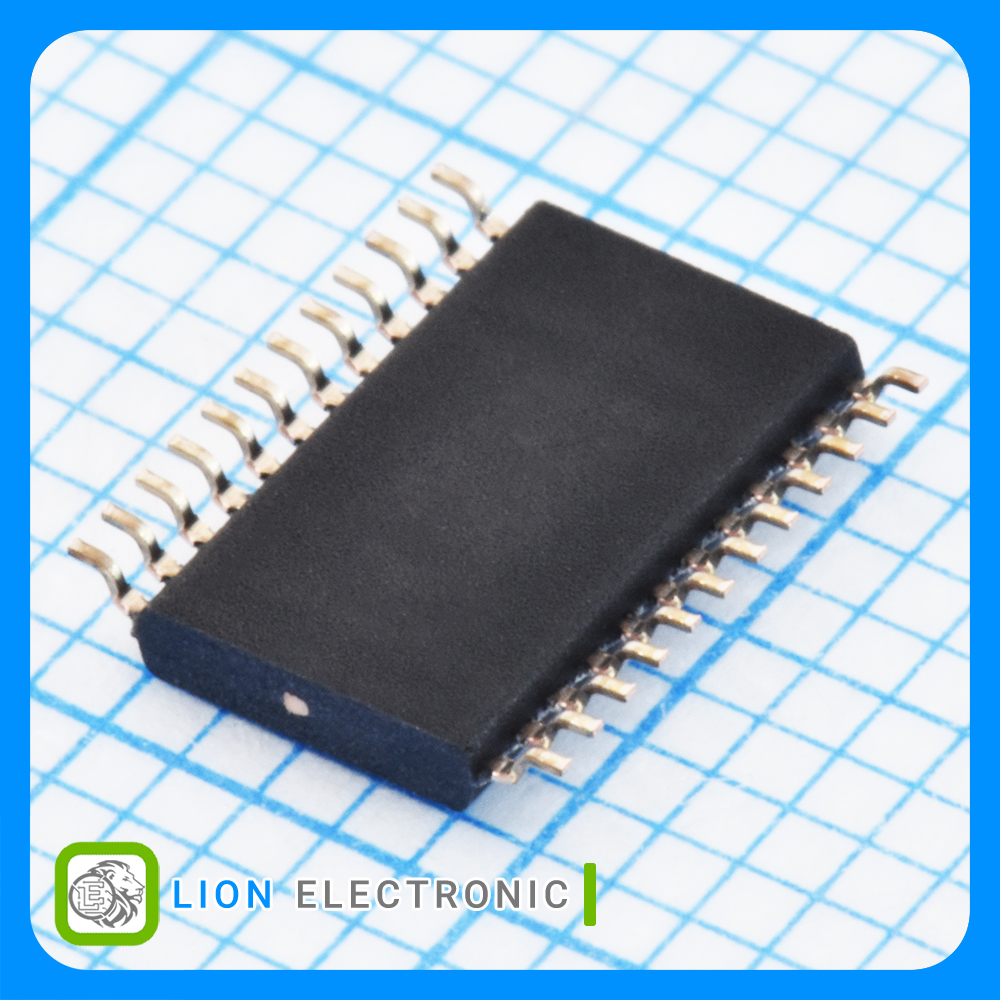

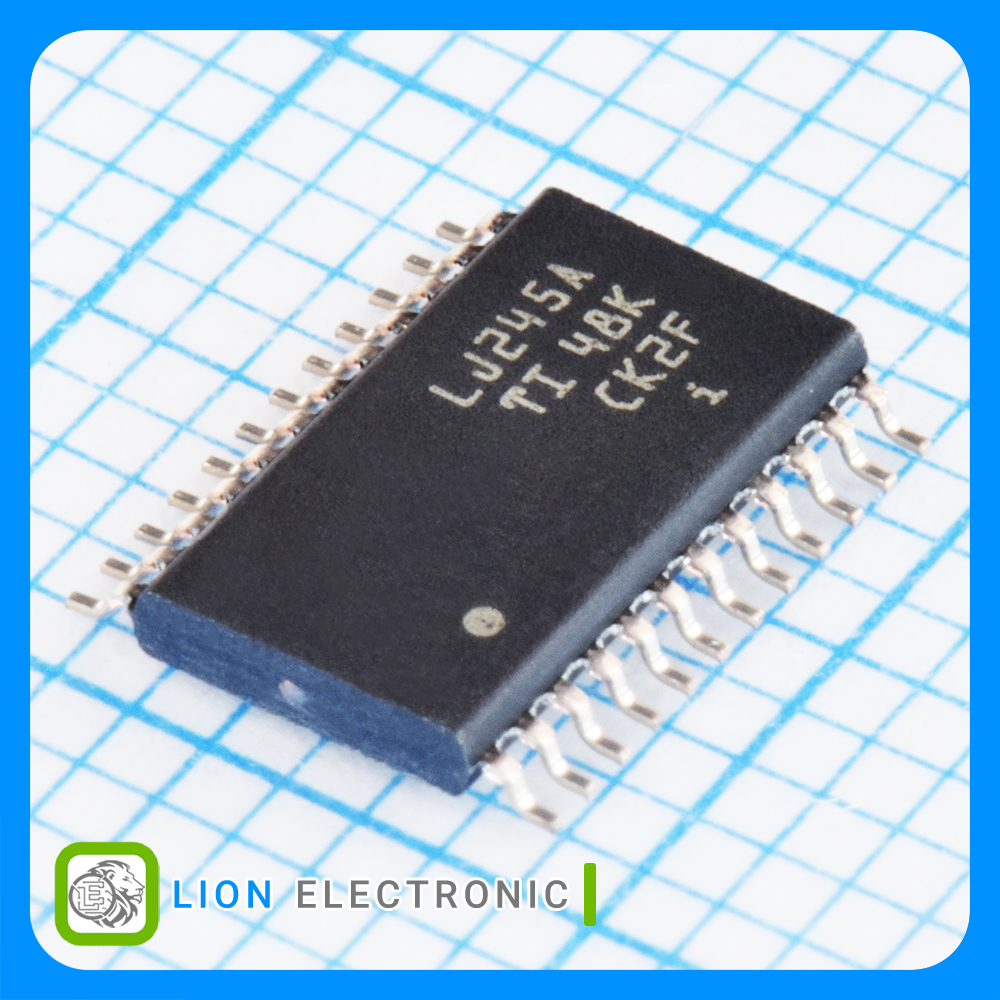

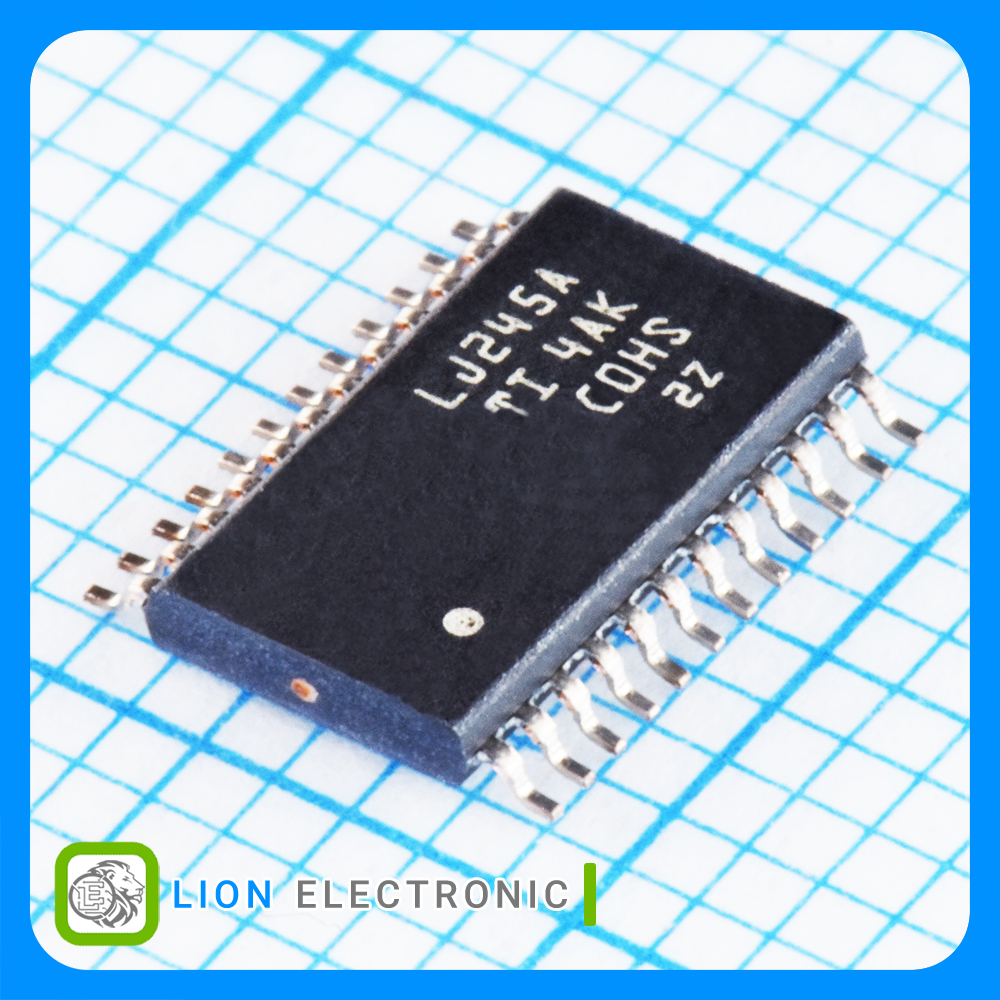

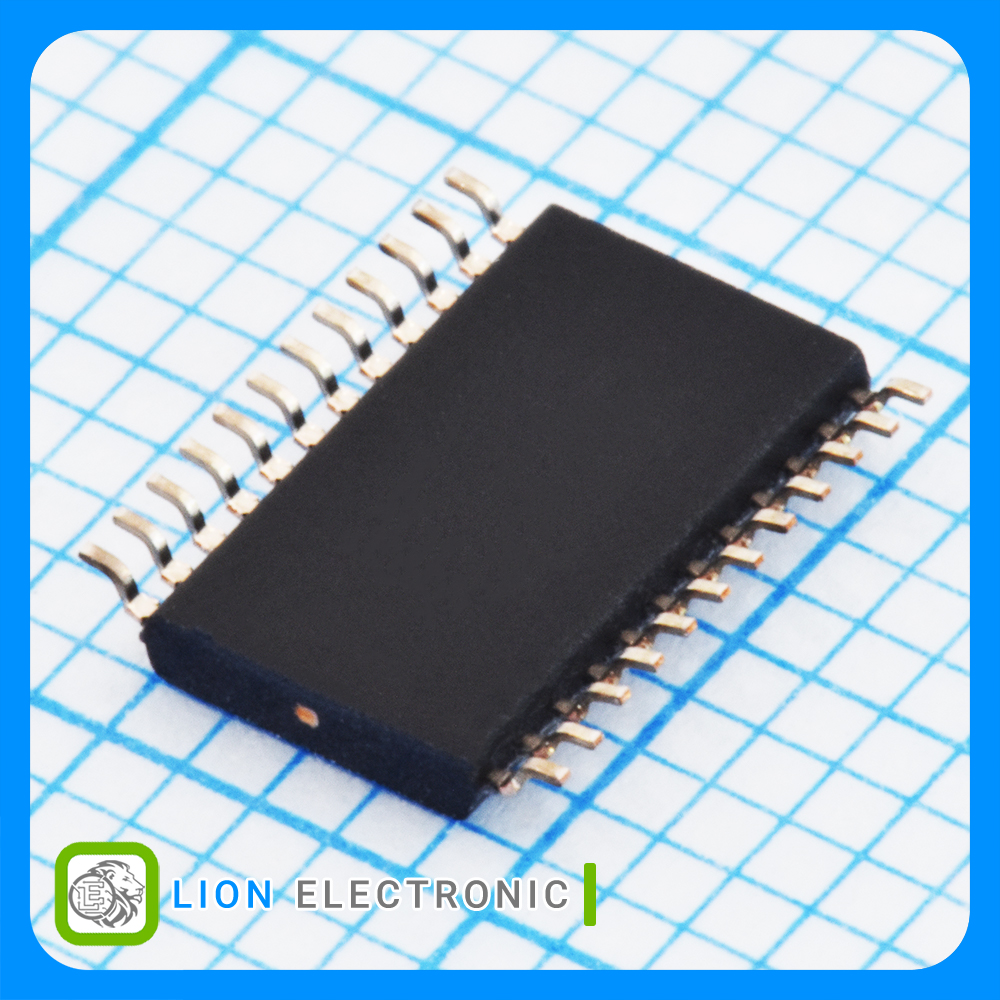

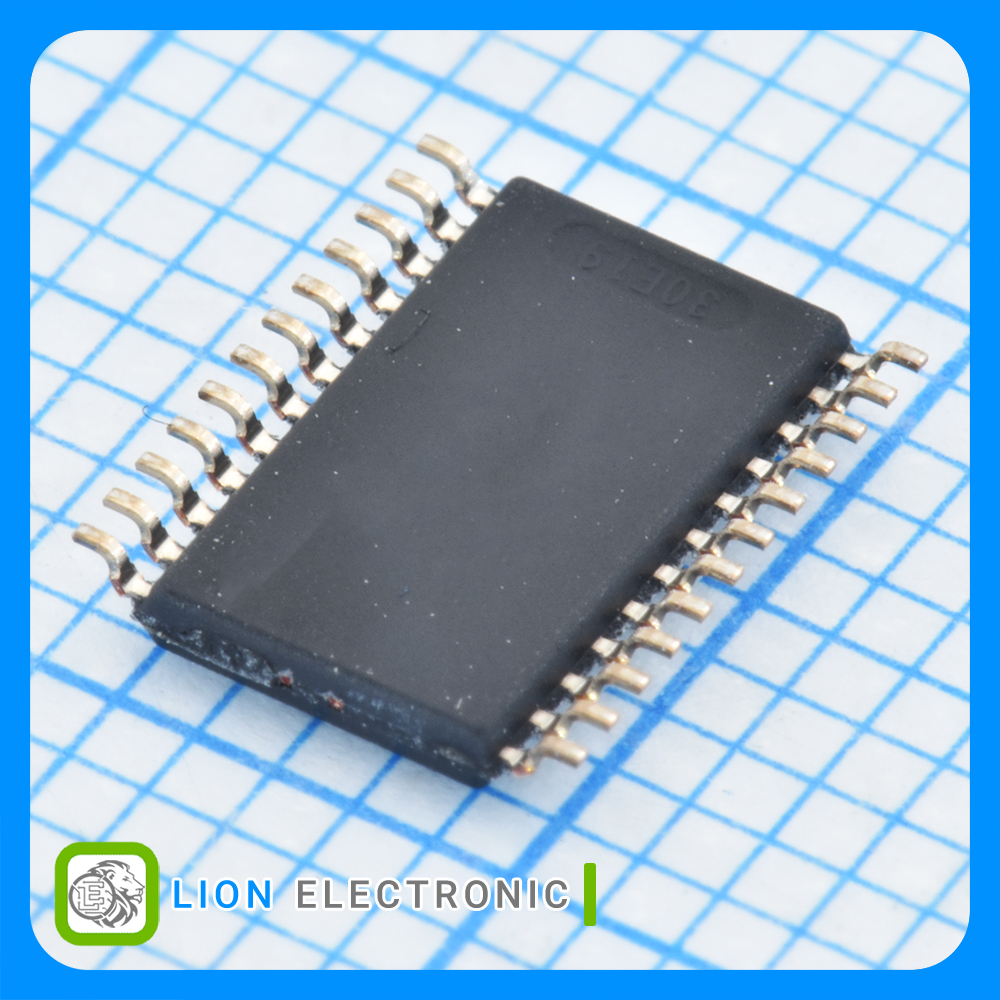

SN74LVC4245APWR
SN74LVC4245APWR
Part Number
1071
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی لاجیک مبدل سطح ولتاژ 8 کاناله با خروجی سه حالته، 8 ورودی ولتاژ VccA4.5V, VccB2.7V تا VccA5.5V, VccB3.6V با پکیج TSSOP-24
Logic IC Voltage Level Translator, Octal Bus Transceiver and 3.3V to 5V Shifter With 3-State Outputs, 8 Input Lines, VccA4.5V, VccB2.7V - VccA5.5V, VccB3.6V Supply with TSSOP-24 Package
معرفی
آیسی لاجیک مبدل سطح ولتاژ 8 کاناله با خروجی سه حالته، 8 ورودی ولتاژ VccA4.5V, VccB2.7V تا VccA5.5V, VccB3.6V با پکیج TSSOP-24
Logic IC Voltage Level Translator, Octal Bus Transceiver and 3.3V to 5V Shifter With 3-State Outputs, 8 Input Lines, VccA4.5V, VccB2.7V - VccA5.5V, VccB3.6V Supply with TSSOP-24 Package
Specifications
- Logic Family: LVC
- Logic Type: Voltage Level Translator
- Number of Input Lines: 8
- Number of Output Lines: 8
- Supply Voltage - Max: VccA5.5V, VccB3.6V
- Supply Voltage - Min: VccA4.5V, VccB2.7V
- Mounting Style: SMD/SMT
- Package/Case: TSSOP-24
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات شیفت دهنده سطح ولتاژ SN74LVC4245APWR

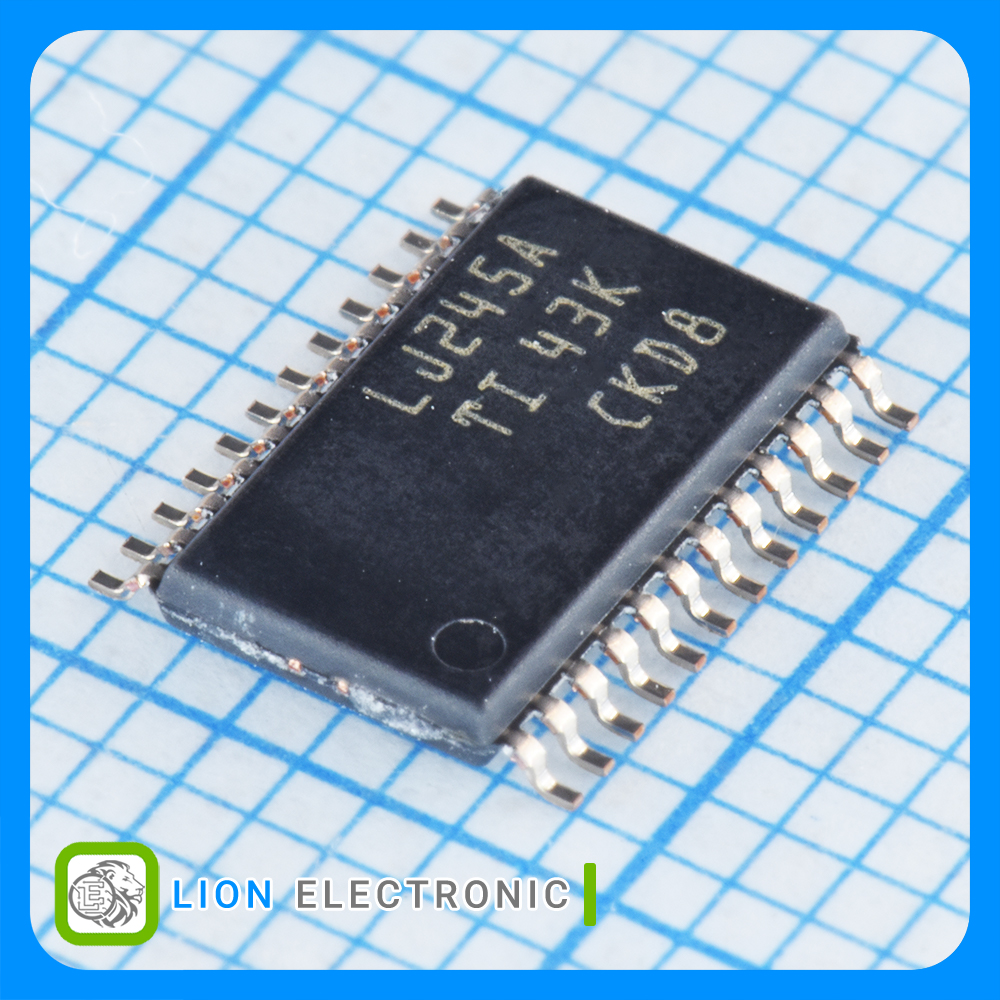

شیفت دهنده سطح ولتاژ SN74LVC4245APWR
Part Number
Reel
Packaging
8
Number of Output Lines
-40C
Minimum Operating Temperature
8
Number of Input Lines
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Voltage Level Translator
Logic Type
LVC
Logic Family
VccA5.5V, VccB3.6V
Supply Voltage - Max
VccA4.5V, VccB2.7V
Supply Voltage - Min
TSSOP-24
Package-Case
