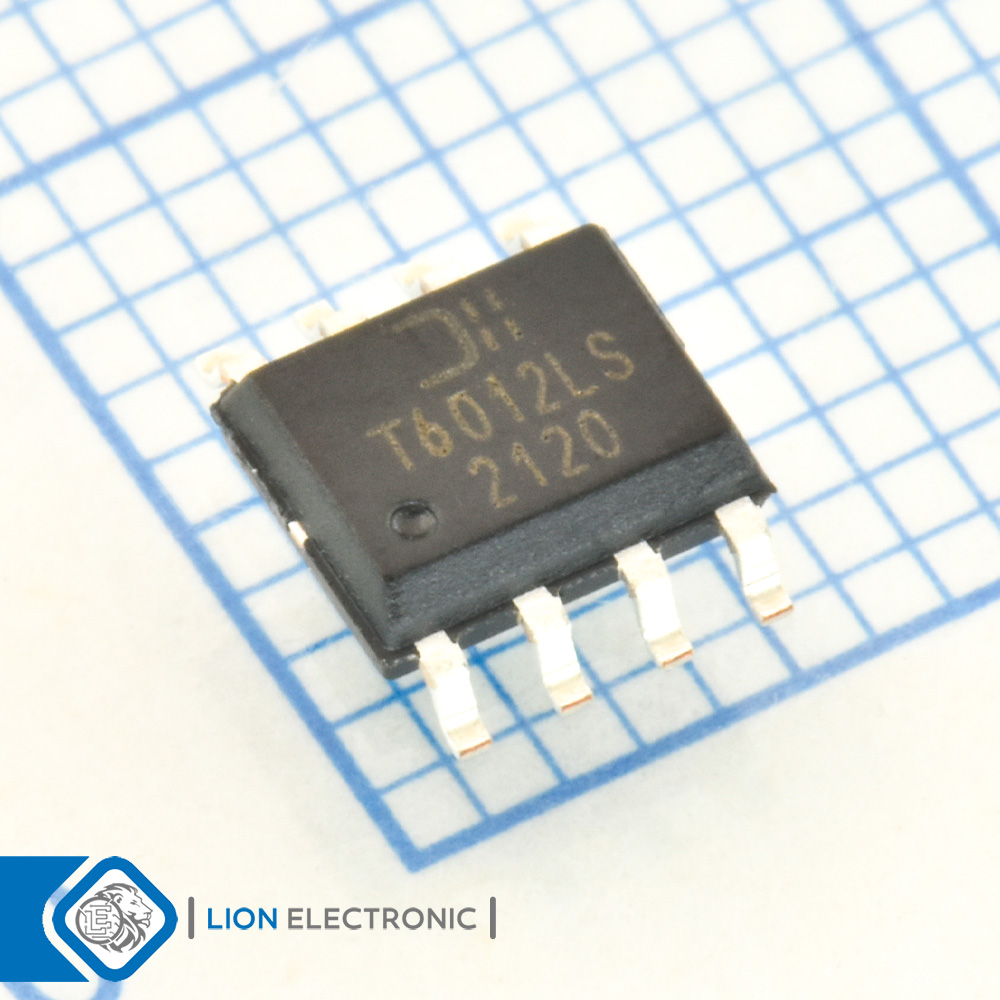

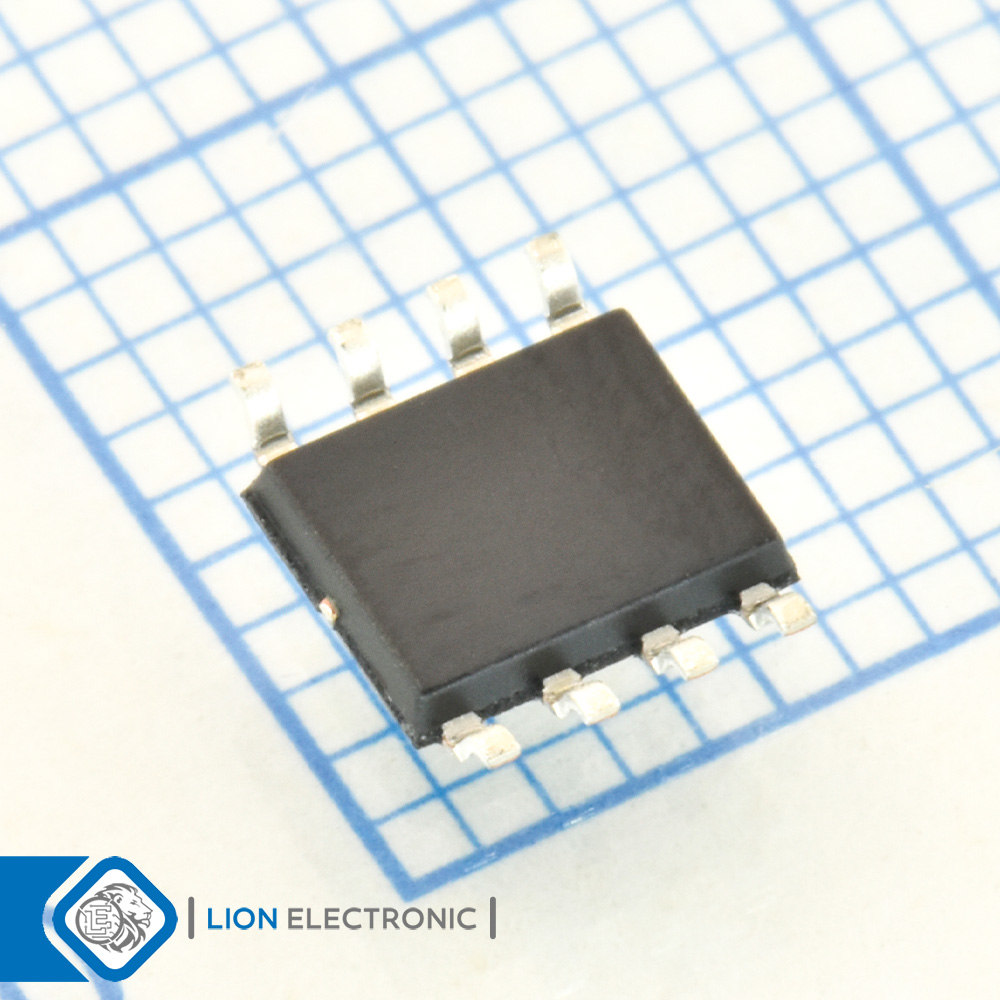

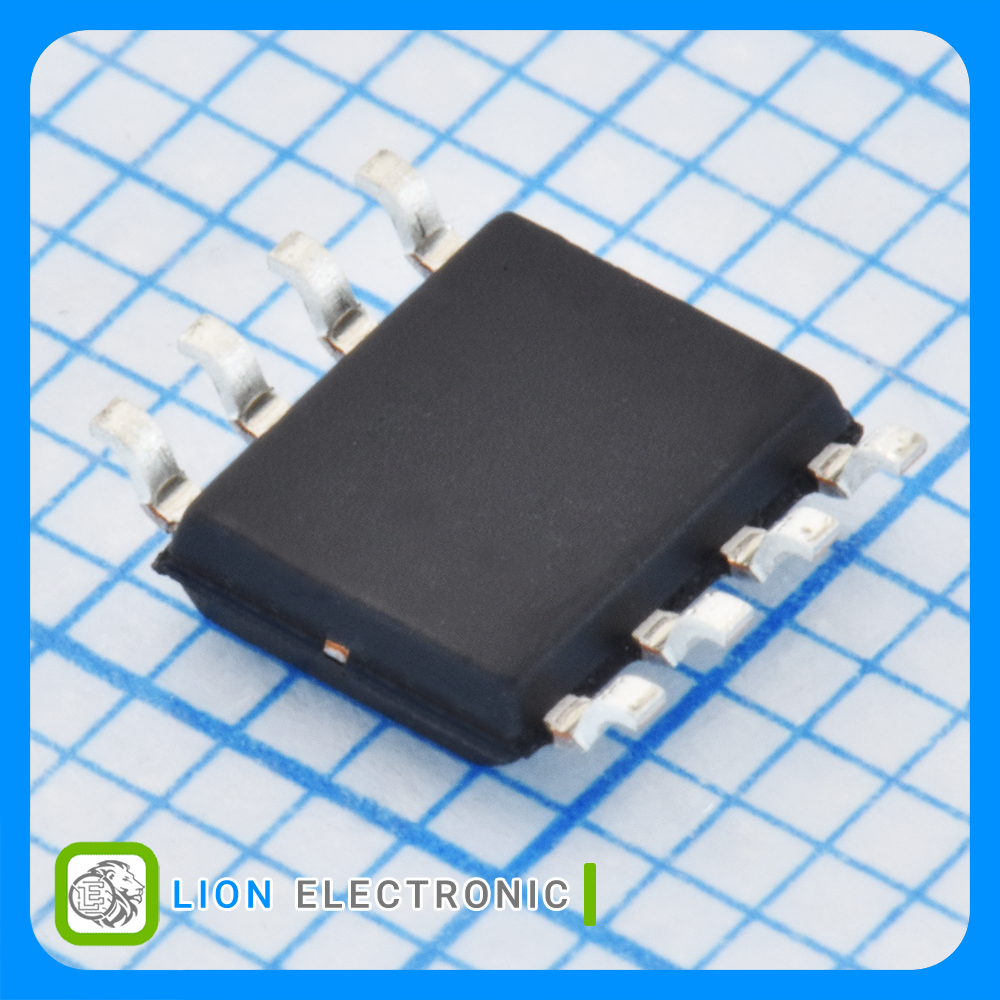

DMT6012LSS
DMT6012LSS
Part Number
1514
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت 60 ولت 10.4 آمپر نوع N با پکیج SOIC-8
N-CH MOSFET 60V, 10.4A with SOIC-8 Package
معرفی
ماسفت 60 ولت 10.4 آمپر نوع N با پکیج SOIC-8
N-CH MOSFET 60V, 10.4A with SOIC-8 Package
Specifications
- Package/Case: SOIC-8
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 10.4A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 700mV
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 8.4mΩ
- Pd - Power Dissipation: 13.4W
- Qg - Gate Charge: 22.2nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت DMT6012LSS

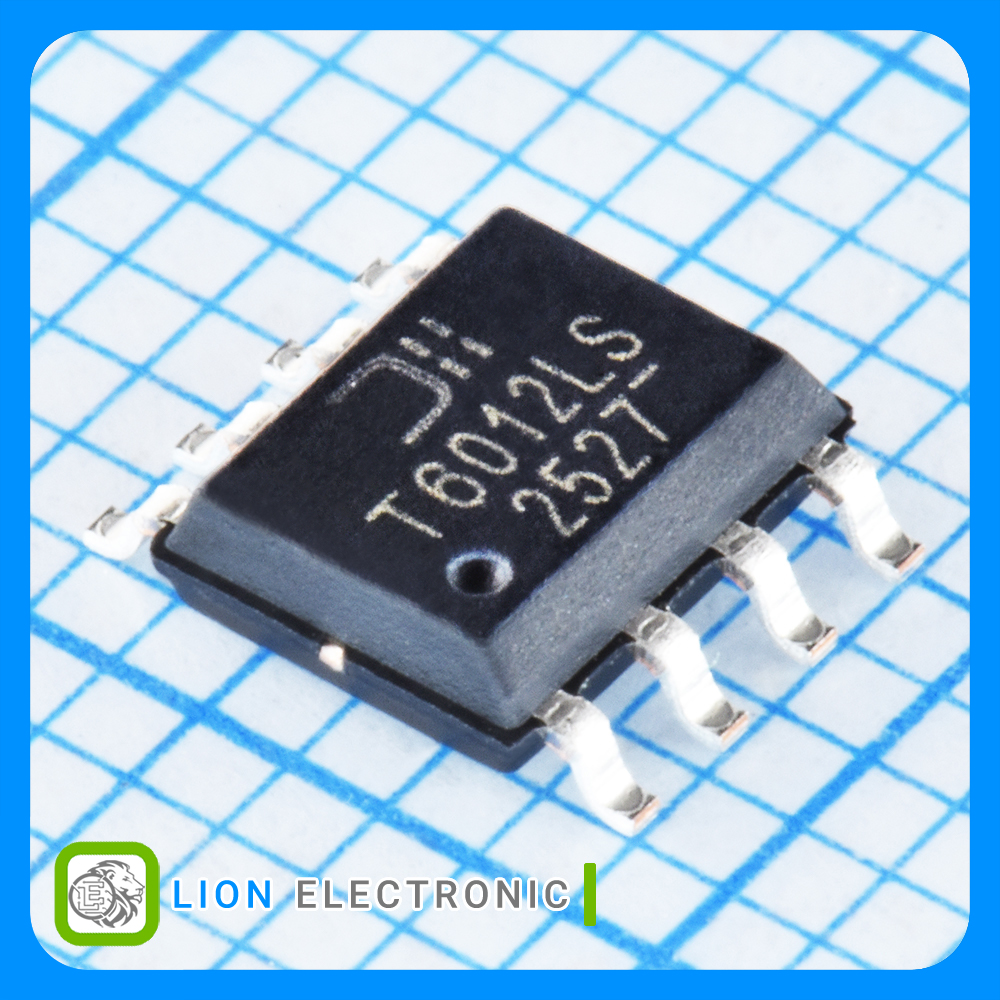

ماسفت DMT6012LSS
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
60V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
700mV
Vgs th - Gate - Source Threshold Voltage
8.4mΩ
Rds On - Drain - Source Resistance
22.2nC
Qg - Gate Charge
13.4W
Pd - Power Dissipation
10.4A
Id - Continuous Drain Current
SOIC-8
Package-Case
