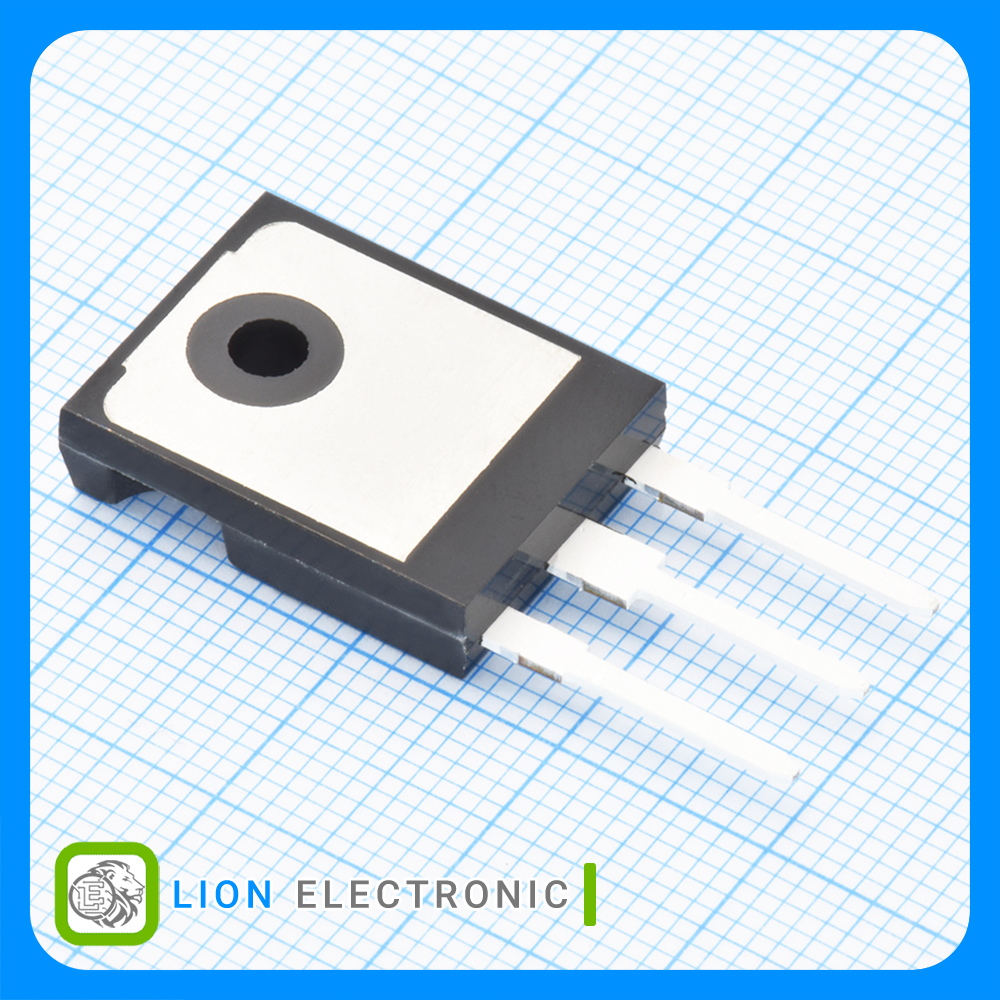

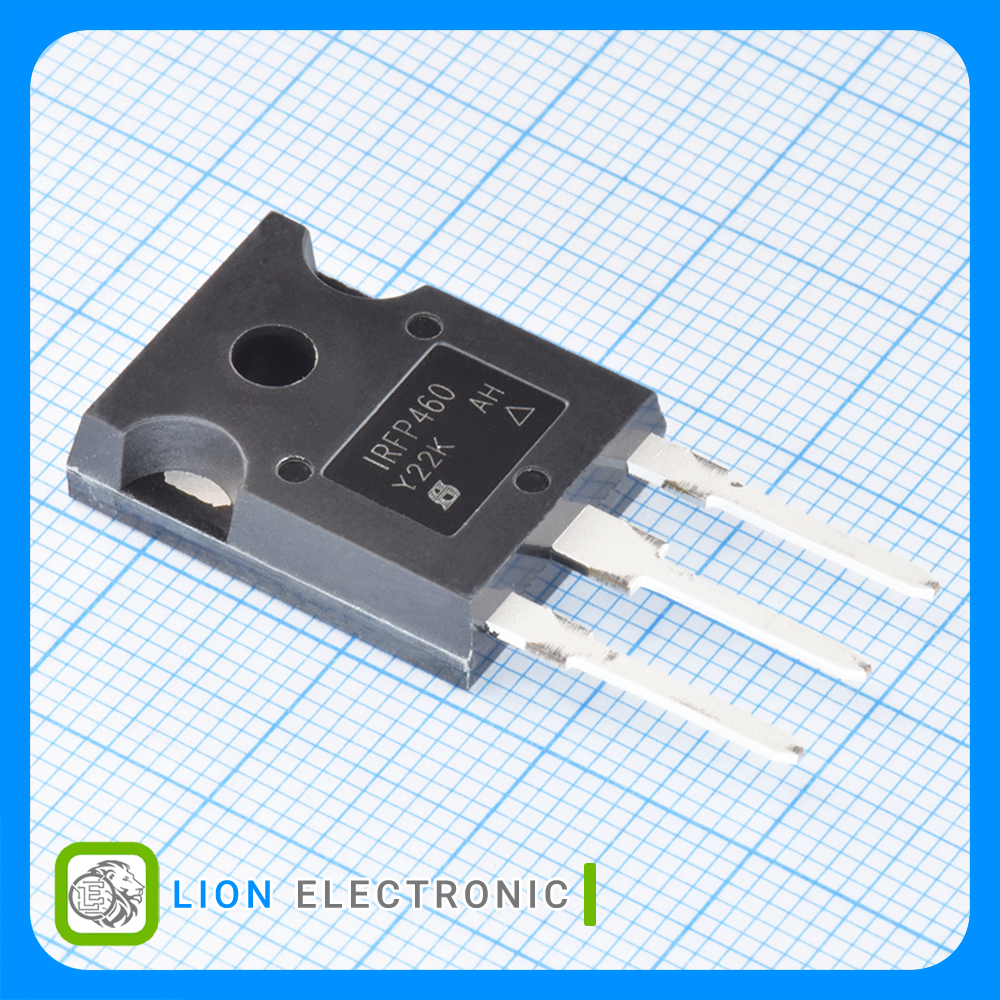

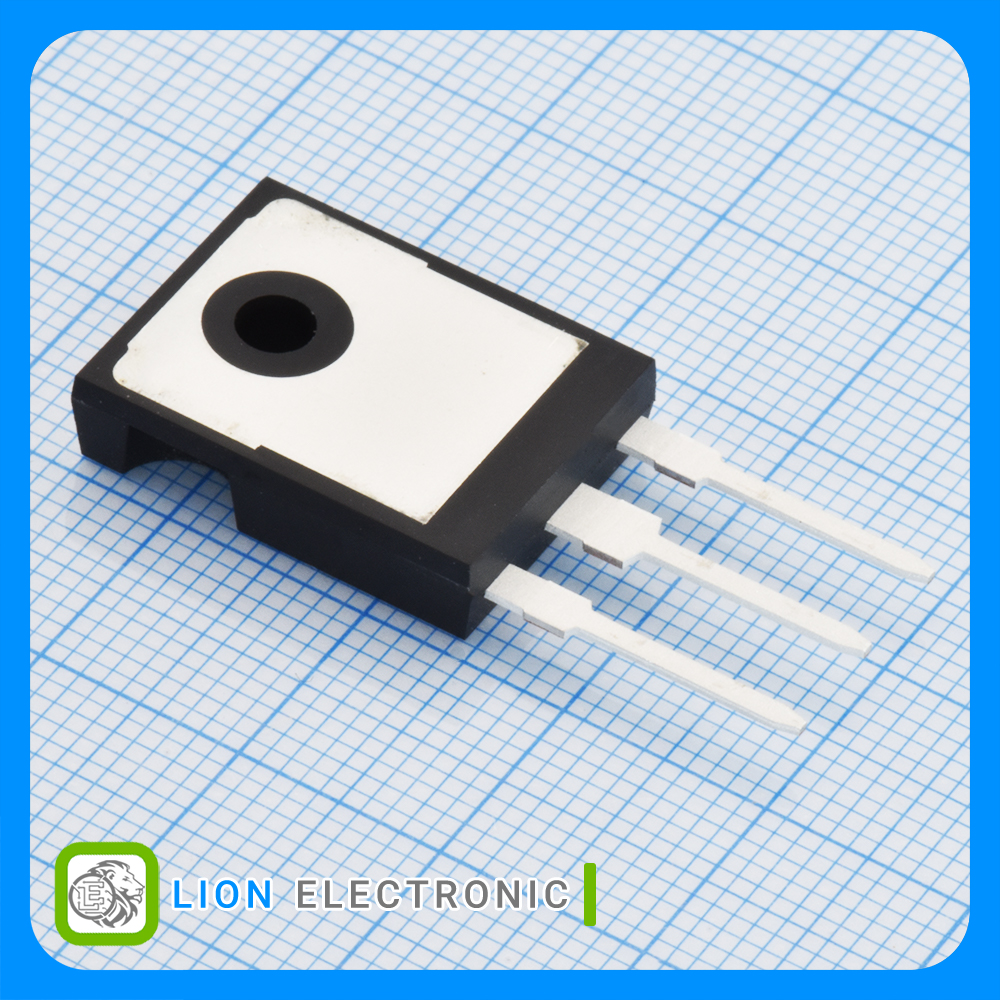

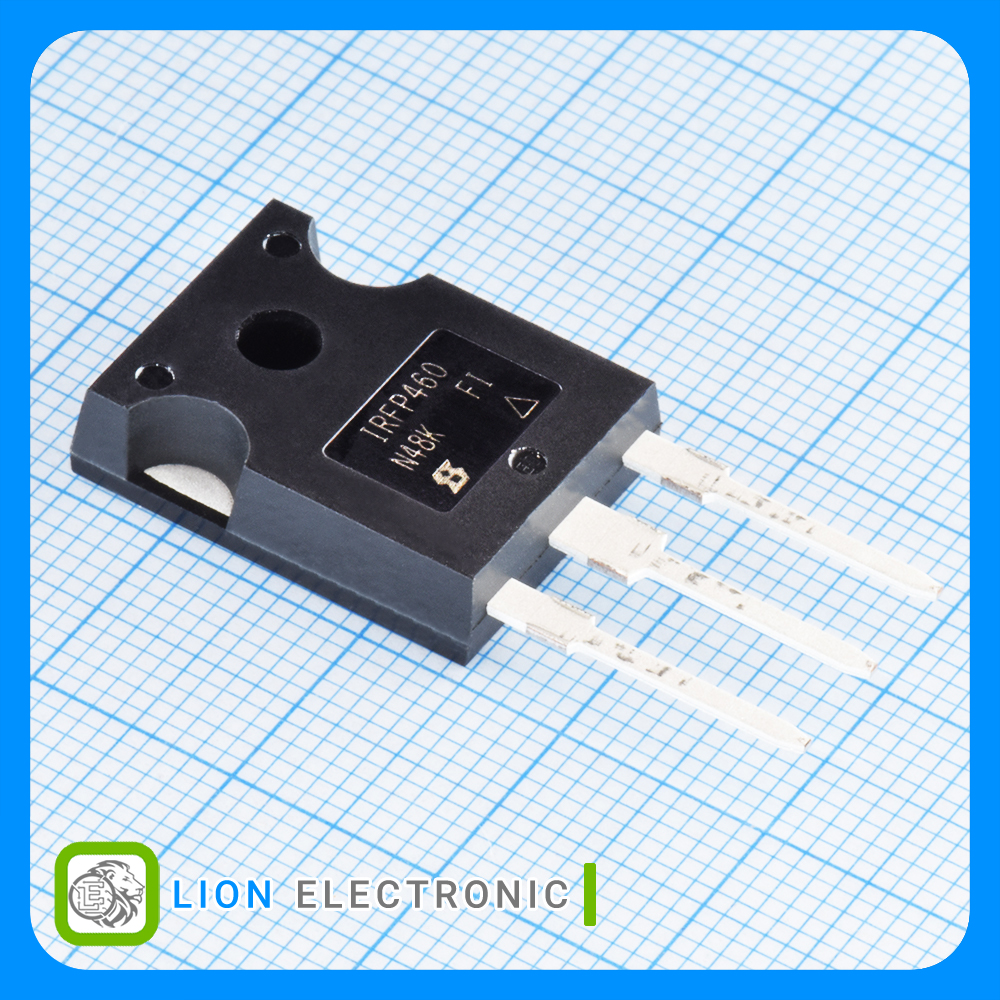

IRFP460PBF
IRFP460PBF
Part Number
190
Lion Part
Datasheet
Vishay Semiconductors Manufacture
ماسفت 500 ولت 20 آمپر نوع N با پکیج TO-247-3
N-CH MOSFET 500V, 20A with TO-247-3 Package
معرفی
ماسفت 500 ولت 20 آمپر نوع N با پکیج TO-247-3
N-CH MOSFET 500V, 20A with TO-247-3 Package
Specifications
- Package/Case: TO-247
- Vds - Drain - Source Breakdown Voltage: 500V
- Id - Continuous Drain Current: 20A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 270mΩ
- Pd - Power Dissipation: 280W
- Qg - Gate Charge: 210nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت IRFP460PBF
ماسفت IRFP460PBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
500V
Vds - Drain - Source Breakdown Voltage
59ns
Rise Time
58ns
Fall Time
2V
Vgs th - Gate - Source Threshold Voltage
20A
Id - Continuous Drain Current
270mΩ
Rds On - Drain - Source Resistance
210nC
Qg - Gate Charge
280W
Pd - Power Dissipation
TO-247
Package-Case
