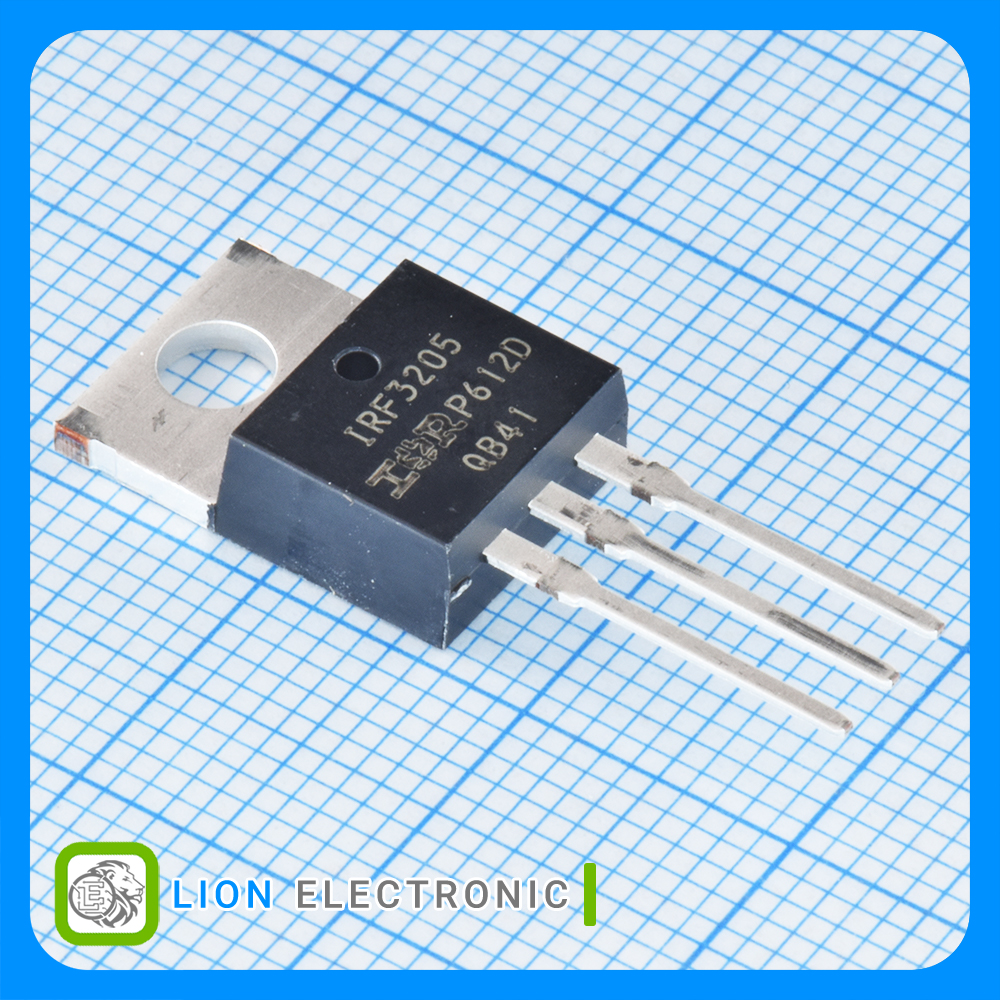

IRF3205PBF
IRF3205PBF
Part Number
193
Lion Part
Datasheet
International Rectifier Manufacture
ماسفت 55 ولت 110 آمپر نوع N با پکیج TO-220-3
MOSFET 55V, 110A with TO-220-3 Package
معرفی
ماسفت 55 ولت 110 آمپر نوع N با پکیج TO-220-3
MOSFET 55V, 110A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 55V
- Id - Continuous Drain Current: 110A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 8mΩ
- Pd - Power Dissipation: 200W
- Qg - Gate Charge: 146nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت IRF3205PBF

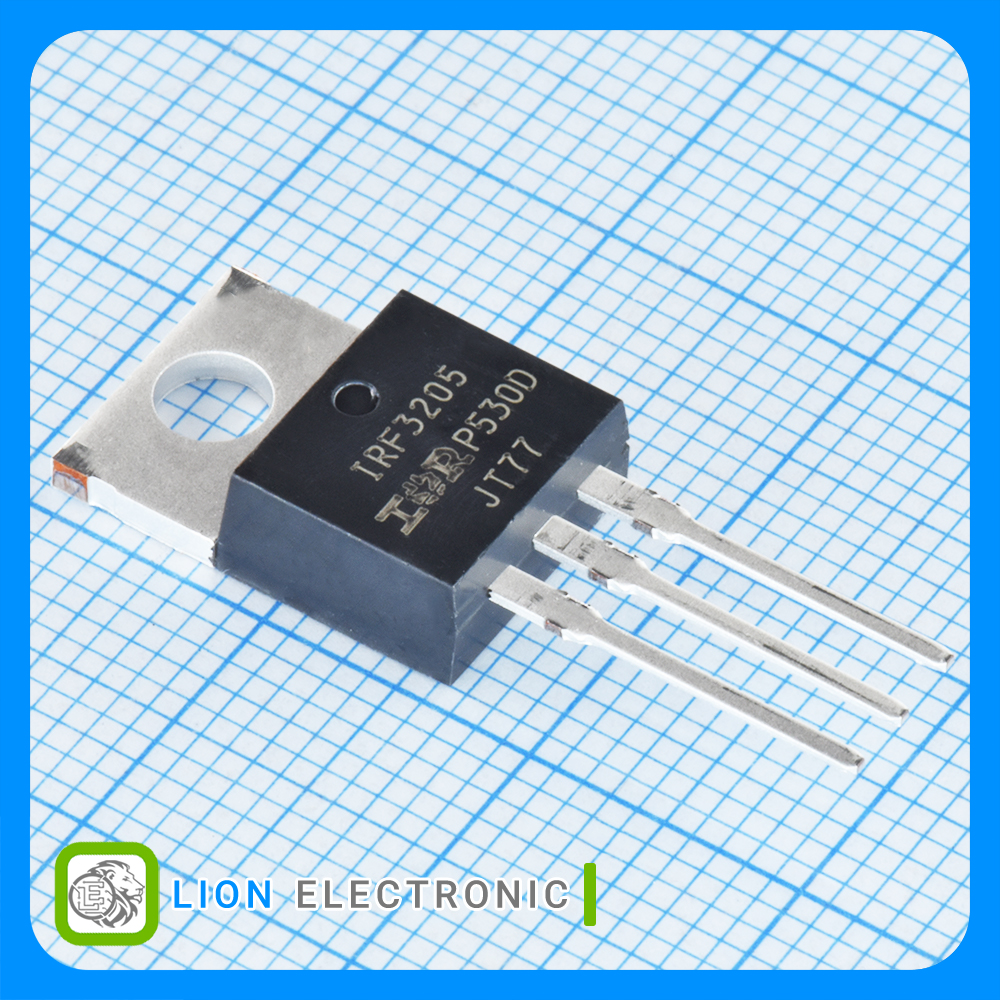

ماسفت IRF3205PBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
55V
Vds - Drain - Source Breakdown Voltage
+175C
Maximum Operating Temperature
2V
Vgs th - Gate - Source Threshold Voltage
8mΩ
Rds On - Drain - Source Resistance
146nC
Qg - Gate Charge
110A
Id - Continuous Drain Current
200W
Pd - Power Dissipation
TO-220-3
Package-Case
