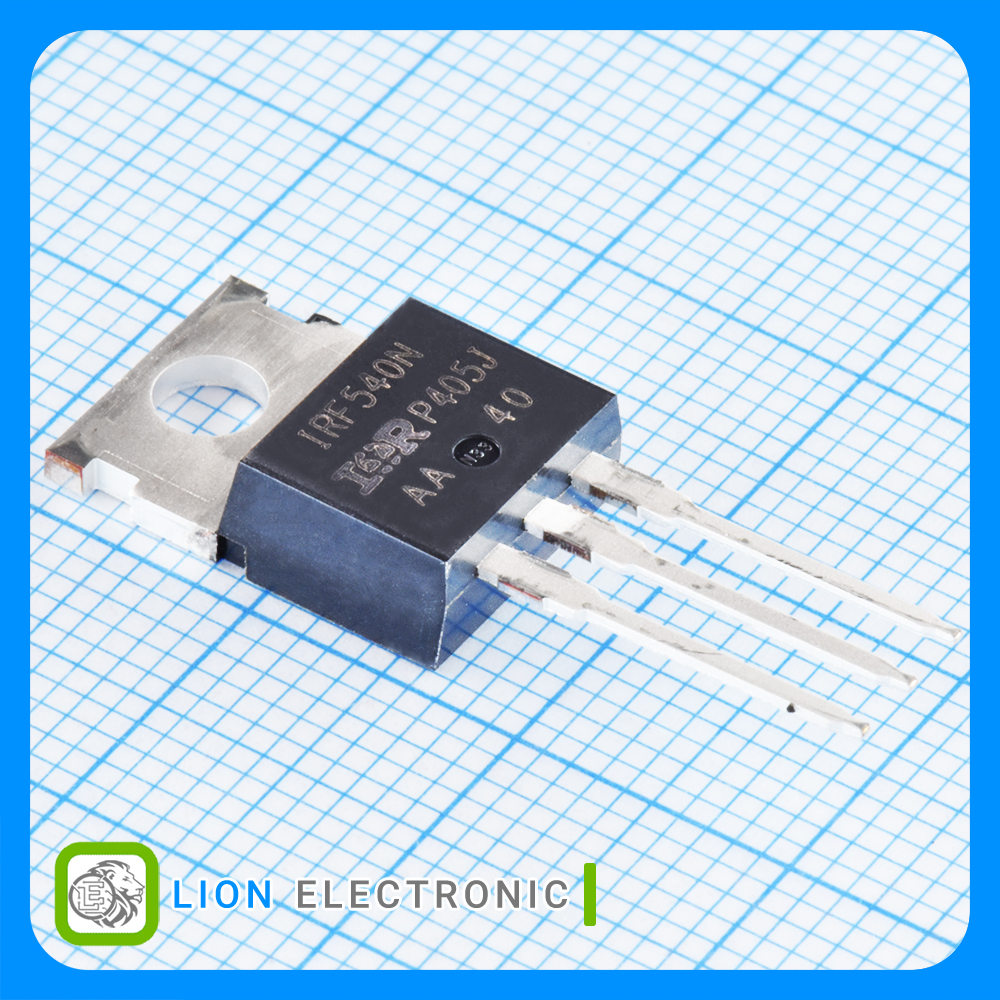

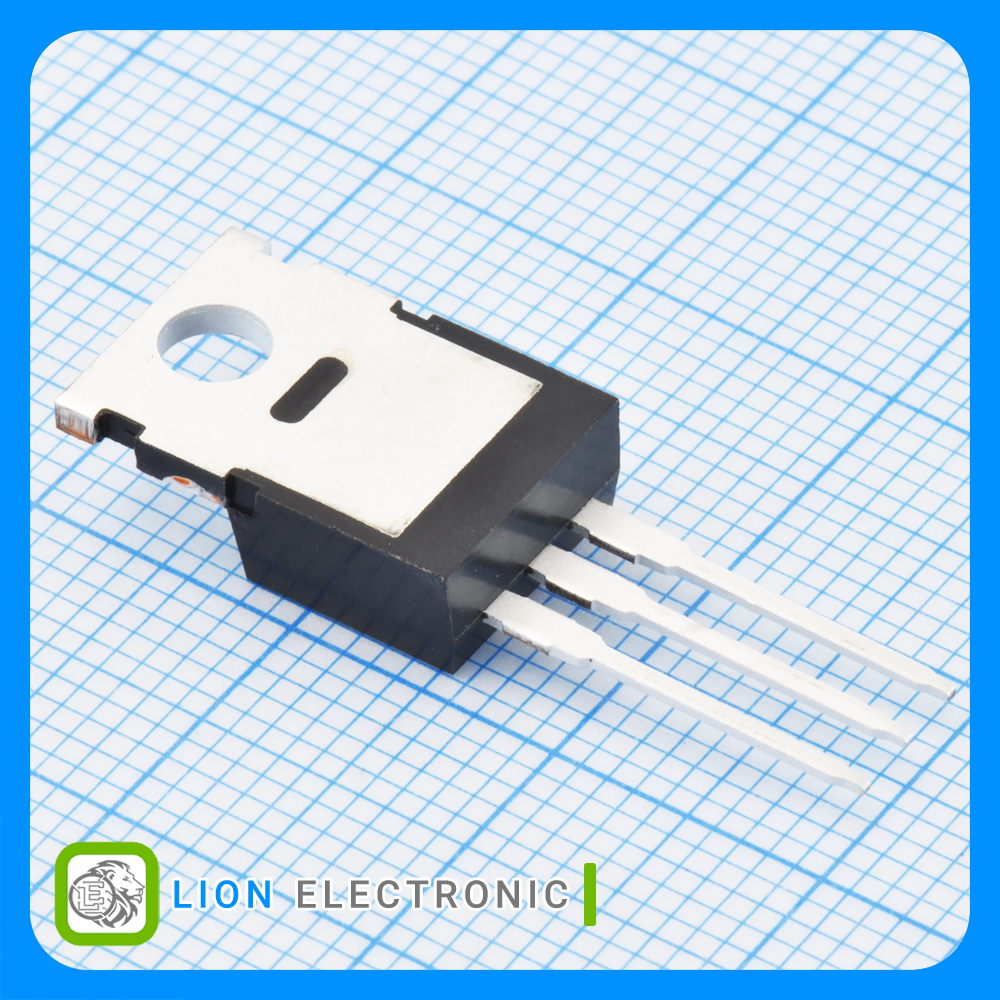

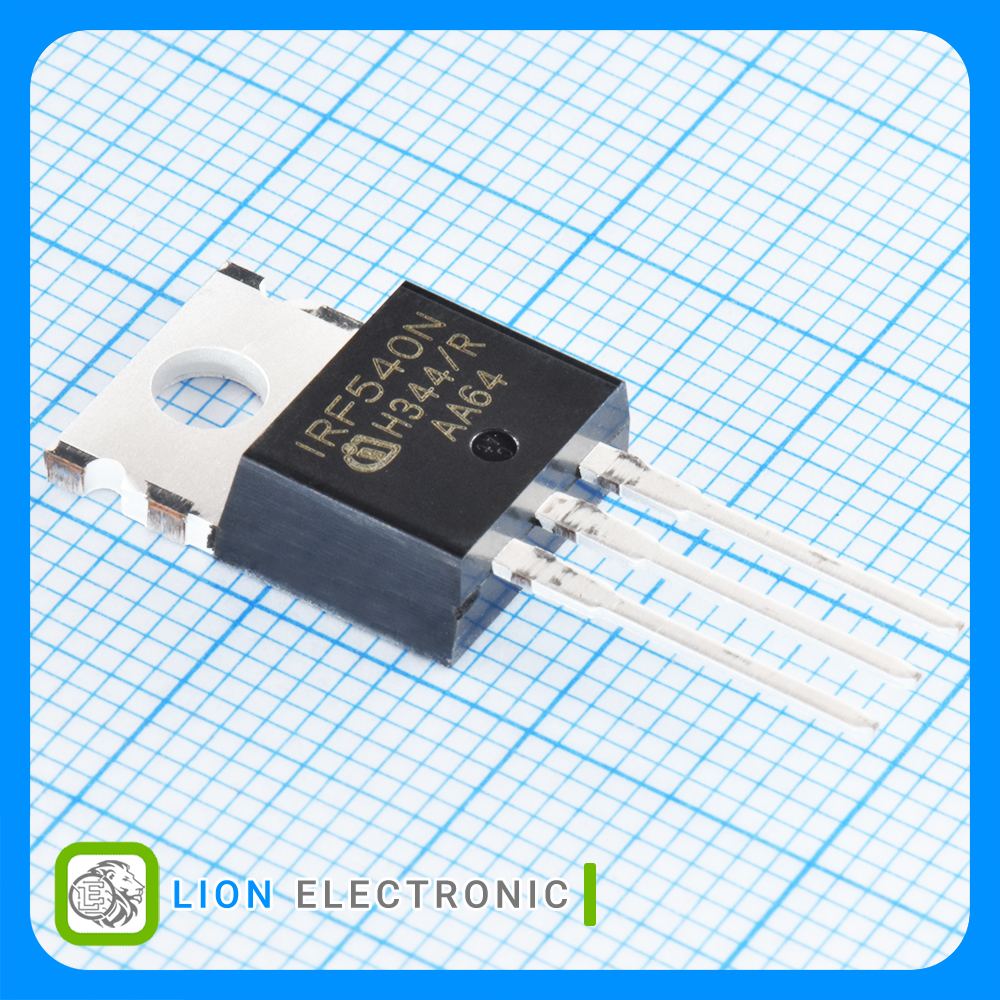

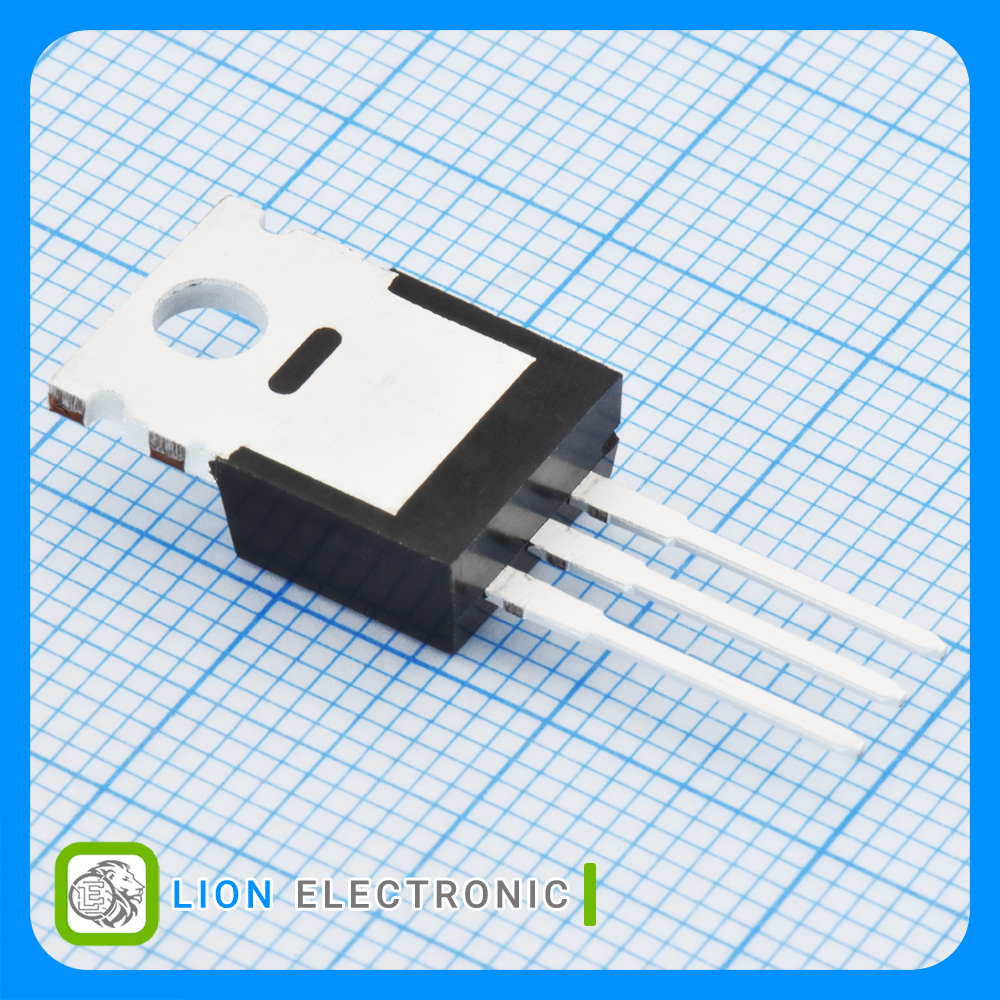

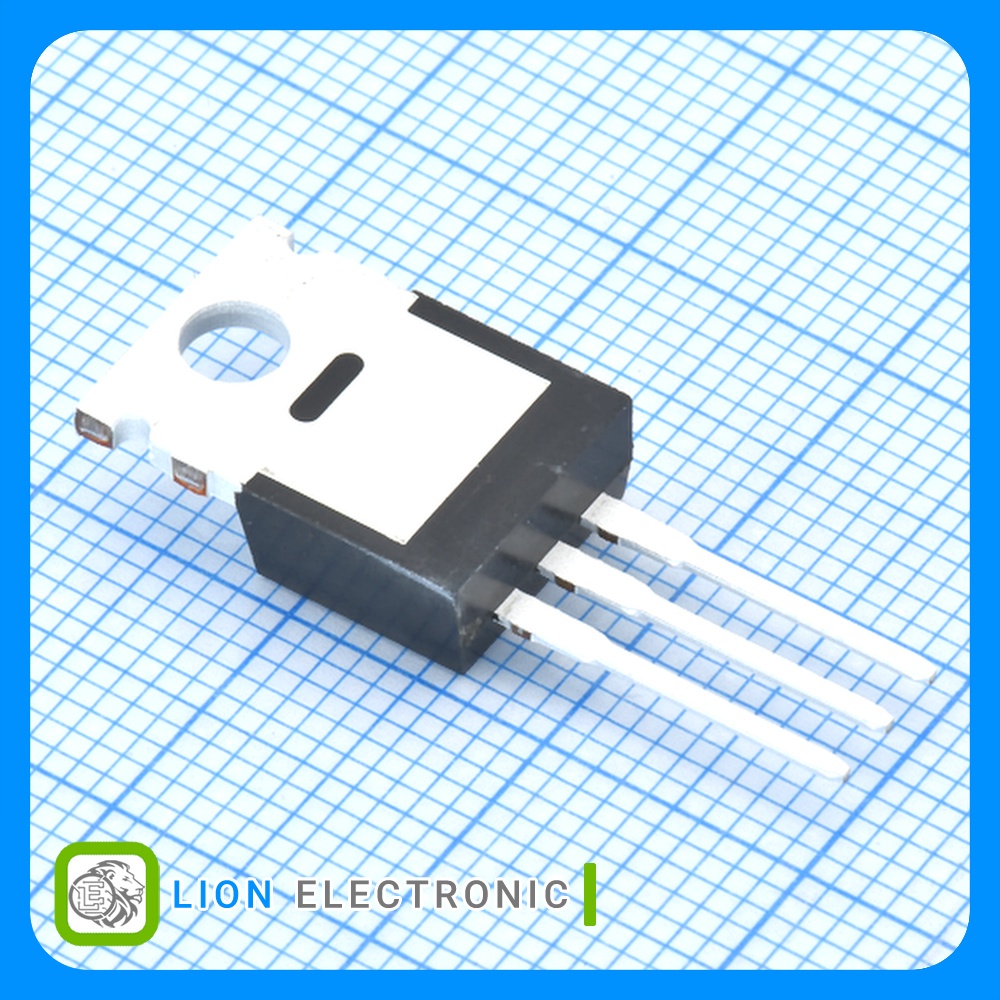

IRF540NPBF
IRF540NPBF
Part Number
195
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 100 ولت 33 آمپر نوع N با پکیج TO-220-3

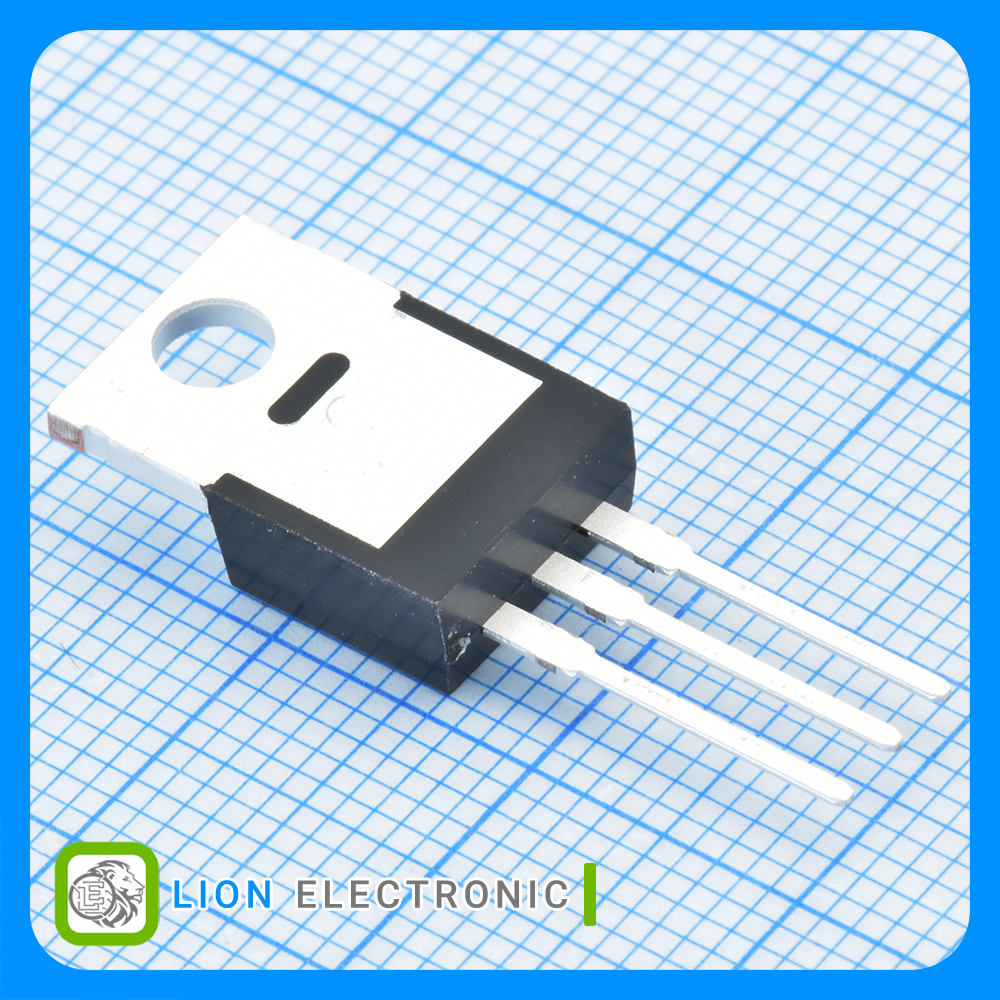

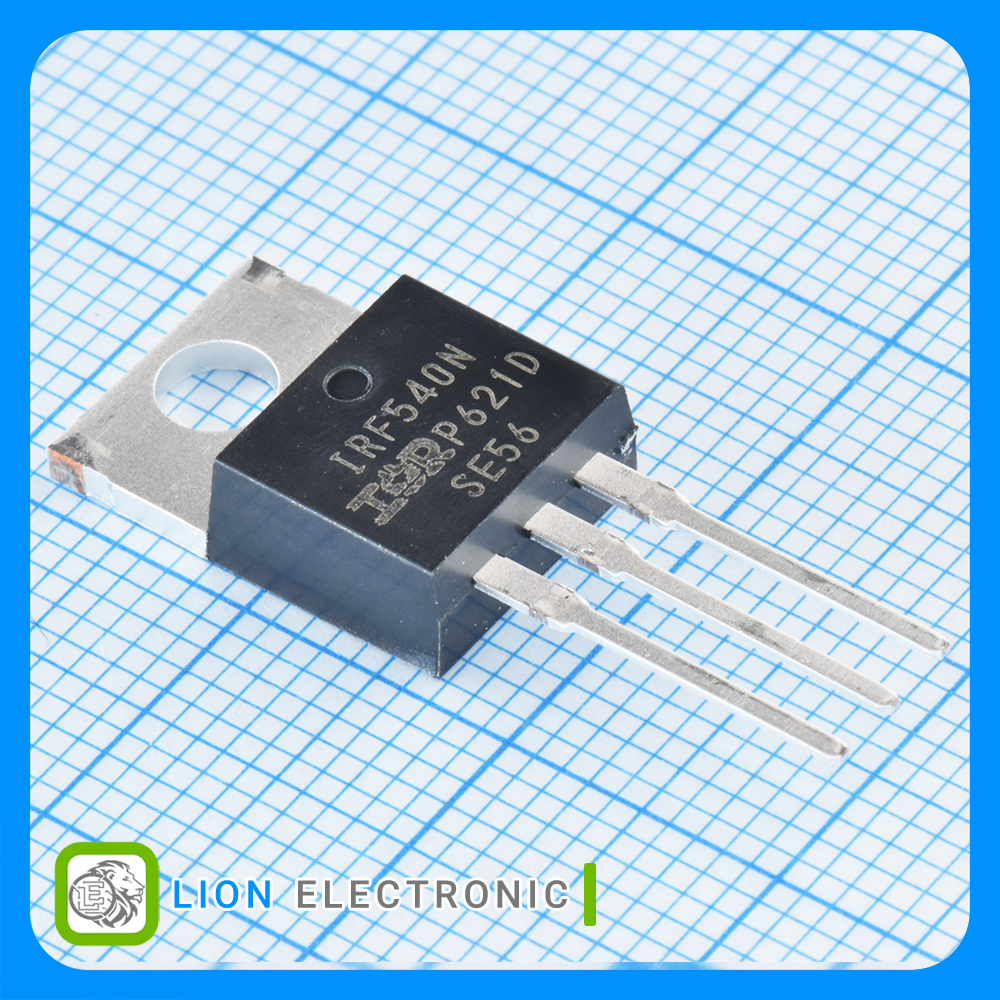

N-CH MOSFET 100V, 33A with TO-220-3 Package
معرفی
ماسفت 100 ولت 33 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 100V, 33A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 33A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 44mΩ
- Pd - Power Dissipation: 130W
- Qg - Gate Charge: 71nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت IRF540NPBF

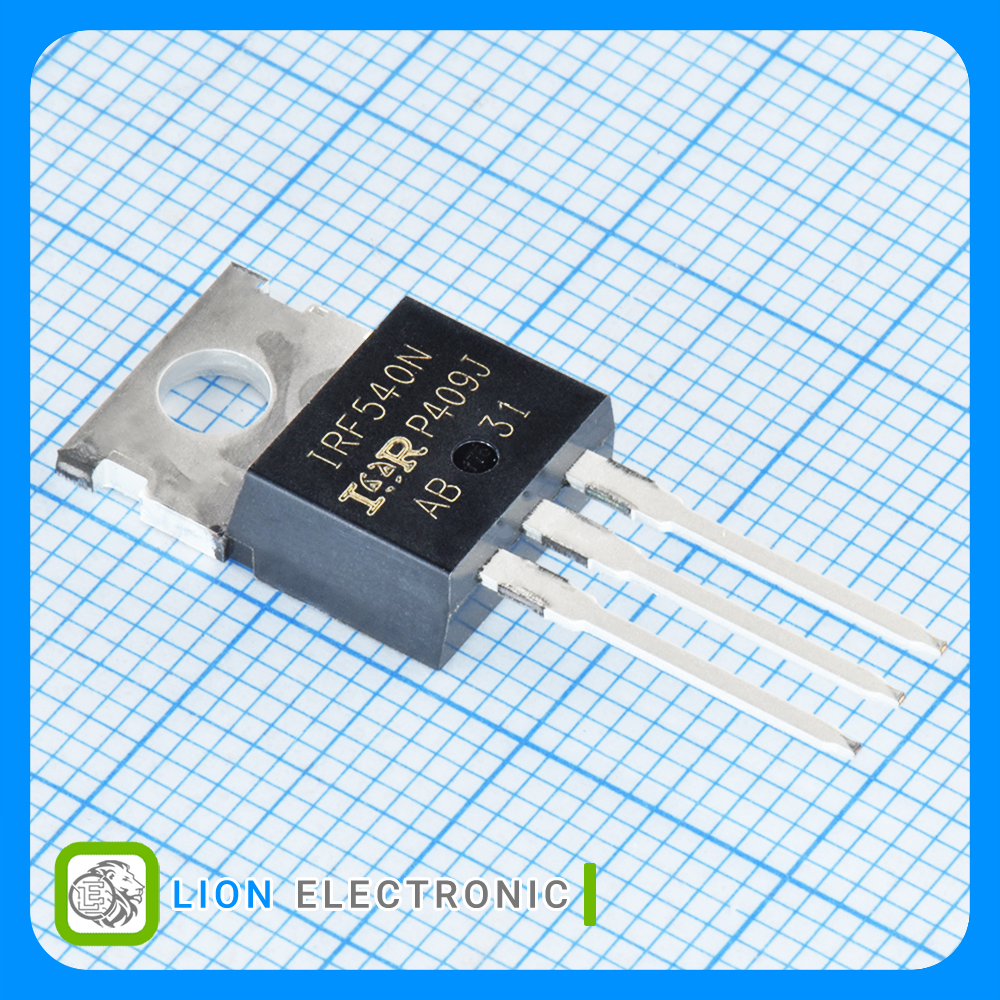

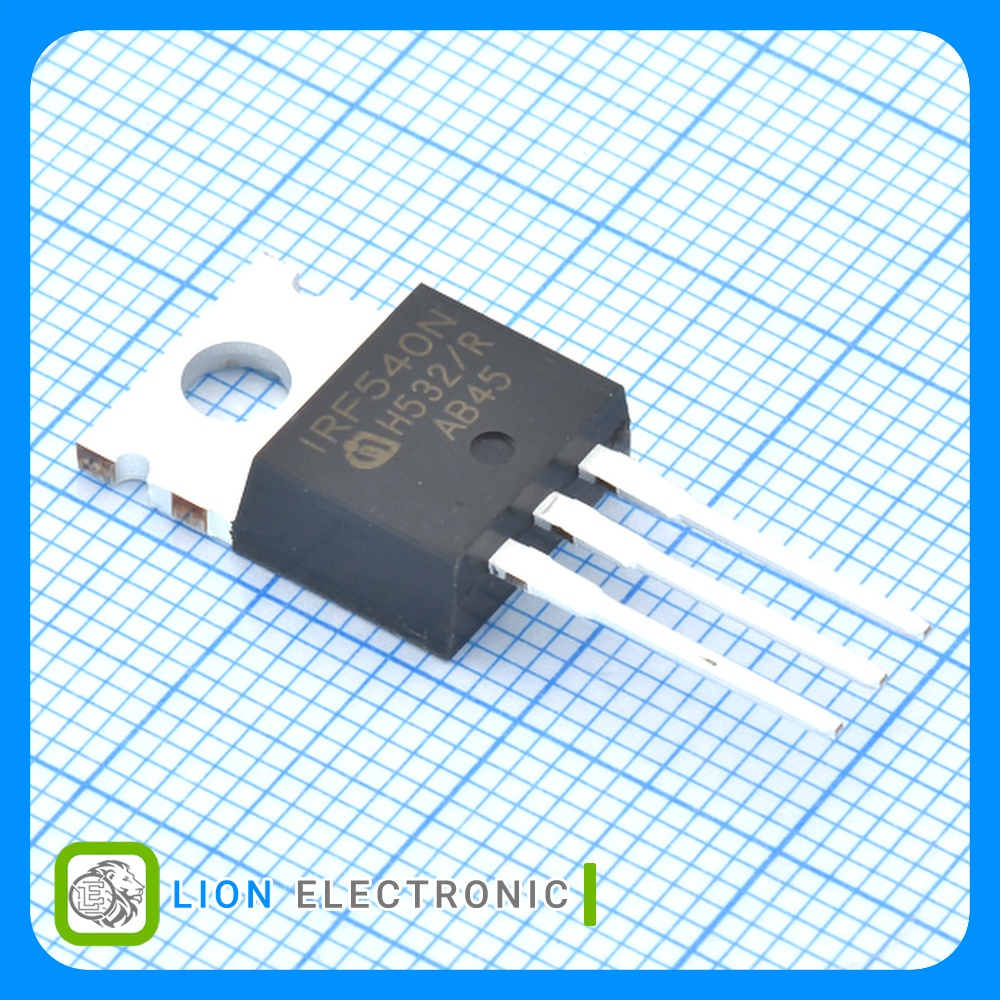

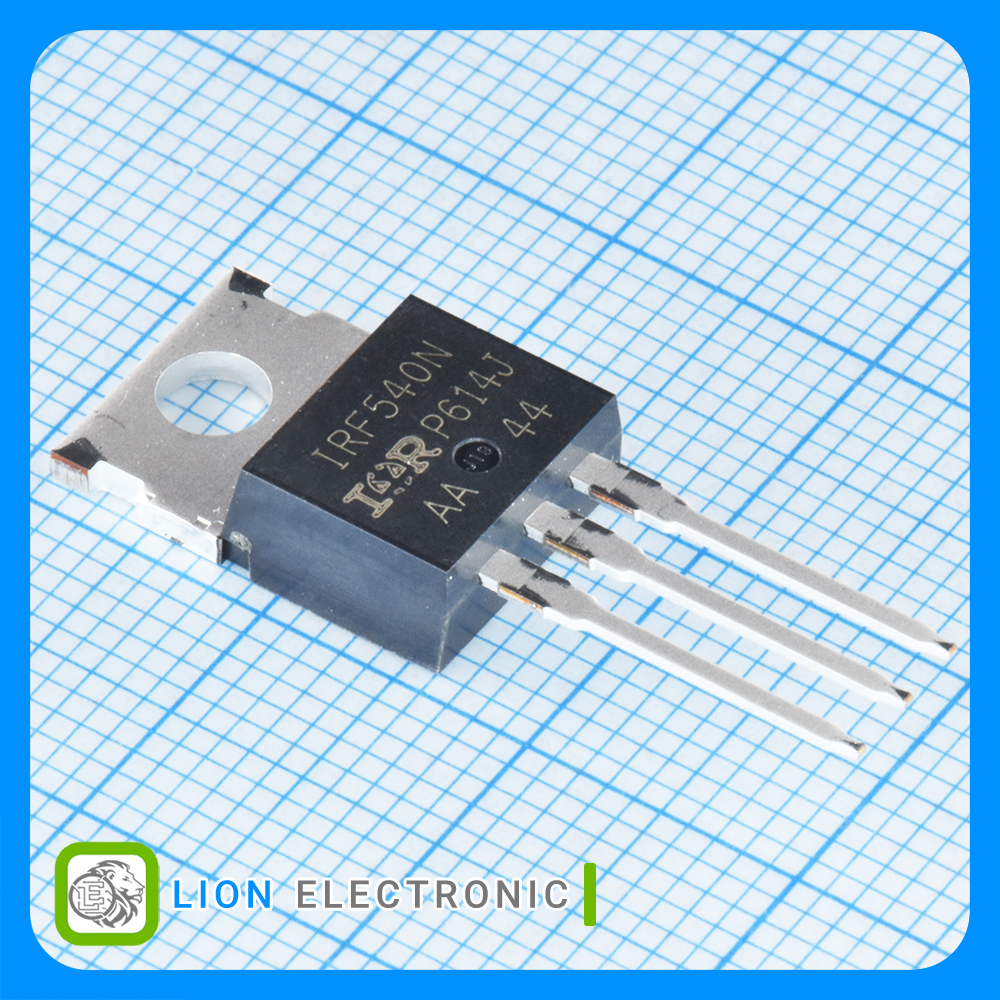

ماسفت IRF540NPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
44mΩ
Rds On - Drain - Source Resistance
71nC
Qg - Gate Charge
33A
Id - Continuous Drain Current
130W
Pd - Power Dissipation
TO-220
Package-Case
