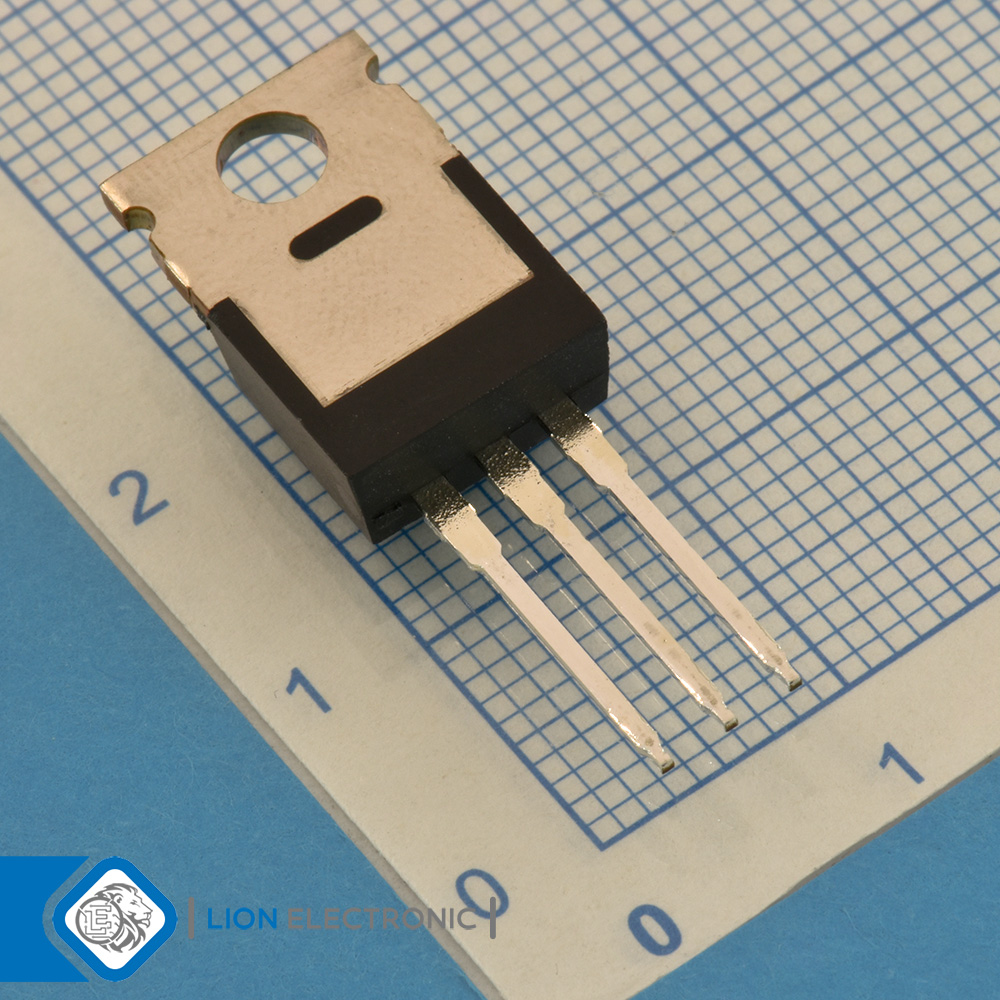

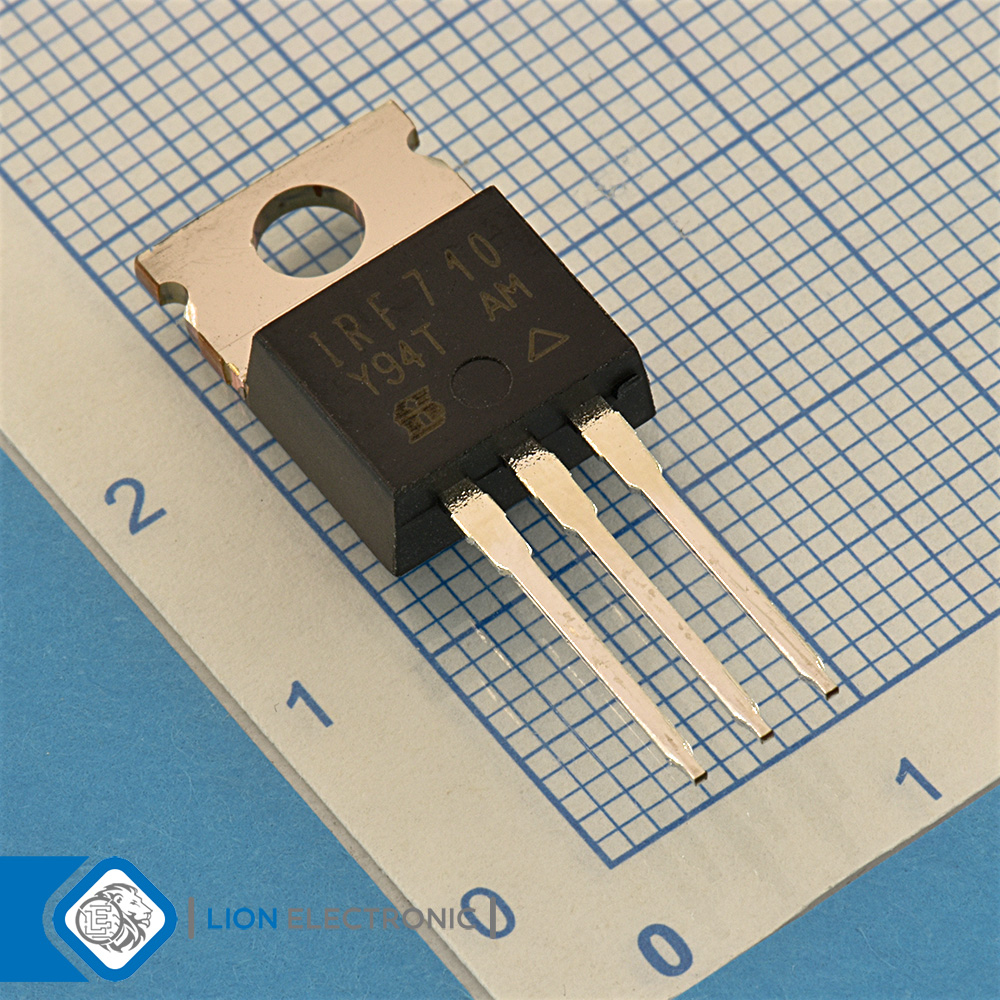

IRF710PBF
IRF710PBF
Part Number
197
Lion Part
Datasheet
Vishay Semiconductors Manufacture
ماسفت 400 ولت 2 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 400V, 2A with TO-220-3 Package
معرفی
ماسفت 400 ولت 2 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 400V, 2A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 400V
- Id - Continuous Drain Current: 2A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 3.6Ω
- Pd - Power Dissipation: 36W
- Qg - Gate Charge: 17nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +200C
- Packaging: Tube
مشخصات ماسفت IRF710PBF
ماسفت IRF710PBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
9.9ns
Rise Time
Through Hole
Mounting Style
11ns
Fall Time
±20V
Vgs - Gate - Source Voltage
+200C
Maximum Operating Temperature
400V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
17nC
Qg - Gate Charge
2A
Id - Continuous Drain Current
36W
Pd - Power Dissipation
3.6Ω
Rds On - Drain - Source Resistance
TO-220
Package-Case
