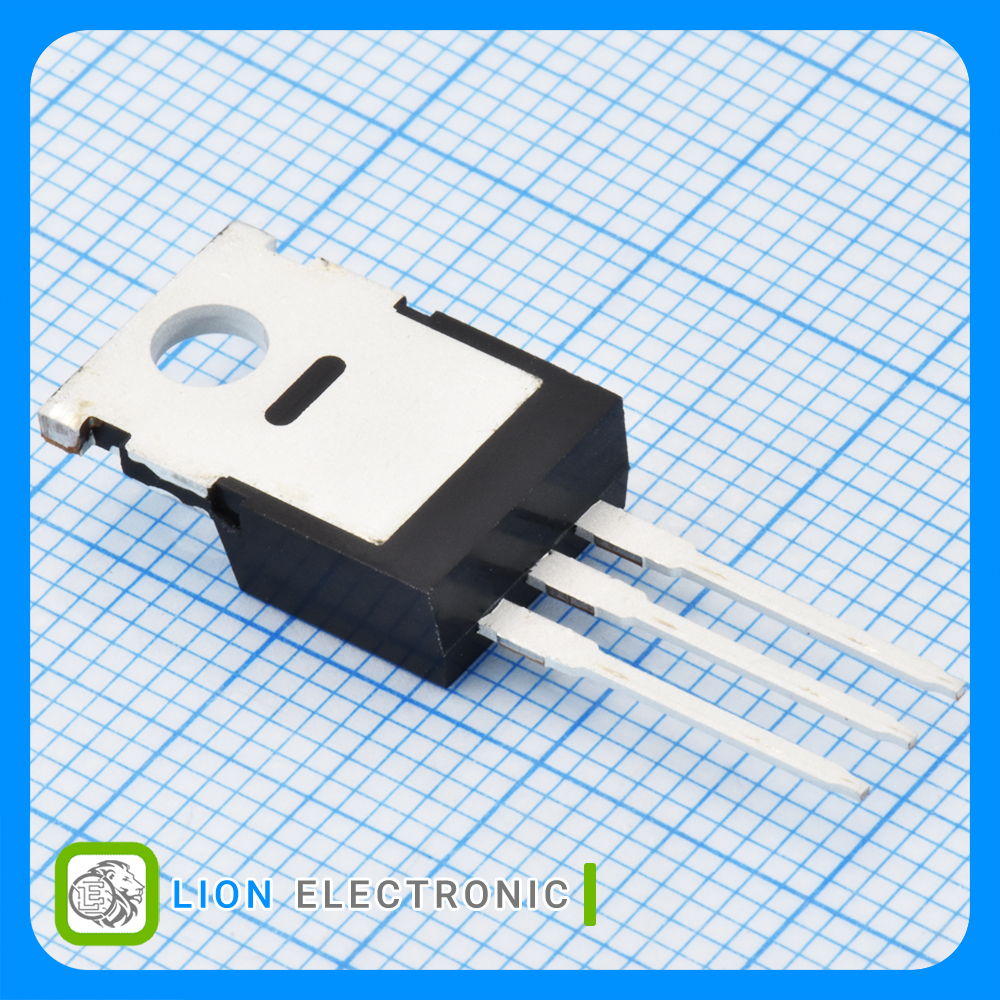

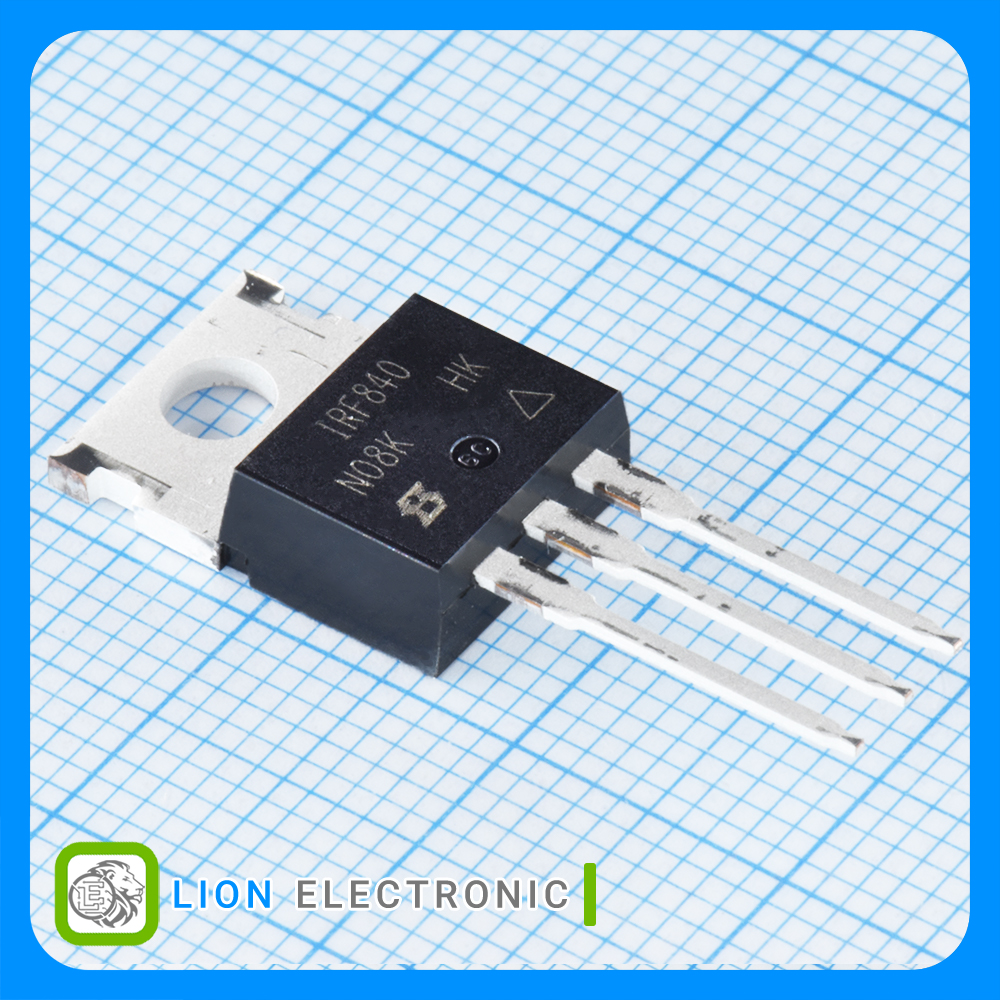

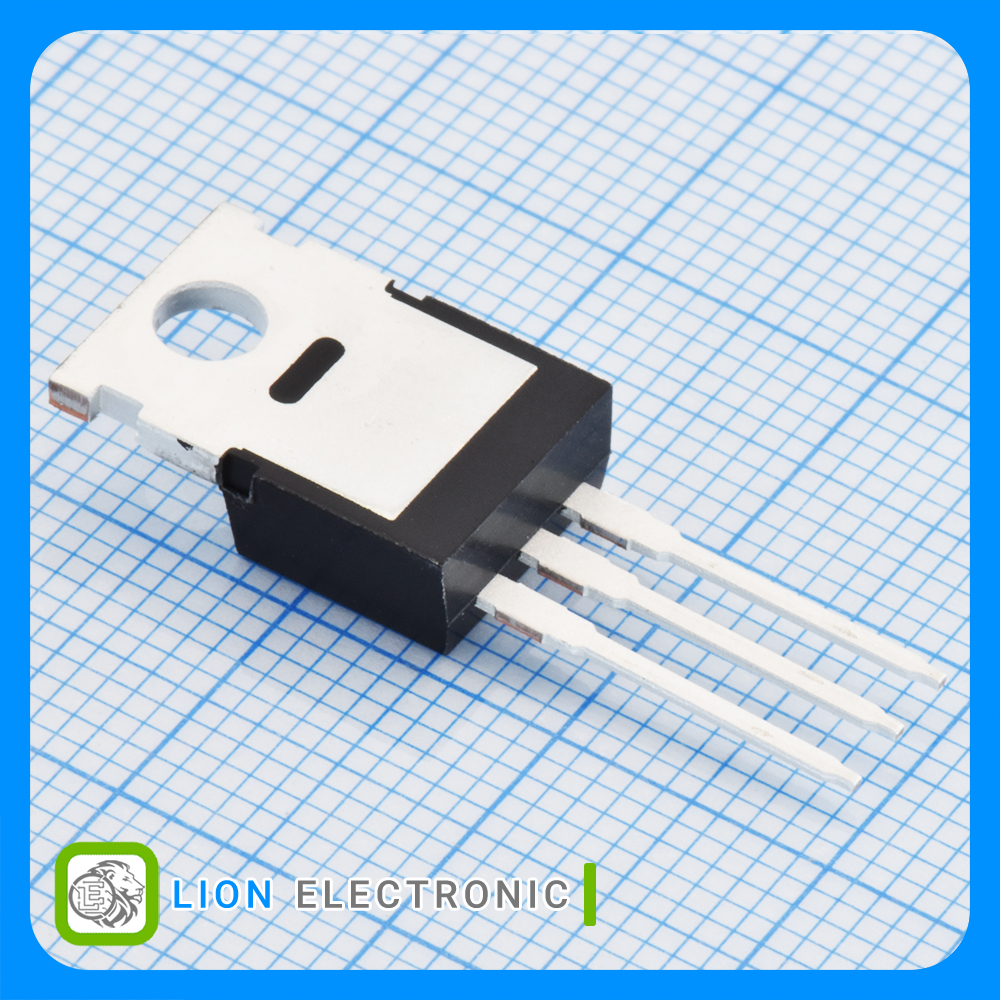

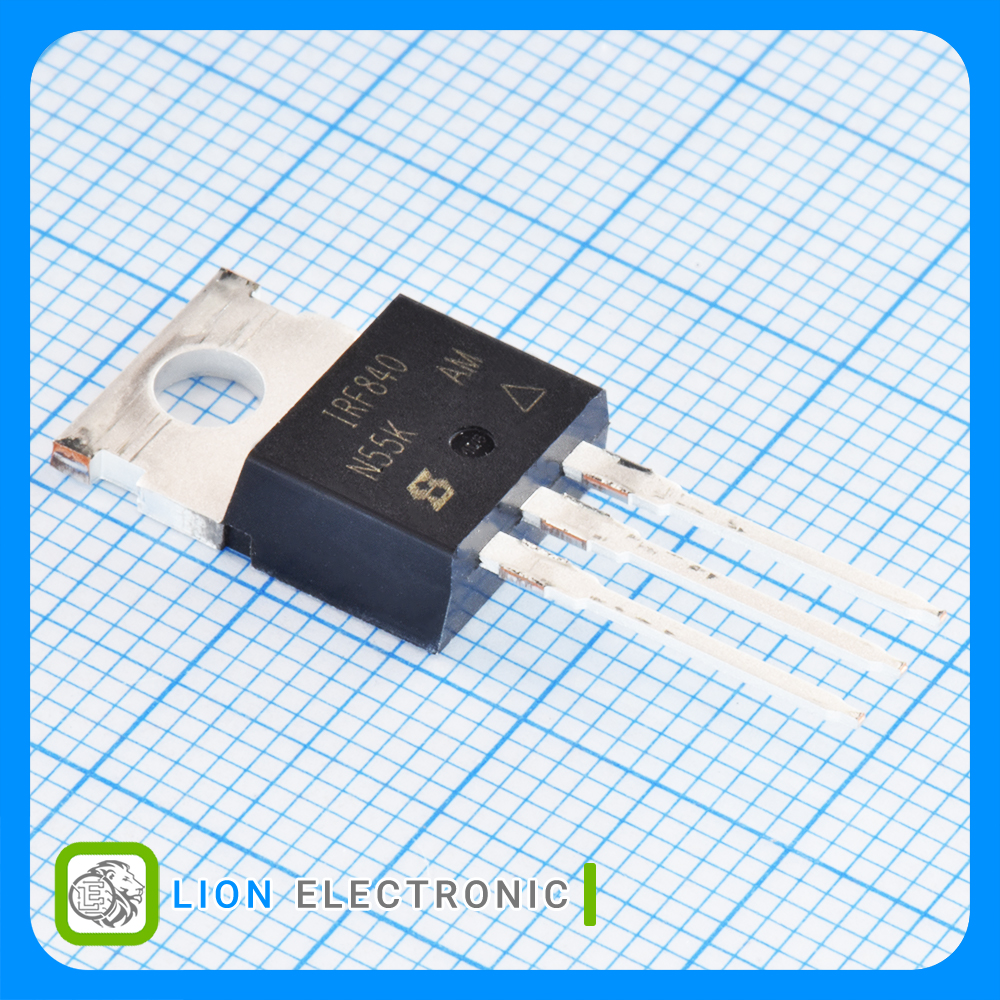

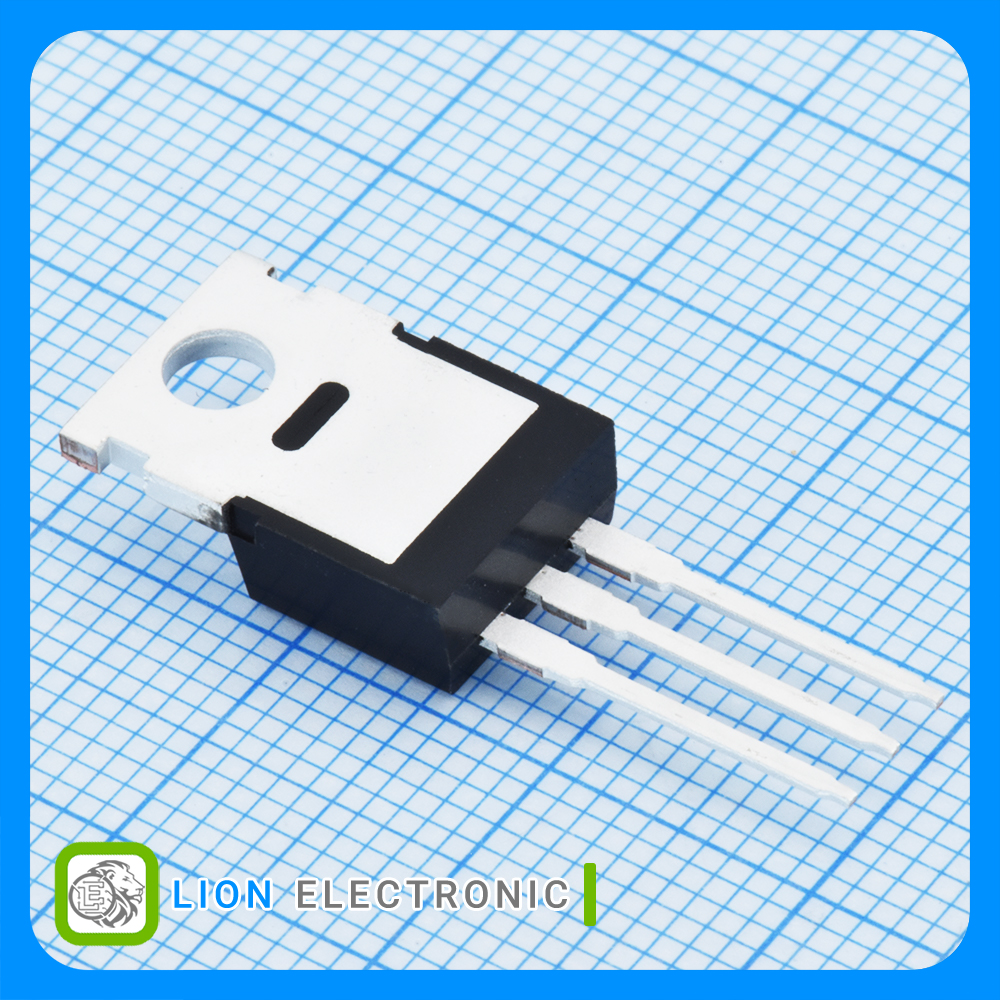

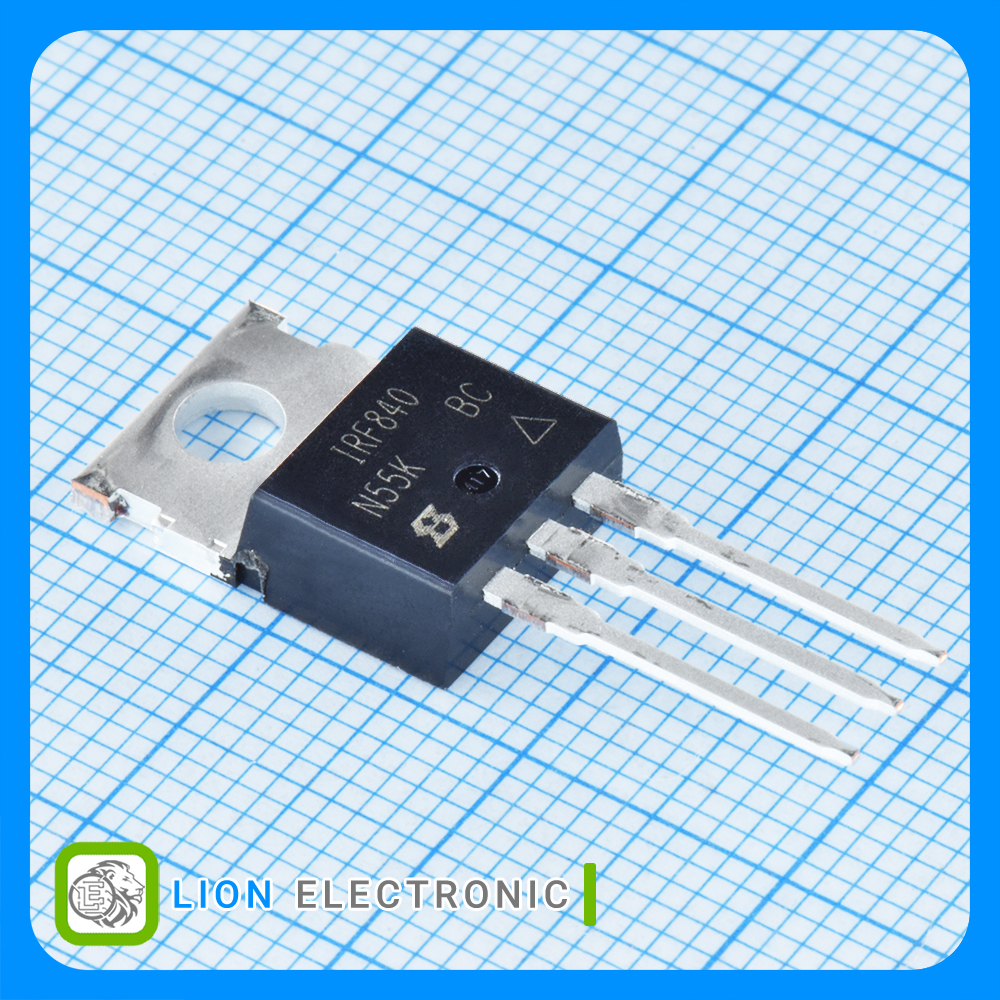

IRF840PBF
IRF840PBF
Part Number
199
Lion Part
Datasheet
Vishay Semiconductors Manufacture
ماسفت 500 ولت 8 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 500V, 8A with TO-220-3 Package
معرفی
ماسفت 500 ولت 8 آمپر نوع N با پکیج TO-220-3
N-CH MOSFET 500V, 8A with TO-220-3 Package
Specifications
- Package/Case: TO-220-3
- Vds - Drain - Source Breakdown Voltage: 500V
- Id - Continuous Drain Current: 8A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 850mΩ
- Pd - Power Dissipation: 125W
- Qg - Gate Charge: 63nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت IRF840PBF
ماسفت IRF840PBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
500V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
8A
Id - Continuous Drain Current
63nC
Qg - Gate Charge
125W
Pd - Power Dissipation
850mΩ
Rds On - Drain - Source Resistance
TO-220
Package-Case
