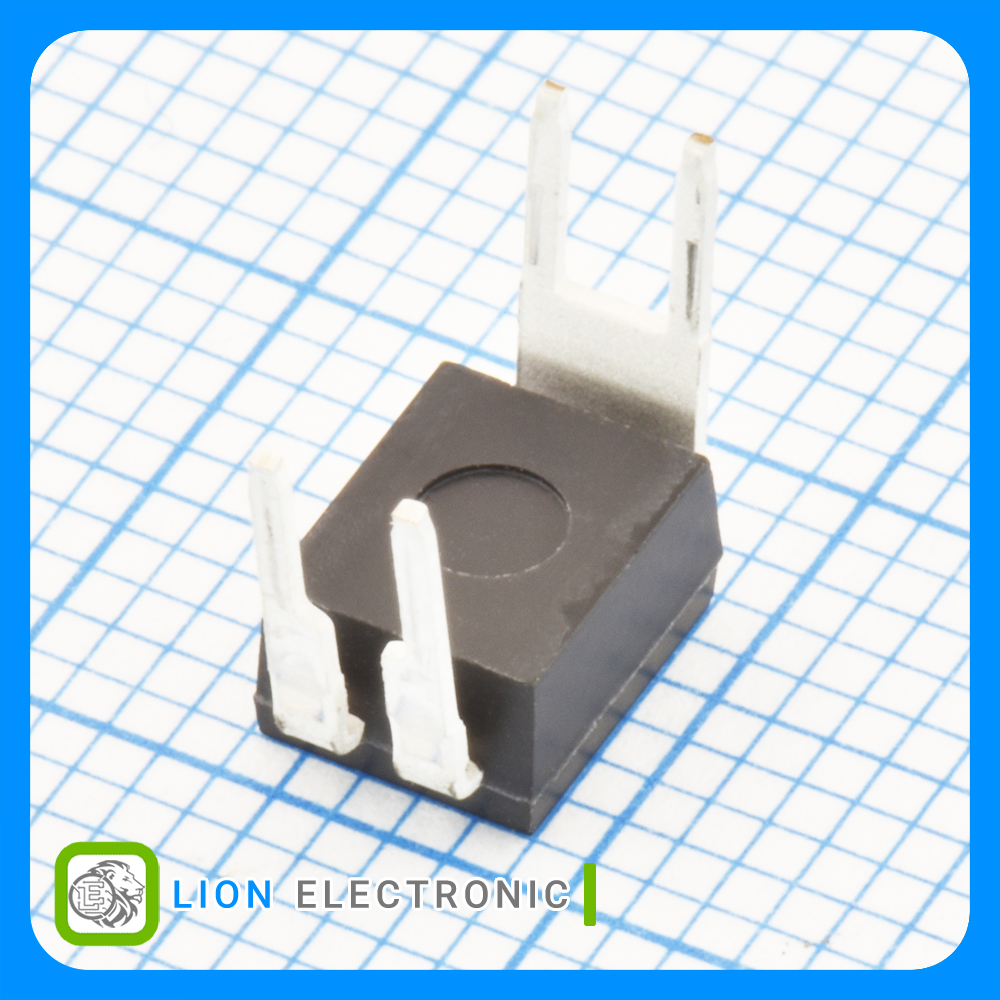

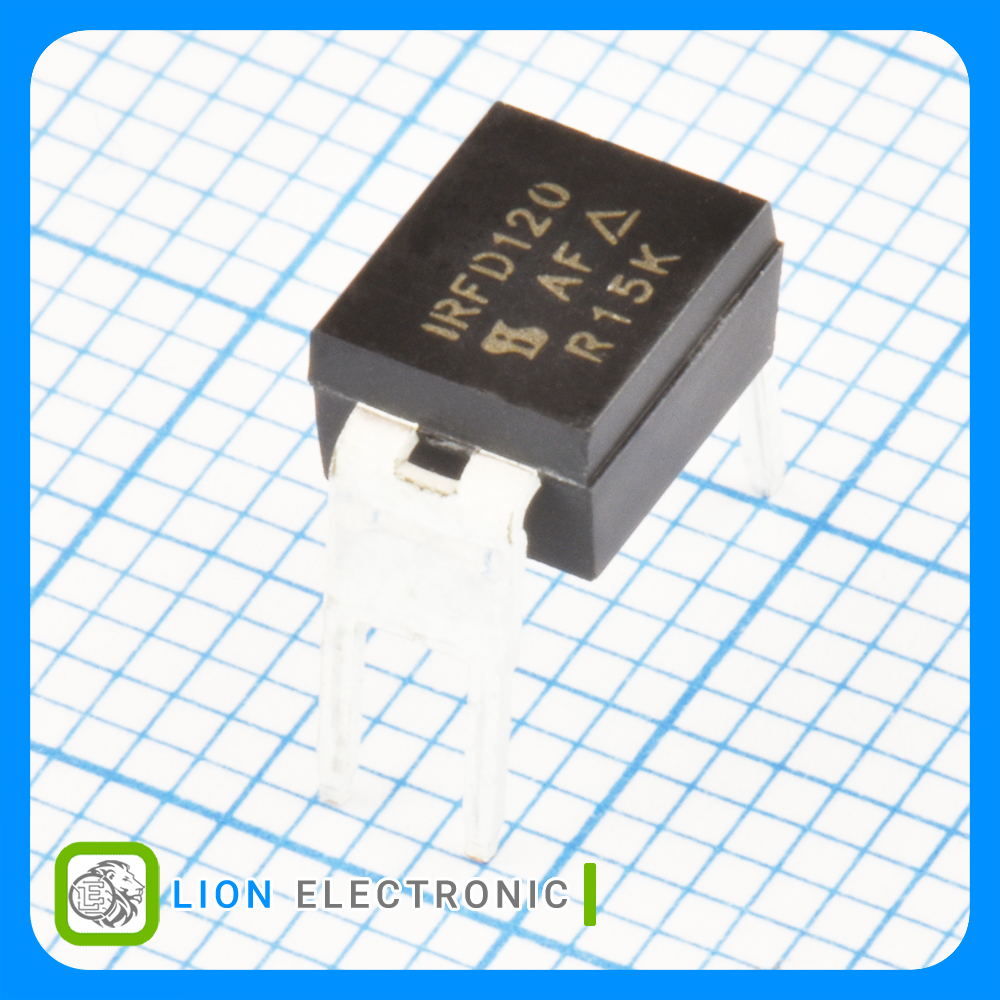

IRFD120PBF
IRFD120PBF
Part Number
203
Lion Part
Datasheet
Vishay Semiconductors Manufacture
ماسفت N-CH با ولتاژ 100 ولت و جریان 1.3 آمپر با پکیج HVMDIP-4
N-CH MOSFET 100V, 1.3A with HVMDIP-4 Package
معرفی
ماسفت N-CH با ولتاژ 100 ولت و جریان 1.3 آمپر با پکیج HVMDIP-4
N-CH MOSFET 100V, 1.3A with HVMDIP-4 Package
Specifications
- Package/Case: HVMDIP-4
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 1.3A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 270mΩ
- Pd - Power Dissipation: 1.3W
- Qg - Gate Charge: 16nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت IRFD120PBF
ماسفت IRFD120PBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
16nC
Qg - Gate Charge
1.3A
Id - Continuous Drain Current
1.3W
Pd - Power Dissipation
270mΩ
Rds On - Drain - Source Resistance
