IRFP250NPBF
IRFP250NPBF
Part Number
204
Lion Part
Datasheet
International Rectifier Manufacture
ماسفت 200 ولت 30 آمپر نوع N با پکیج TO-247-3

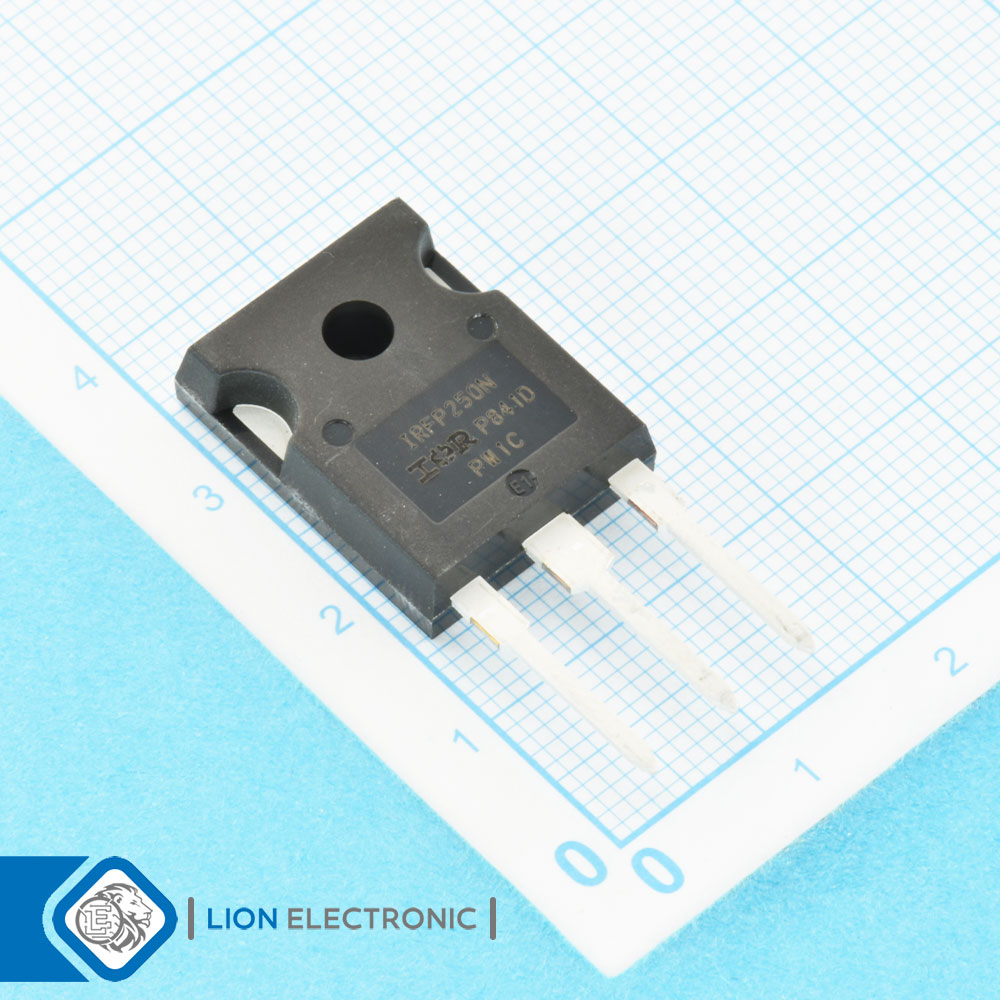

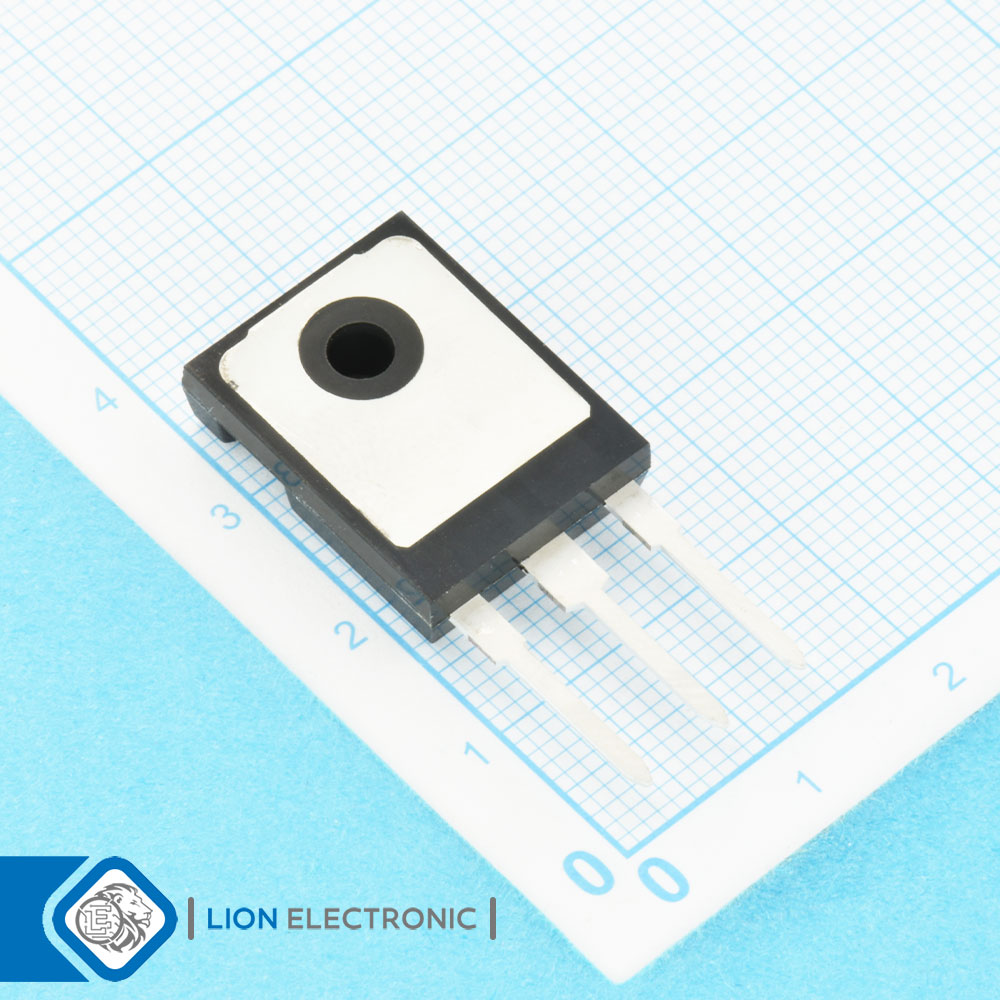

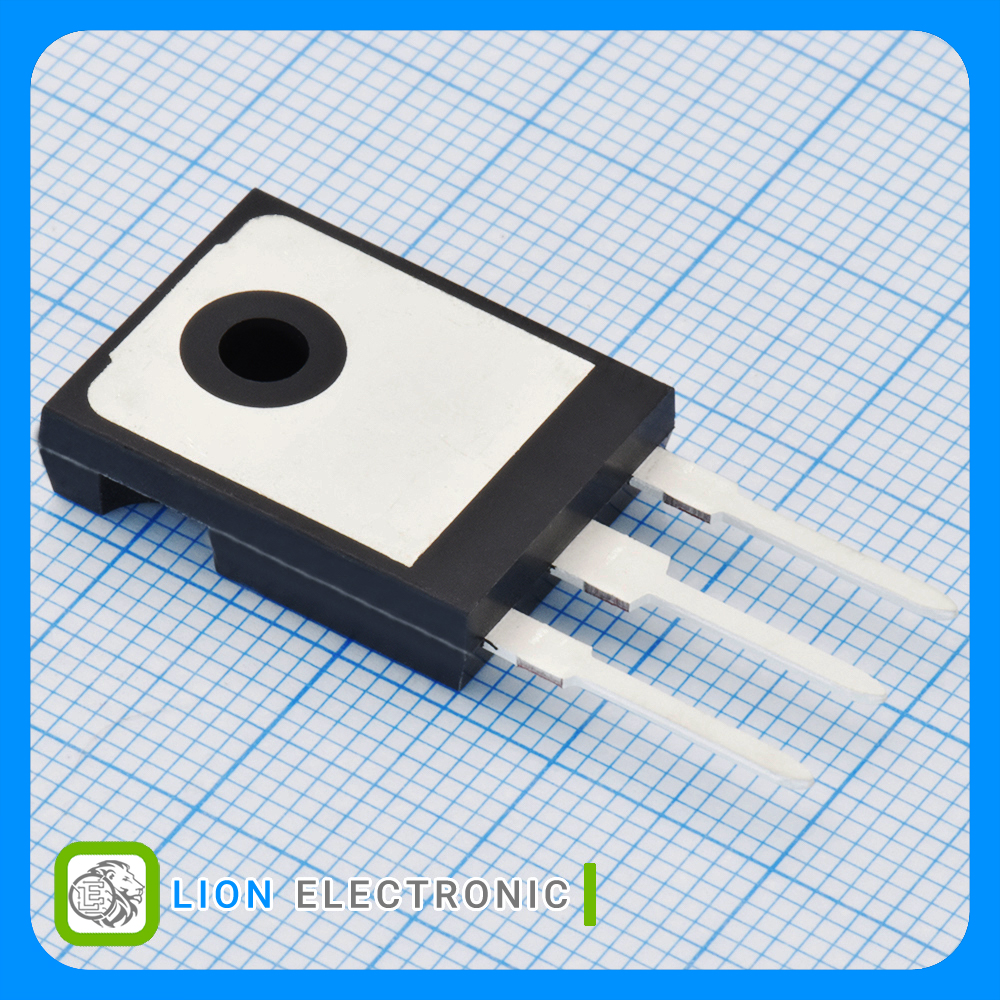

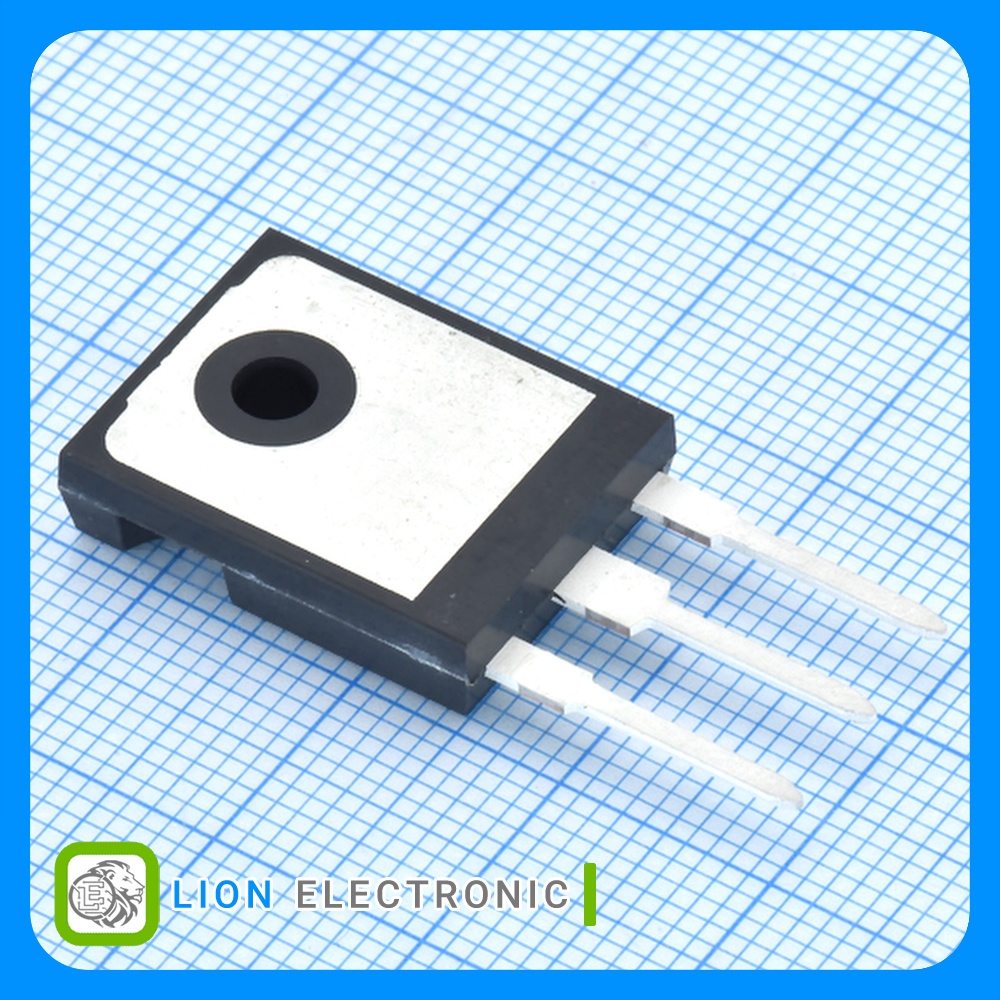

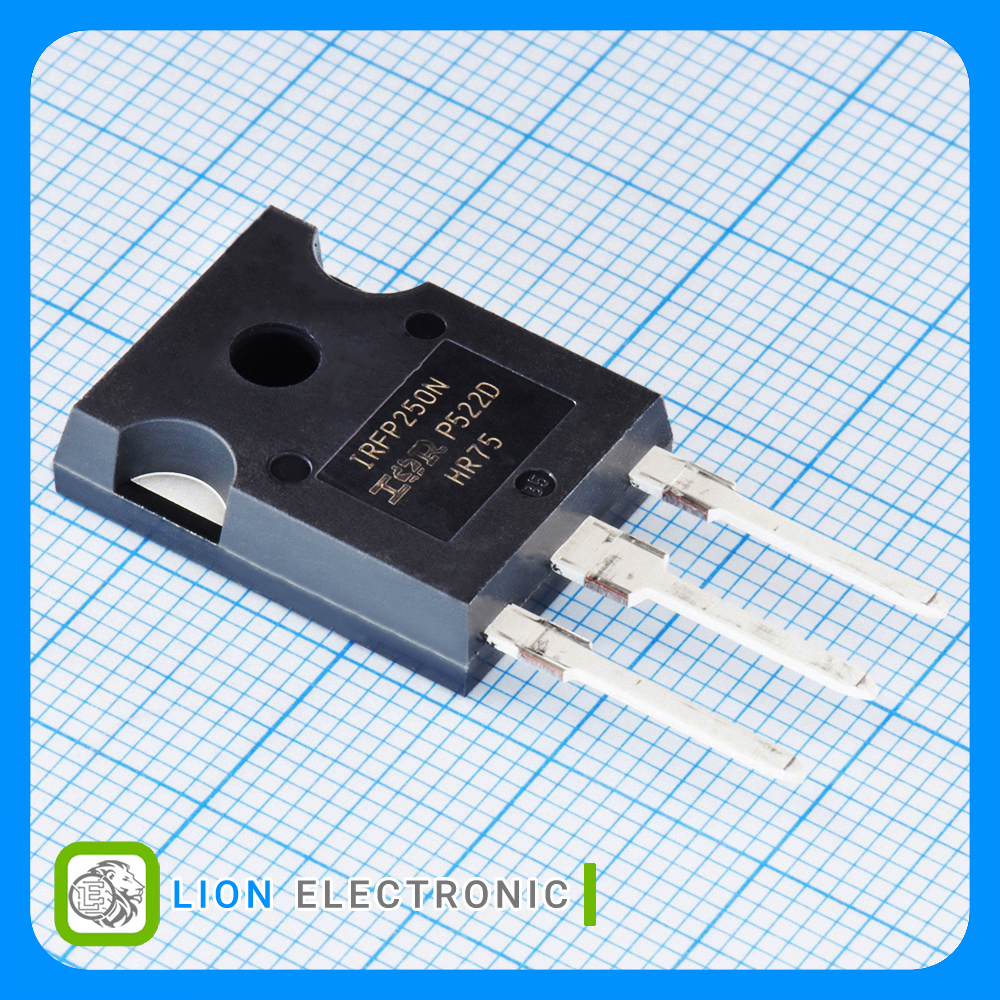

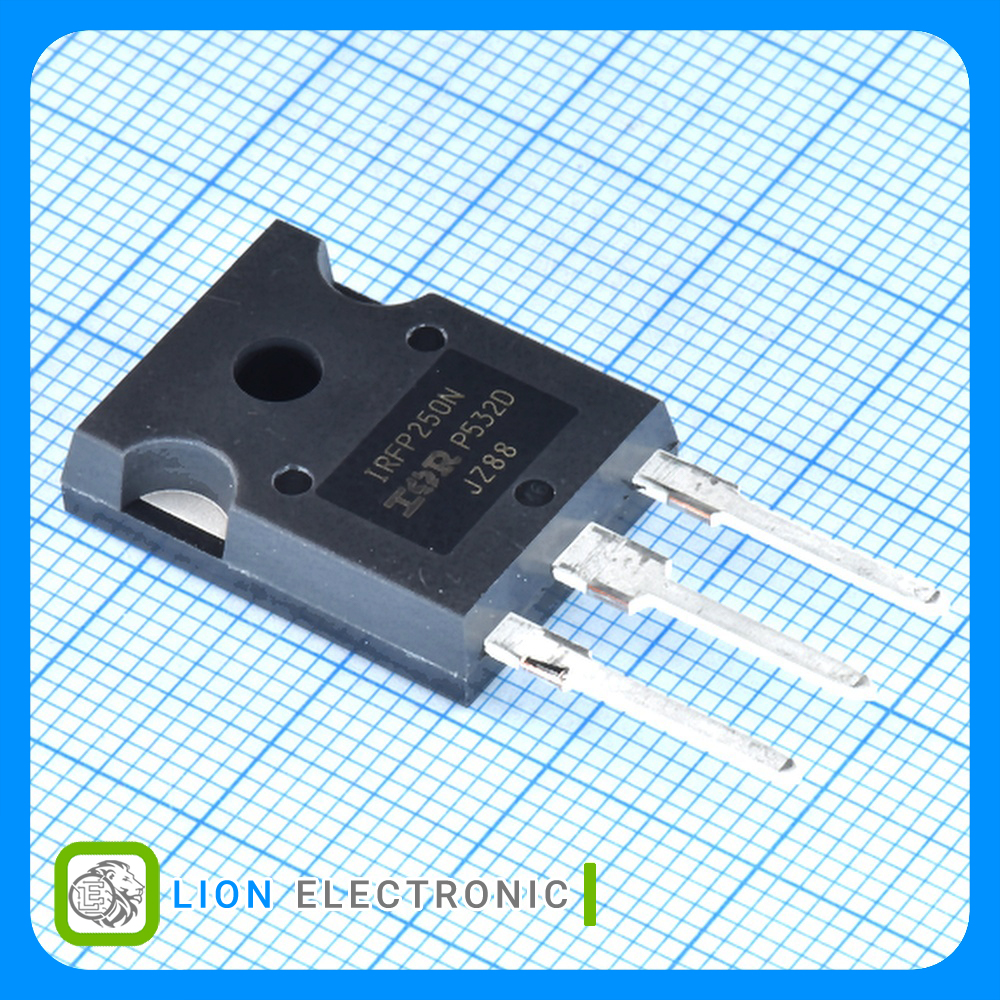

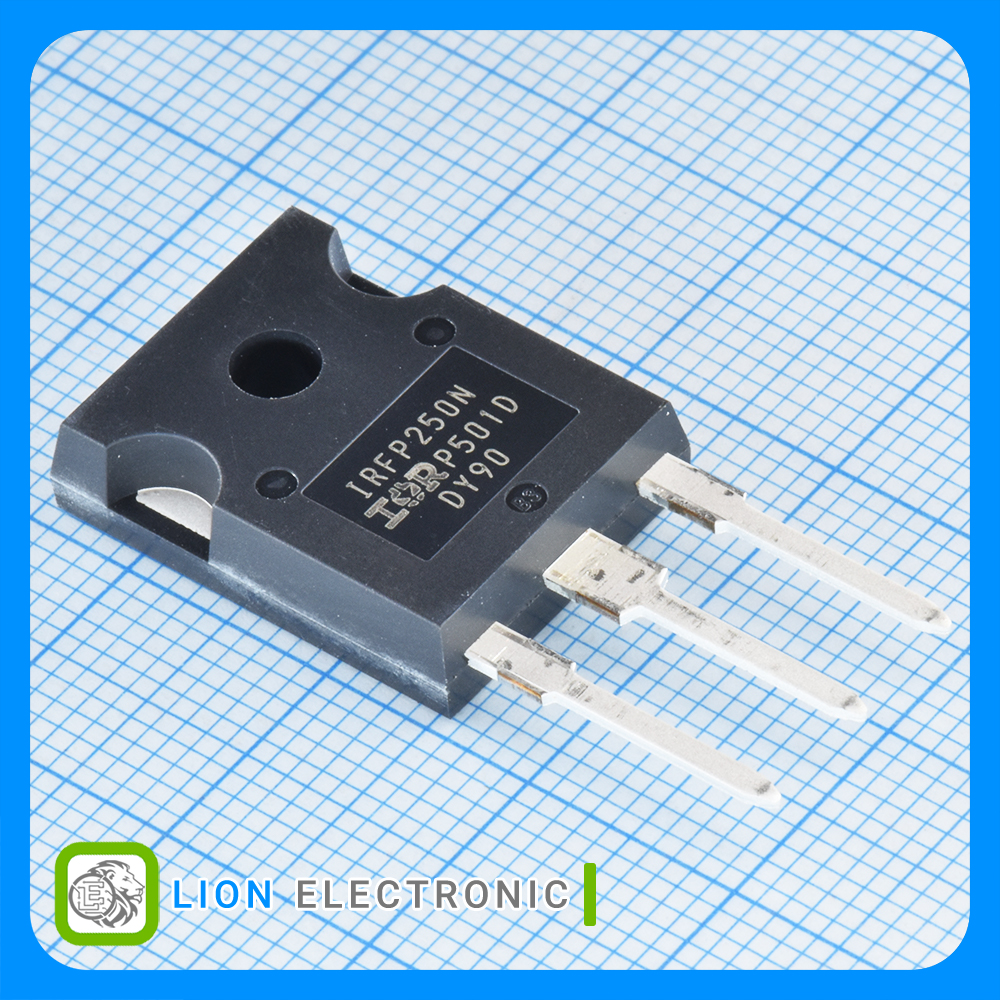

N-CH MOSFET 200V, 30A with TO-247-3 Package
معرفی
ماسفت 200 ولت 30 آمپر نوع N با پکیج TO-247-3
N-CH MOSFET 200V, 30A with TO-247-3 Package
Specifications
- Package/Case: TO-247
- Vds - Drain - Source Breakdown Voltage: 200V
- Id - Continuous Drain Current: 30A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 75mΩ
- Pd - Power Dissipation: 214W
- Qg - Gate Charge: 123nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت IRFP250NPBF
ماسفت IRFP250NPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
200V
Vds - Drain - Source Breakdown Voltage
43ns
Rise Time
33ns
Fall Time
2V
Vgs th - Gate - Source Threshold Voltage
75mΩ
Rds On - Drain - Source Resistance
30A
Id - Continuous Drain Current
123nC
Qg - Gate Charge
214W
Pd - Power Dissipation
TO-247
Package-Case
