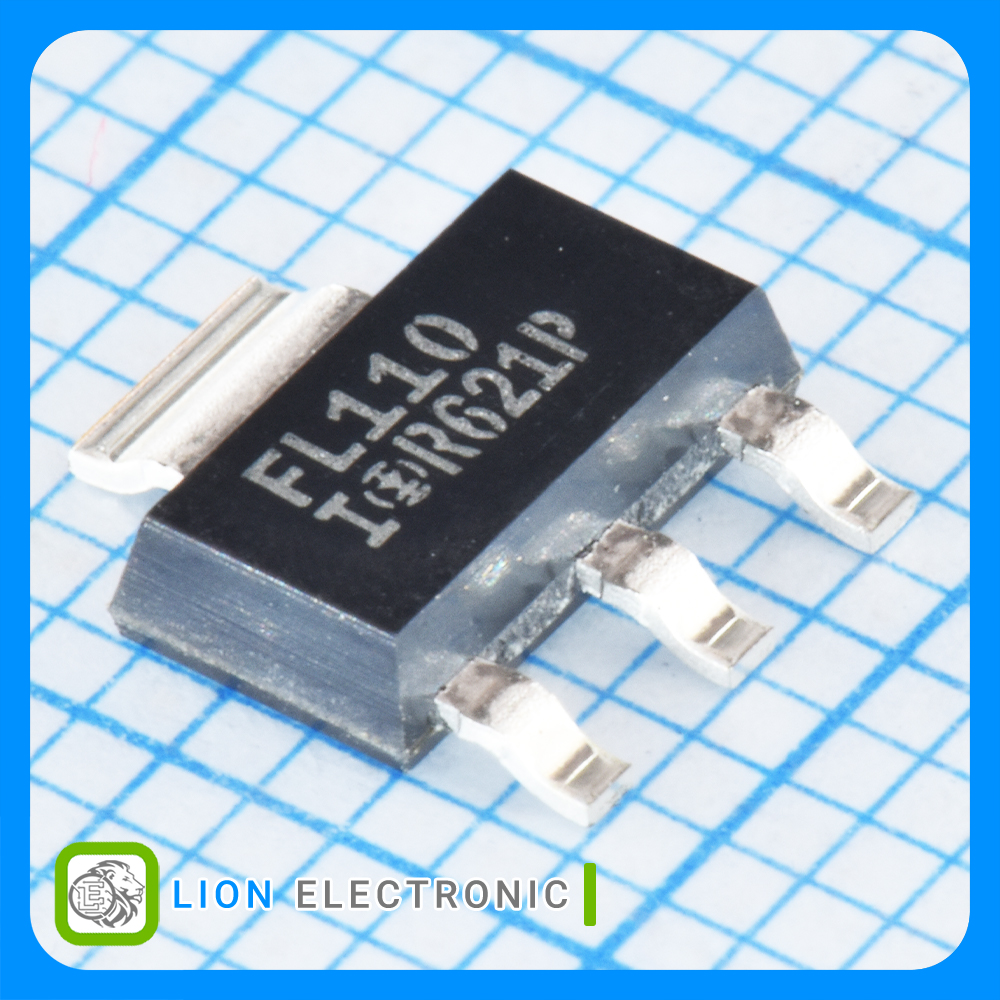

IRFL110TRPBF
IRFL110TRPBF
Part Number
207
Lion Part
Datasheet
Infineon Technologies Manufacture
ماسفت 100 ولت 1.5 آمپر نوع N با پکیج SOT-223-3
N-CH MOSFET 100V, 1.5A with SOT-223-3 Package
معرفی
ماسفت 100 ولت 1.5 آمپر نوع N با پکیج SOT-223-3
N-CH MOSFET 100V, 1.5A with SOT-223-3 Package
Specifications
- Package/Case: SOT-223
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 1.5A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 540mΩ
- Pd - Power Dissipation: 3.1W
- Qg - Gate Charge: 8.3nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRFL110TRPBF
ماسفت IRFL110TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
9.4ns
Fall Time
16ns
Rise Time
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
8.3nC
Qg - Gate Charge
2V
Vgs th - Gate - Source Threshold Voltage
1.5A
Id - Continuous Drain Current
3.1W
Pd - Power Dissipation
540mΩ
Rds On - Drain - Source Resistance
SOT-223
Package-Case
