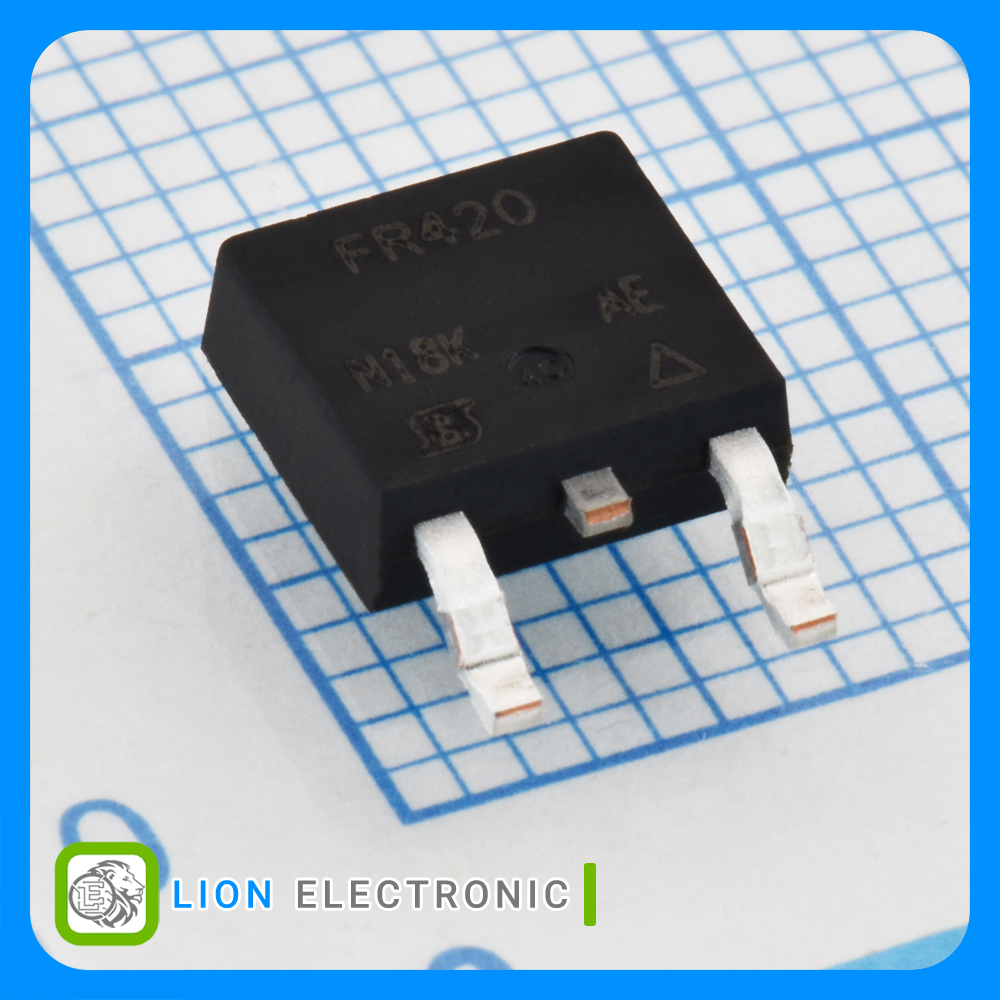

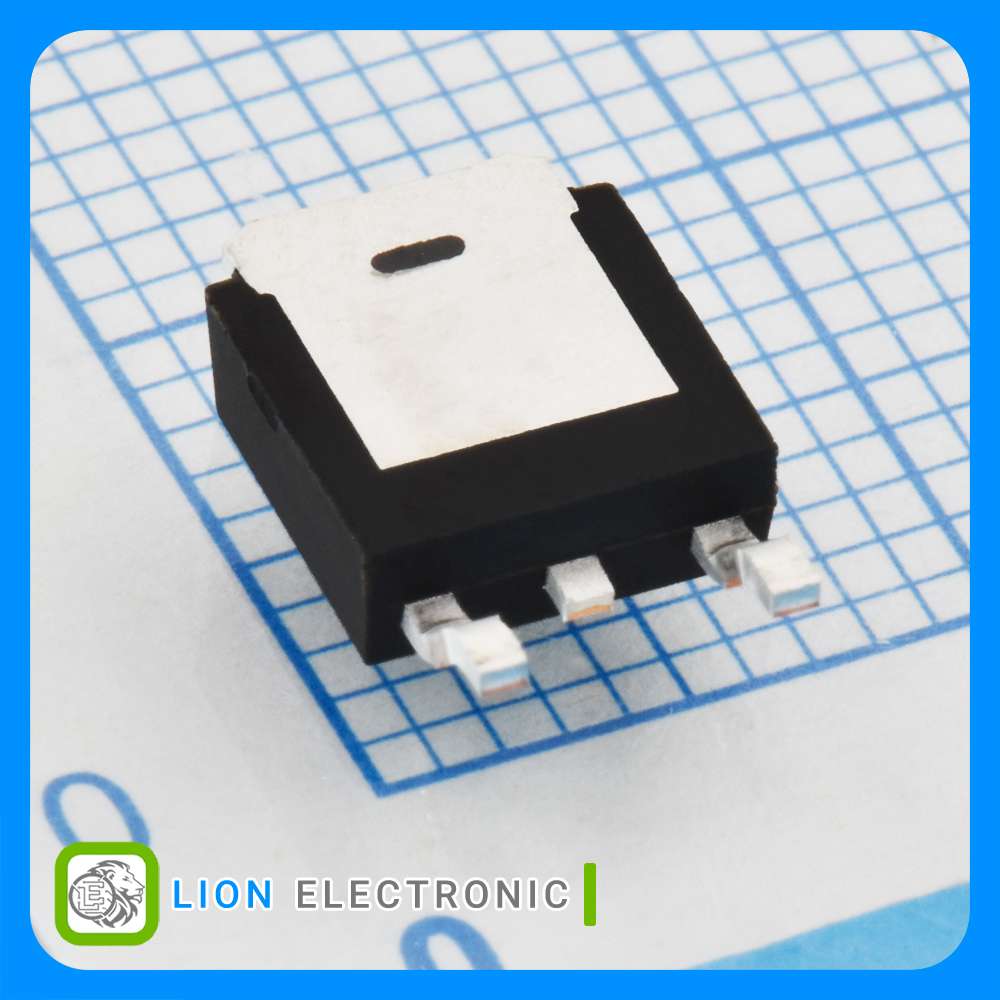

IRFR420TRPBF
IRFR420TRPBF
Part Number
210
Lion Part
Datasheet
Vishay Semiconductors Manufacture
ماسفت 500 ولت 2.4 آمپر نوع N با پکیج TO-252-3 (DPAK)
N-CH MOSFET 500V, 2.4A with TO-252-3 (DPAK) Package
معرفی
ماسفت 500 ولت 2.4 آمپر نوع N با پکیج TO-252-3 (DPAK)
N-CH MOSFET 500V, 2.4A with TO-252-3 (DPAK) Package
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: 500V
- Id - Continuous Drain Current: 2.4A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 3Ω
- Pd - Power Dissipation: 42W
- Qg - Gate Charge: 19nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت IRFR420TRPBF
ماسفت IRFR420TRPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
N-Channel
Transistor Polarity
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
500V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
19nC
Qg - Gate Charge
2.4A
Id - Continuous Drain Current
DPAK
Package-Case
42W
Pd - Power Dissipation
3Ω
Rds On - Drain - Source Resistance
