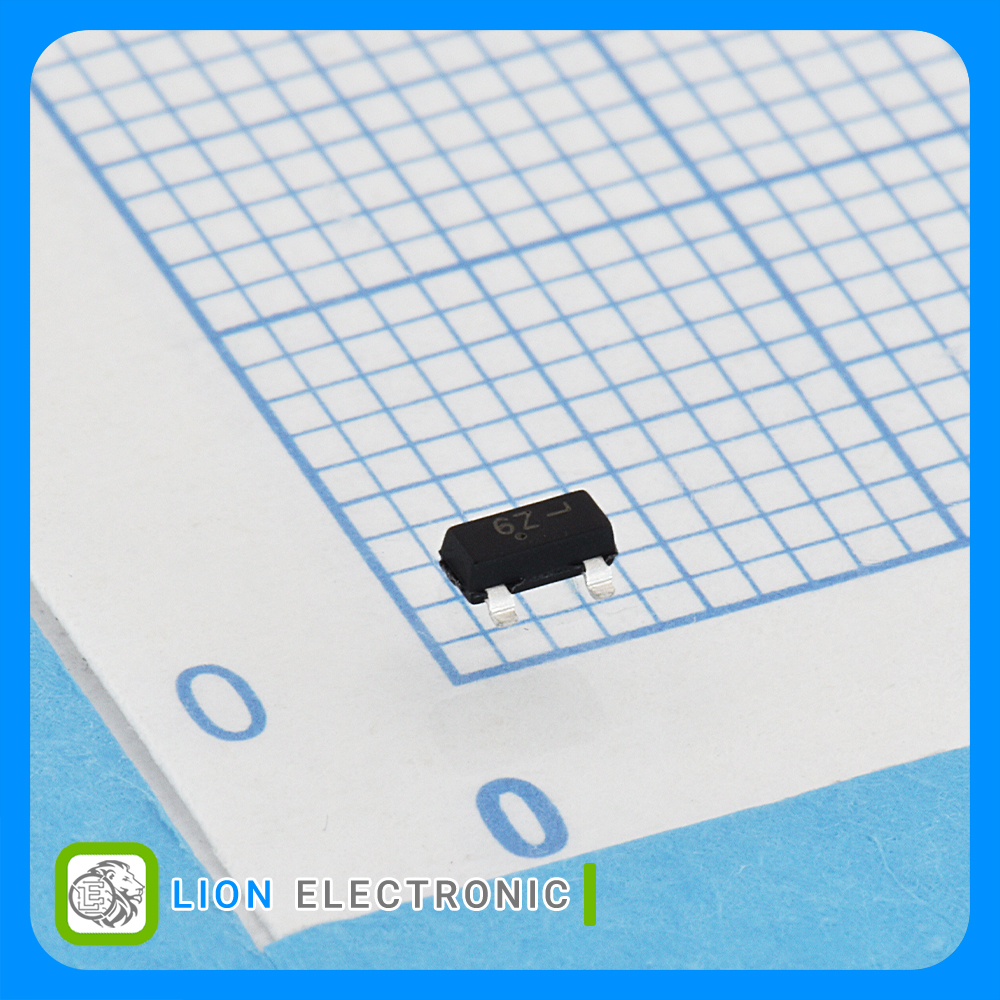

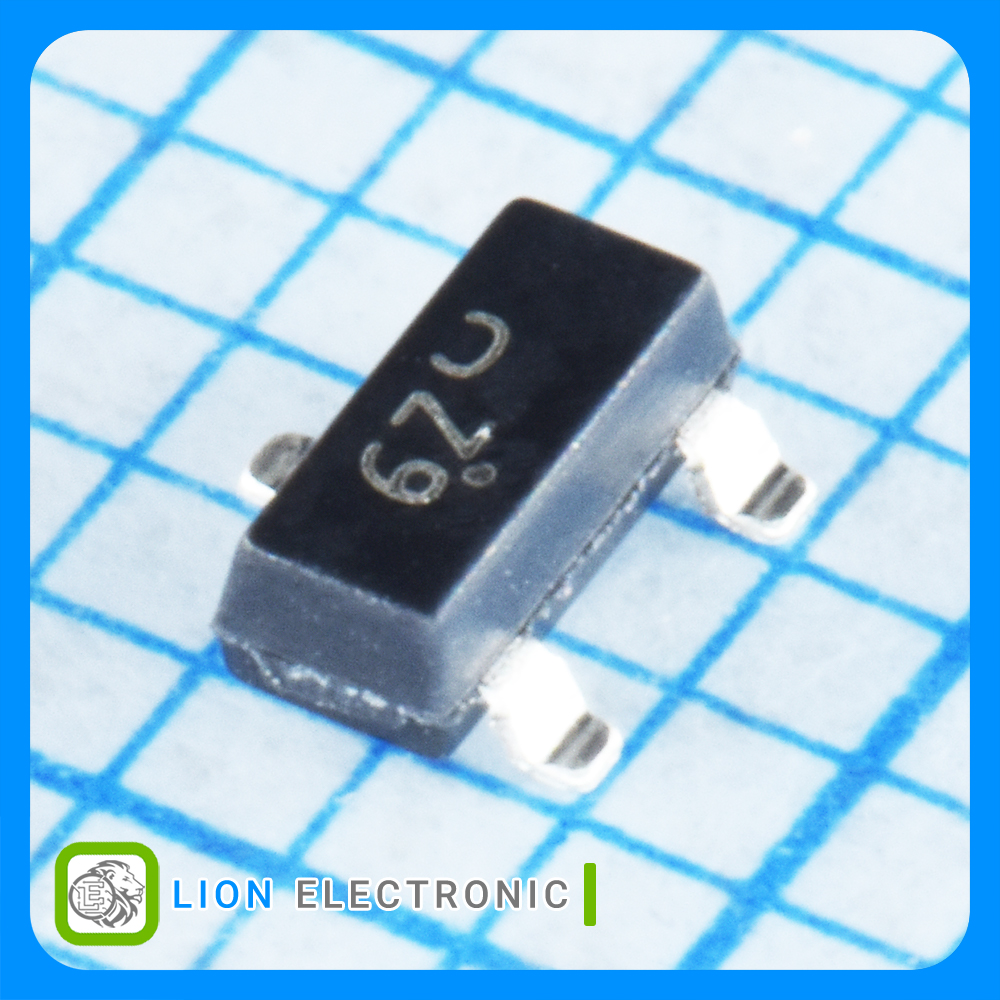

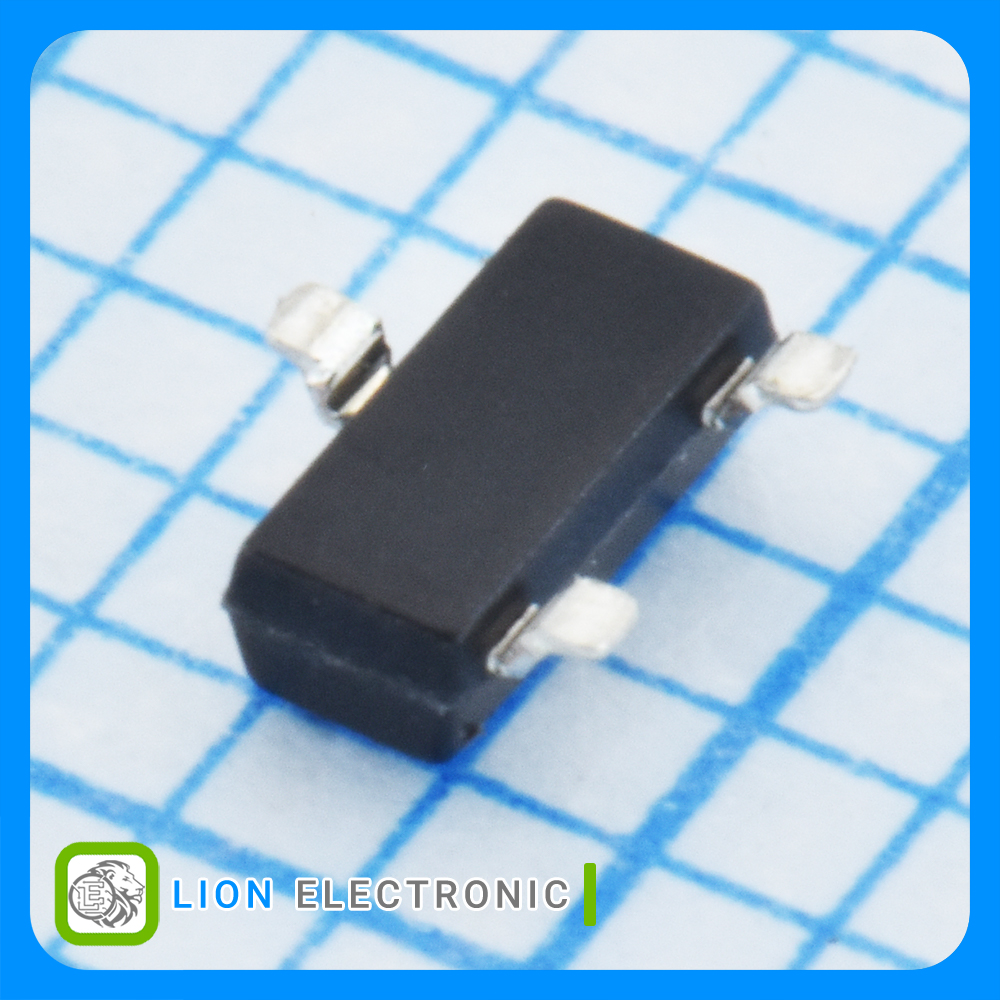

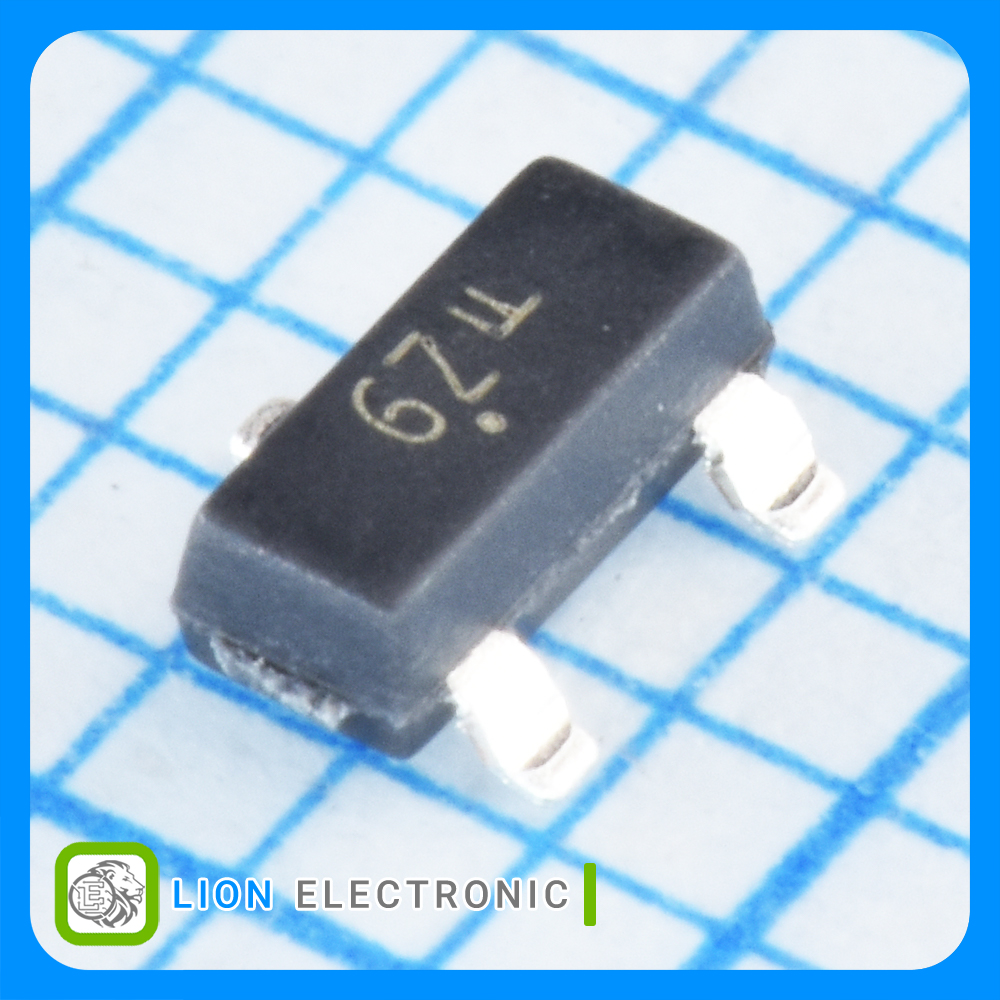

MMBF170LT1G
MMBF170LT1G
Part Number
212
Lion Part
Datasheet
ON Semiconductor Manufacture
ماسفت 60 ولت 500 میلیآمپر نوع N با پکیج SOT-23
N-Channel MOSFET 60V, 500mA with SOT-23 Package
معرفی
ماسفت 60 ولت 500 میلیآمپر نوع N با پکیج SOT-23
N-Channel MOSFET 60V, 500mA with SOT-23 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 500mA
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 800mV
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 5Ω
- Pd - Power Dissipation: 225mW
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

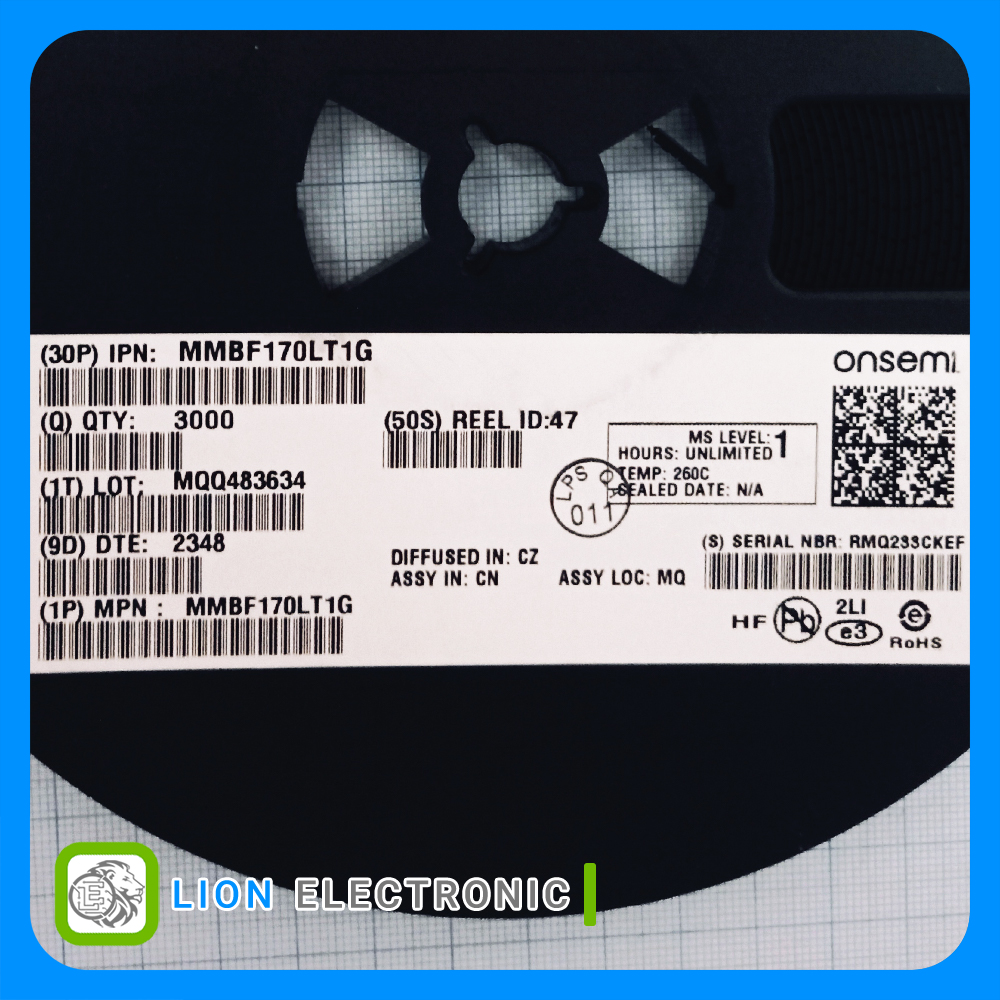

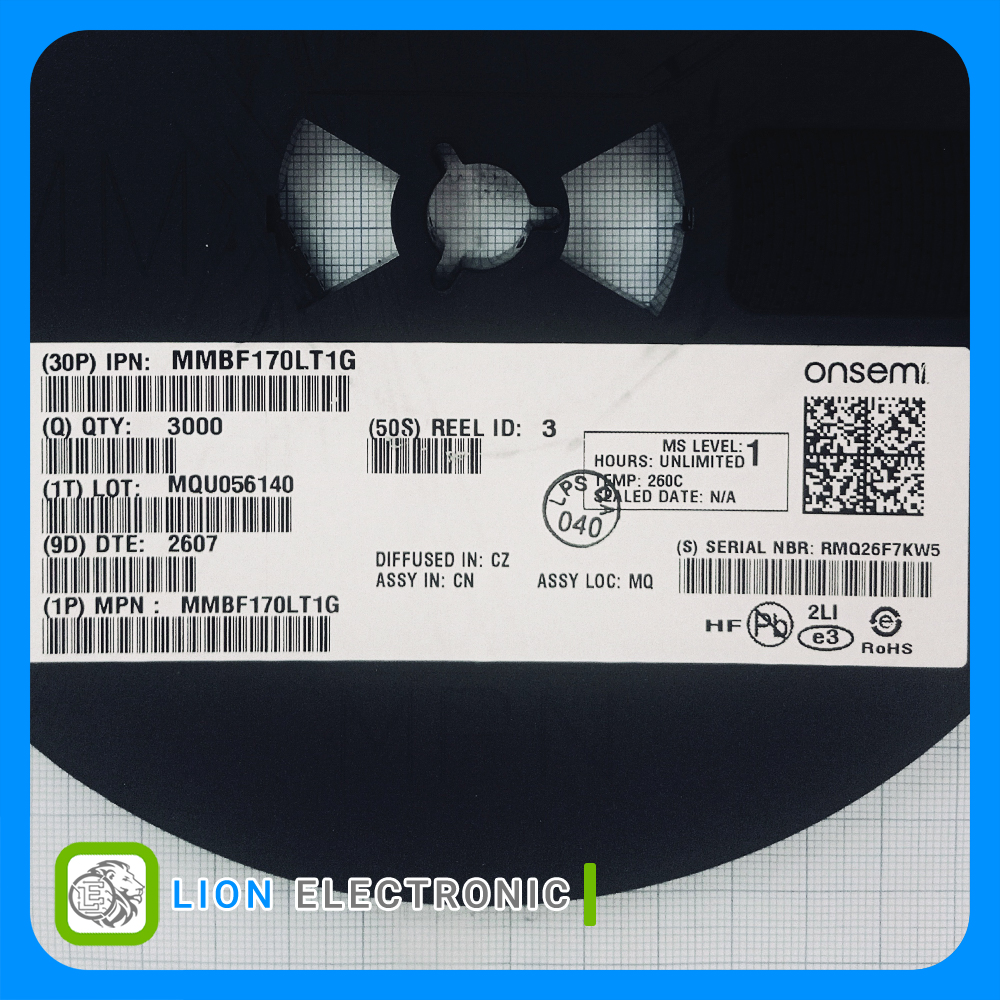

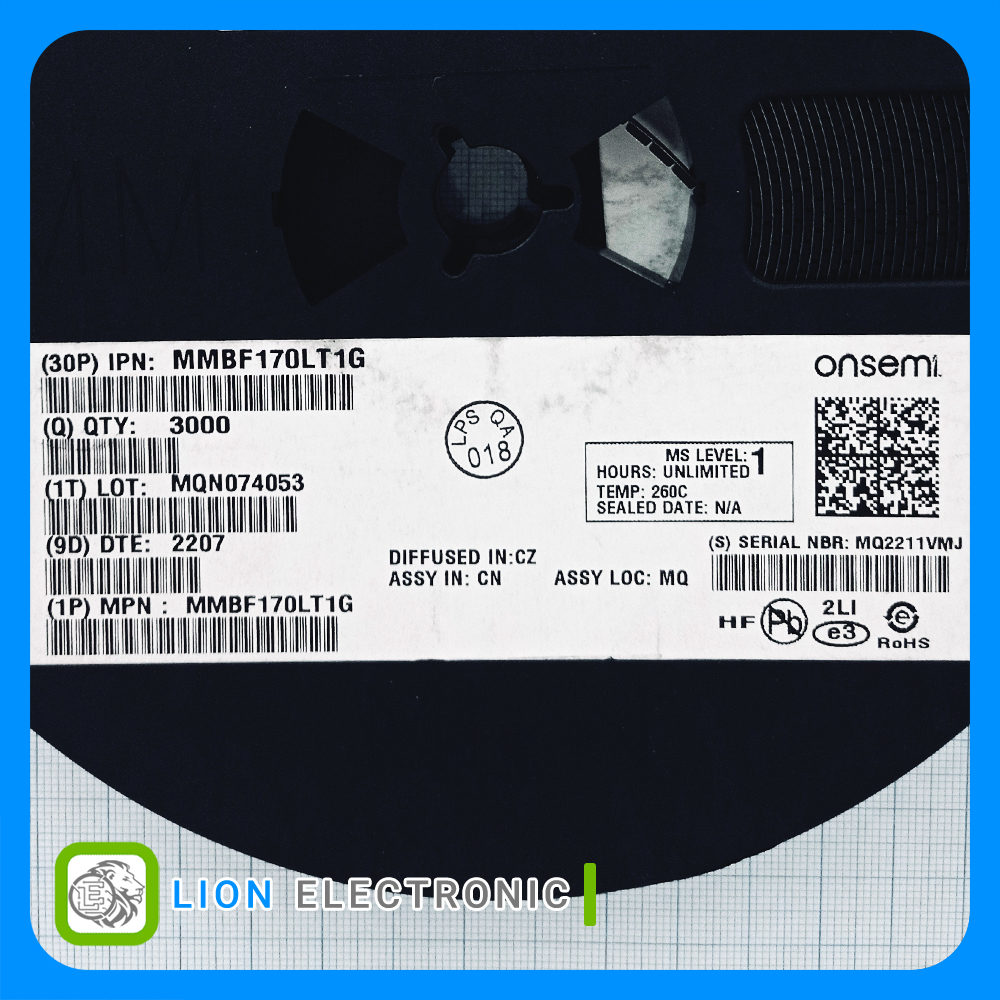

- Packaging: Reel
مشخصات ماسفت MMBF170LT1G
ماسفت MMBF170LT1G
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
±20V
Vgs - Gate - Source Voltage
225mW
Pd - Power Dissipation
+150C
Maximum Operating Temperature
60V
Vds - Drain - Source Breakdown Voltage
800mV
Vgs th - Gate - Source Threshold Voltage
500mA
Id - Continuous Drain Current
N/A
Qg - Gate Charge
5Ω
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
