IRFU120NPBF
IRFU120NPBF
Part Number
214
Lion Part
Datasheet
International Rectifier Manufacture
ماسفت 100 ولت 9.1 آمپر نوع N با پکیج TO-251-3 (ولتاژ شکست 100 ولت، جریان پیوسته درین 9.4 آمپر)

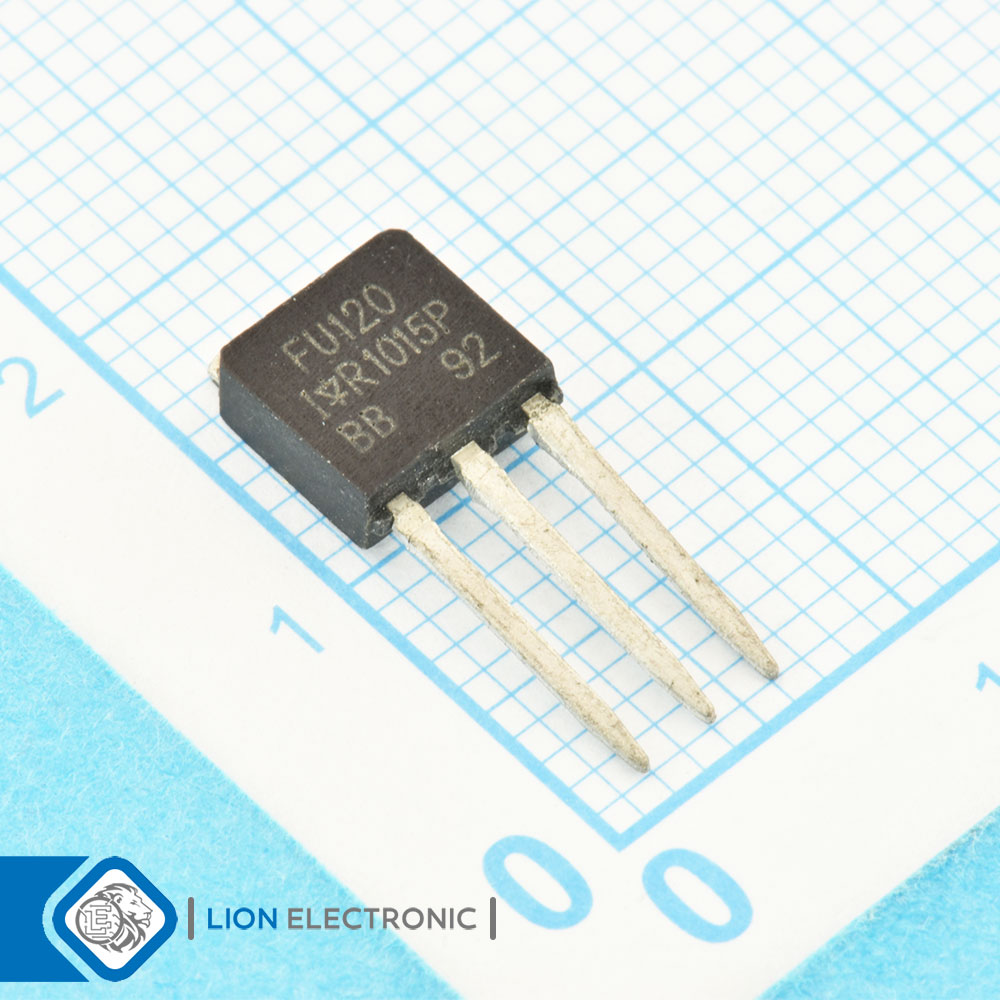

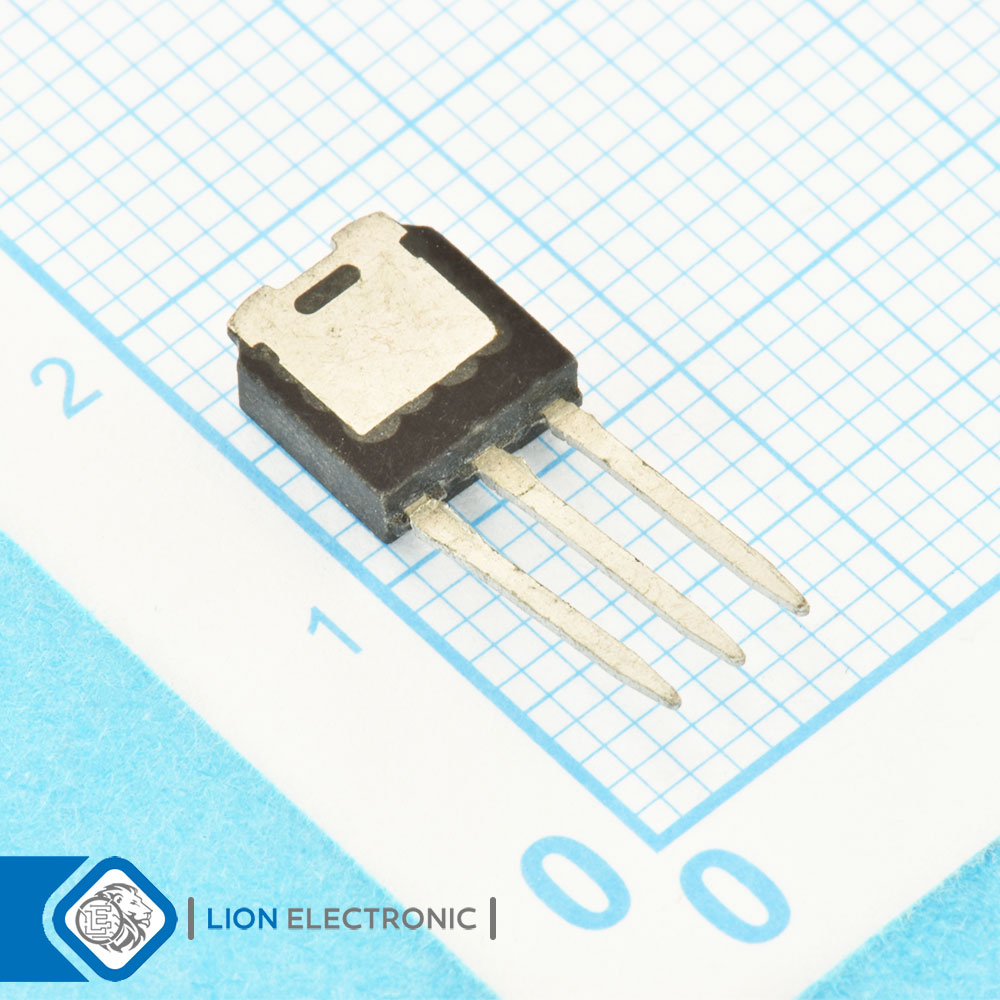

N-Channel MOSFET 100V, 9.1A with TO-251-3 Package (Drain-Source Breakdown 100V, Continuous Drain Current 9.4A)
معرفی
ماسفت 100 ولت 9.1 آمپر نوع N با پکیج TO-251-3 (ولتاژ شکست 100 ولت، جریان پیوسته درین 9.4 آمپر)
N-Channel MOSFET 100V, 9.1A with TO-251-3 Package (Drain-Source Breakdown 100V, Continuous Drain Current 9.4A)
Specifications
- Package/Case: TO-251-3
- Vds - Drain - Source Breakdown Voltage: 100V
- Id - Continuous Drain Current: 9.4A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 2V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 210mΩ
- Pd - Power Dissipation: 48W
- Qg - Gate Charge: 25nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Tube
مشخصات ماسفت IRFU120NPBF
ماسفت IRFU120NPBF
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
±20V
Vgs - Gate - Source Voltage
+175C
Maximum Operating Temperature
100V
Vds - Drain - Source Breakdown Voltage
2V
Vgs th - Gate - Source Threshold Voltage
25nC
Qg - Gate Charge
9.4A
Id - Continuous Drain Current
48W
Pd - Power Dissipation
210mΩ
Rds On - Drain - Source Resistance
TO-251-3
Package-Case
