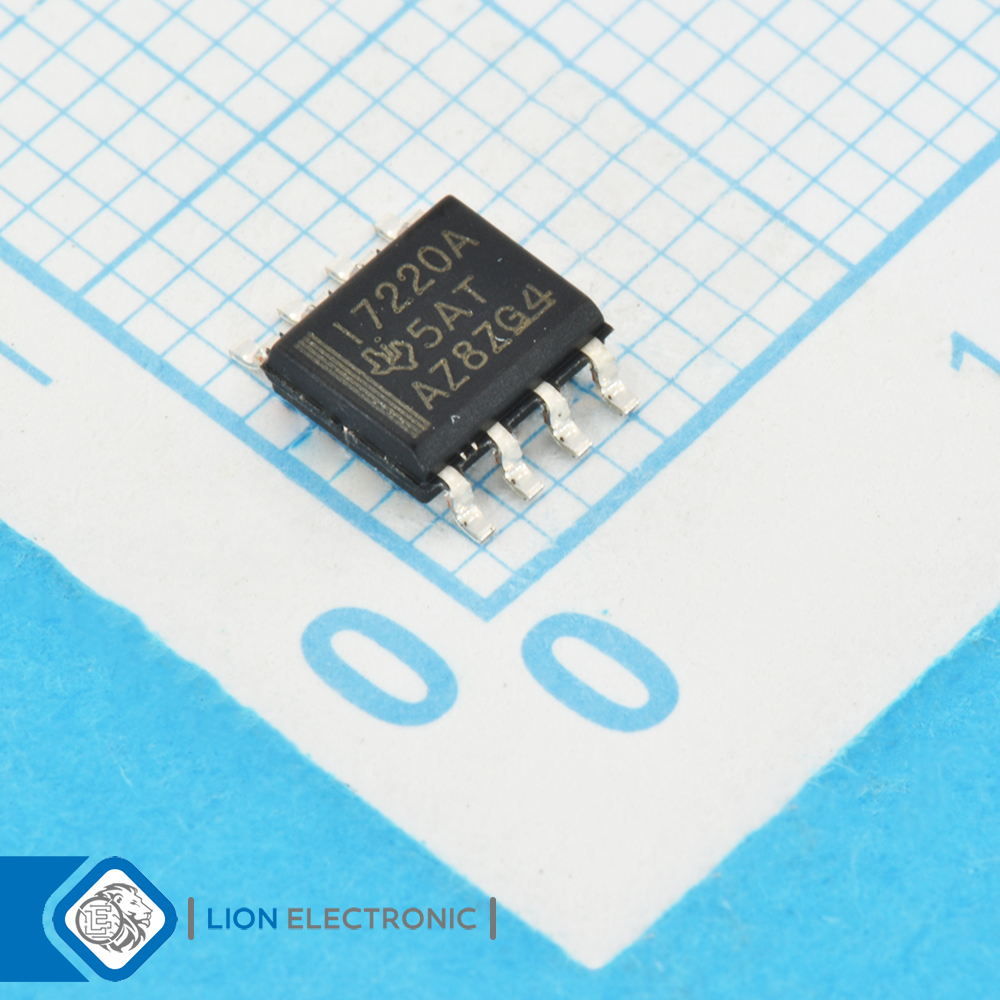

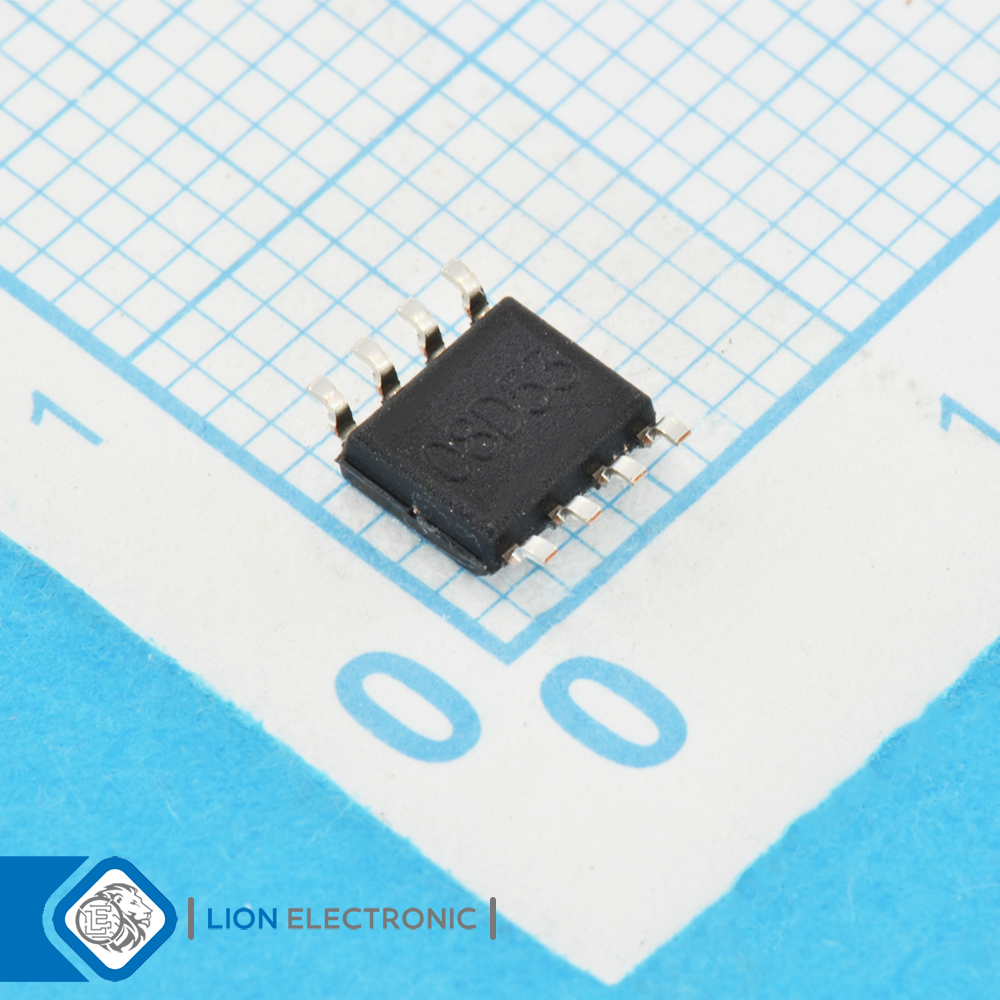

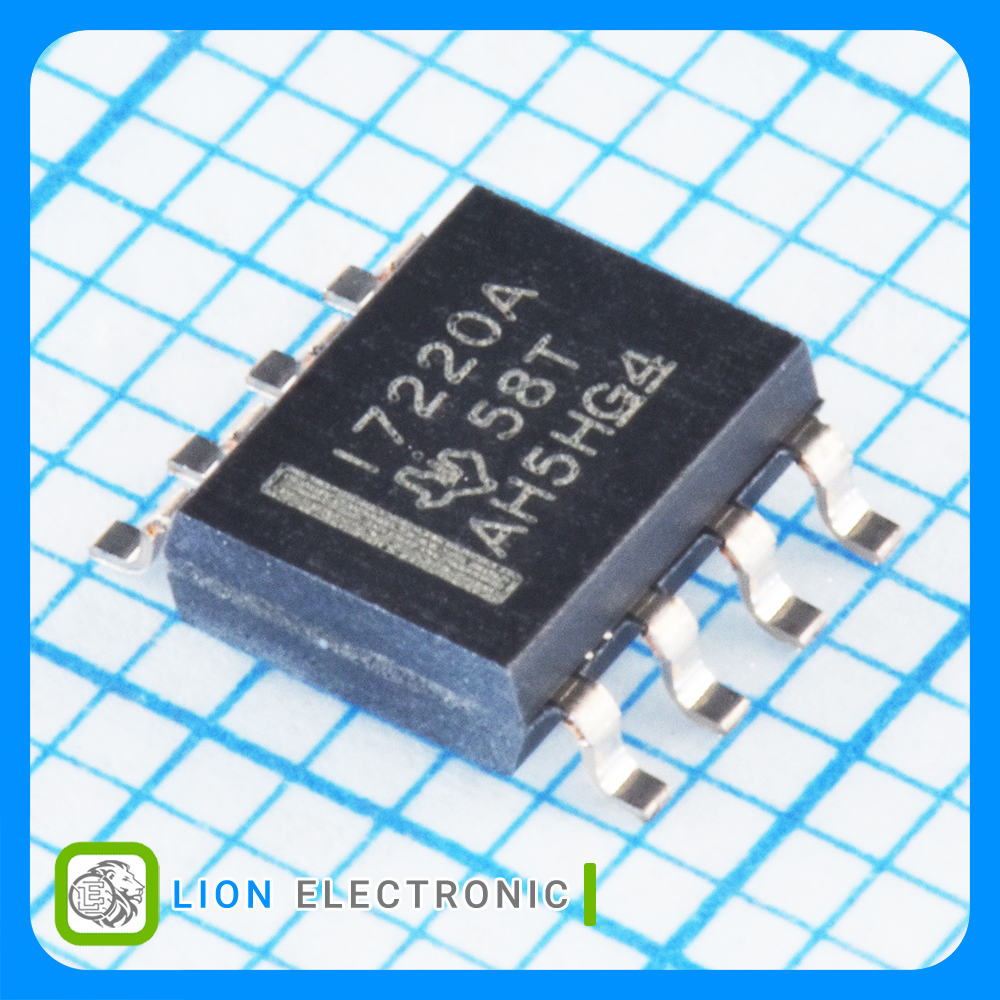

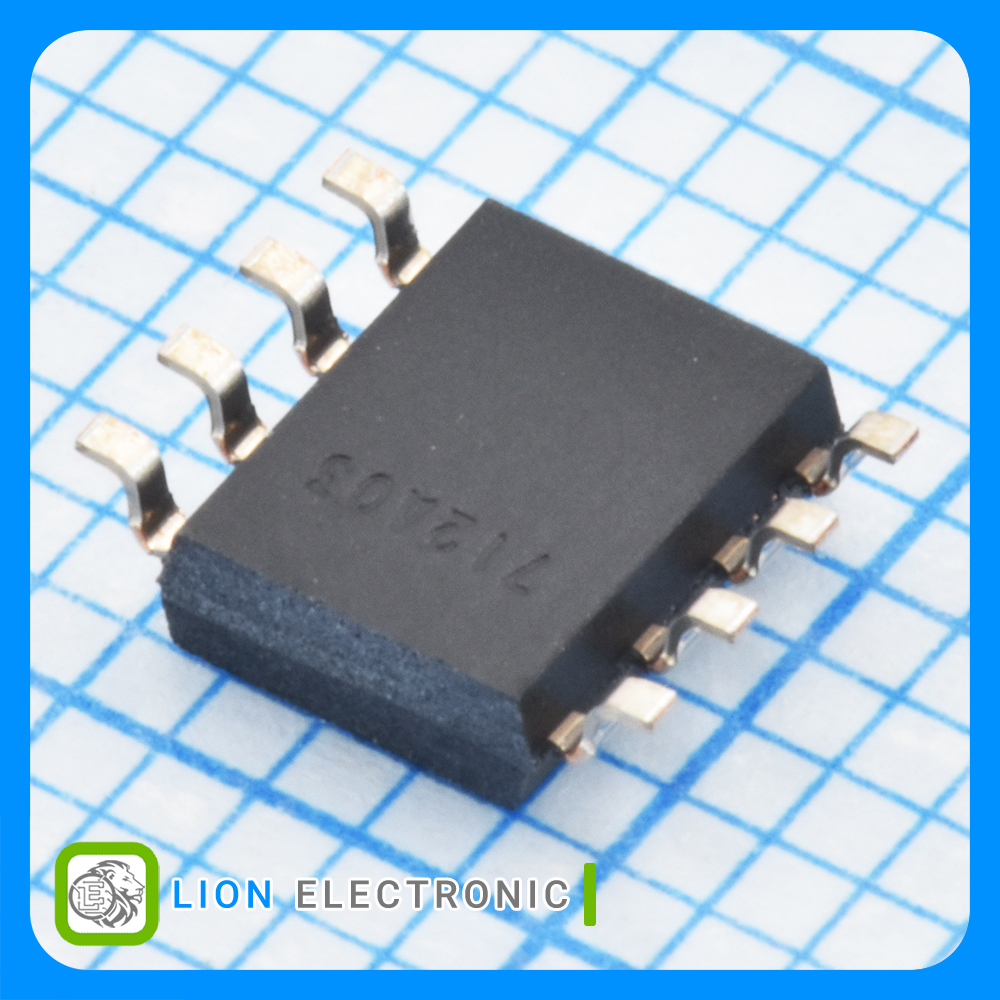

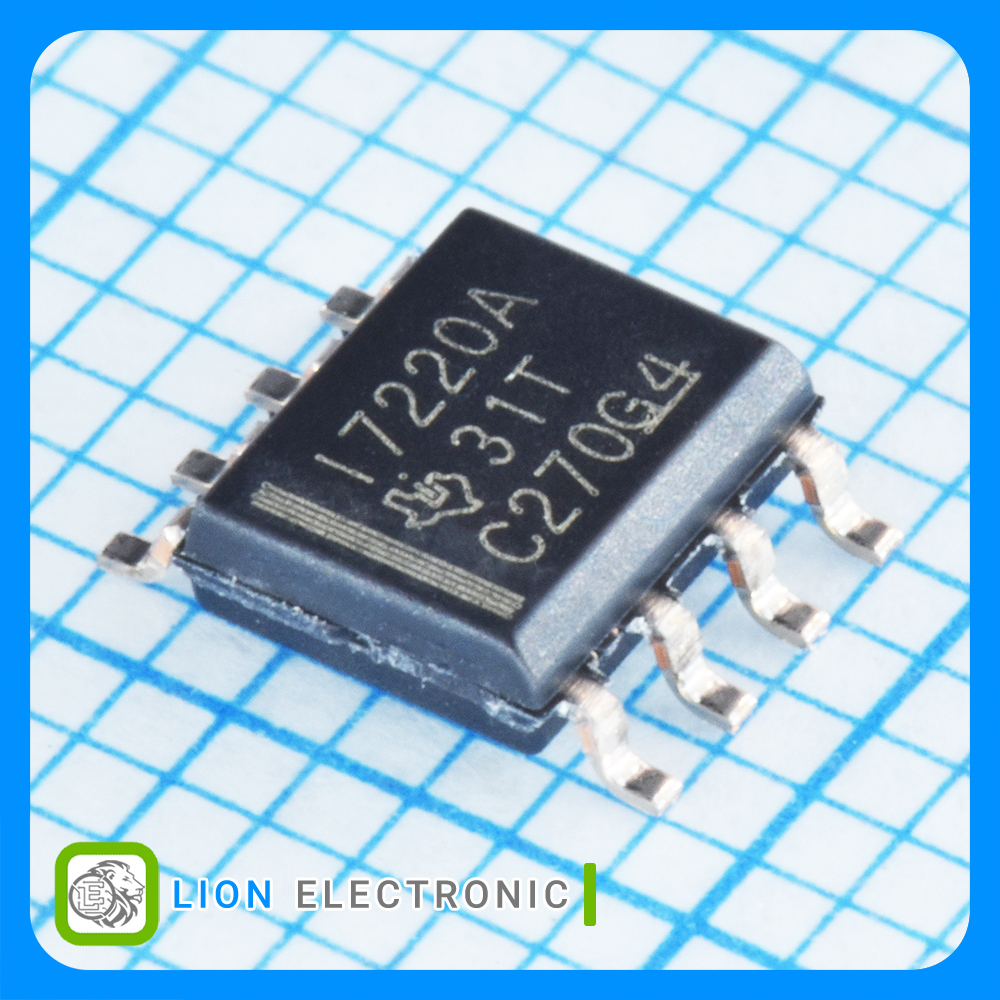

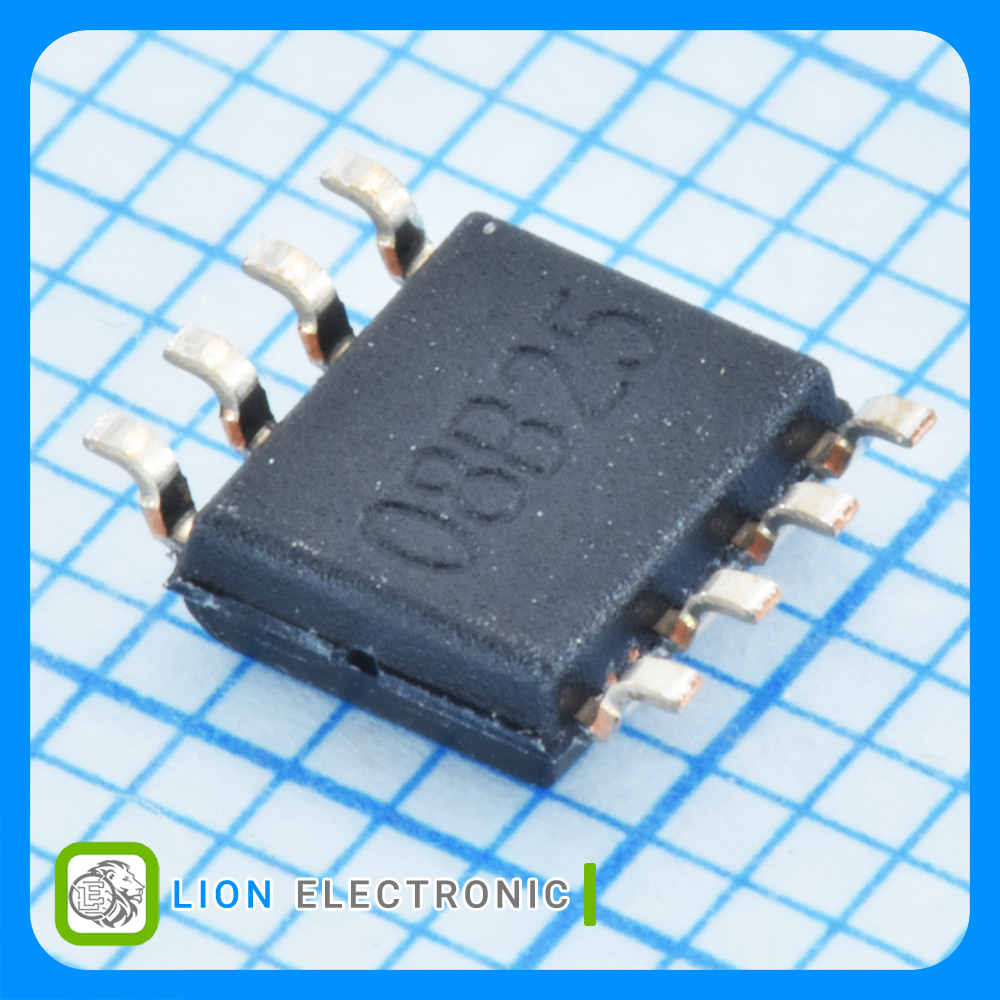

ISO7220AD
ISO7220AD
Part Number
2184
Lion Part
Datasheet
Texas Instruments Manufacture
ایزولاتور دیجیتال دو کاناله یکطرفه 3.3 تا 5 ولت با ایزولاسیون 2.5 کیلوولت RMS و نرخ 1 مگابیت بر ثانیه با پکیج SOIC-8
Dual-Channel Digital Isolator Unidirectional, 3.3 - 5V, 2.5kVrms, 1Mb/s with SOIC-8 Package
معرفی
ایزولاتور دیجیتال دو کاناله یکطرفه 3.3 تا 5 ولت با ایزولاسیون 2.5 کیلوولت RMS و نرخ 1 مگابیت بر ثانیه با پکیج SOIC-8
Dual-Channel Digital Isolator Unidirectional, 3.3 - 5V, 2.5kVrms, 1Mb/s with SOIC-8 Package
Specifications
- Number of Channels: 2
- Polarity: Unidirectional
- Isolation Voltage: 2.5kVrms
- Data Rate: 1Mb/s
- Propagation Delay Time: 475ns
- Isolation Type: Capacitive Coupling
- Supply Voltage - Max: 5V
- Supply Voltage - Min: 3.3V
- Operating Supply Current: 2mA, 17mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات ISO7220AD
ISO7220AD
Part Number
Capacitive Coupling
Isolation Type
2
Number of Channels
2.5kVrms
Isolation Voltage
-40C
Minimum Operating Temperature
Unidirectional
Polarity
Tube
Packaging
SMD/SMT
Mounting Style
1Mb/s
Data Rate
+125C
Maximum Operating Temperature
5V
Supply Voltage - Max
475ns
Propagation Delay Time
3.3V
Supply Voltage - Min
2mA, 17mA
Operating Supply Current
SOIC-8
Package-Case
