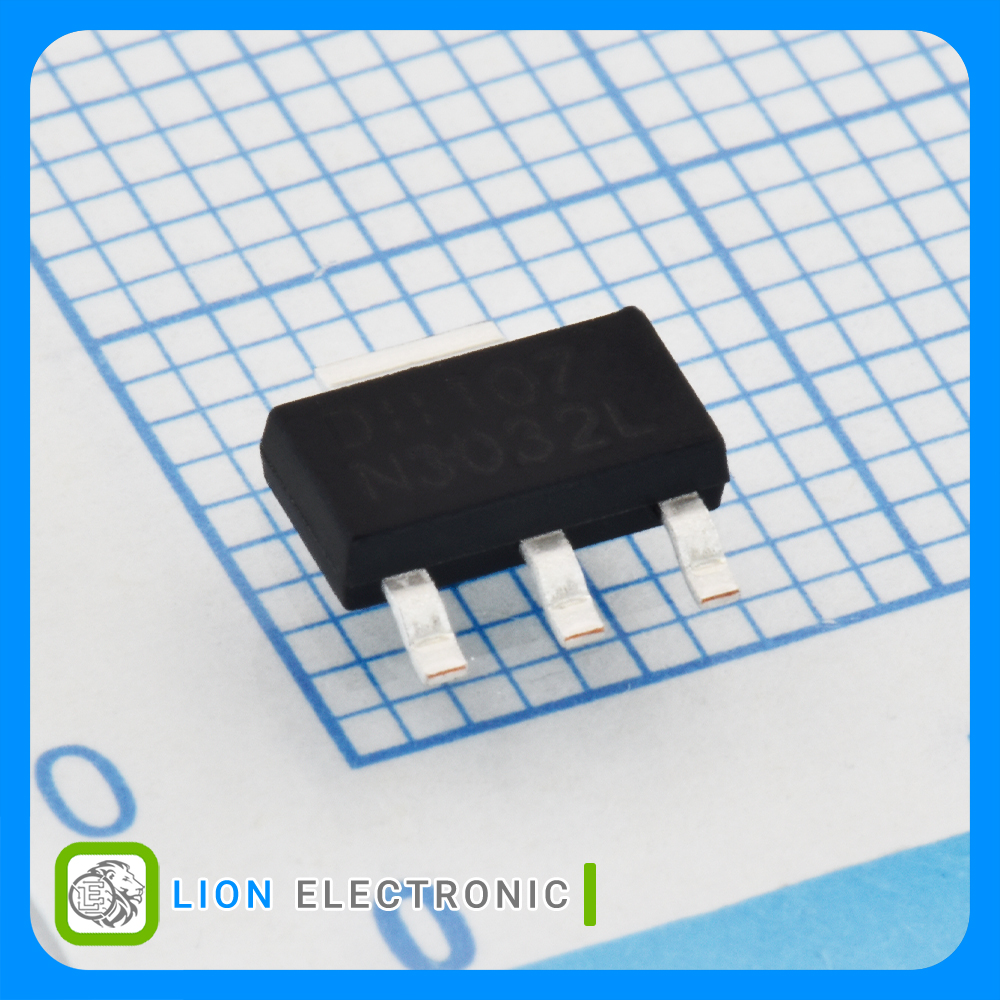

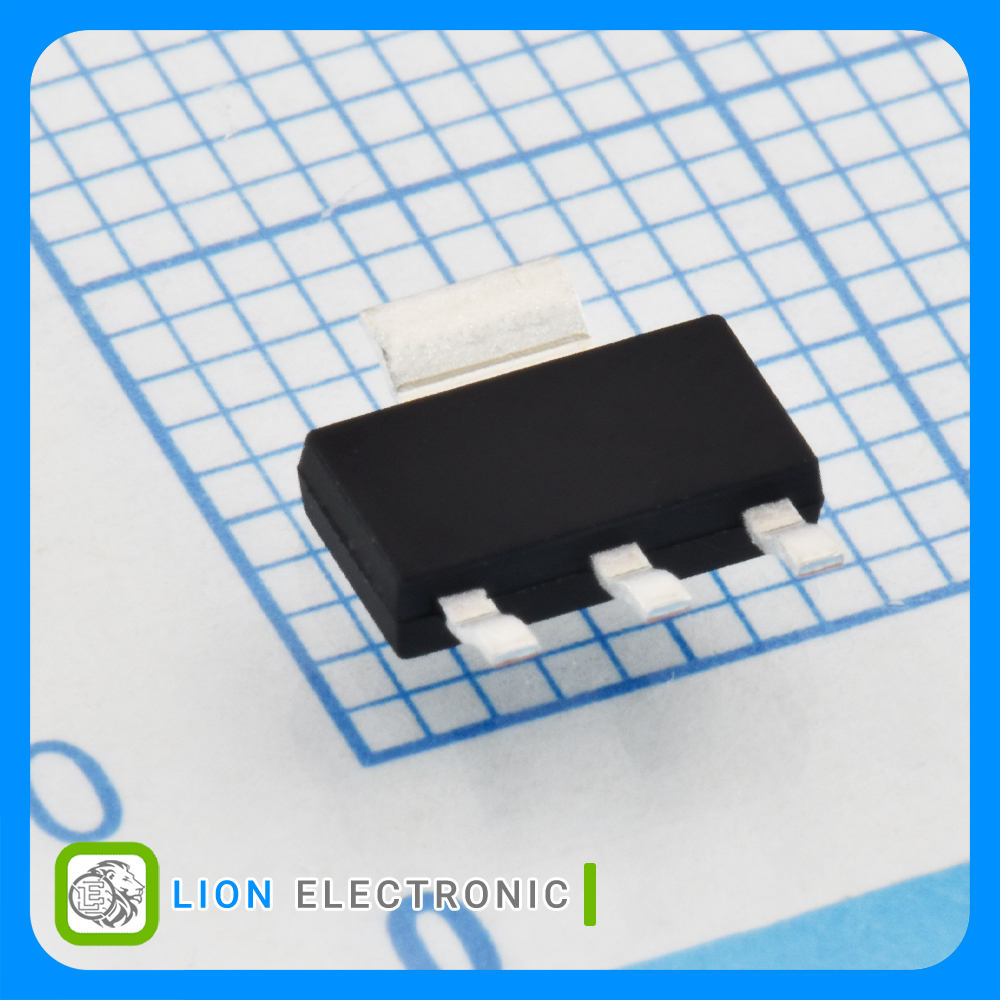

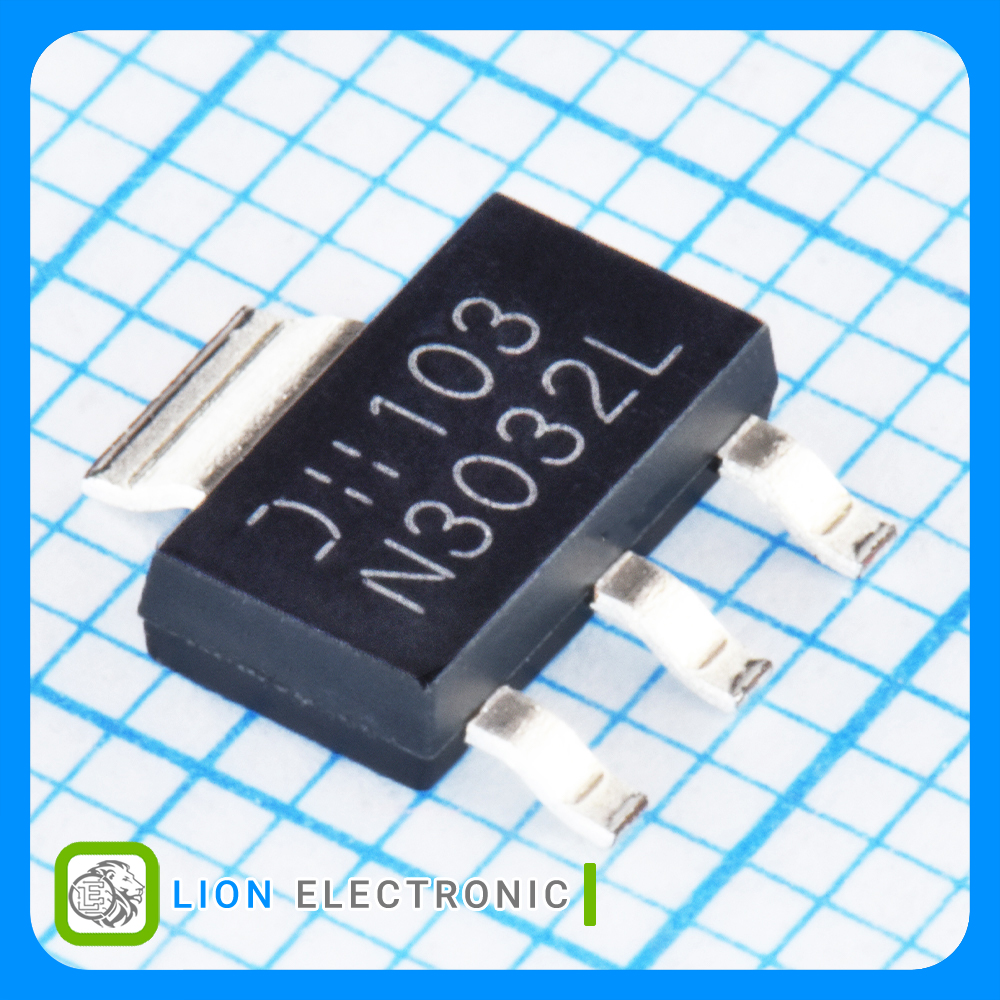

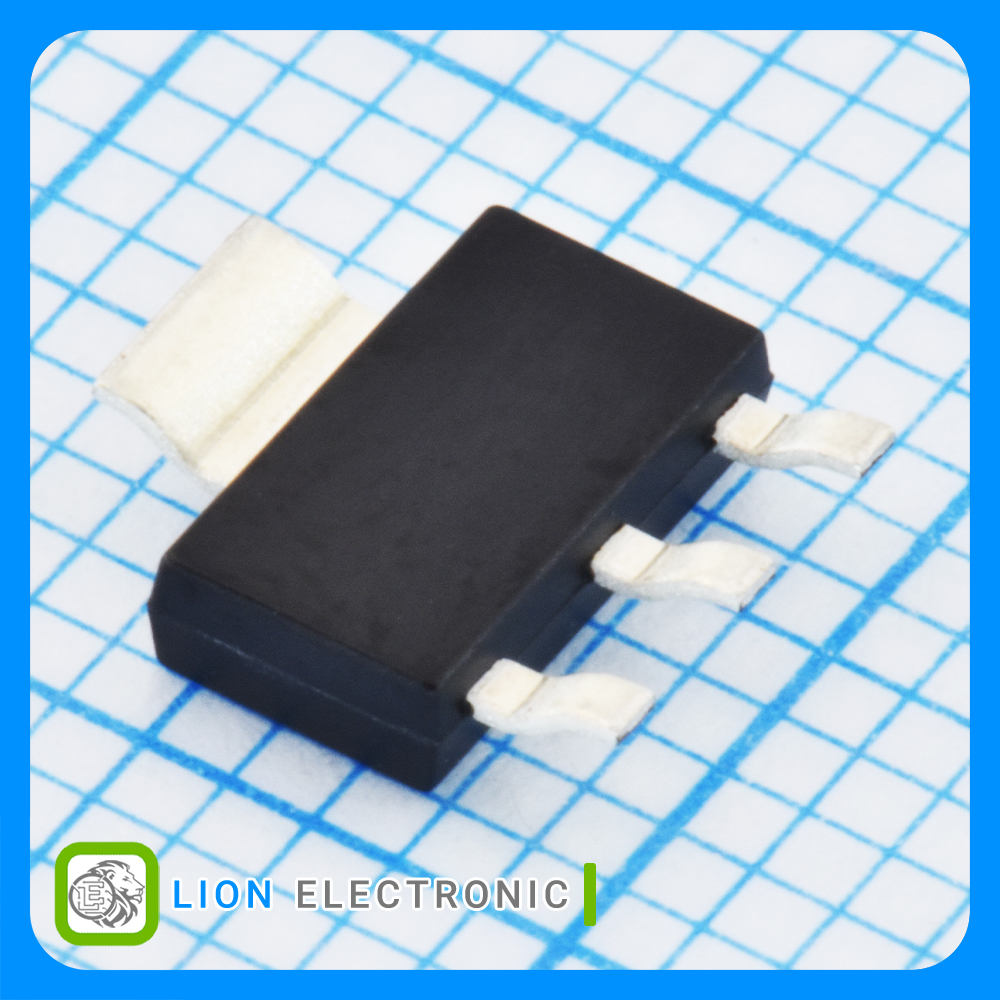

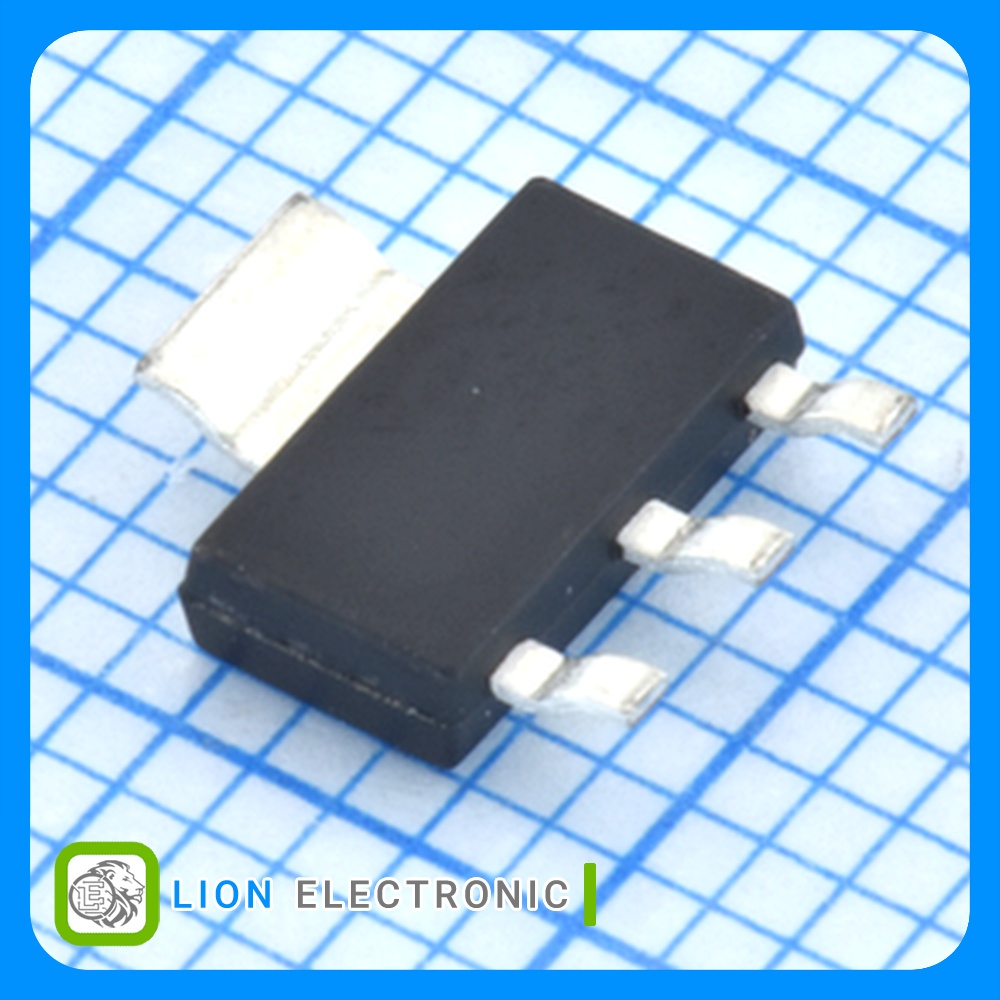

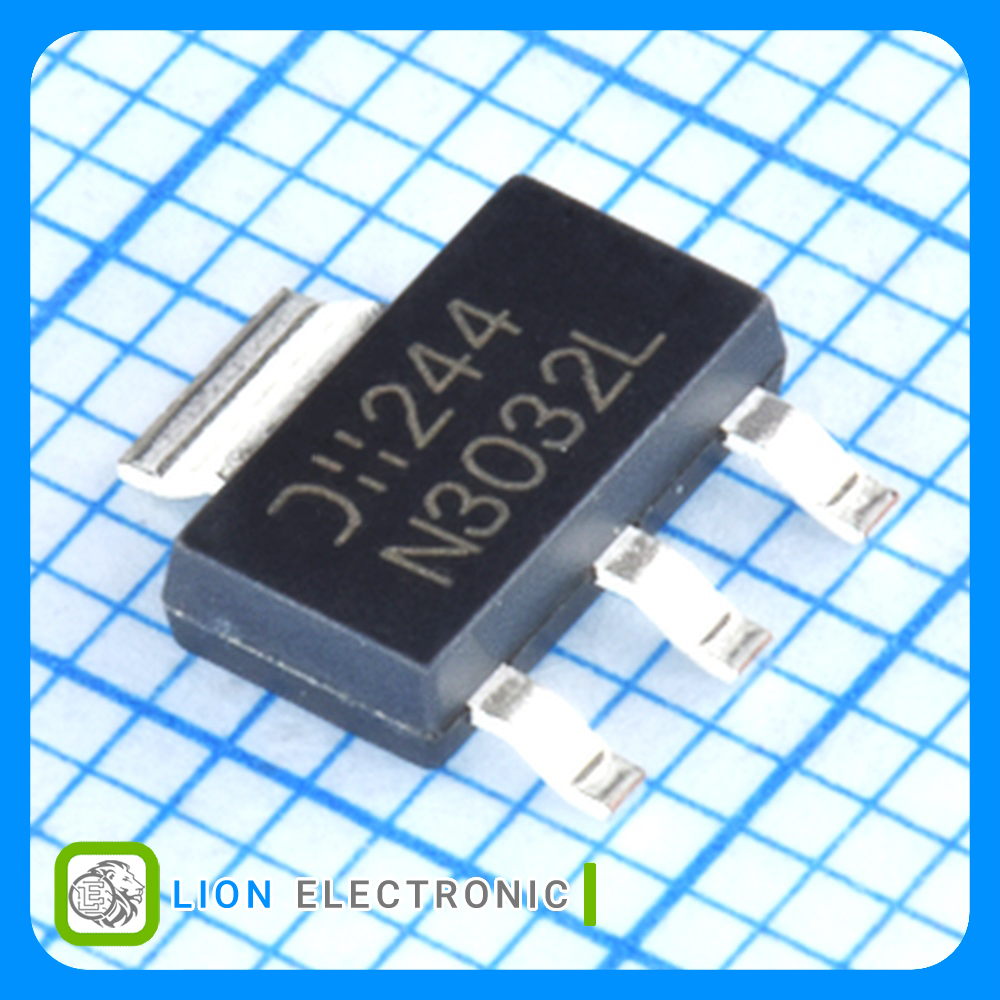

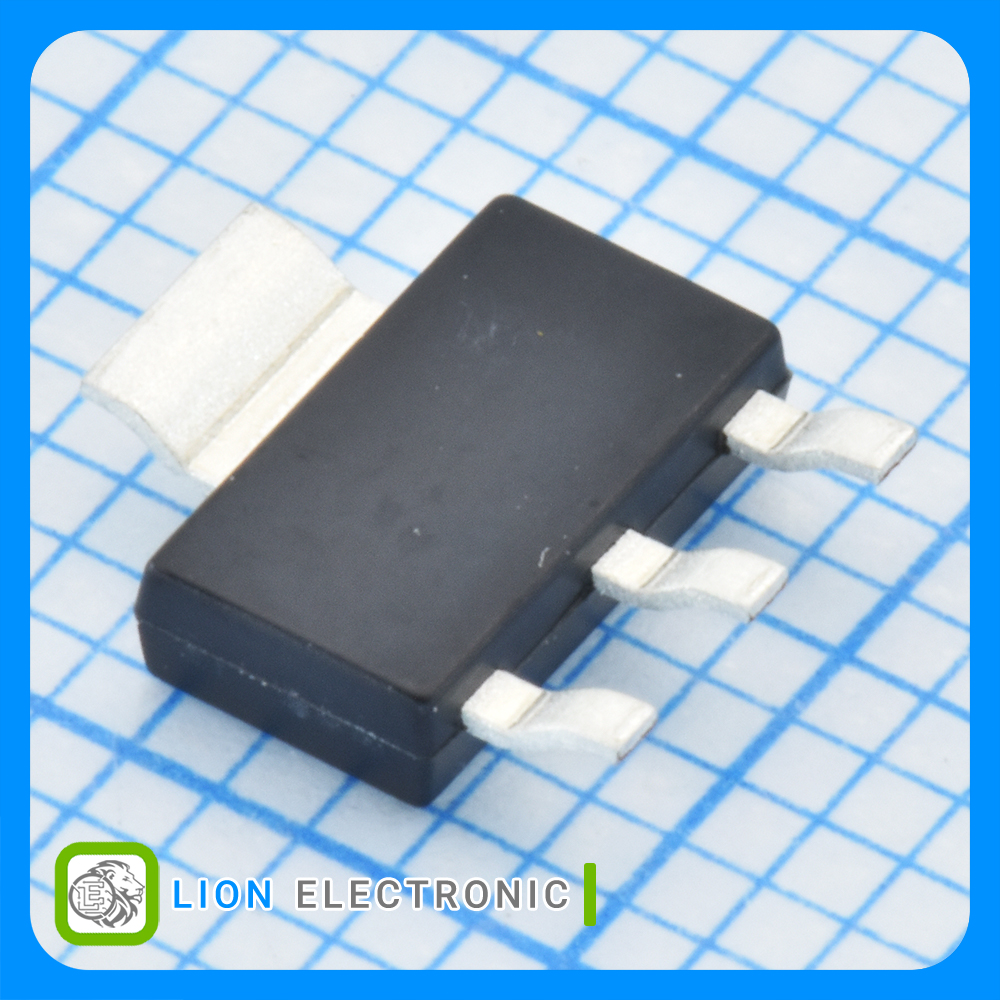

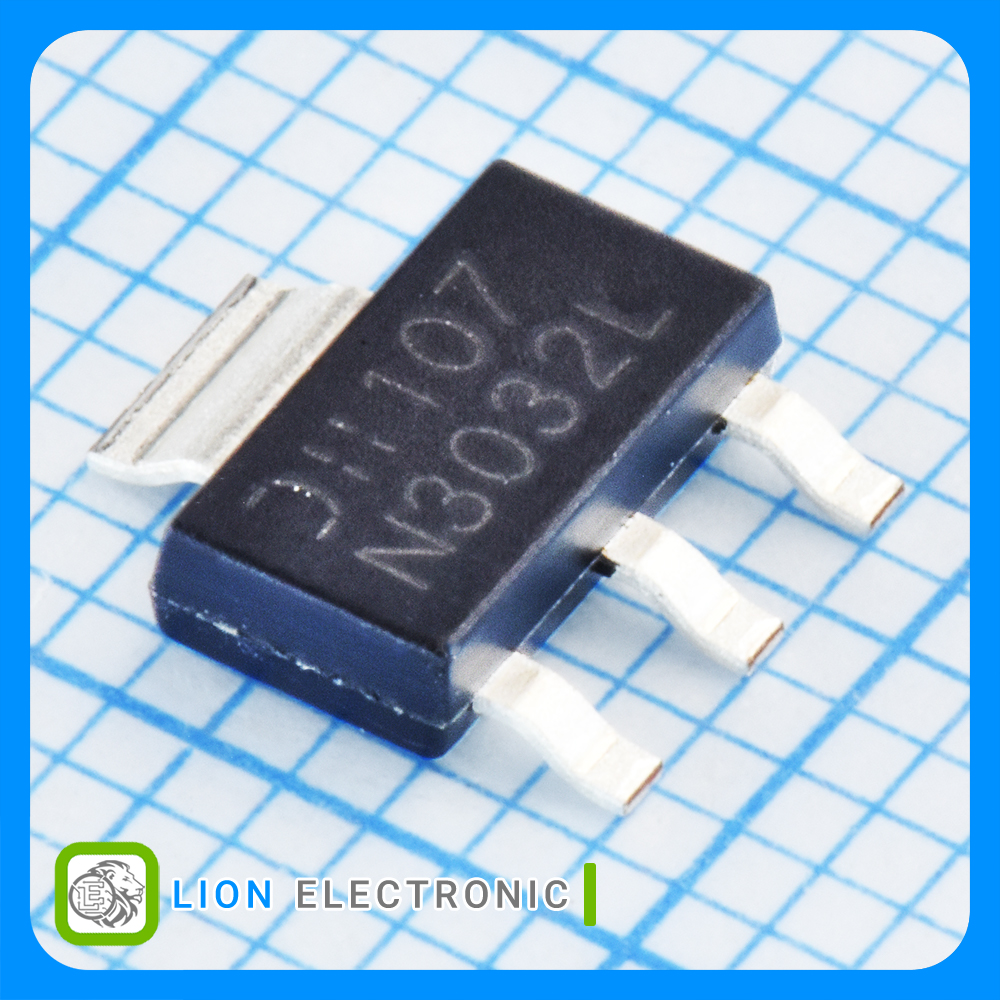

DMN3032LE-13
DMN3032LE-13
Part Number
223
Lion Part
Datasheet
Diodes Incorporated Manufacture
ماسفت 30 ولت 5.6 آمپر نوع N با پکیج SOT-223
N-CH MOSFET 30V, 5.6A with SOT-223 Package
معرفی
ماسفت 30 ولت 5.6 آمپر نوع N با پکیج SOT-223
N-CH MOSFET 30V, 5.6A with SOT-223 Package
Specifications
- Package/Case: SOT-223
- Vds - Drain - Source Breakdown Voltage: 30V
- Id - Continuous Drain Current: 5.6A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 29mΩ
- Pd - Power Dissipation: 14W
- Qg - Gate Charge: 11.3nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت DMN3032LE-13
ماسفت DMN3032LE-13
Part Number
1
Number of Channels
1.9ns
Fall Time
Enhancement
Channel Mode
3.9ns
Rise Time
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
30V
Vds - Drain - Source Breakdown Voltage
±20V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
11.3nC
Qg - Gate Charge
5.6A
Id - Continuous Drain Current
29mΩ
Rds On - Drain - Source Resistance
14W
Pd - Power Dissipation
SOT-223
Package-Case
