FDV303N
FDV303N
Part Number
224
Lion Part
Datasheet
ON Semiconductor Manufacture

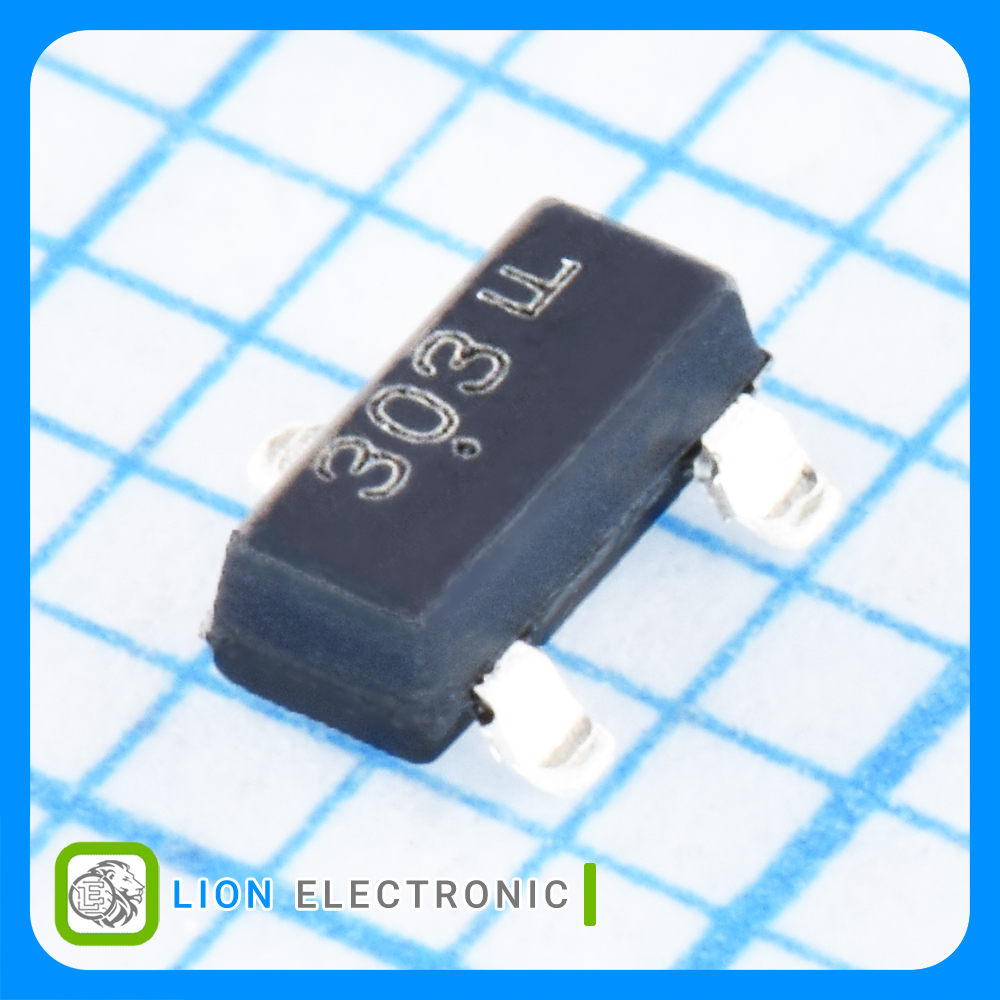

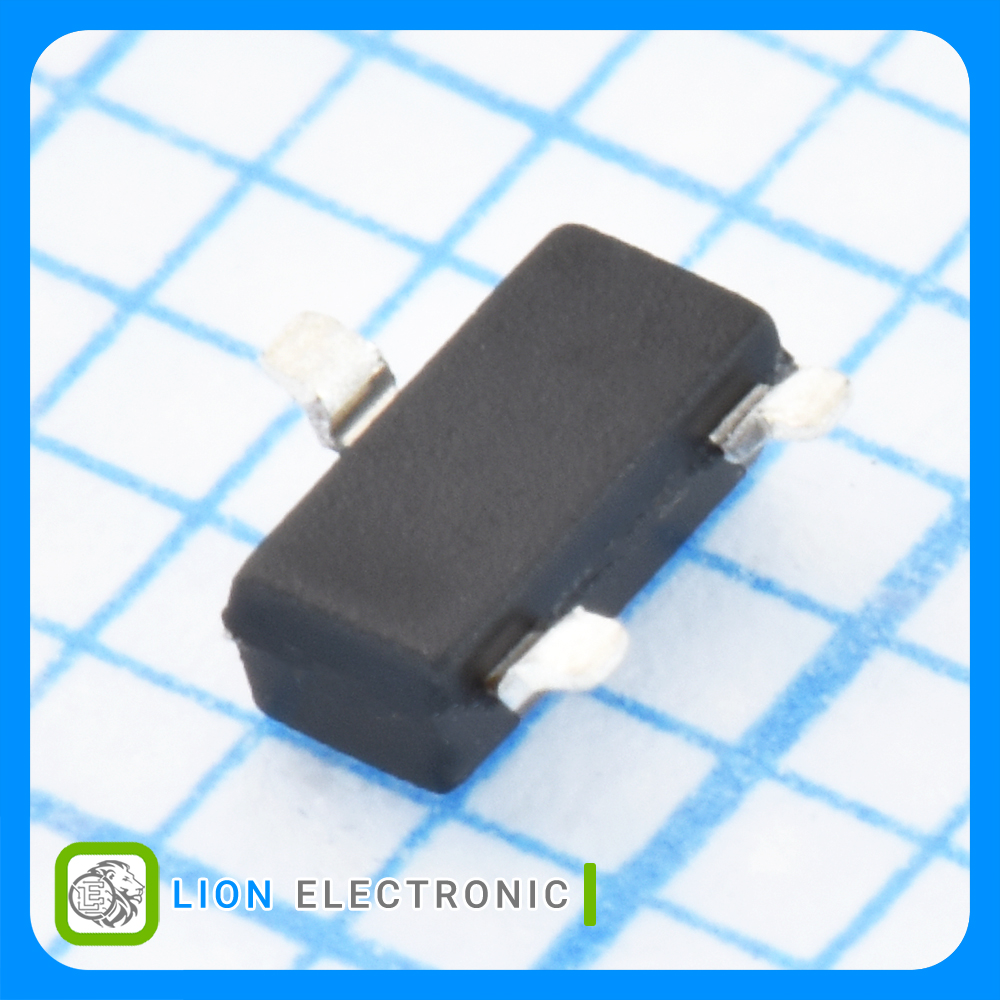

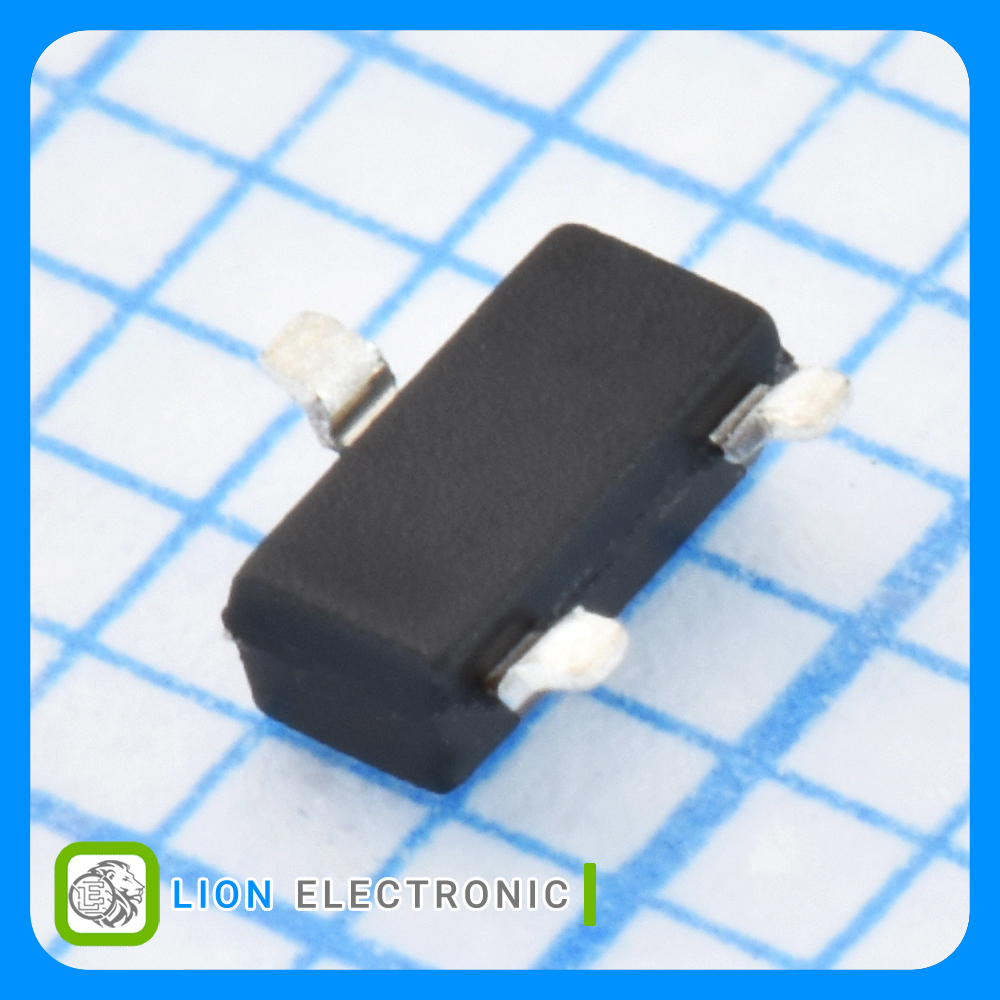

ماسفت 25 ولت 680 میلیآمپر نوع N با پکیج SOT-23-3
N-CH MOSFET 25V, 680mA with SOT-23-3 Package
معرفی
ماسفت 25 ولت 680 میلیآمپر نوع N با پکیج SOT-23-3
N-CH MOSFET 25V, 680mA with SOT-23-3 Package
Specifications
- Package/Case: SOT-23-3
- Vds - Drain - Source Breakdown Voltage: 25V
- Id - Continuous Drain Current: 680mA
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±8V
- Rds On - Drain - Source Resistance: 450mΩ
- Pd - Power Dissipation: 350mW
- Qg - Gate Charge: 2.3nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

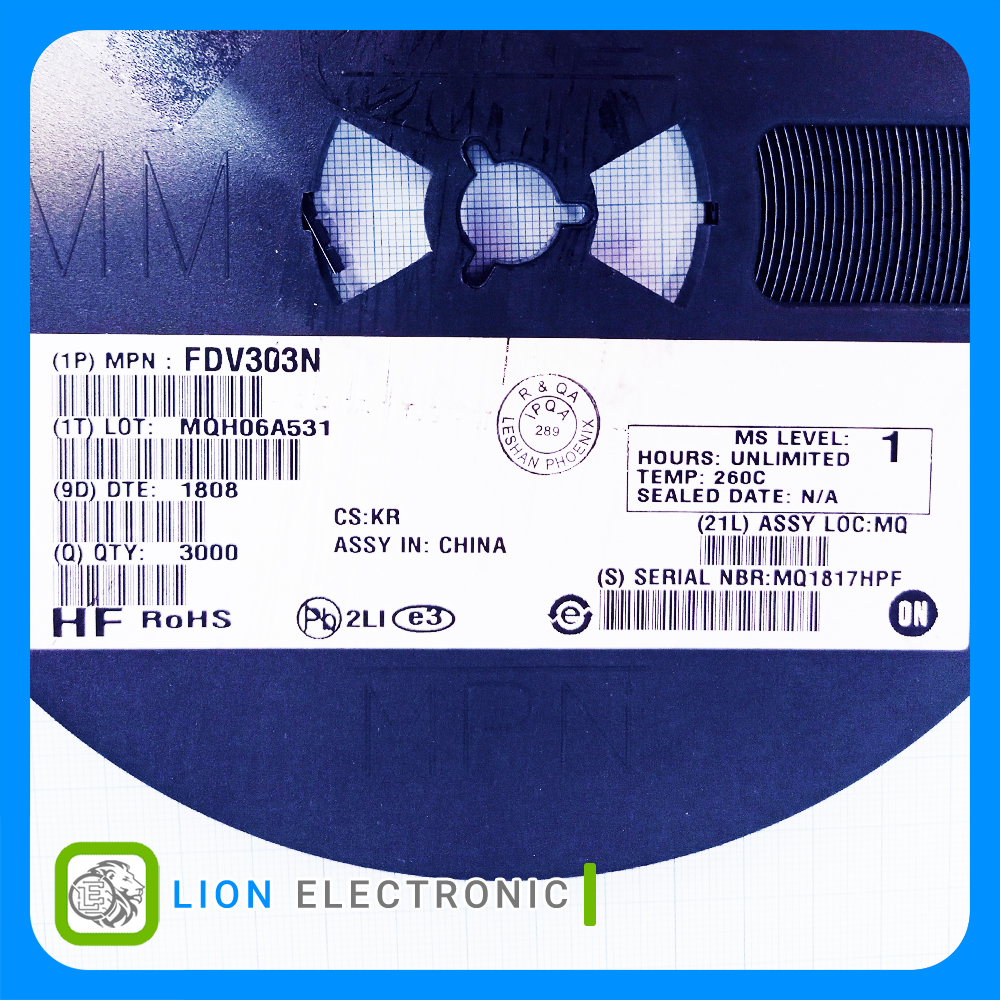

- Packaging: Reel

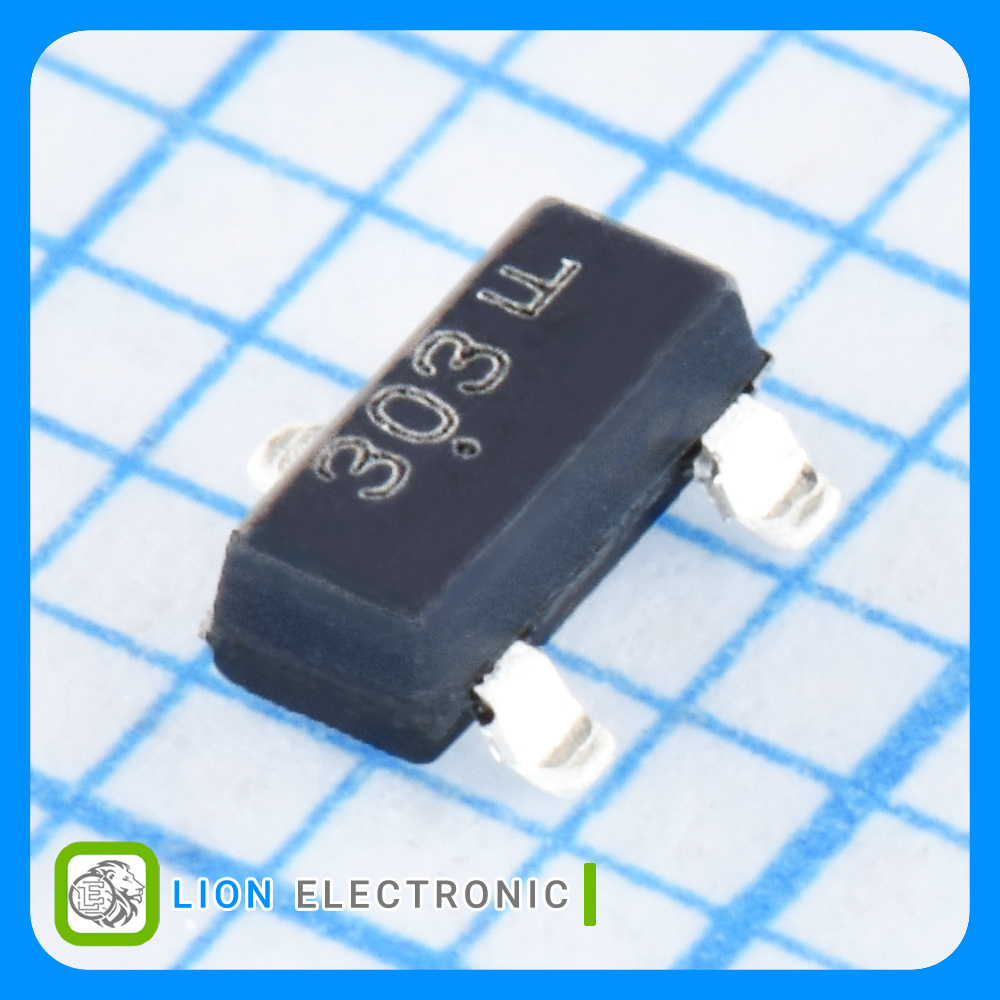

مشخصات ماسفت FDV303N
ماسفت FDV303N
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
2.3nC
Qg - Gate Charge
8.5ns
Rise Time
SMD/SMT
Mounting Style
±8V
Vgs - Gate - Source Voltage
8.5ns
Fall Time
25V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
350mW
Pd - Power Dissipation
1V
Vgs th - Gate - Source Threshold Voltage
680mA
Id - Continuous Drain Current
450mΩ
Rds On - Drain - Source Resistance
SOT-23-3
Package-Case
