STW9NK90Z
STW9NK90Z
Part Number
2249
Lion Part
Datasheet
STMicroelectronics Manufacture
ماسفت 900 ولت 8 آمپر نوع N با پکیج TO-247-3

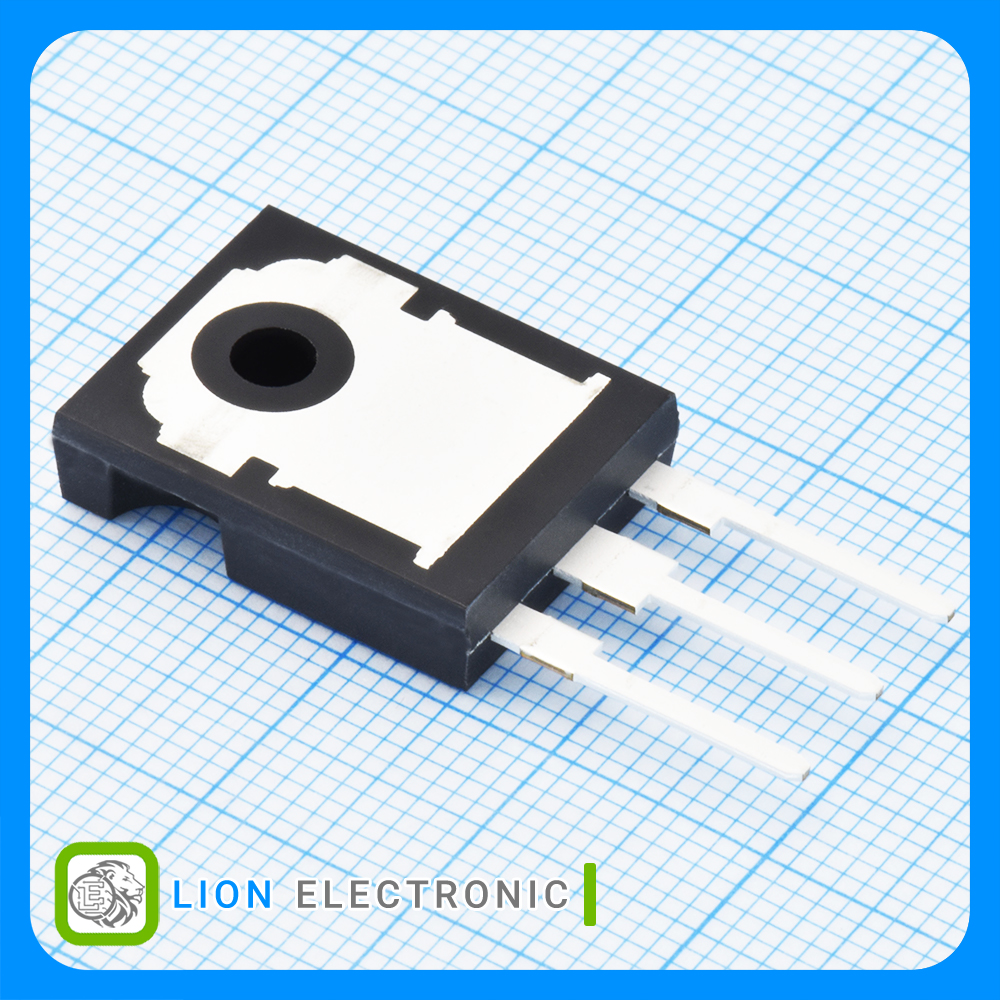

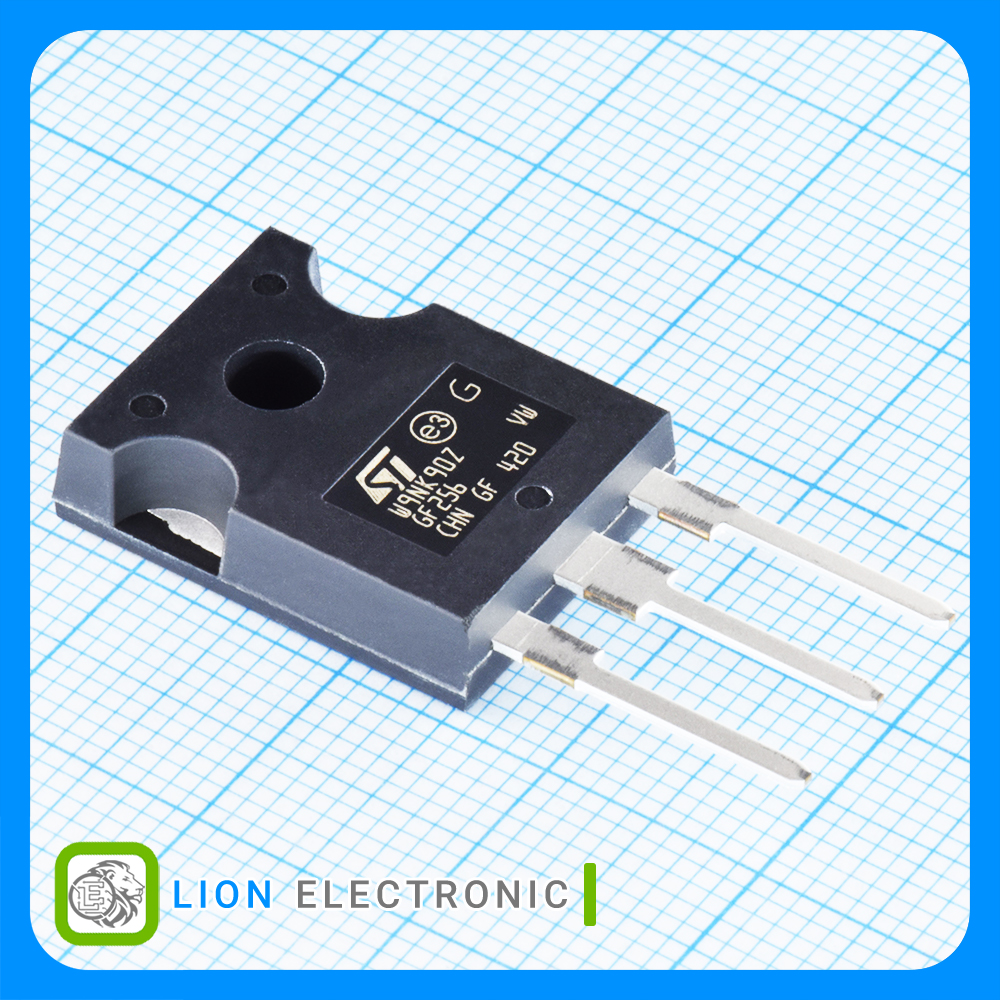

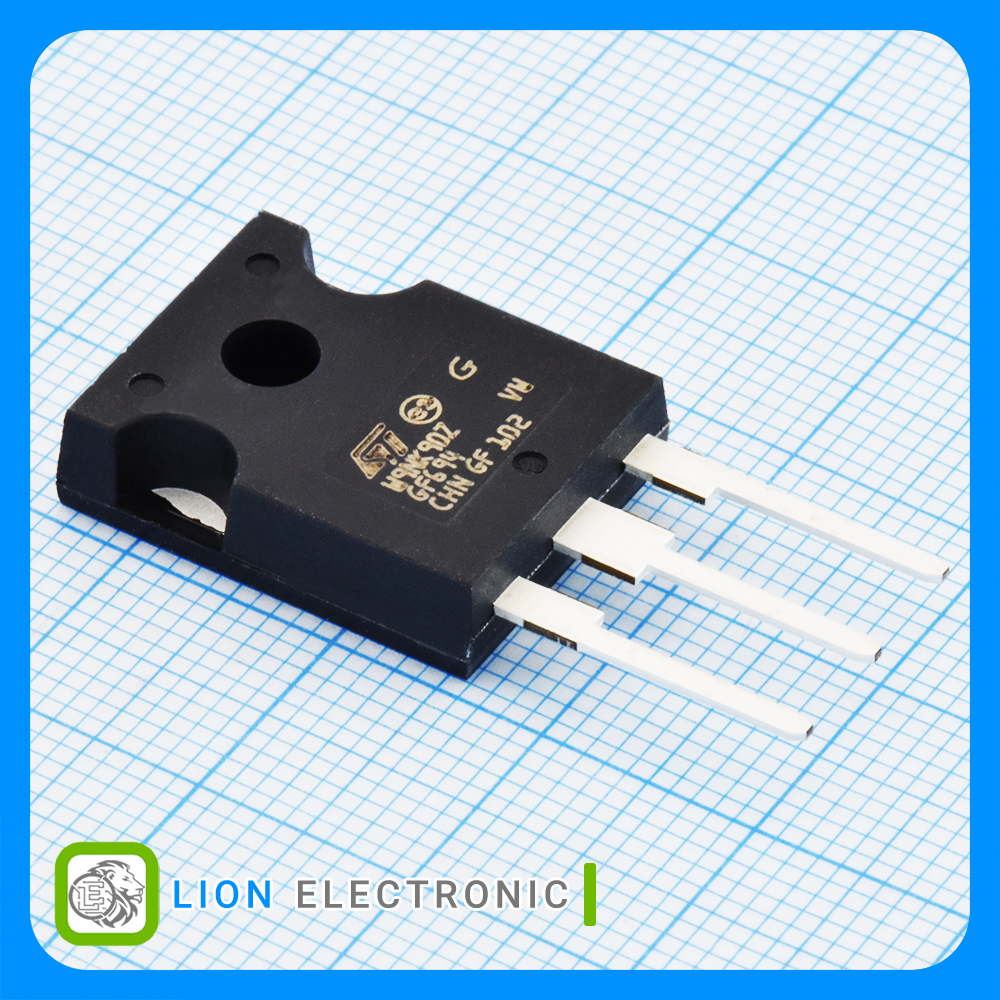

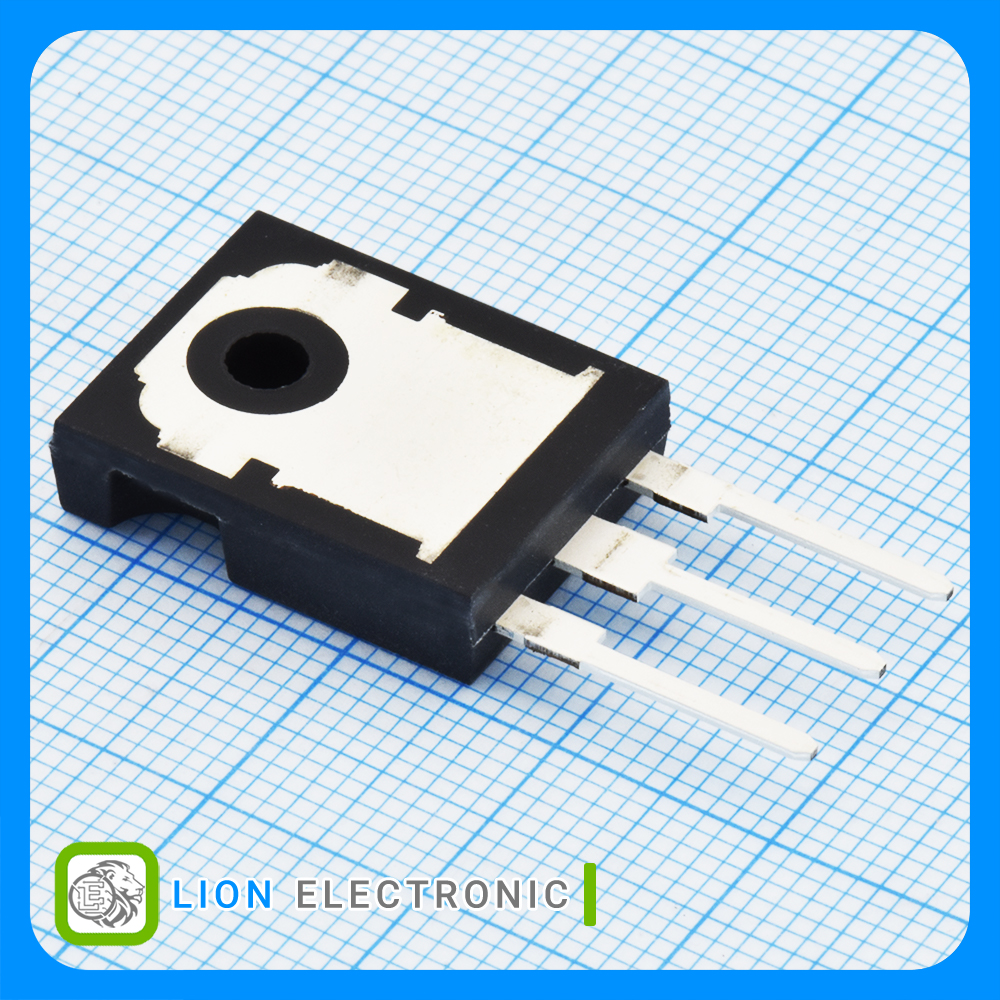

MOSFET N-Channel 900V, 8A with TO-247-3 Package
معرفی
ماسفت 900 ولت 8 آمپر نوع N با پکیج TO-247-3
MOSFET N-Channel 900V, 8A with TO-247-3 Package
Specifications
- Package/Case: TO-247
- Vds - Drain - Source Breakdown Voltage: 900V
- Id - Continuous Drain Current: 8A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 3V
- Vgs - Gate - Source Voltage: ±30V
- Rds On - Drain - Source Resistance: 1.1Ω
- Pd - Power Dissipation: 160W
- Qg - Gate Charge: 72nC
- Mounting Style: Through Hole
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماسفت STW9NK90Z
ماسفت STW9NK90Z
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Tube
Packaging
Through Hole
Mounting Style
13ns
Rise Time
±30V
Vgs - Gate - Source Voltage
+150C
Maximum Operating Temperature
28ns
Fall Time
900V
Vds - Drain - Source Breakdown Voltage
3V
Vgs th - Gate - Source Threshold Voltage
8A
Id - Continuous Drain Current
72nC
Qg - Gate Charge
160W
Pd - Power Dissipation
1.1Ω
Rds On - Drain - Source Resistance
TO-247
Package-Case
