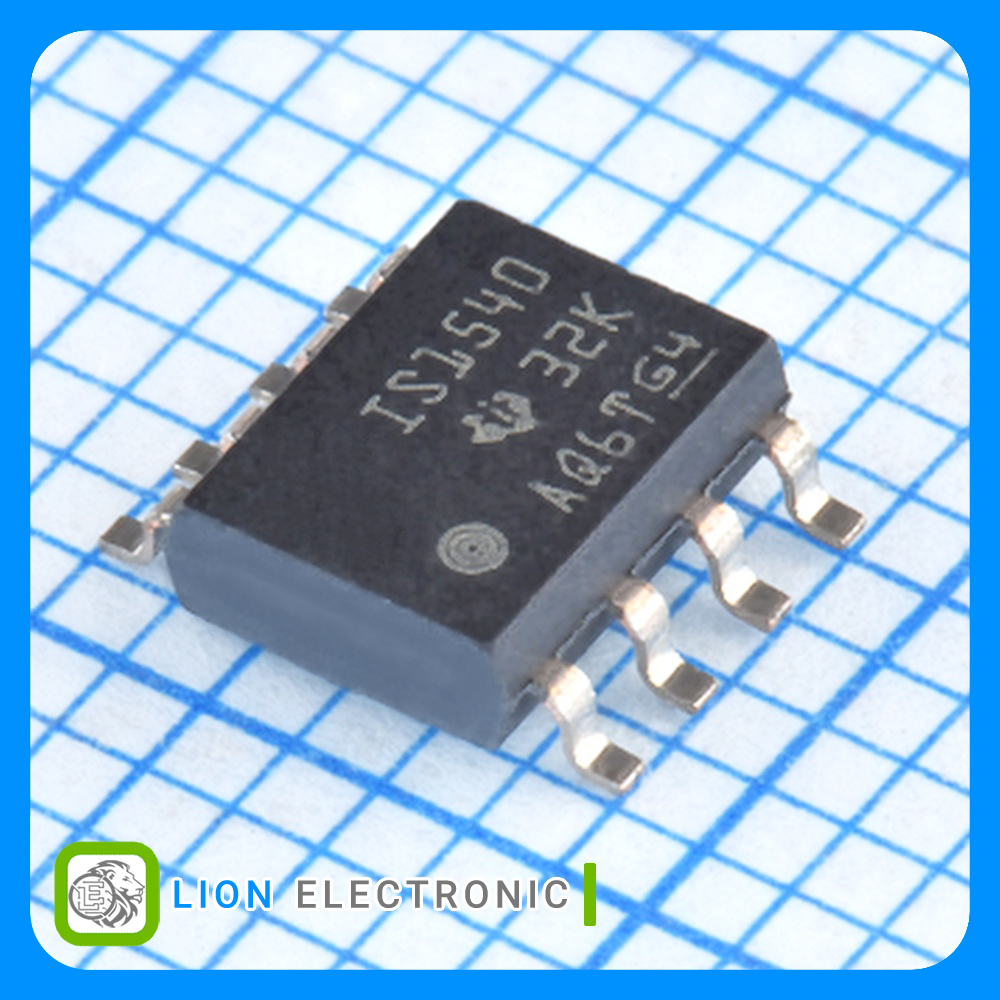

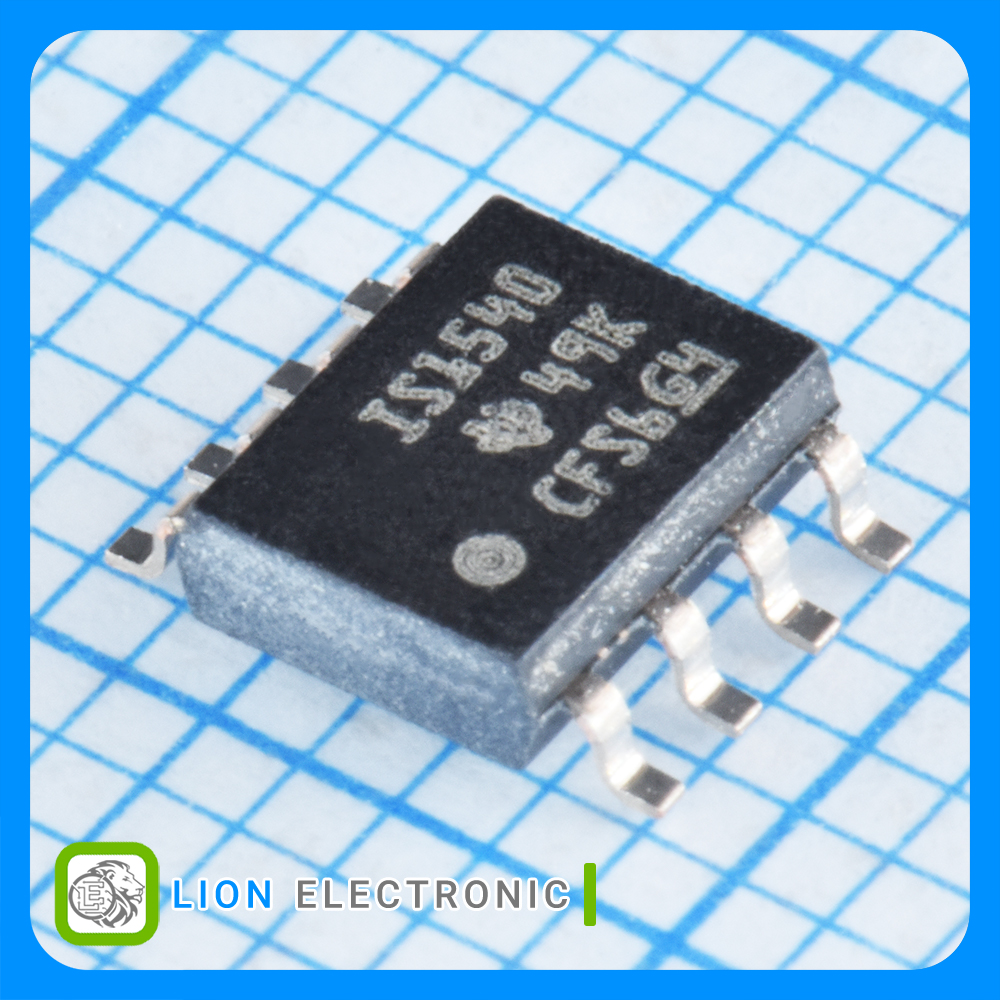

ISO1540DR
ISO1540DR
Part Number
2273
Lion Part
Datasheet
Texas Instruments Manufacture
ایزولاتور دیجیتال I2C دو کاناله دو طرفه، ایزولاسیون 2.5 کیلوولت RMS، نرخ 1 مگابیت بر ثانیه، ولتاژ تغذیه 5.5 ولت با پکیج SOIC-8
Low-Power Bidirectional I2C Digital Isolator, 2-Channel, 2.5kVrms, 1Mb/s, 5.5V Supply with SOIC-8 Package
معرفی
ایزولاتور دیجیتال I2C دو کاناله دو طرفه، ایزولاسیون 2.5 کیلوولت RMS، نرخ 1 مگابیت بر ثانیه، ولتاژ تغذیه 5.5 ولت با پکیج SOIC-8
Low-Power Bidirectional I2C Digital Isolator, 2-Channel, 2.5kVrms, 1Mb/s, 5.5V Supply with SOIC-8 Package
Specifications
- Number of Channels: 2
- Polarity: Bidirectional
- Isolation Voltage: 2.5kVrms
- Data Rate: 1Mb/s
- Propagation Delay Time: 70ns
- Isolation Type: Capacitive Coupling
- Supply Voltage - Max: 5.5V
- Supply Voltage - Min: 3V
- Operating Supply Current: 3.6mA
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات ISO1540DR
ISO1540DR
Part Number
Capacitive Coupling
Isolation Type
Bidirectional
Polarity
2
Number of Channels
Reel
Packaging
2.5kVrms
Isolation Voltage
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
70ns
Propagation Delay Time
1Mb/s
Data Rate
+125C
Maximum Operating Temperature
5.5V
Supply Voltage - Max
3V
Supply Voltage - Min
3.6mA
Operating Supply Current
SOIC-8
Package-Case
