پل دیود 1000 ولت 8 آمپر پایهبلند با پکیج GBU

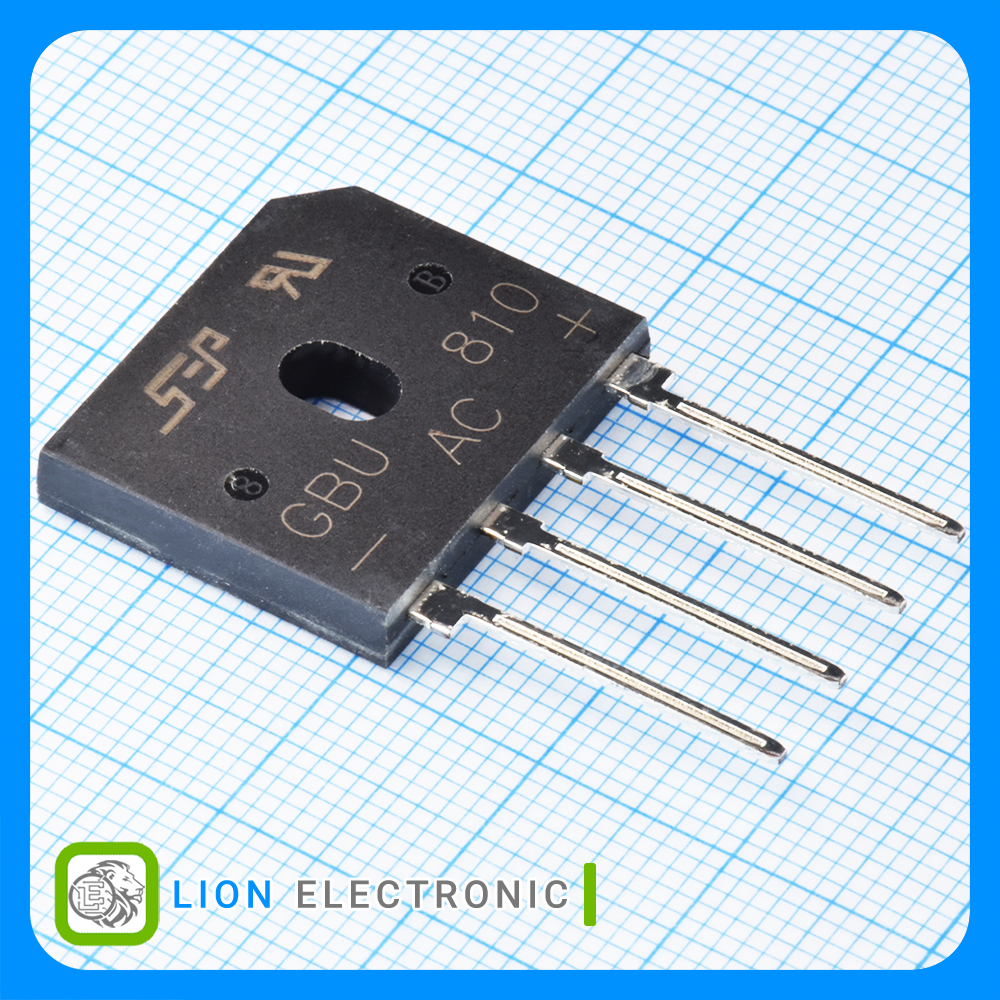

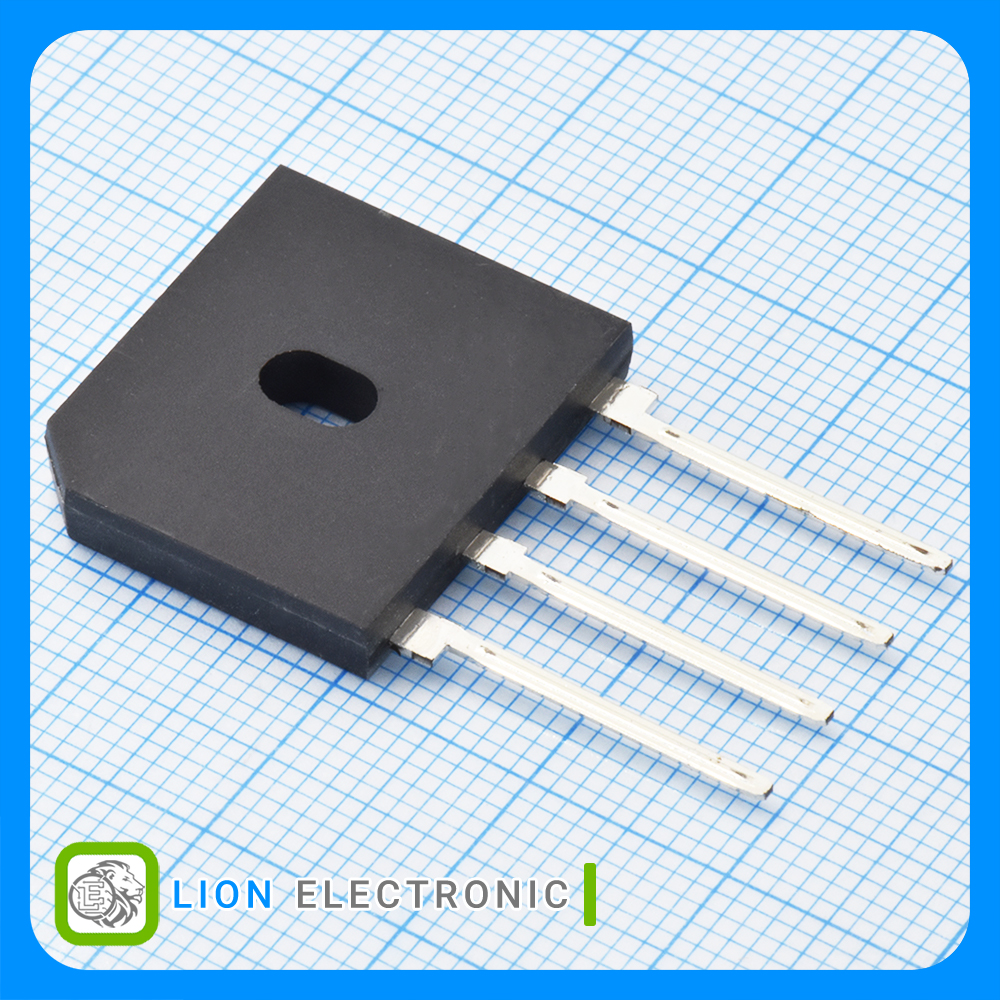

Bridge Rectifier 8A, 1000V, Through Hole with GBU Package
Specifications
- Type: Single Phase Bridge
- Peak Reverse Voltage: 1kV
- If - Forward Current: 8A
- Max Surge Current: 200A
- Vf - Forward Voltage: 1.1V
- Mounting Style: Through Hole
- Package/Case: GBU
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات GBU810
GBU810
Part Number
-55C
Minimum Operating Temperature
1kV
Peak Reverse Voltage
Tube
Packaging
Through Hole
Termination style
Through Hole
Mounting Style
3.56mm
Width
+150C
Maximum Operating Temperature
200A
Max Surge Current
1.1V
Vf - Forward Voltage
8A
If - Forward Current
22.3mm
Length
18.8mm
Height
Single Phase Bridge
Type
GBU
Package-Case
