MT5016A
MT5016A
Part Number
2709
Lion Part
Datasheet
International Rectifier Manufacture
پل دیود 3 فاز 1600 ولت (1.6 کیلوولت) 50 آمپر با مدل اتصال سرسیم با پکیج MT-35A-5P

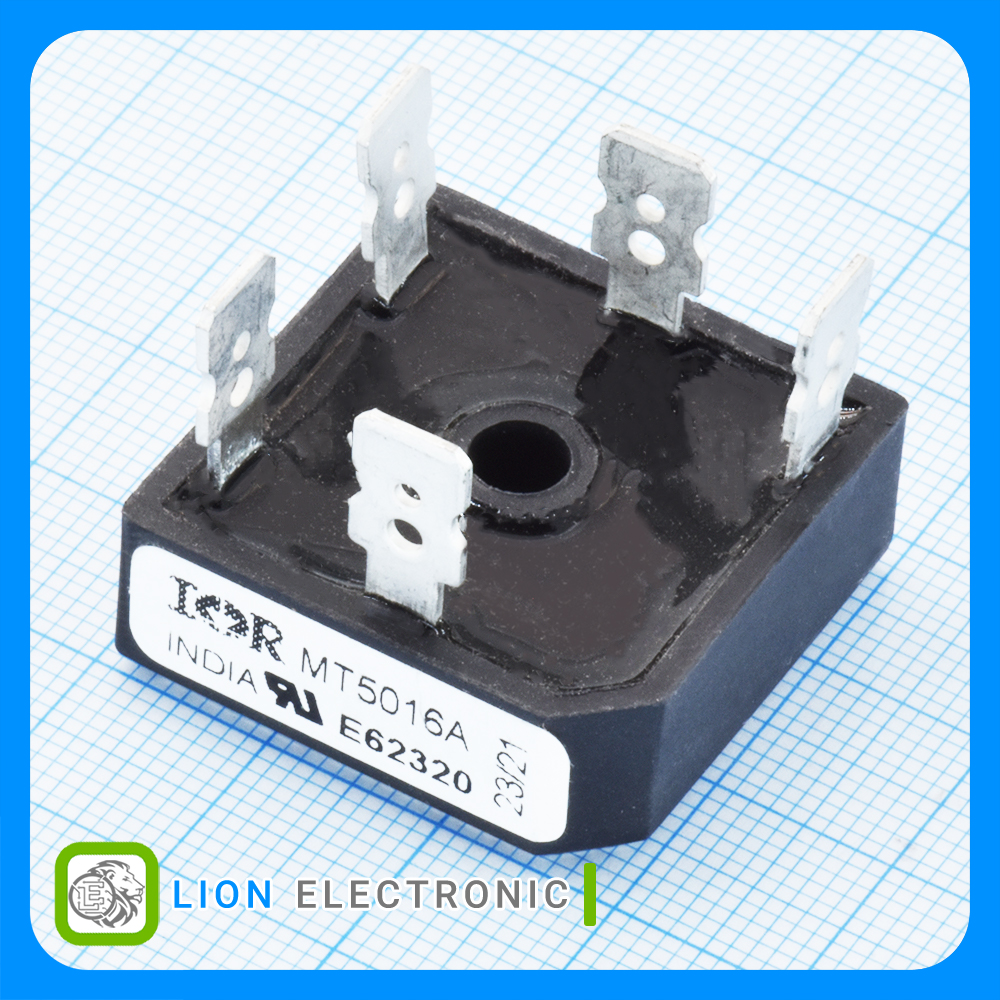

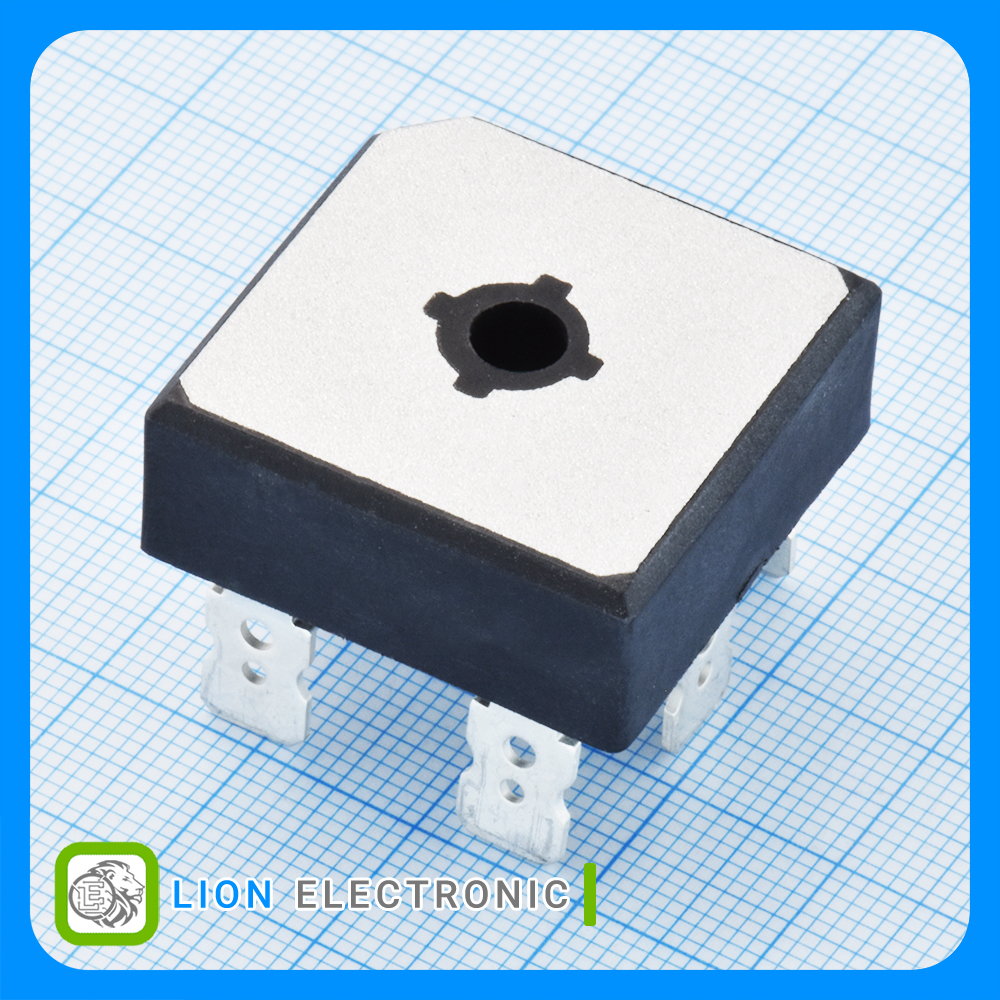

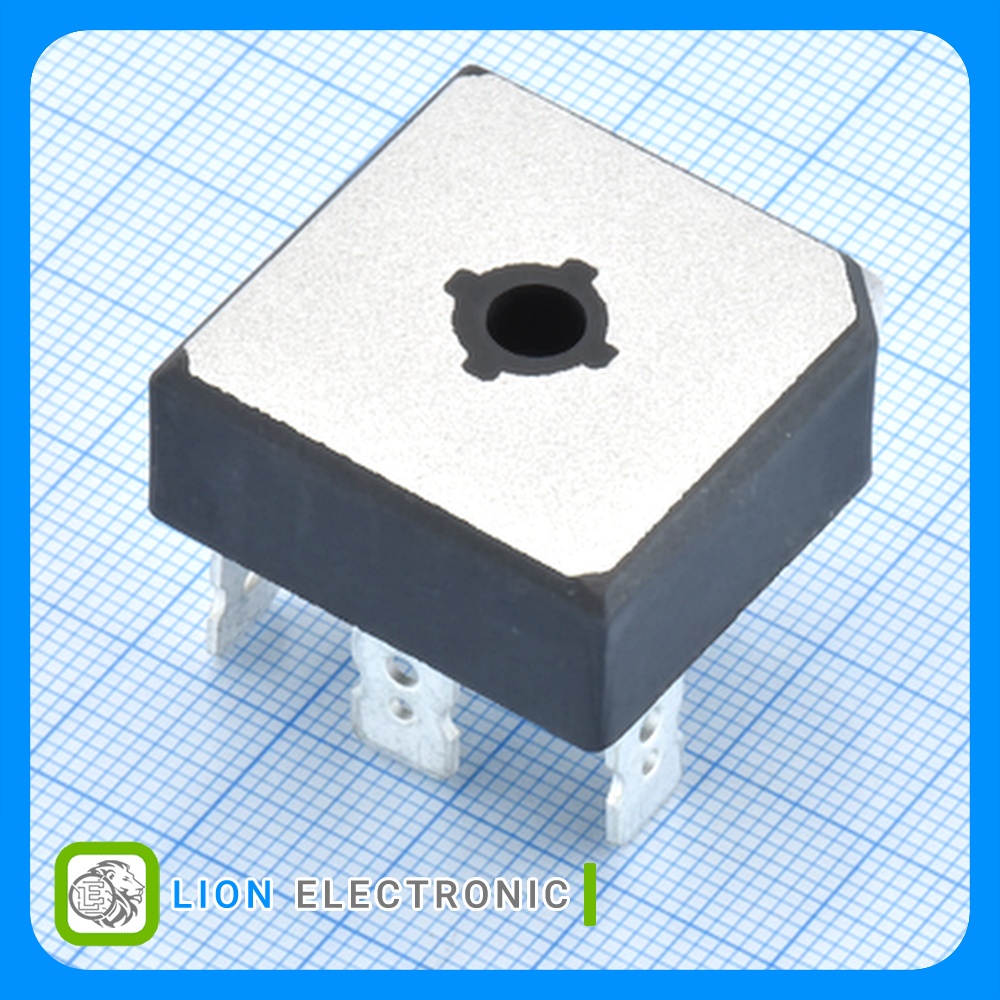

3 Phase Bridge Rectifier 50A, 1600V (1.6KV) with Cable Connection, MT-35A-5P Package
معرفی
پل دیود 3 فاز 1600 ولت (1.6 کیلوولت) 50 آمپر با مدل اتصال سرسیم با پکیج MT-35A-5P
3 Phase Bridge Rectifier 50A, 1600V (1.6KV) with Cable Connection, MT-35A-5P Package
Specifications
- Type: Three Phase Bridge
- Peak Reverse Voltage: 1.6KV
- If - Forward Current: 50A
- Max Surge Current: 500A
- Vf - Forward Voltage: 1.2V
- Mounting Style: Cable
- Package/Case: MT-35A
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Bulk
مشخصات پل دیود سه فاز MT5016A
پل دیود سه فاز MT5016A
Part Number
Cable
Mounting Style
-55C
Minimum Operating Temperature
Bulk
Packaging
1.6KV
Peak Reverse Voltage
+150C
Maximum Operating Temperature
500A
Max Surge Current
1.2V
Vf - Forward Voltage
50A
If - Forward Current
Three Phase Bridge
Type
MT-35A
Package-Case
