MDD
معرفی

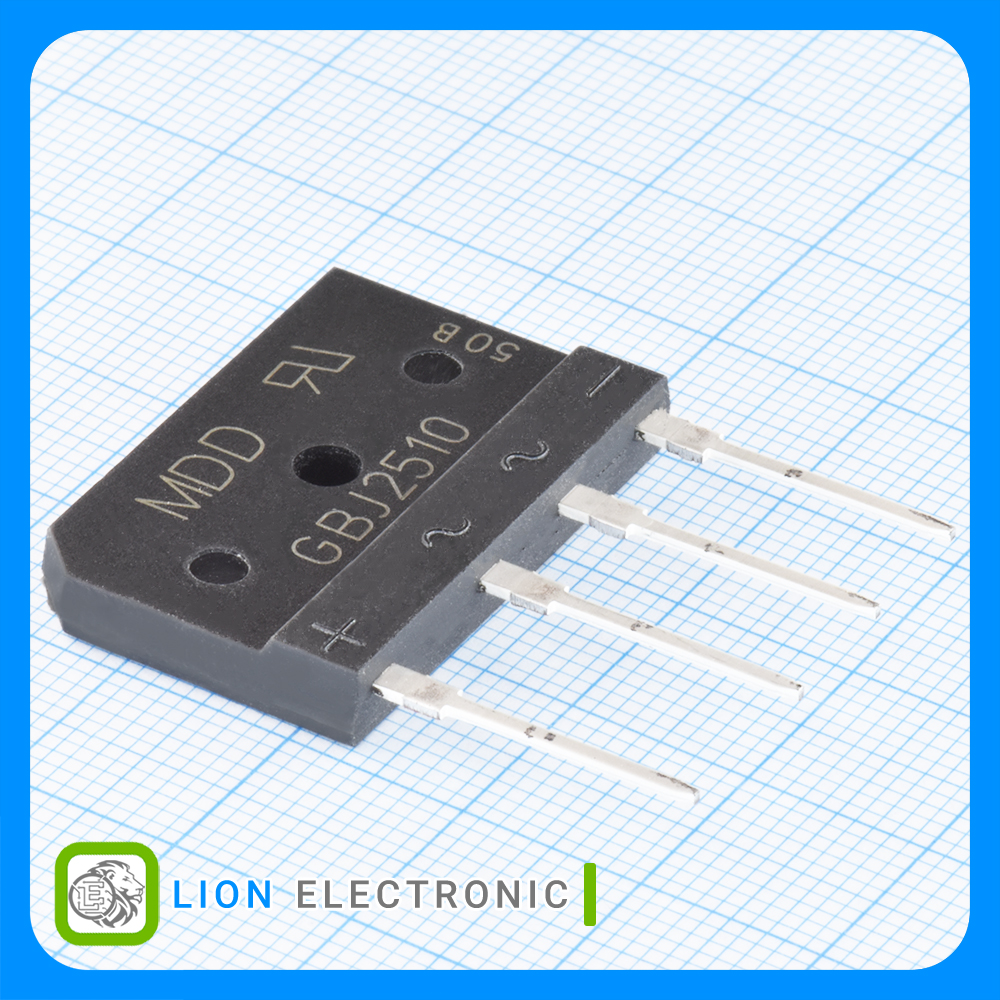

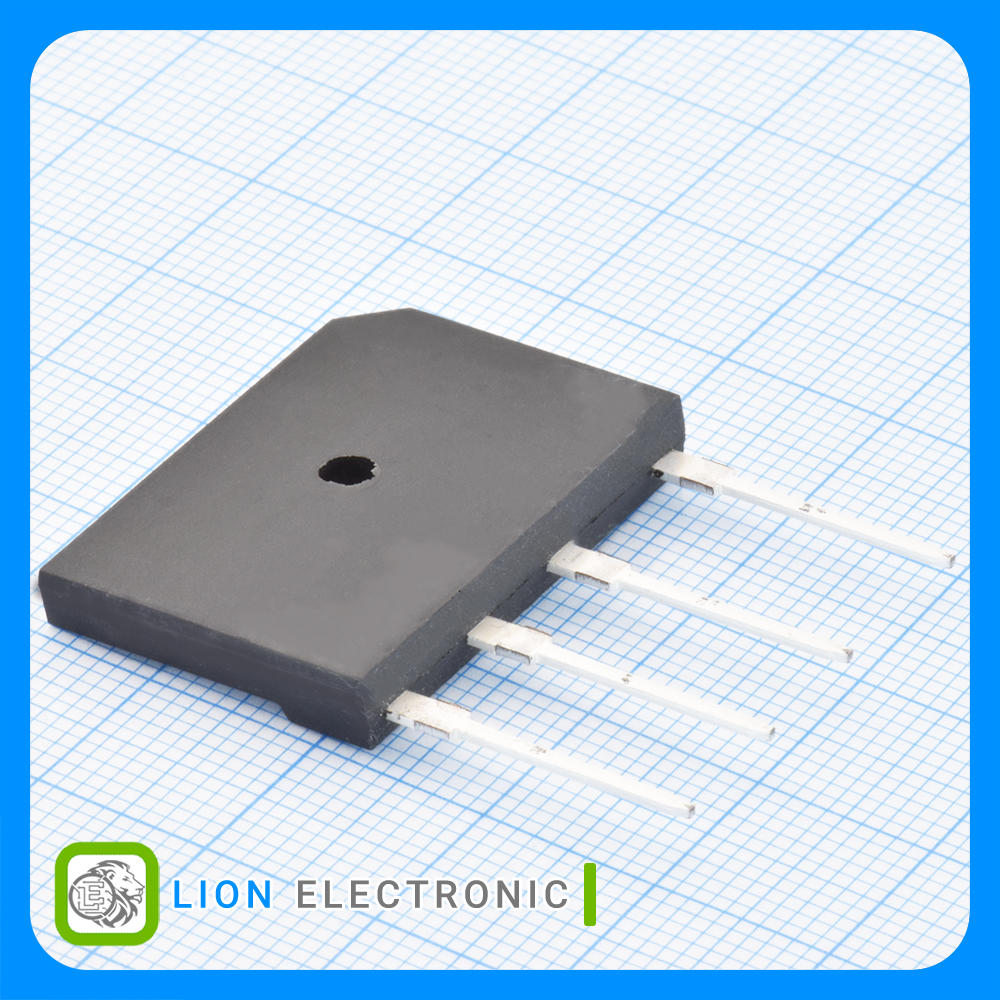

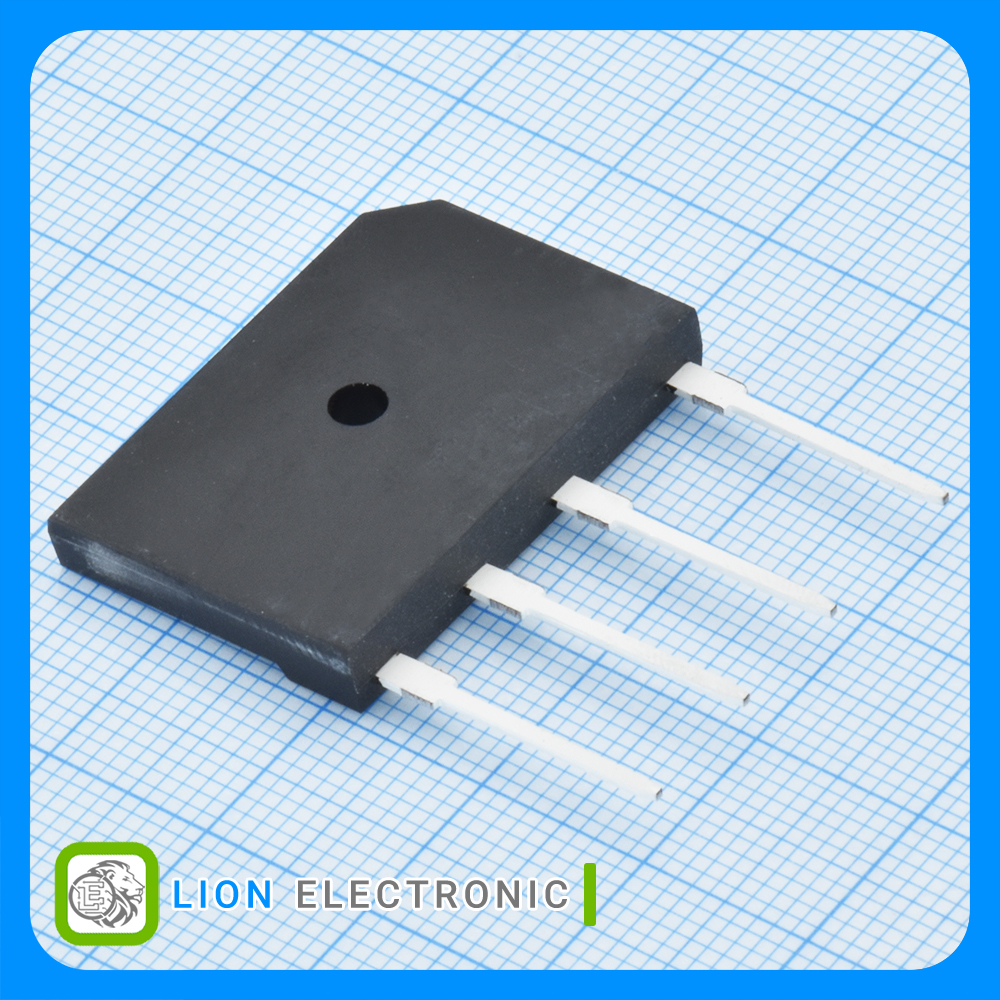

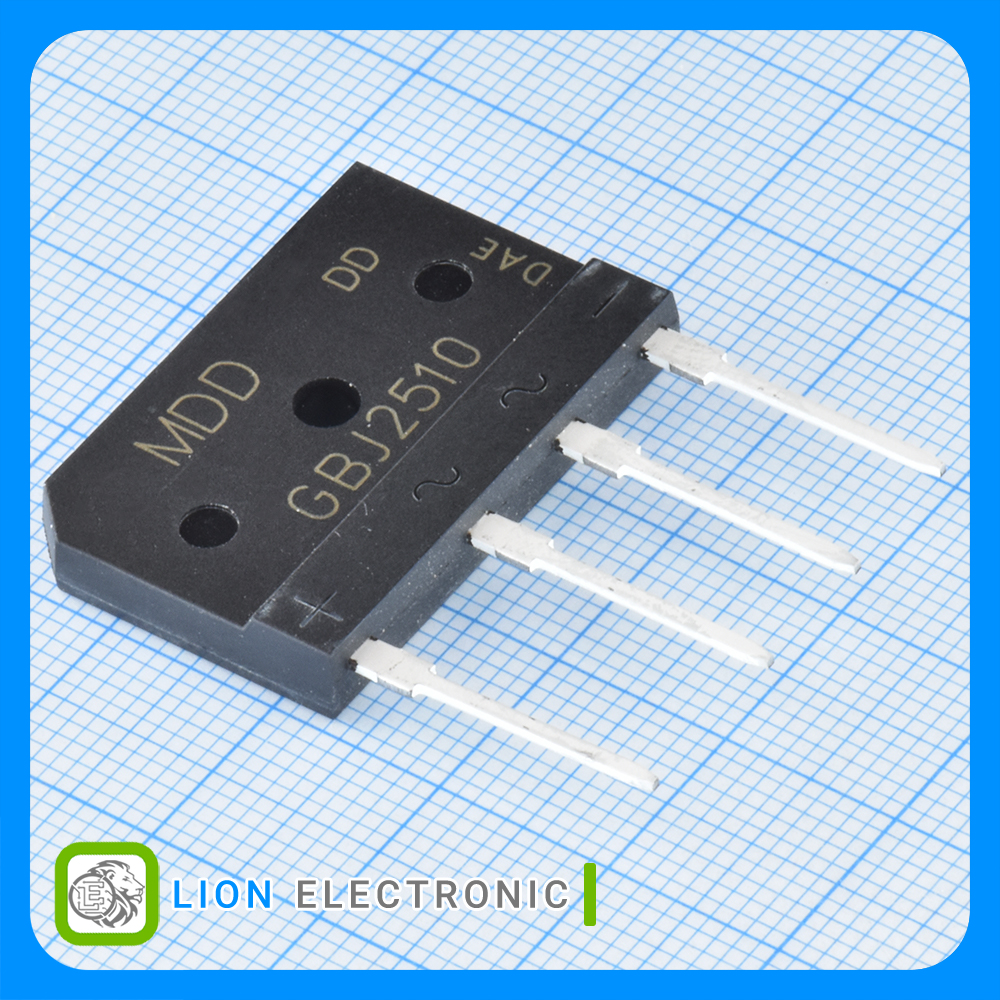

پل دیود 1000 ولت 25 آمپر پایهبلند با پکیج GBJ
Bridge Rectifier 25A, 1000V, Through Hole with GBJ Package
Specifications
- Type: Single Phase Bridge
- Peak Reverse Voltage: 1kV
- If - Forward Current: 25A
- Max Surge Current: 350A
- Vf - Forward Voltage: 1V
- Mounting Style: Through Hole
- Package/Case: GBJ
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات GBJ2510
GBJ2510
Part Number
-55C
Minimum Operating Temperature
1kV
Peak Reverse Voltage
Through Hole
Termination style
Tube
Packaging
Through Hole
Mounting Style
4.8mm
Width
+150C
Maximum Operating Temperature
350A
Max Surge Current
1V
Vf - Forward Voltage
25A
If - Forward Current
30.3mm
Length
24.5mm
Height
Single Phase Bridge
Type
GBJ
Package-Case
