معرفی
پل دیود 1000 ولت 1 آمپر نصب سطحی با پکیج MBF

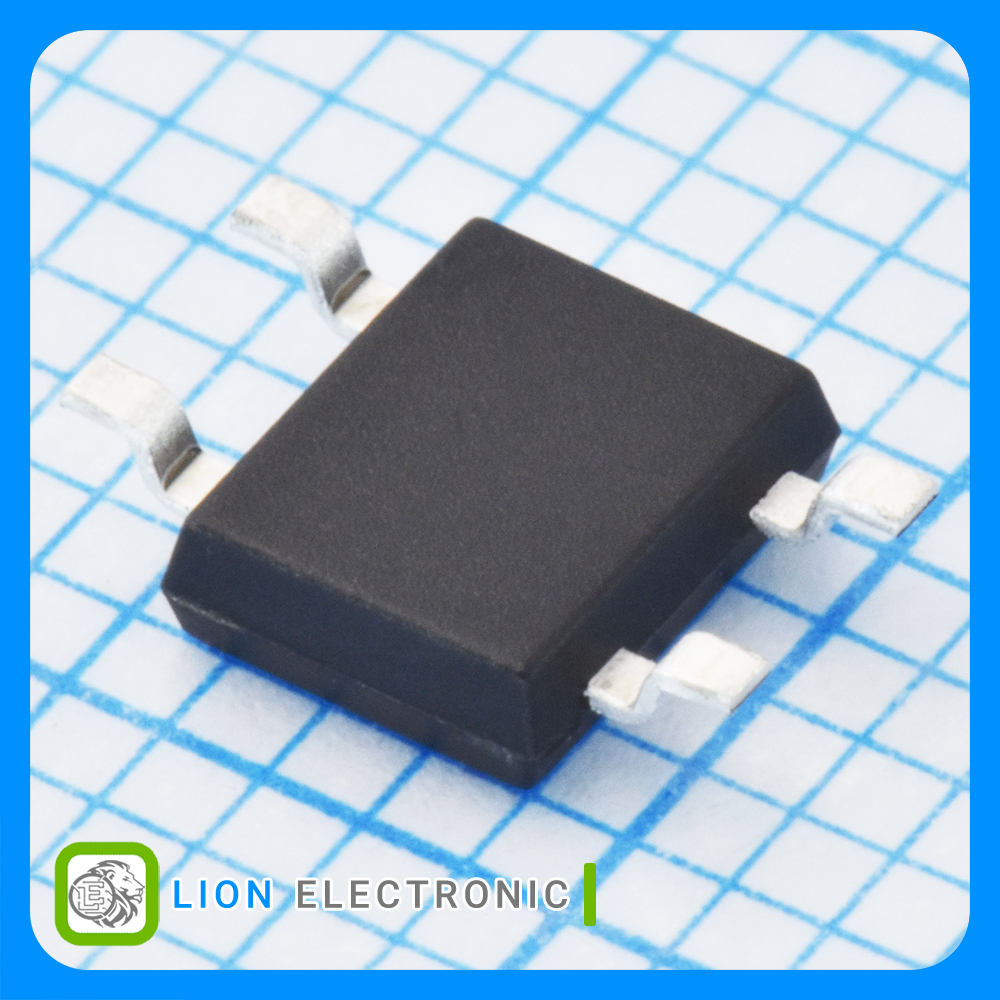

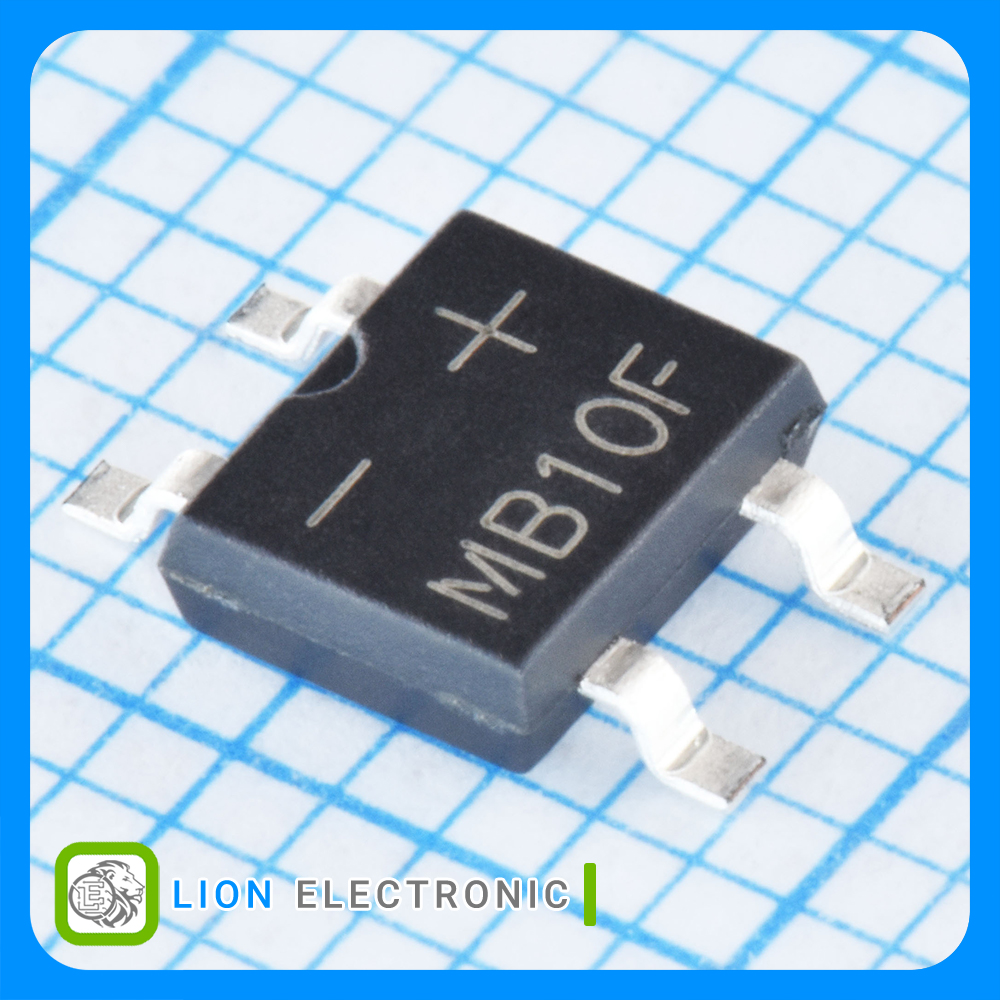

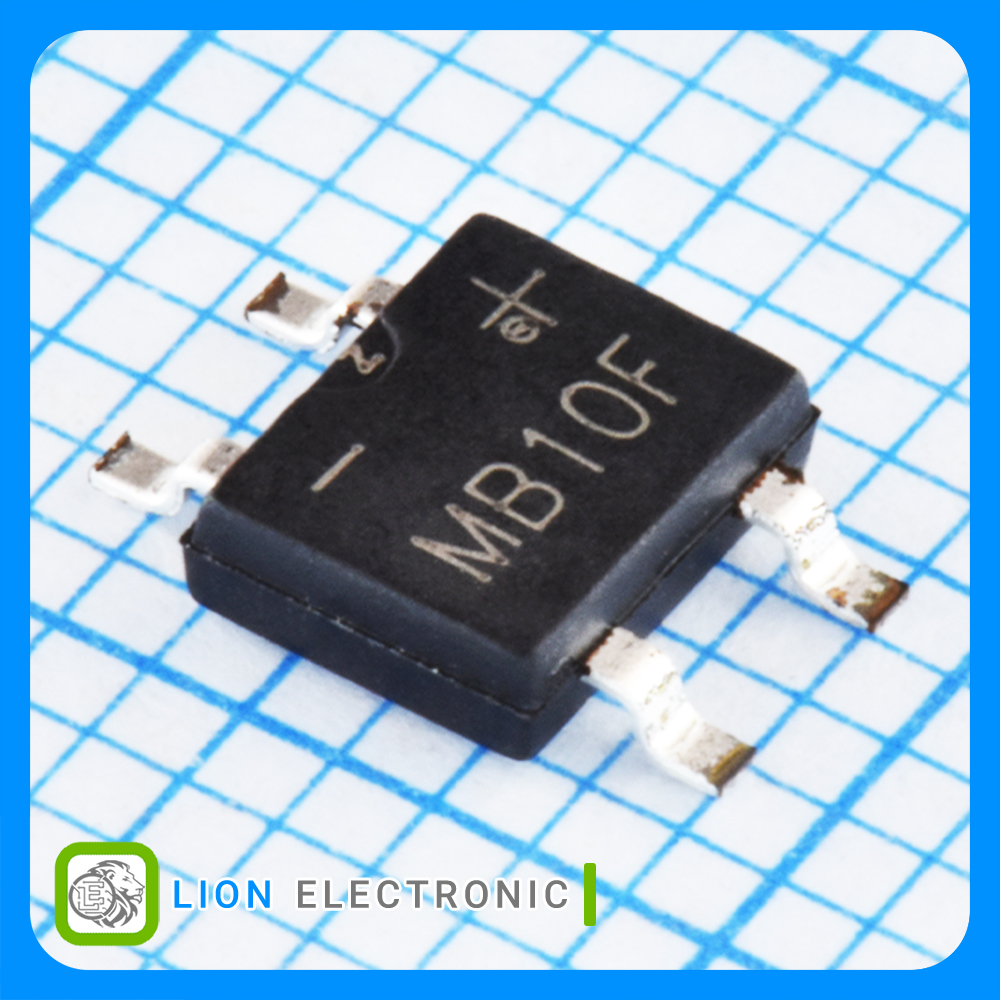

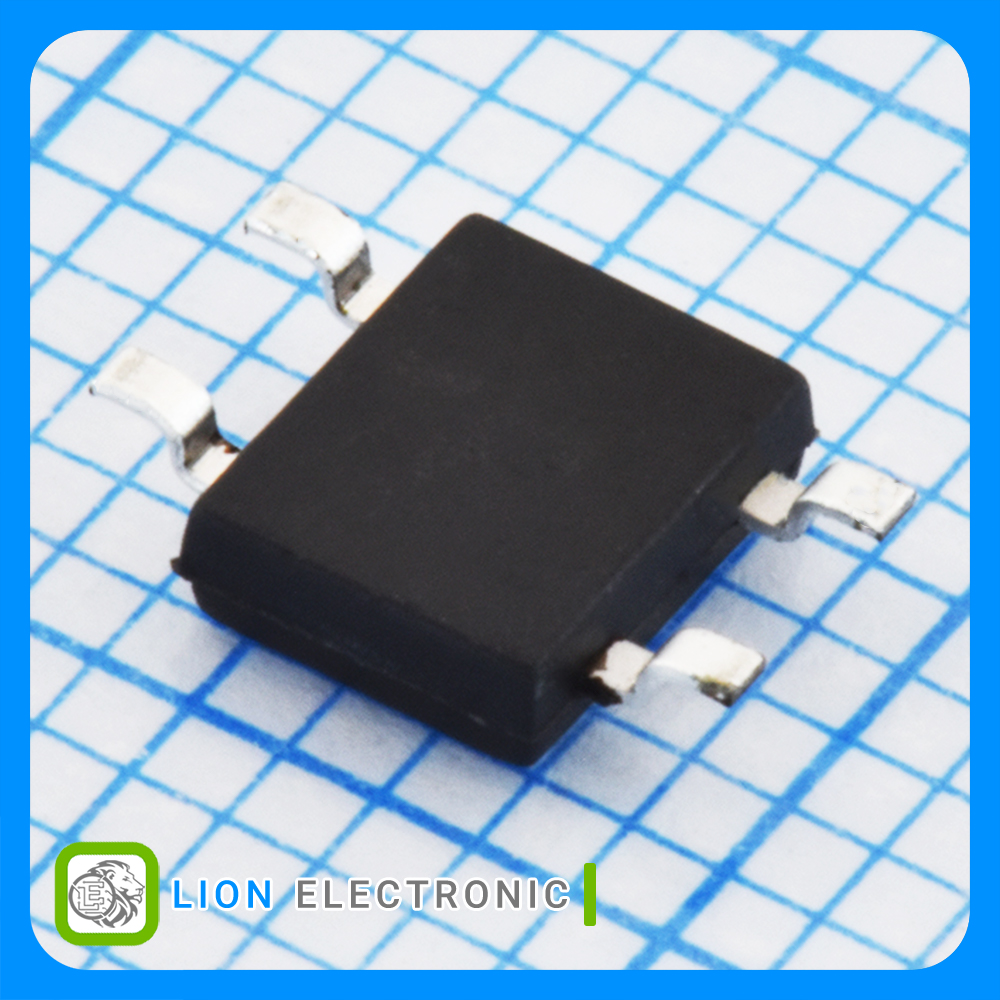

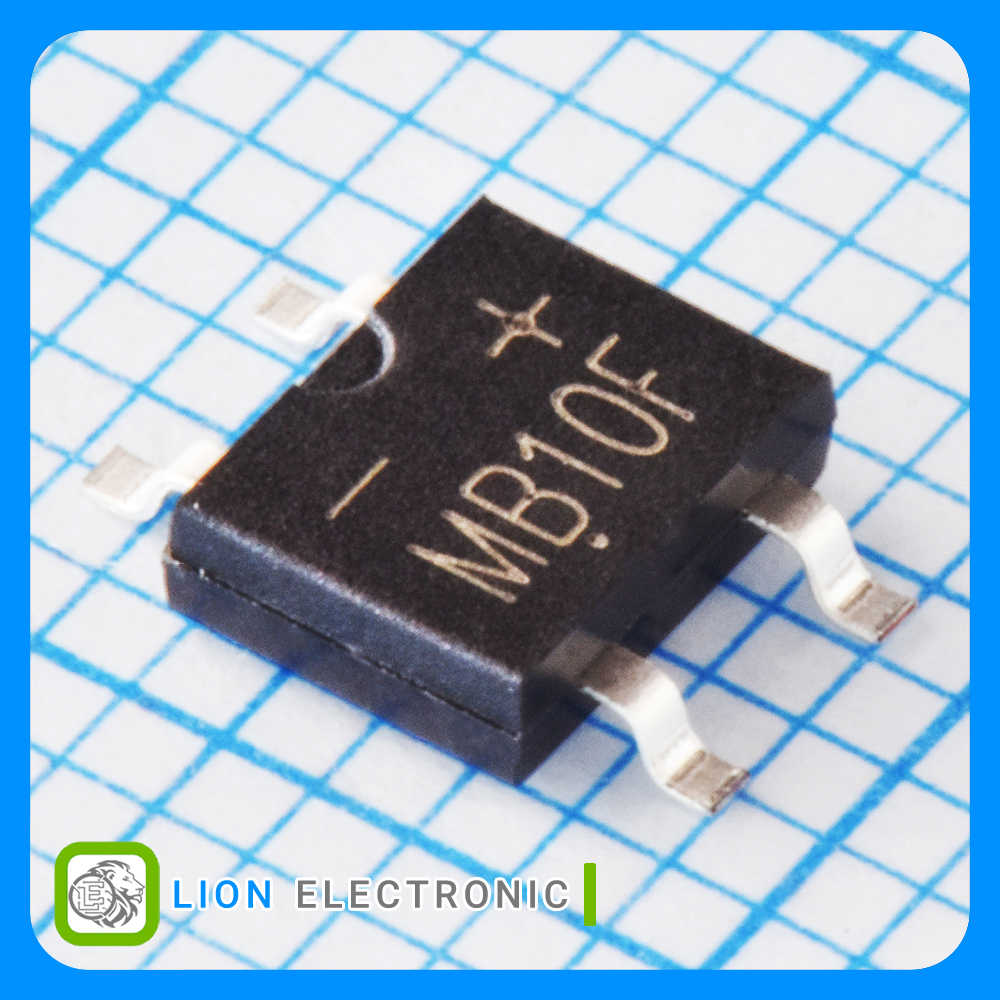

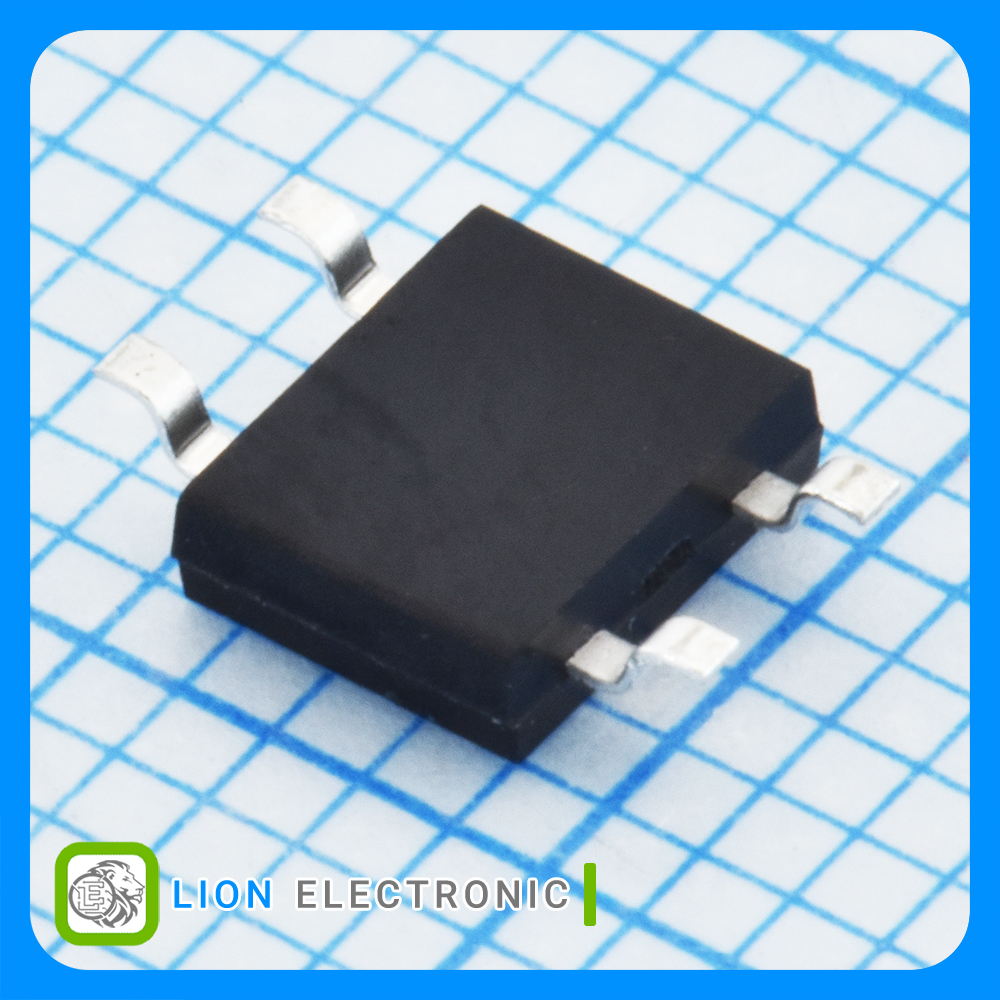

Bridge Rectifier 1A, 1000V, SMD with MBF Package
Specifications
- Type: Single Phase Bridge
- Peak Reverse Voltage: 1kV
- If - Forward Current: 1A
- Max Surge Current: 30A
- Vf - Forward Voltage: 1V
- Mounting Style: SMD/SMT
- Package/Case: MBF
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات MB10F
MB10F
Part Number
-55C
Minimum Operating Temperature
1kV
Peak Reverse Voltage
Reel
Packaging
SMD/SMT
Termination style
1.4mm
Height
30A
Max Surge Current
SMD/SMT
Mounting Style
5mm
Length
4.1mm
Width
+150C
Maximum Operating Temperature
1A
If - Forward Current
1V
Vf - Forward Voltage
Single Phase Bridge
Type
MBF
Package-Case
