VBsemi
معرفی
ماسفت 60 ولت 12 آمپر نوع N با پکیج TO-252-3، جریان درین پیوسته 18 آمپر
N-CH MOSFET 60V, 12A with TO-252-3 Package, Continuous Drain Current 18A
Specifications
- Package/Case: DPAK
- Vds - Drain - Source Breakdown Voltage: 60V
- Id - Continuous Drain Current: 18A
- Transistor Polarity: N-Channel
- Channel Mode: Enhancement
- Number of Channels: 1
- Vgs th - Gate - Source Threshold Voltage: 1V
- Vgs - Gate - Source Voltage: ±20V
- Rds On - Drain - Source Resistance: 73mΩ
- Pd - Power Dissipation: 41W
- Qg - Gate Charge: 19.8nC
- Mounting Style: SMD/SMT
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات ماسفت MTD3055VLT4-VB

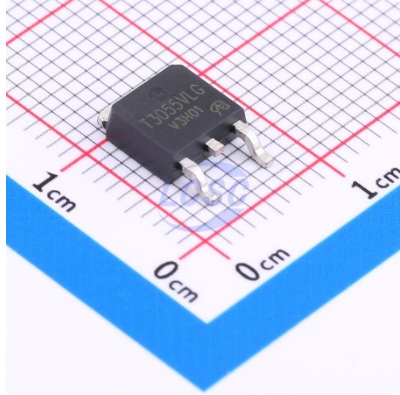

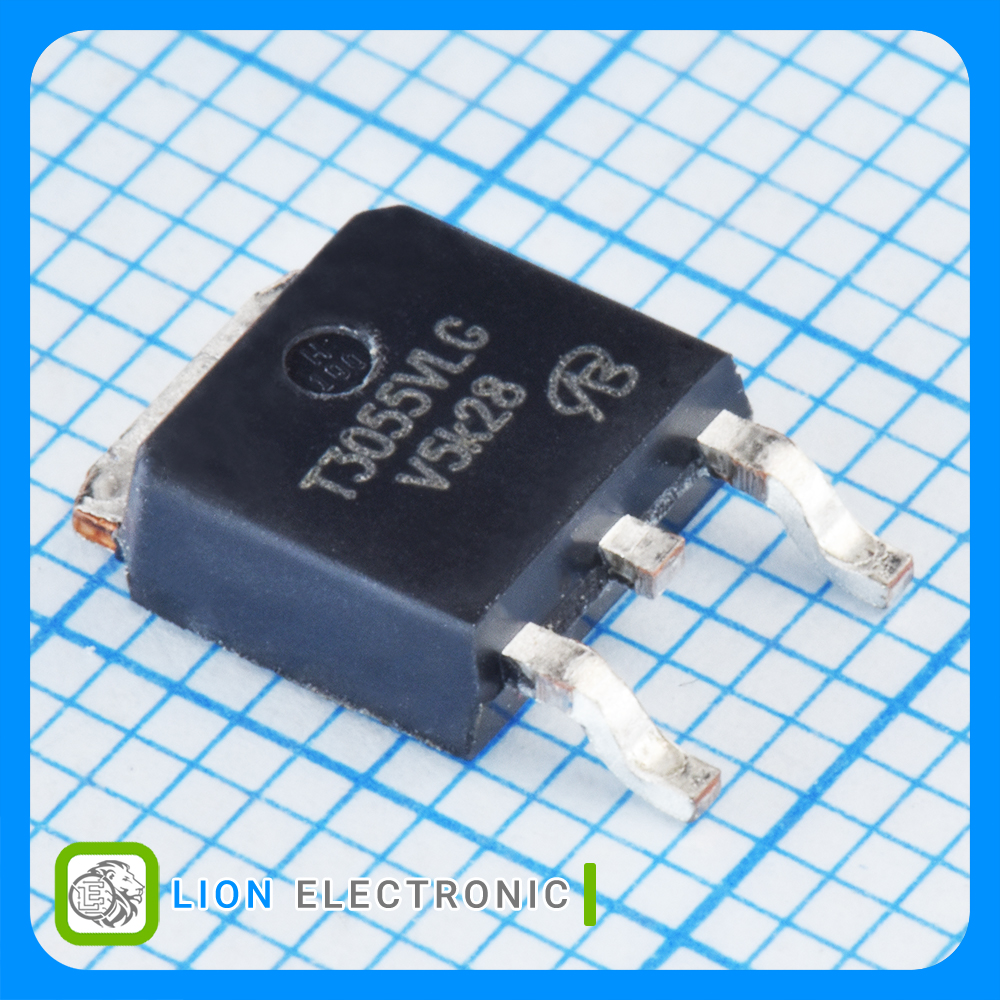

ماسفت MTD3055VLT4-VB
Part Number
1
Number of Channels
Enhancement
Channel Mode
-55C
Minimum Operating Temperature
Reel
Packaging
SMD/SMT
Mounting Style
10ns
Fall Time
±20V
Vgs - Gate - Source Voltage
20ns
Rise Time
60V
Vds - Drain - Source Breakdown Voltage
+150C
Maximum Operating Temperature
1V
Vgs th - Gate - Source Threshold Voltage
19.8nC
Qg - Gate Charge
DPAK
Package-Case
41W
Pd - Power Dissipation
18A
Id - Continuous Drain Current
73mΩ
Rds On - Drain - Source Resistance
