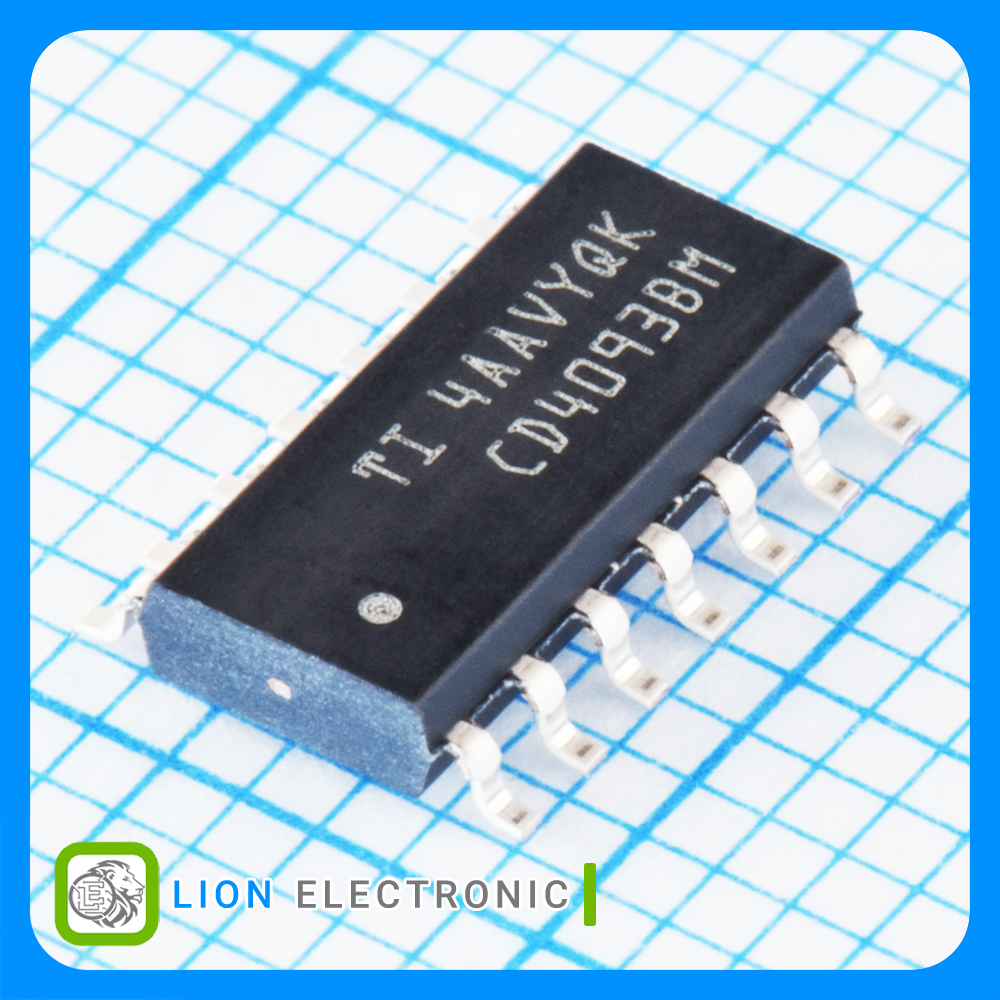

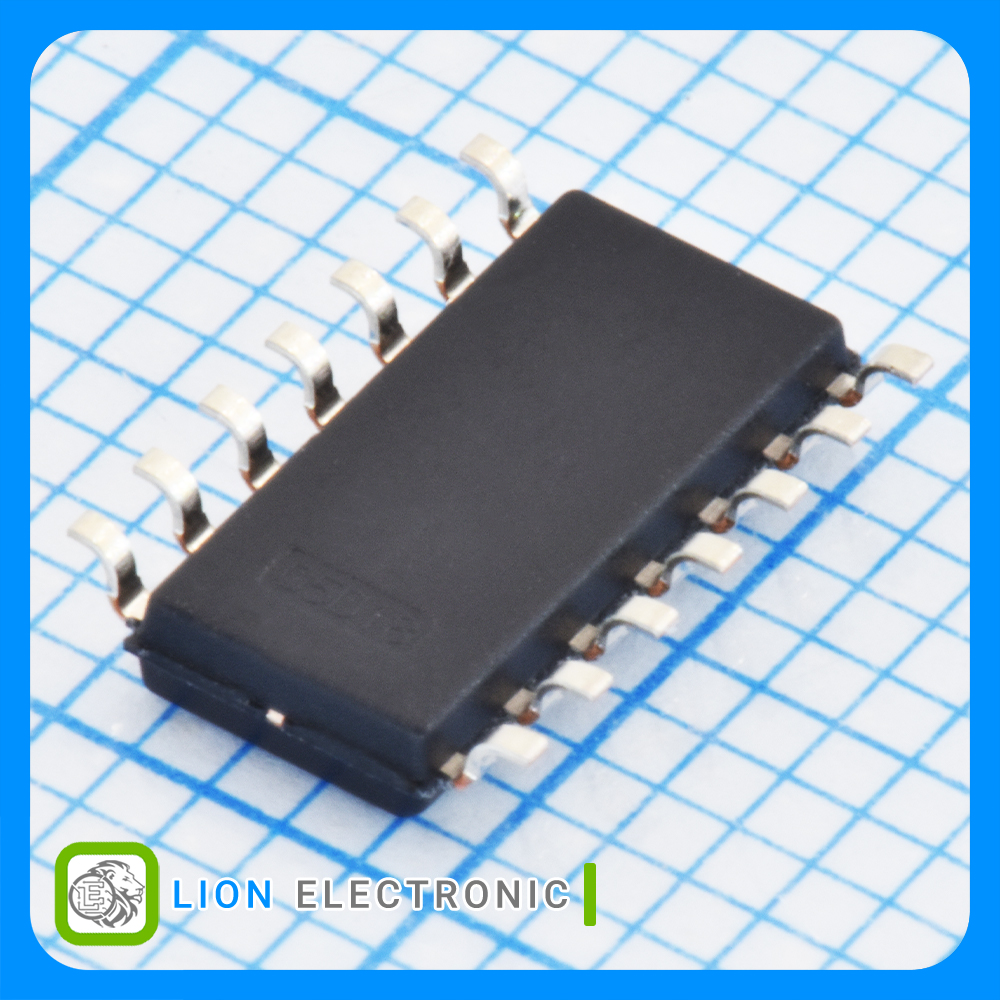

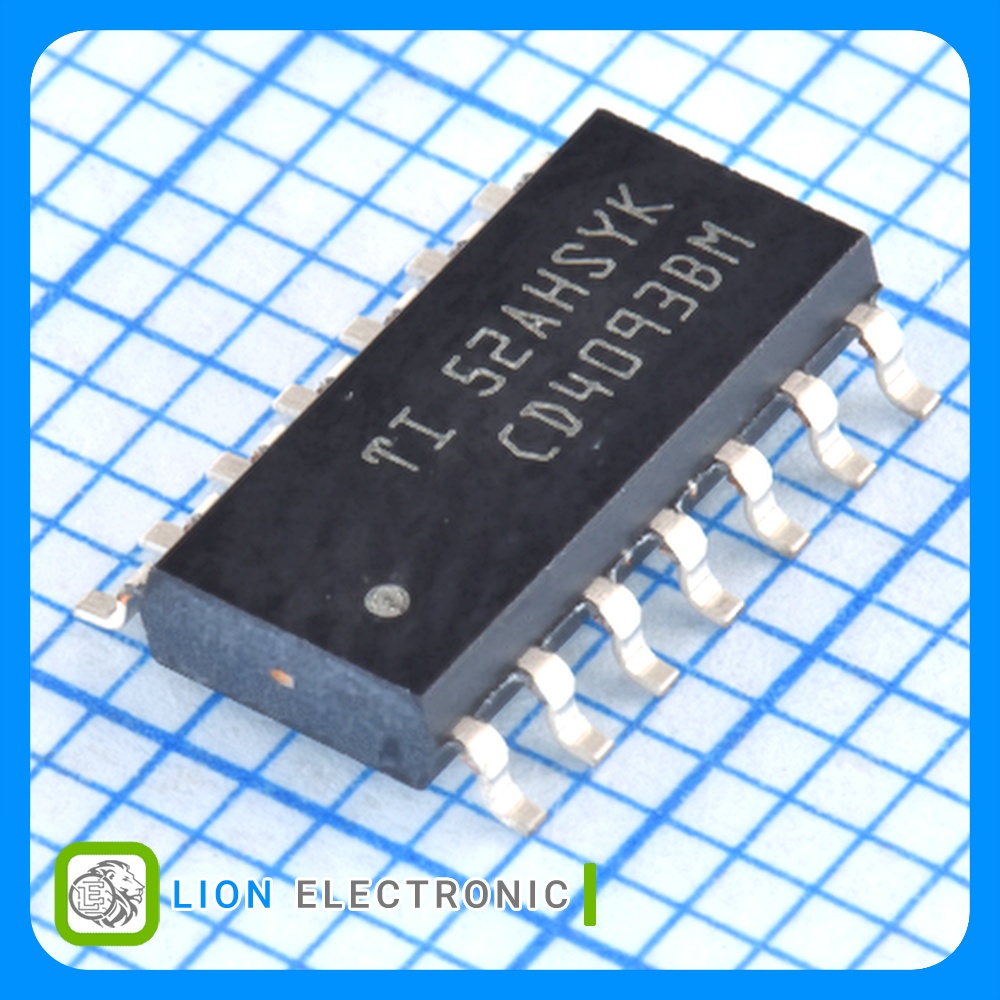

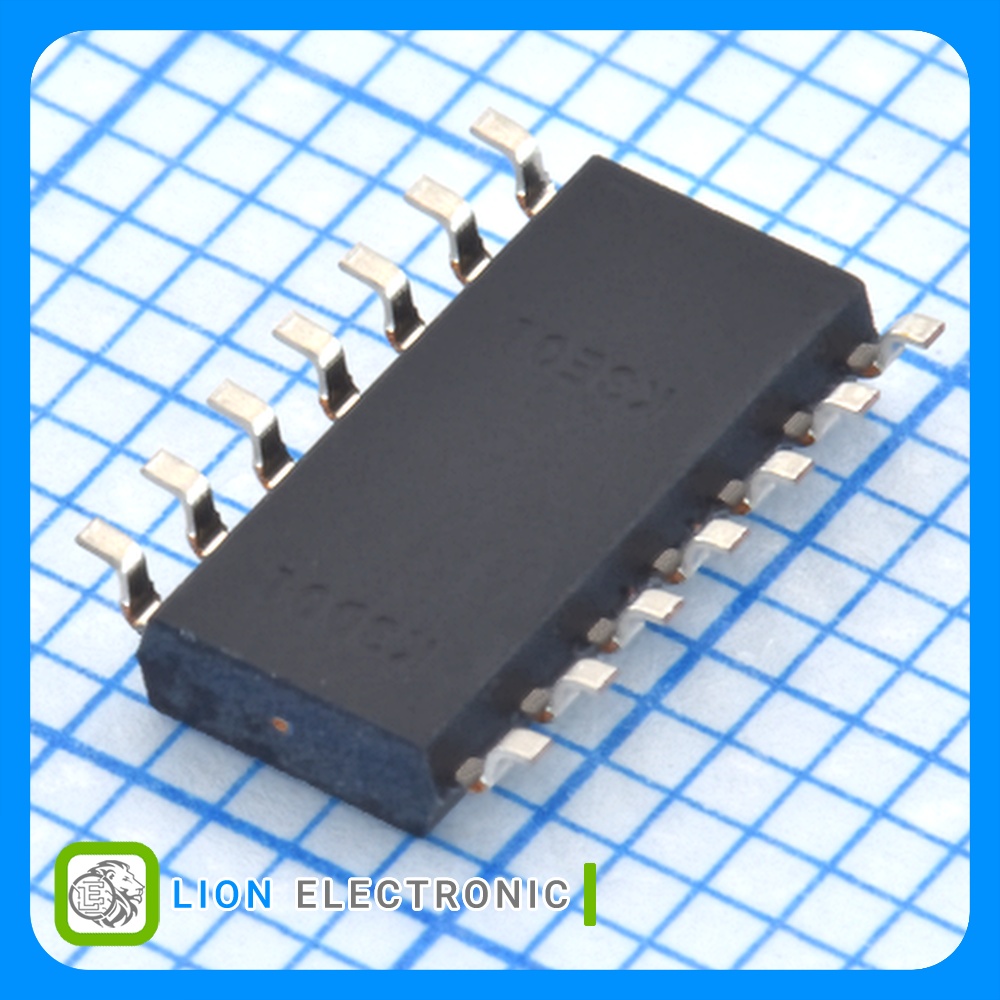

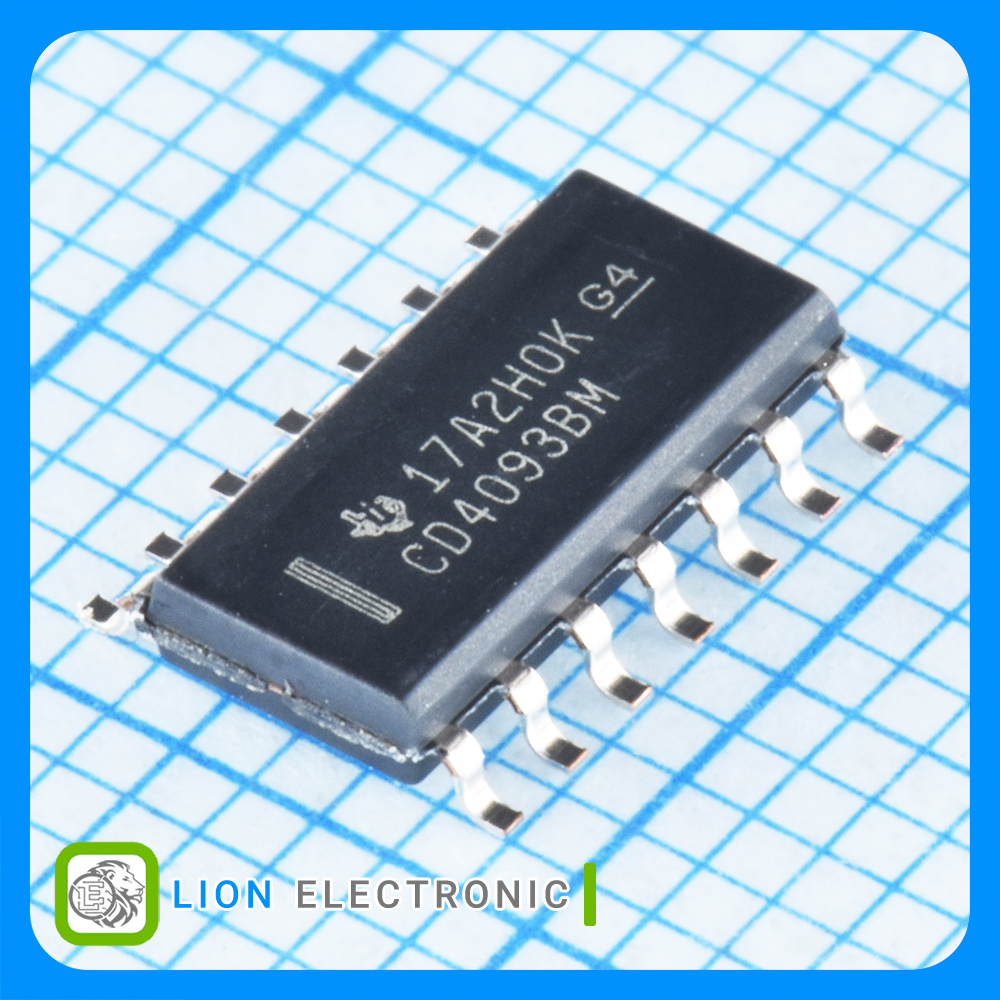

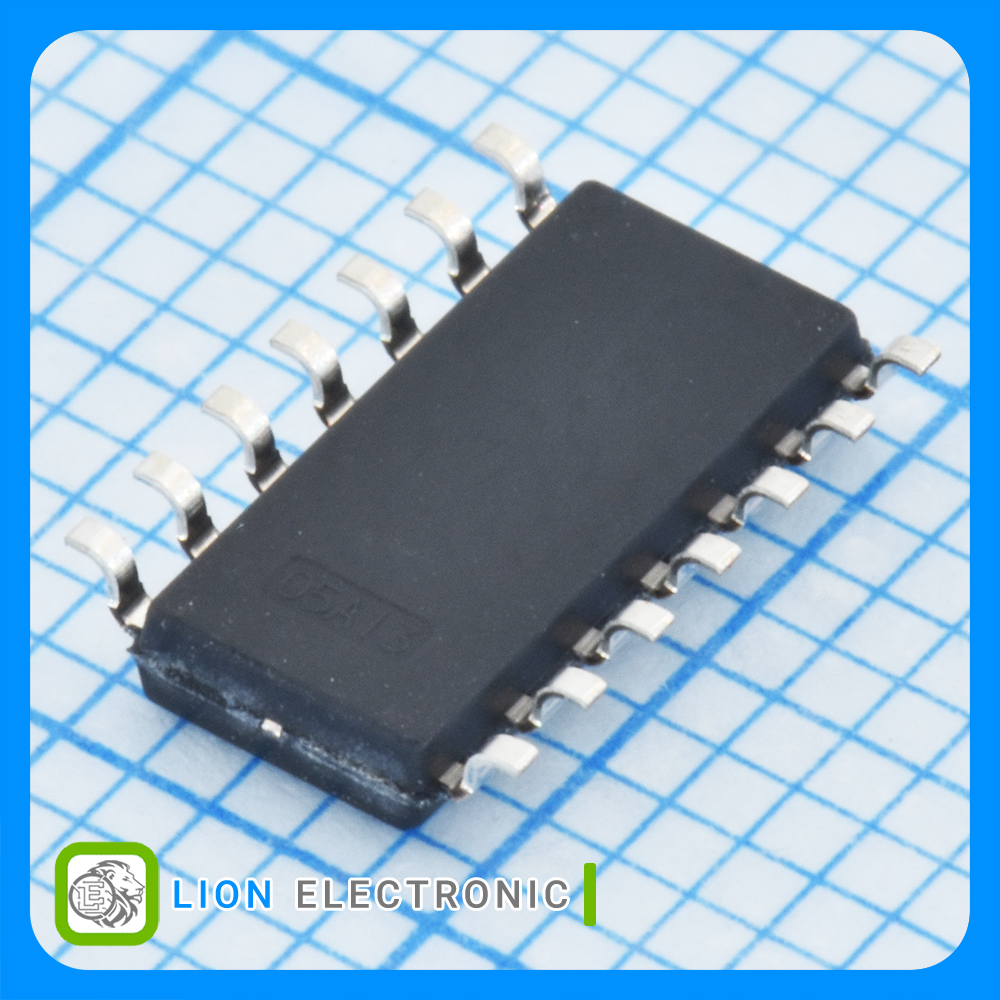

CD4093BM
CD4093BM
Part Number
2427
Lion Part
Datasheet
Texas Instruments Manufacture
آیسی لاجیک گیت NAND اشمیت تریگر چهارکاناله 2 ورودی با 2 ورودی ولتاژ 3 تا 18 ولت با پکیج SOIC-14
Logic IC CMOS Quad 2-Input NAND Schmitt Trigger, 4 Channel, 2 Input Lines, 3V - 18V Supply with SOIC-14 Package
معرفی
آیسی لاجیک گیت NAND اشمیت تریگر چهارکاناله 2 ورودی با 2 ورودی ولتاژ 3 تا 18 ولت با پکیج SOIC-14
Logic IC CMOS Quad 2-Input NAND Schmitt Trigger, 4 Channel, 2 Input Lines, 3V - 18V Supply with SOIC-14 Package
Specifications
- Logic Family: CD4000
- Logic Type: Quad 2 input NAND Gate
- Number of Input Lines: 2
- Number of Output Lines: 1
- Supply Voltage - Max: 18V
- Supply Voltage - Min: 3V
- Mounting Style: SMD/SMT
- Package/Case: SOIC-14
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات CD4093BM
CD4093BM
Part Number
1
Number of Output Lines
2
Number of Input Lines
-55C
Minimum Operating Temperature
Reel
Packaging
CD4000
Logic Family
Quad 2 input NAND Gate
Logic Type
SMD/SMT
Mounting Style
Schmitt Trigger
Input Type
+125C
Maximum Operating Temperature
380ns
Propagation Delay Time
3V
Supply Voltage - Min
18V
Supply Voltage - Max
Single-Function Gate
Product
SOIC-14
Package-Case
